Circular Saw

Model # 5480 Official Skil circular saw

Here are the diagrams and repair parts for Official Skil 5480 circular saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Skil Handle Set 1619X05552
#37

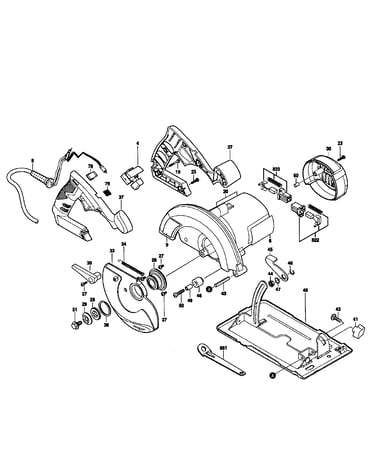

Circular saw diagram

Skil handle set

Part #1619X05552

The manufacturer no longer makes this part, and there's no substitute part

Circular Saw Blade Flange 1619X00660
#29

Circular saw diagram

Circular saw blade flange

Part #1619X00660

The manufacturer no longer makes this part, and there's no substitute part

Bearing Plate 1619X00657
#26

Circular saw diagram

Bearing plate

Part #1619X00657

The manufacturer no longer makes this part, and there's no substitute part

Spacer 1619X00682
#49

Circular saw diagram

Spacer

Part #1619X00682

The manufacturer no longer makes this part, and there's no substitute part

Screw 1619X01011
#23

Circular saw diagram

Screw

Part #1619X01011

The manufacturer no longer makes this part, and there's no substitute part

Rubber Plu 1619X00681
#48

Circular saw diagram

Rubber plu

Part #1619X00681

The manufacturer no longer makes this part, and there's no substitute part

Extension Spring 1619X04824
#34

Circular saw diagram

Extension spring

Part #1619X04824

The manufacturer no longer makes this part, and there's no substitute part

Clip 2610923854
#46

Circular saw diagram

Clip

Part #2610923854

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 1619X01014
#47

Circular saw diagram

Spring washer

Part #1619X01014

The manufacturer no longer makes this part, and there's no substitute part

Skil Power Cord 1619X06054
#5

Circular saw diagram

Skil power cord

Part #1619X06054

The manufacturer no longer makes this part, and there's no substitute part
