Model # 38CKC048 SERIES300 Official Carrier condensing unit

Here are the diagrams and repair parts for Official Carrier 38CKC048-SERIES300 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Contactor HN51KC024
#17

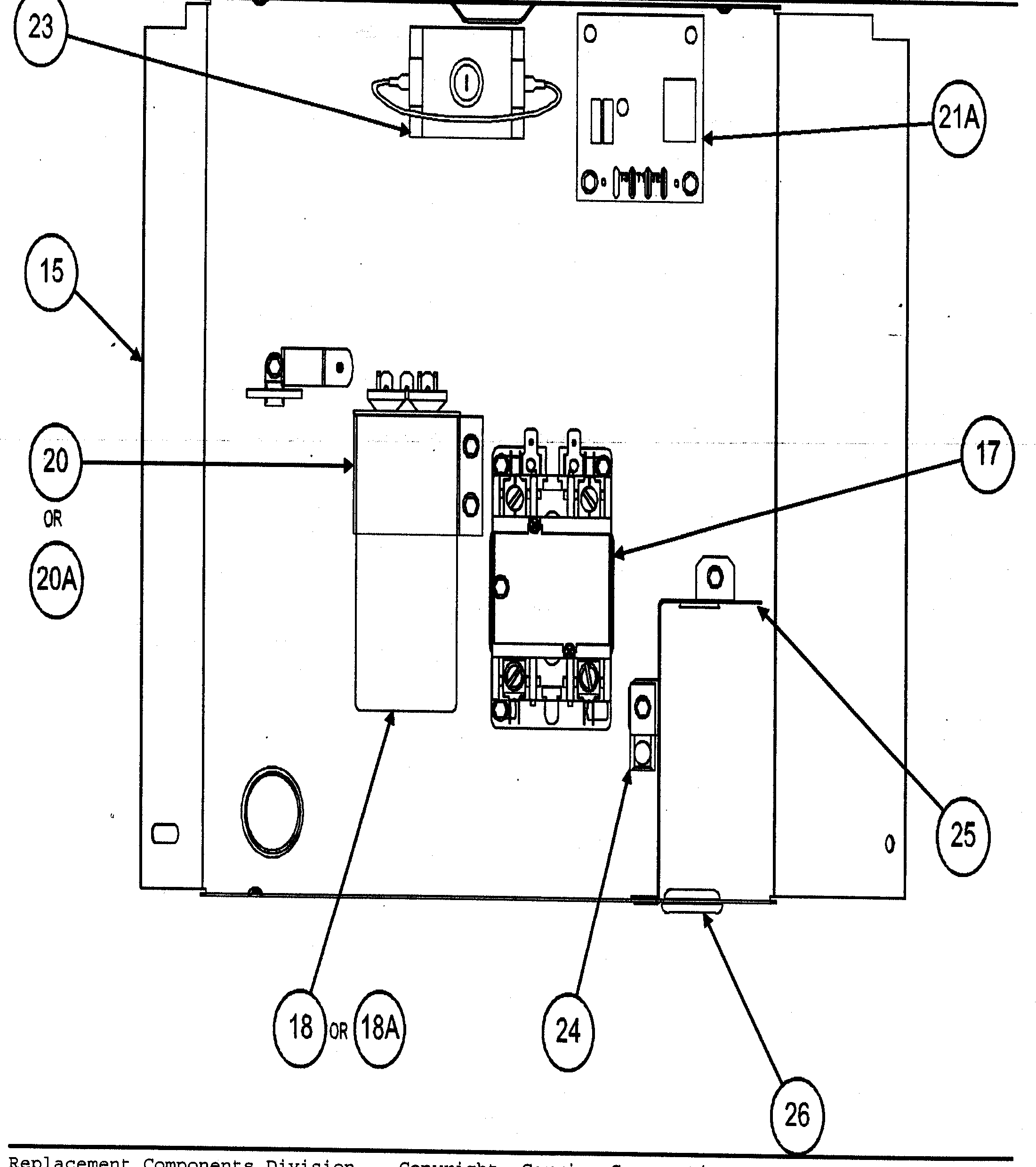

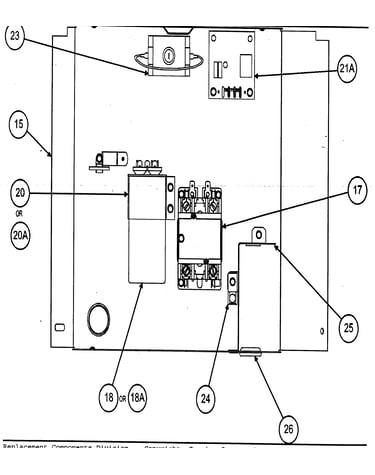

Control box diagram

Contactor

Part #HN51KC024

The manufacturer no longer makes this part, and there's no substitute part

Strap Cap 317739-303
#20

Control box diagram

Strap cap

Part #317739-303

$9.20
In Stock
Grommet P041-5103
#10

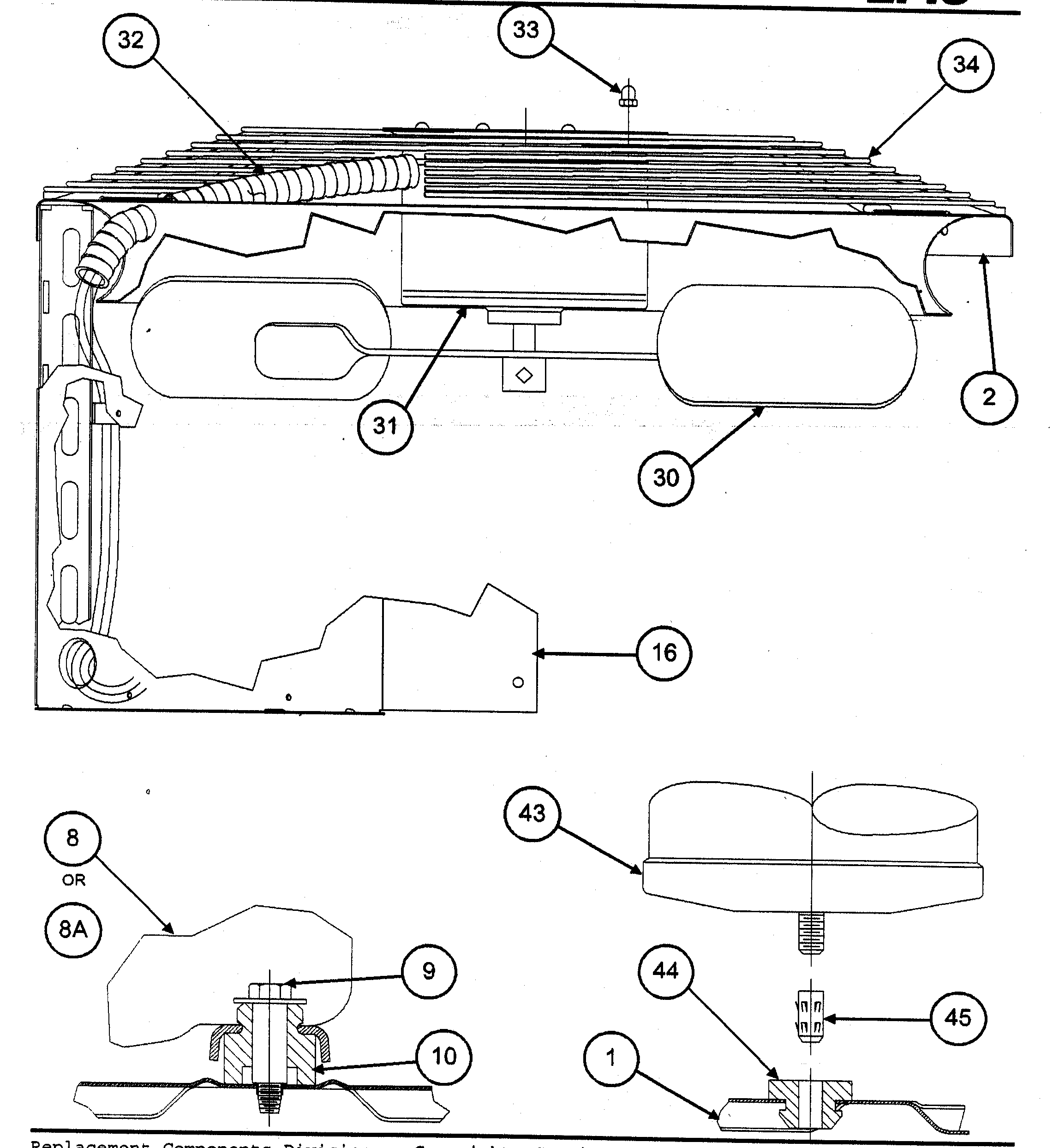

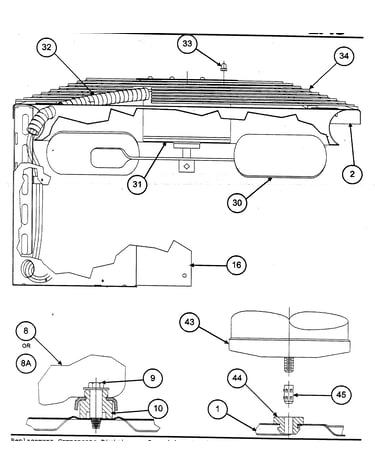

Fan blade diagram

Grommet

Part #P041-5103

$12.60
In Stock
Carrier Cond. Coil 322337-7005
#35

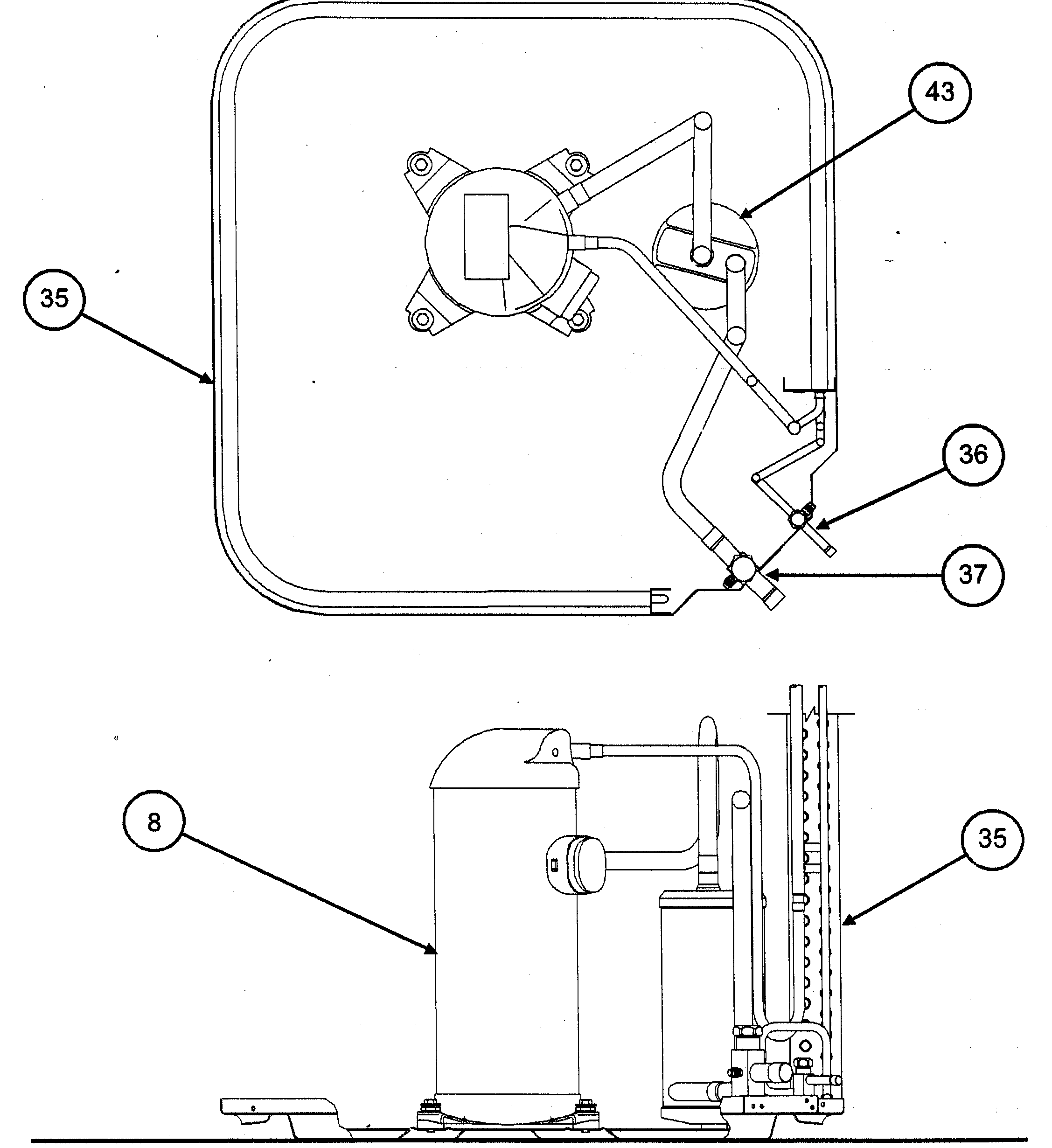

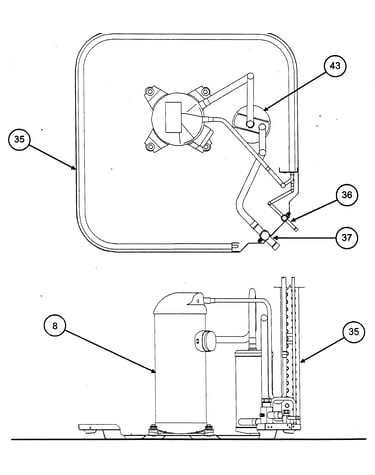

Compressor/condenser coil diagram

Carrier cond. coil

Part #322337-7005

$2584.60
In Stock
Central Air Conditioner Accumulator KH71KJ141
#43

Fan blade diagram

Central air conditioner accumulator

Part #KH71KJ141

$175.46
In Stock
Central Air Conditioner Condenser Fan Motor (replaces Hc35sl231, Hc39ge232, Hc39ge236) HC39GE237
#31

Fan blade diagram

Central air conditioner condenser fan motor (replaces hc35sl231, hc39ge232, hc39ge236)

Part #HC39GE237

$360.93 |
$12.00 OFF Phone Price : $372.93
In Stock
Valve EC39DM061
#NI

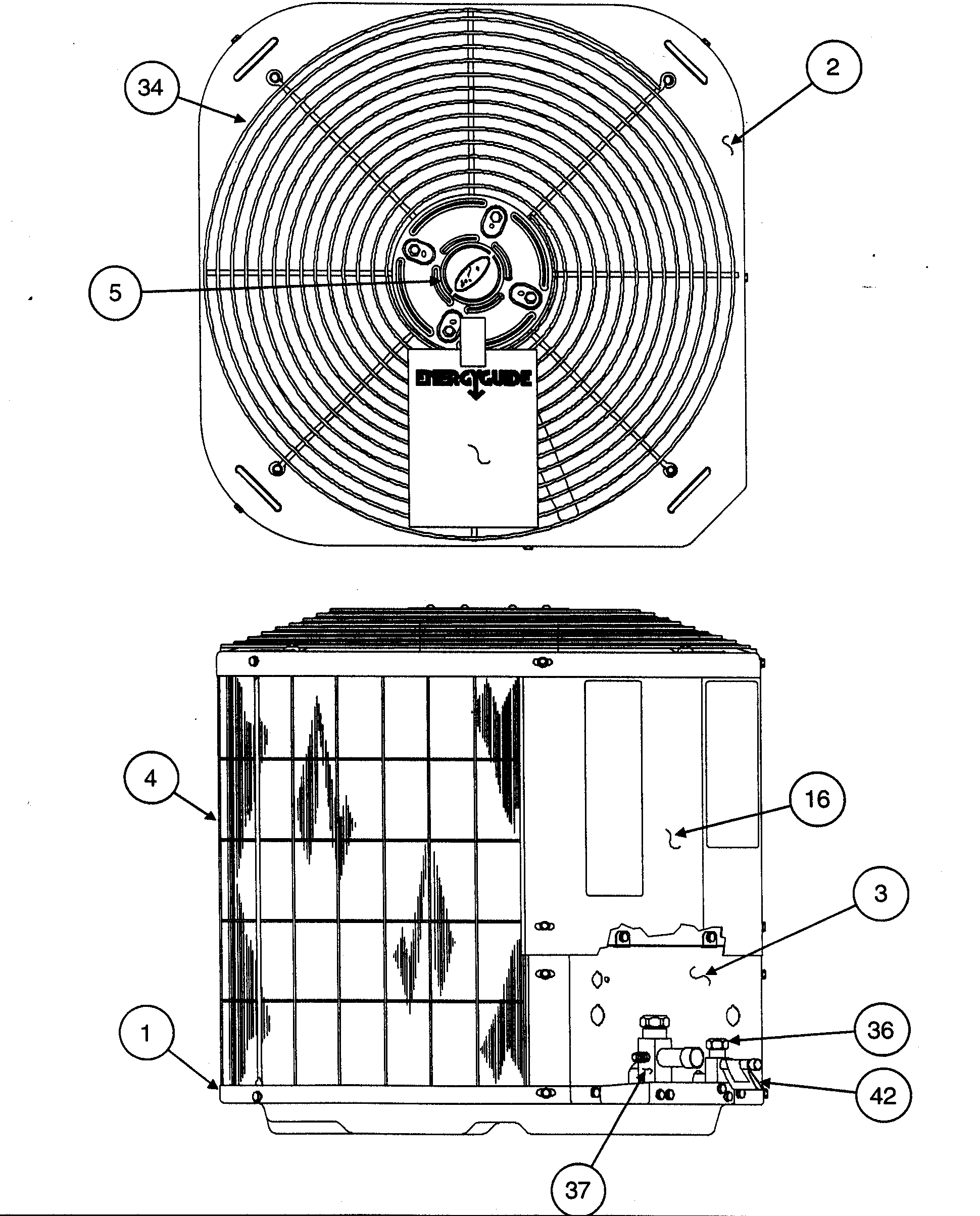

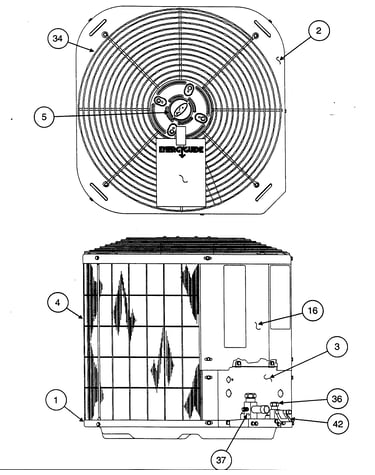

Outlet grille/top cover diagram

Valve

Part #EC39DM061

This item is not returnable
$5.66
In Stock
Payne Carrier Hard Start Kit KSAHS1601AAA
#NI

Outlet grille/top cover diagram

Payne carrier hard start kit

Part #KSAHS1601AAA

$396.67
In Stock
Serv Panel 317405-704138
#3

Outlet grille/top cover diagram

Serv panel

Part #317405-704138

$16.20
In Stock
Filter Drier P502-8163S
#NI

Outlet grille/top cover diagram

Filter drier

Part #P502-8163S

$59.67
In Stock
