Tappan
Gas Wall Oven

Model # 12-4980-00-05 Official Tappan gas wall oven - 5995234589

Here are the diagrams and repair parts for Official Tappan 12-4980-00-05 gas wall oven - 5995234589, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

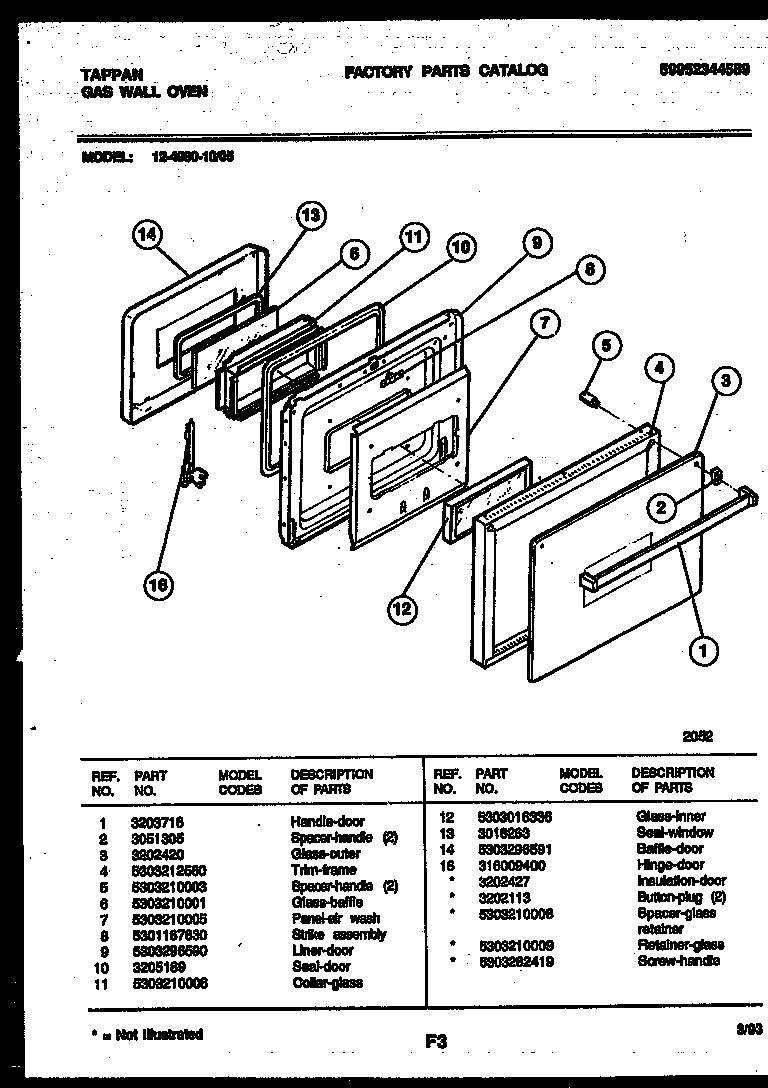

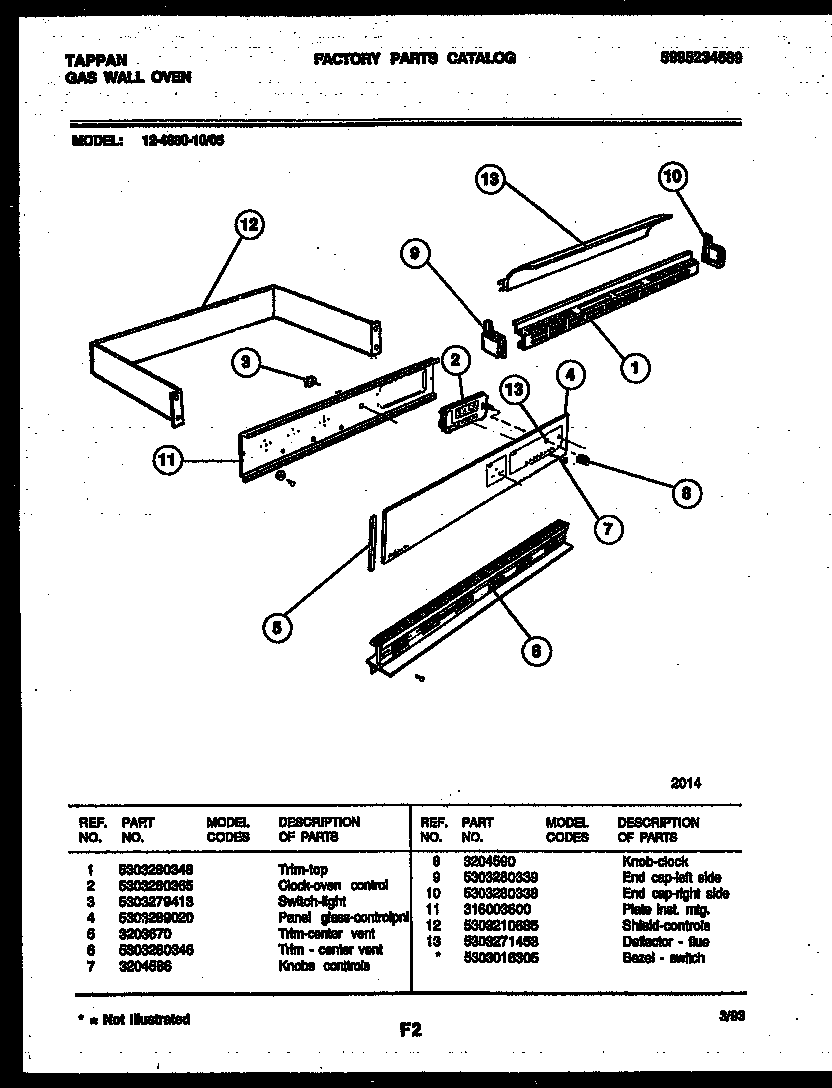

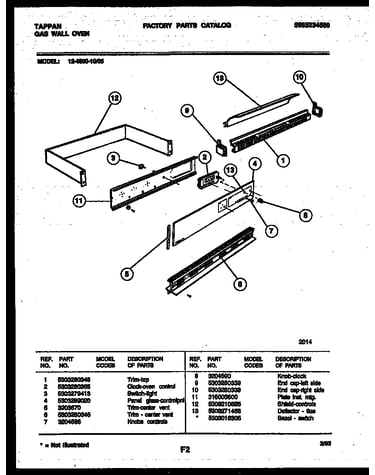

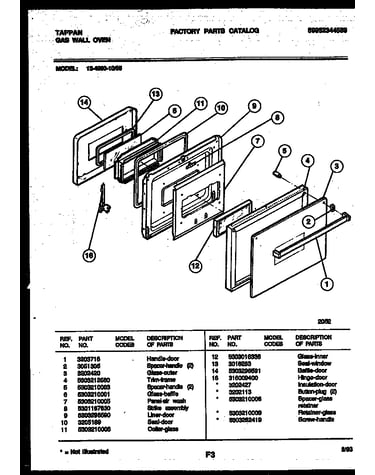

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Igniter 5303210788
#7

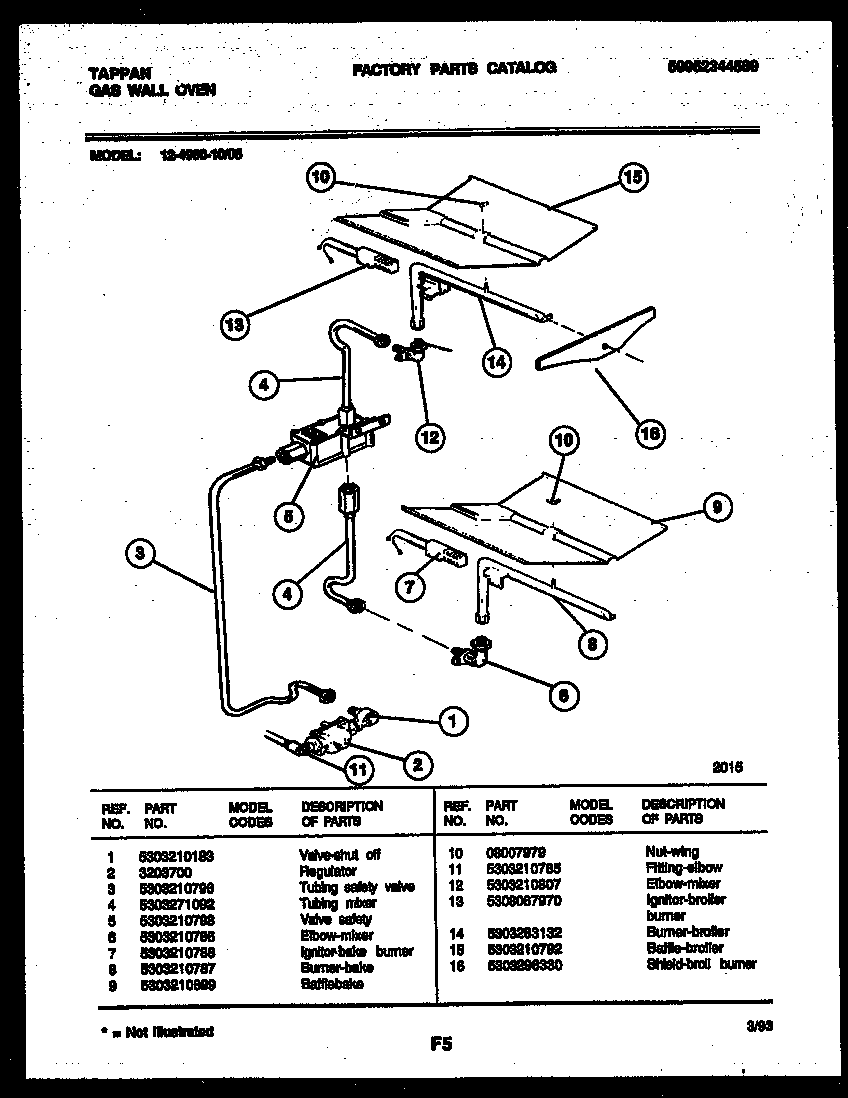

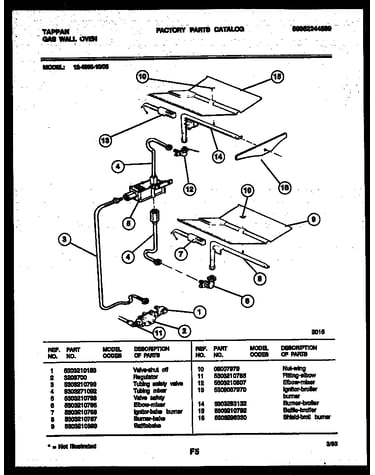

Burner and gas control diagram

Igniter

Part #5303210788

Replaced by #5303935066

?
Manufacturer substitution
This part replaces 5303210788. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Bulb 3201908
#7

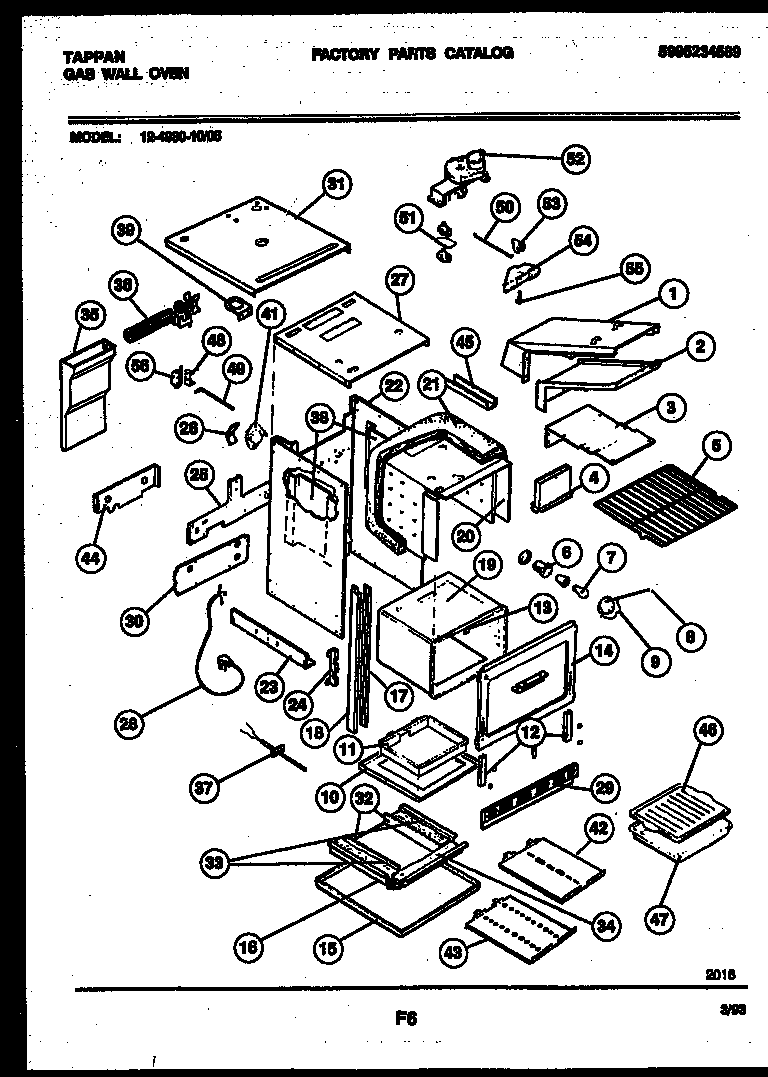

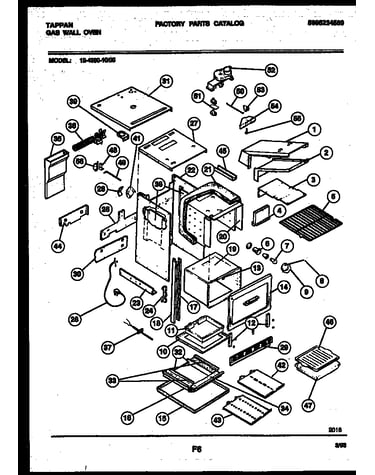

Body parts diagram

Bulb

Part #3201908

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3201908. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Cover 3201911
#8

Body parts diagram

Cover

Part #3201911

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 3201911. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Wall Oven Gas Valve (replaces 75303210798) 5303210798
#5

Burner and gas control diagram

Wall oven gas valve (replaces 75303210798)

Part #5303210798

BEST SELLER
$376.67 |
$12.00 OFF Phone Price : $388.67
In Stock
Igniter 5308067970
#13

Burner and gas control diagram

Igniter

Part #5308067970

Replaced by #5303935068

?
Manufacturer substitution
This part replaces 5308067970. Substitute parts can look different from the original.
$91.37 |
6% OFF Phone Price : $97.37
In Stock
Insert Broil 5303293415
#46

Body parts diagram

Insert broil

Part #5303293415

Replaced by #5304442087

?
Manufacturer substitution
This part replaces 5303293415. Substitute parts can look different from the original.
$77.99 |
7% OFF Phone Price : $83.99
In Stock
Oven Broiler Pan 5303293416
#47

Body parts diagram

Oven broiler pan

Part #5303293416

Replaced by #5304442087

?
Manufacturer substitution
This part replaces 5303293416. Substitute parts can look different from the original.
$77.99 |
7% OFF Phone Price : $83.99
In Stock
Range Bake Burner 5303210787
#8

Burner and gas control diagram

Range bake burner

Part #5303210787

$156.53 |
7% OFF Phone Price : $168.53
In Stock
White-westinghouse Shield 3203686
#3

Body parts diagram

White-westinghouse shield

Part #3203686

$10.99
In Stock
White-westinghouse Range Storage Drawer Support Track 3203722
#9

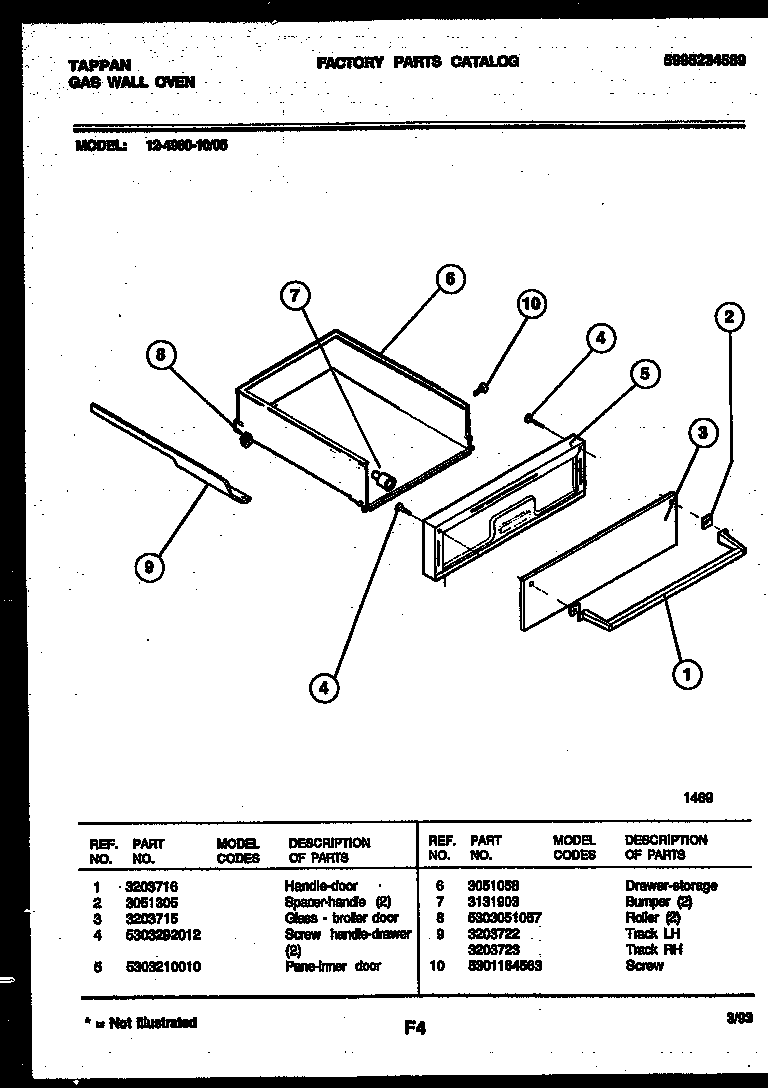

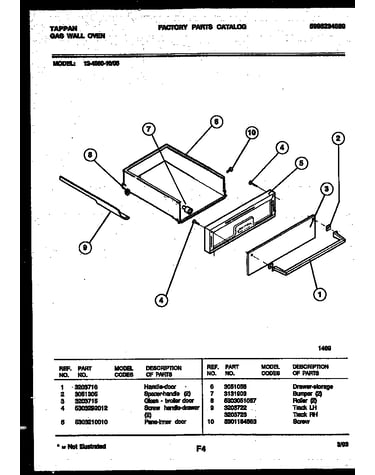

Drawer parts diagram

White-westinghouse range storage drawer support track

Part #3203722

$87.64
In Stock
