Model # 143384512 Official Craftsman engine

Here are the diagrams and repair parts for Official Craftsman 143384512 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 132 parts  |
Troybilt Lawn & Garden Equipment Engine Air Filter 35066
#83

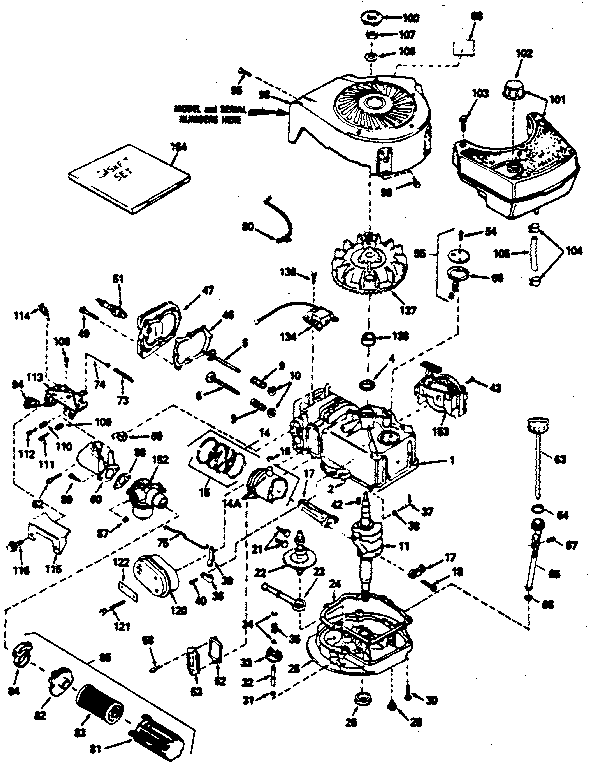

Basic engine diagram

Troybilt lawn & garden equipment engine air filter

Part #35066

BEST SELLER
This item is not returnable
$4.79 |
17% OFF Phone Price : $5.79
In Stock
Needle Seat 631021
#12

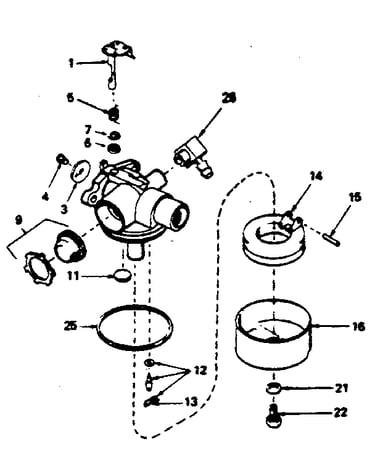

Carburetor no. 6323889 diagram

Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.79 |
9% OFF Phone Price : $10.79
In Stock
Lawn & Garden Equipment Engine Recoil Starter Rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032) 590535
#6

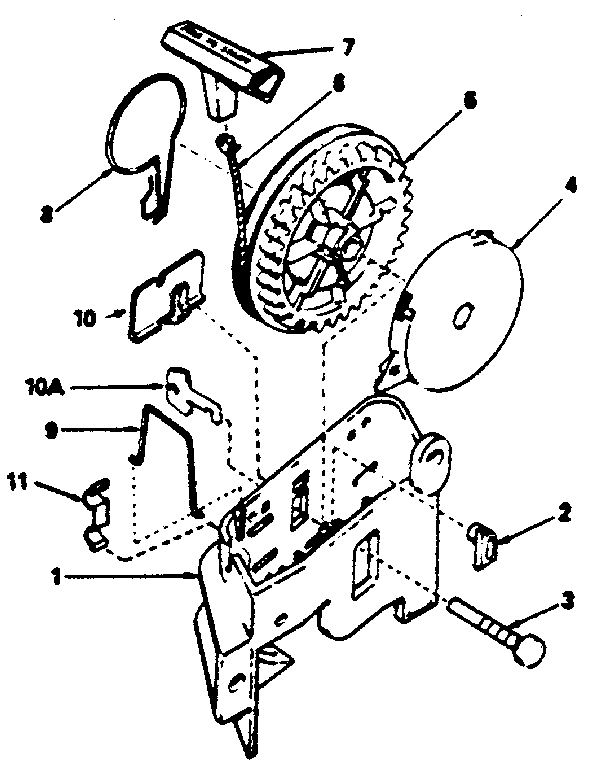

Rewind starter no. 590531 diagram

Lawn & garden equipment engine recoil starter rope, 98-in (replaces 1258, 28288, 28358, 28528, 30971, 31285, 31395, 31396, 31696, 590451a, 590456, 590527, 730608, 740032)

Part #590535

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#104

Basic engine diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Tecumseh Lawn & Garden Equipment Engine Air Filter Cover (replaces 35986, B35065) 35065
#81

Basic engine diagram

Tecumseh lawn & garden equipment engine air filter cover (replaces 35986, b35065)

Part #35065

BEST SELLER
This item is not returnable
$9.69 |
9% OFF Phone Price : $10.69
In Stock
Carburetor 632389
Carburetor

Part #632389

Replaced by #632795A

?
Manufacturer substitution
This part replaces 632389. Substitute parts can look different from the original.
BEST SELLER
$76.26 |
7% OFF Phone Price : $82.26
In Stock
Lawn & Garden Equipment Engine Fuel Tank Cap 35355
#102

Basic engine diagram

Lawn & garden equipment engine fuel tank cap

Part #35355

Replaced by #37845

?
Manufacturer substitution
This part replaces 35355. Substitute parts can look different from the original.
BEST SELLER
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Troybilt Lawn & Garden Equipment Engine Flywheel Key (replaces 02-403) 611004
#42

Basic engine diagram

Troybilt lawn & garden equipment engine flywheel key (replaces 02-403)

Part #611004

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Generac Lawn & Garden Equipment Engine Stop Wire Terminal 610973
#114

Basic engine diagram

Generac lawn & garden equipment engine stop wire terminal

Part #610973

This item is not returnable
$4.11 |
20% OFF Phone Price : $5.11
In Stock
Drain Plug 27244
#28

Basic engine diagram

Drain plug

Part #27244

Replaced by #36083

?
Manufacturer substitution
This part replaces 27244. Substitute parts can look different from the original.
This item is not returnable
$7.89 |
11% OFF Phone Price : $8.89
In Stock
