Electrolux
Dishwasher

Model # EWDW6505GB1C Official Electrolux dishwasher

Here are the diagrams and repair parts for Official Electrolux EWDW6505GB1C dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

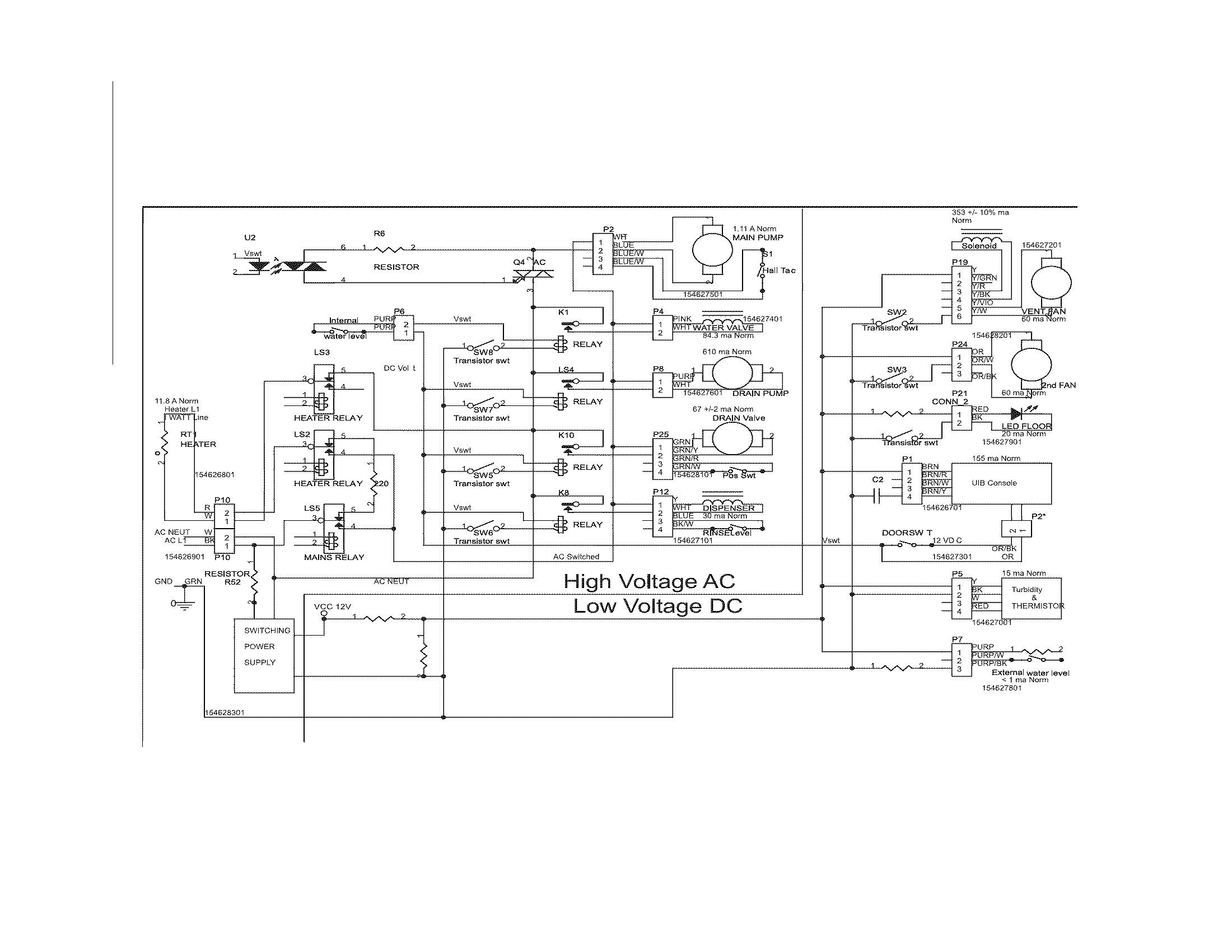

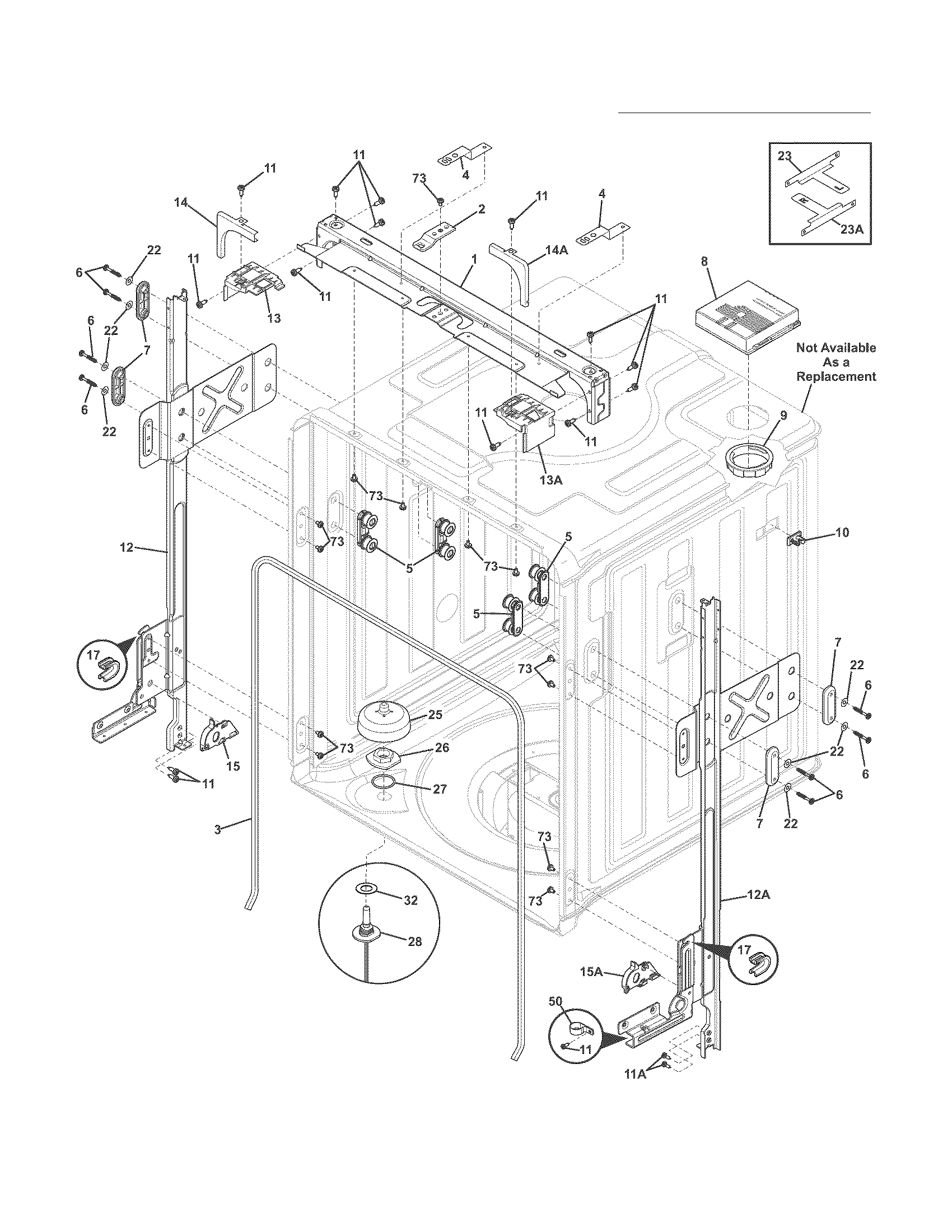

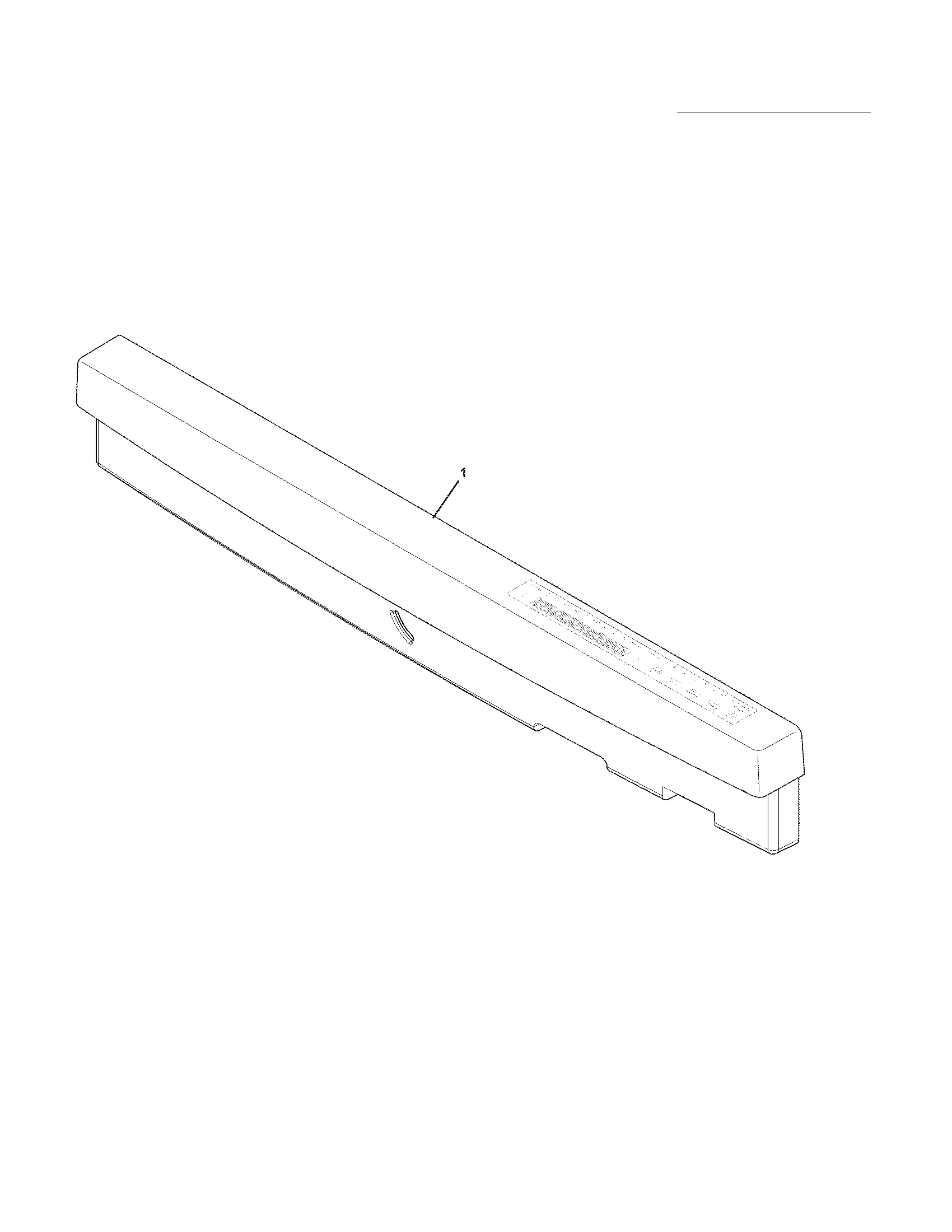

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 209 parts  |
Dishwasher Dishrack Roller Assembly, Lower Rear 154689501
#7A

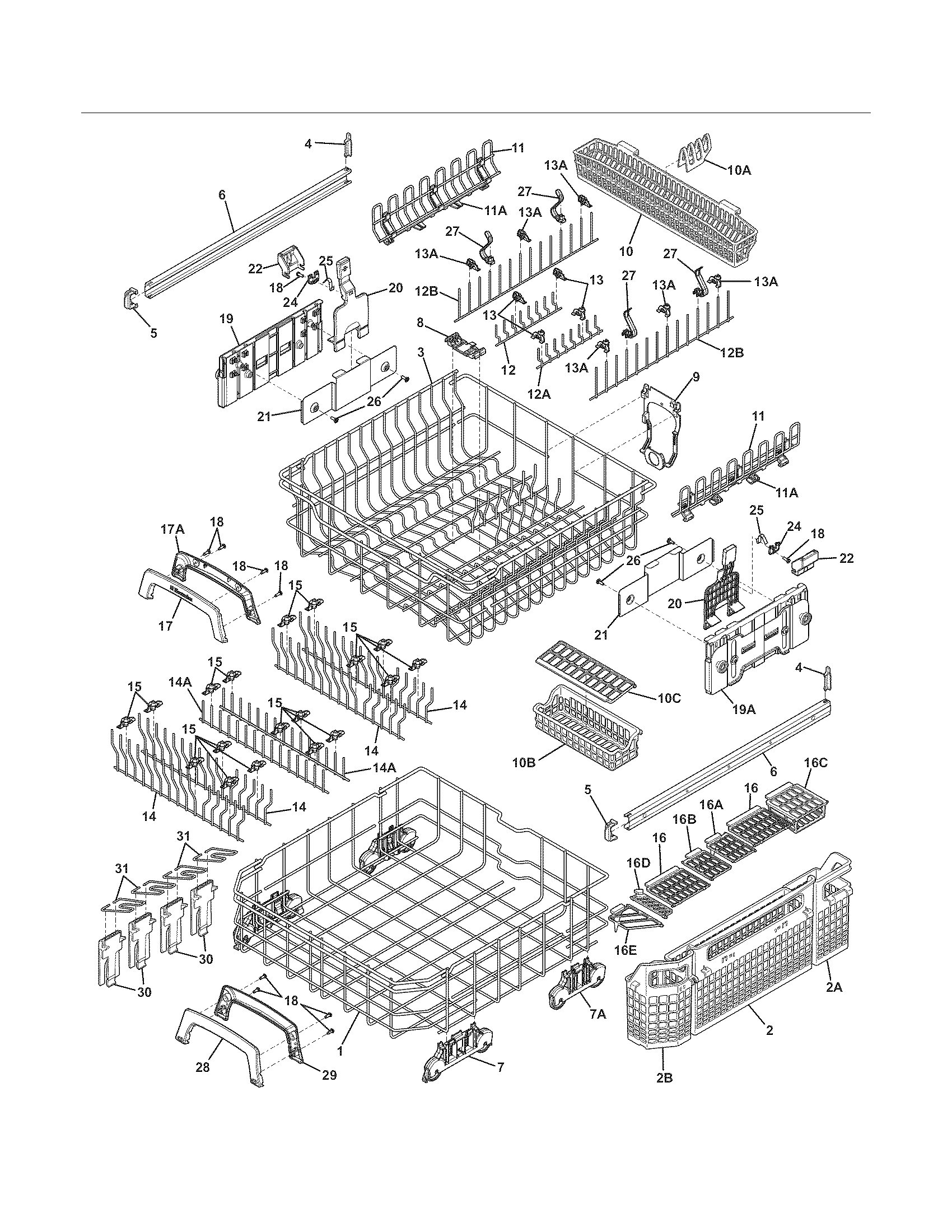

Racks diagram

Dishwasher dishrack roller assembly, lower rear

Part #154689501

$38.69 |
13% OFF Phone Price : $44.69
In Stock
Dishwasher Detergent Dispenser Assembly 154574405
#9

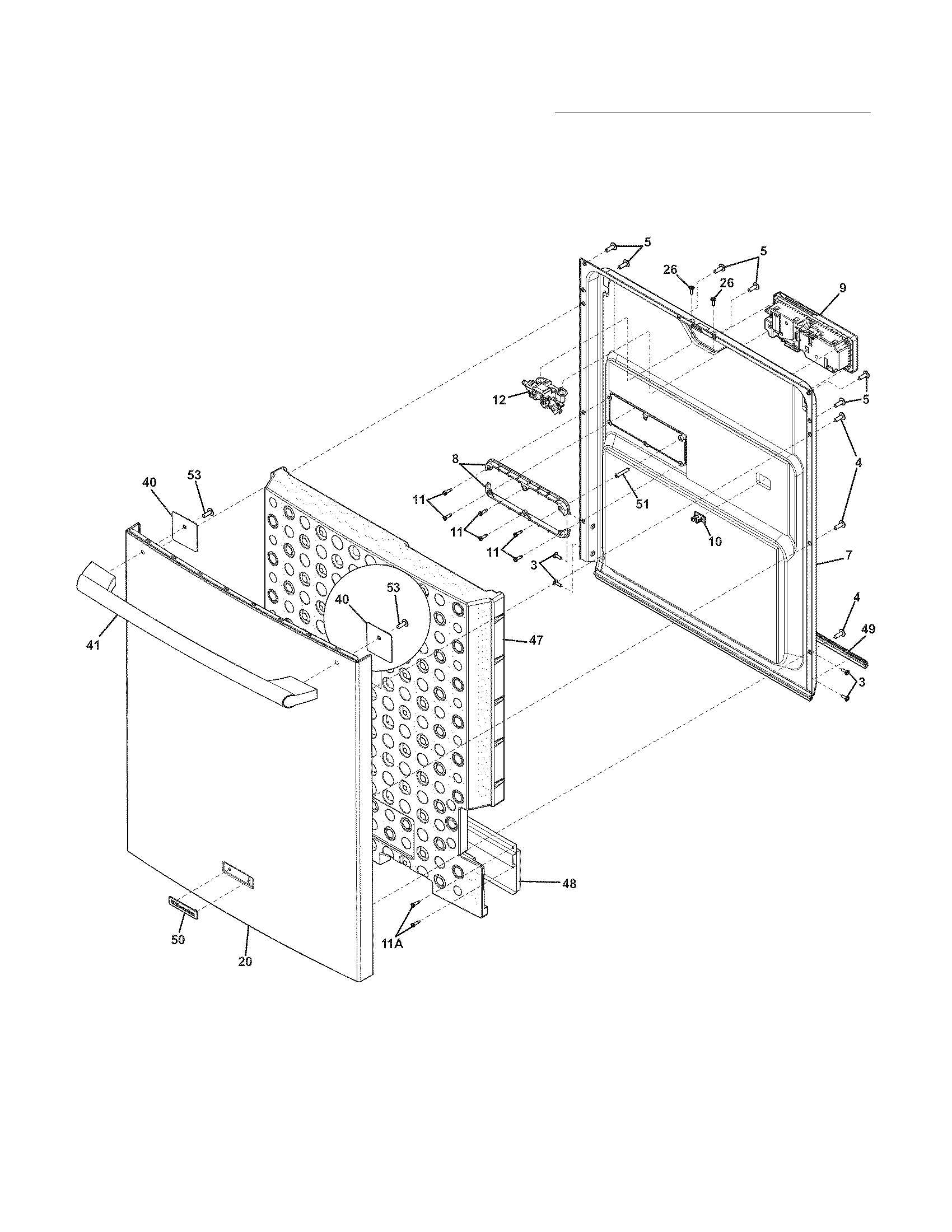

Door diagram

Dishwasher detergent dispenser assembly

Part #154574405

Replaced by #5304507354

?
Manufacturer substitution
This part replaces 154574405. Substitute parts can look different from the original.
BEST SELLER
$60.36 |
9% OFF Phone Price : $66.36
In Stock
Dishwasher Pump And Motor Assembly (replaces 154614001, 7154614002) 154614002
#70

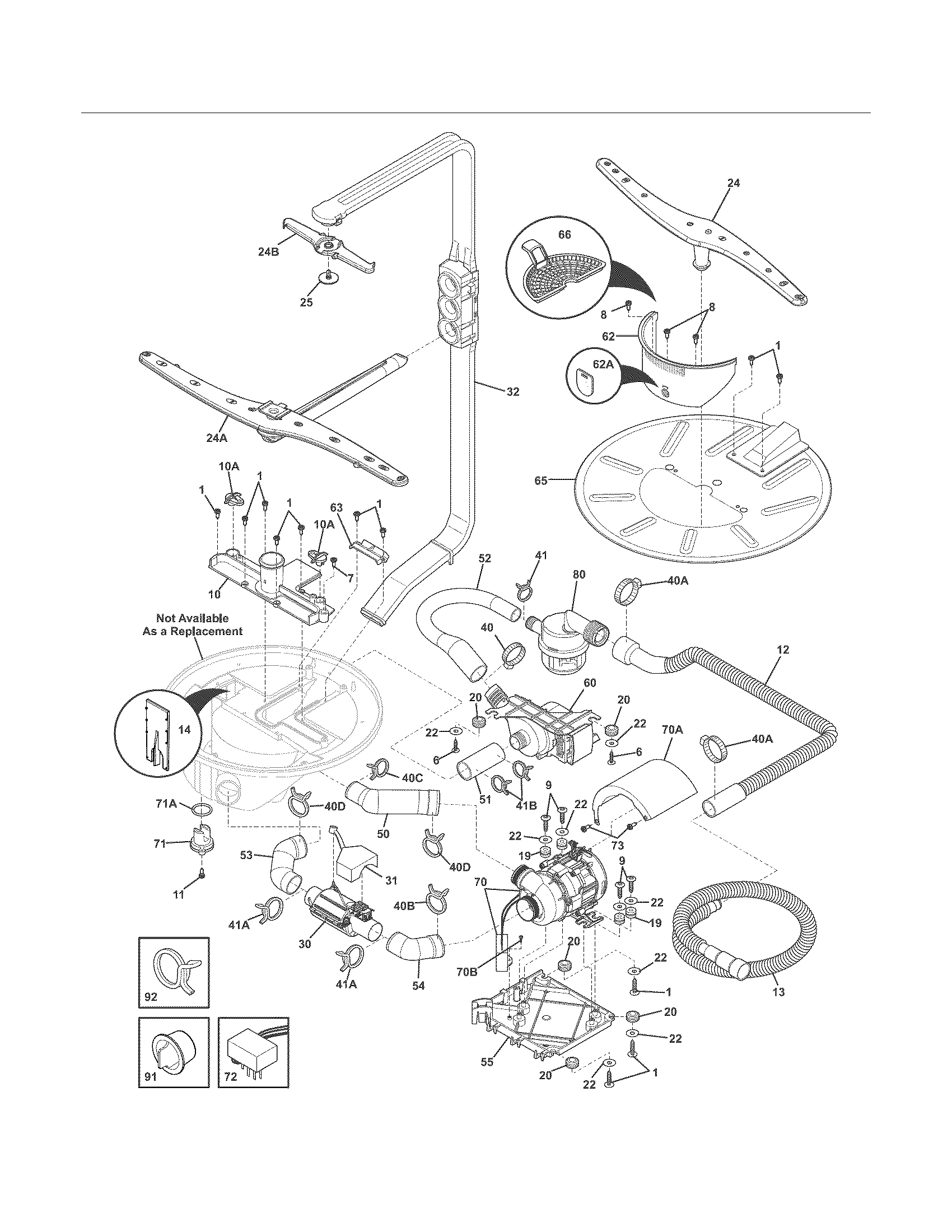

Motor & pump diagram

Dishwasher pump and motor assembly (replaces 154614001, 7154614002)

Part #154614002

$148.51 |
7% OFF Phone Price : $160.51
In Stock
Screw 154625701
#9

Motor & pump diagram

Screw

Part #154625701

Replaced by #5304453707

?
Manufacturer substitution
This part replaces 154625701. Substitute parts can look different from the original.
$14.69
In Stock
Dishwasher Dishrack Roller Assembly, Lower Front 154671301
#7

Racks diagram

Dishwasher dishrack roller assembly, lower front

Part #154671301

$37.44 |
14% OFF Phone Price : $43.44
In Stock
Dishwasher Drain Pump (replaces 154618701, 7154618701, 7154757901) 154757901
#60

Motor & pump diagram

Dishwasher drain pump (replaces 154618701, 7154618701, 7154757901)

Part #154757901

$97.44
In Stock
Dishwasher Drain Valve 154622001
#80

Motor & pump diagram

Dishwasher drain valve

Part #154622001

$126.40
In Stock
Dishwasher Screw 154783101
#8

Motor & pump diagram

Dishwasher screw

Part #154783101

This item is not returnable
$6.97
In Stock
Dishwasher Inline Water Heater (replaces 7154503701) 154503701
#30

Motor & pump diagram

Dishwasher inline water heater (replaces 7154503701)

Part #154503701

$52.49 |
10% OFF Phone Price : $58.49
In Stock
Dishwasher Screw 154294701
#6

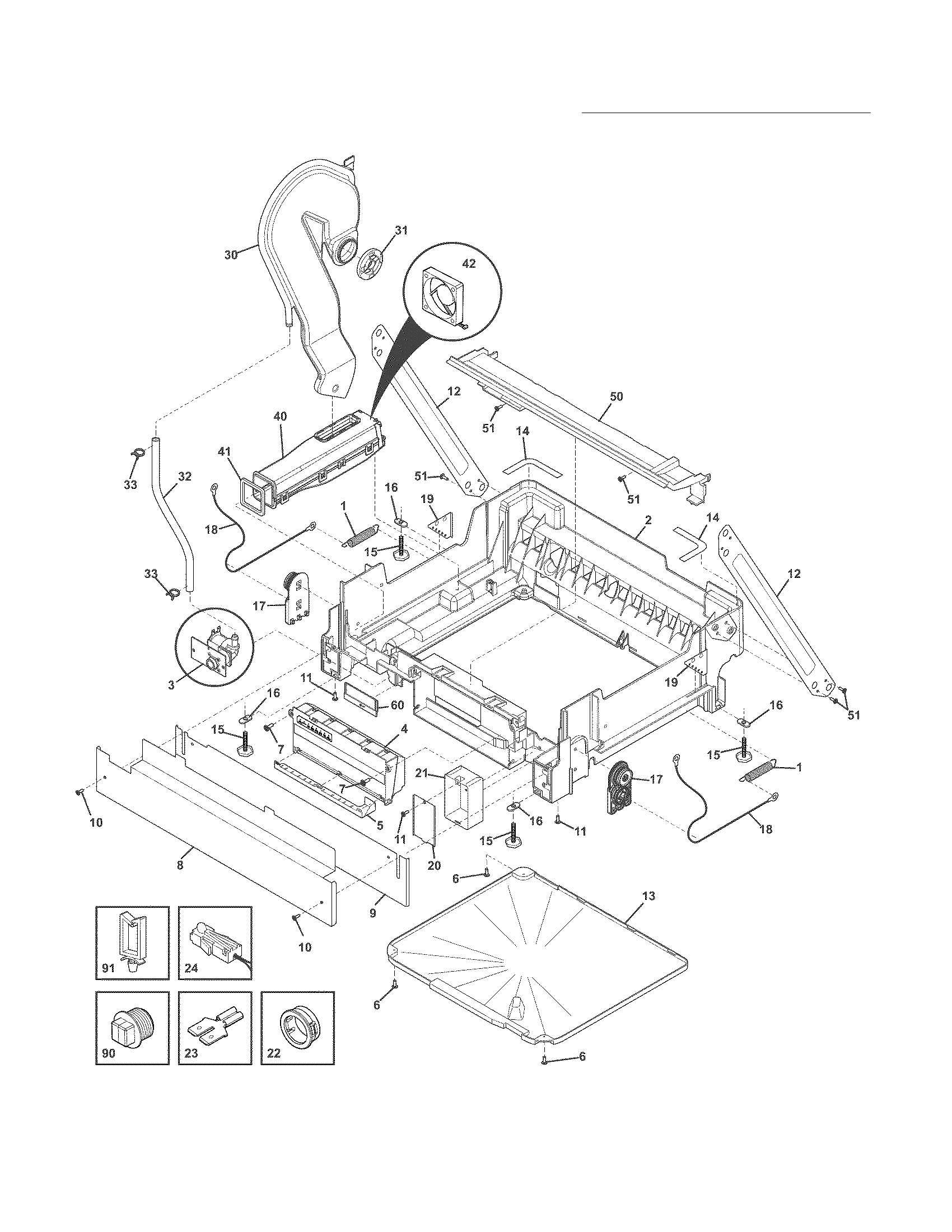

Lower frame diagram

Dishwasher screw

Part #154294701

$9.06
In Stock
