Coffee Maker

Model # 66367971 Official Kenmore percolator

Here are the diagrams and repair parts for Official Kenmore 66367971 percolator, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
66367971 Percolator
Screw 64181
#28

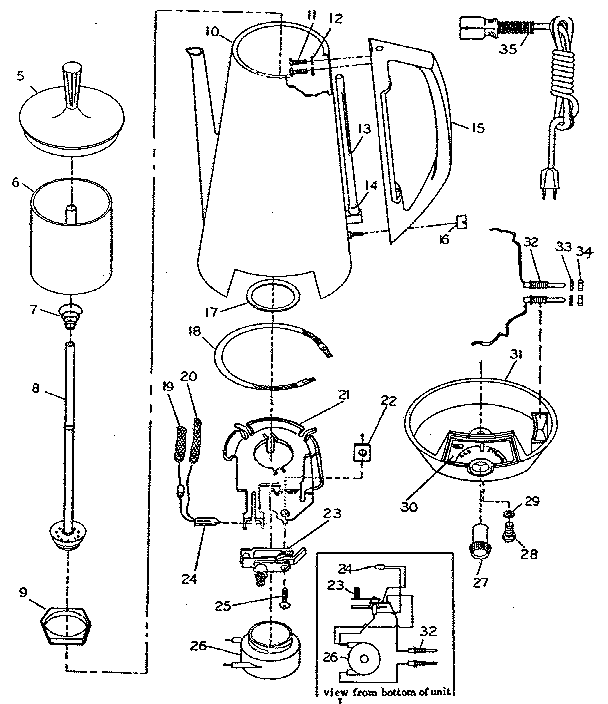

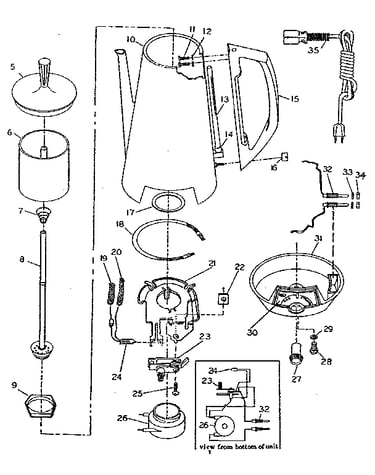

Replacement parts diagram

Screw

Part #64181

The manufacturer no longer makes this part, and there's no substitute part

Washer 85974
#12

Replacement parts diagram

Washer

Part #85974

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 202681
#30

Replacement parts diagram

Nameplate

Part #202681

The manufacturer no longer makes this part, and there's no substitute part

Nut 64184
#9

Replacement parts diagram

Nut

Part #64184

The manufacturer no longer makes this part, and there's no substitute part

Base Assembly 68392
#31

Replacement parts diagram

Base assembly

Part #68392

The manufacturer no longer makes this part, and there's no substitute part

Lamp Assembly 85835
#24

Replacement parts diagram

Lamp assembly

Part #85835

The manufacturer no longer makes this part, and there's no substitute part

Gasket 85812
#17

Replacement parts diagram

Gasket

Part #85812

The manufacturer no longer makes this part, and there's no substitute part

Nut 5593
#34

Replacement parts diagram

Nut

Part #5593

The manufacturer no longer makes this part, and there's no substitute part

Screw 202678
#25

Replacement parts diagram

Screw

Part #202678

The manufacturer no longer makes this part, and there's no substitute part

Nut 89009
#22

Replacement parts diagram

Nut

Part #89009

The manufacturer no longer makes this part, and there's no substitute part
