Porter Cable
Reciprocating Saw

Model # 647 Official Porter Cable tiger reciprocating saw

Here are the diagrams and repair parts for Official Porter Cable 647 tiger reciprocating saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Guide Pin 800835
#40F

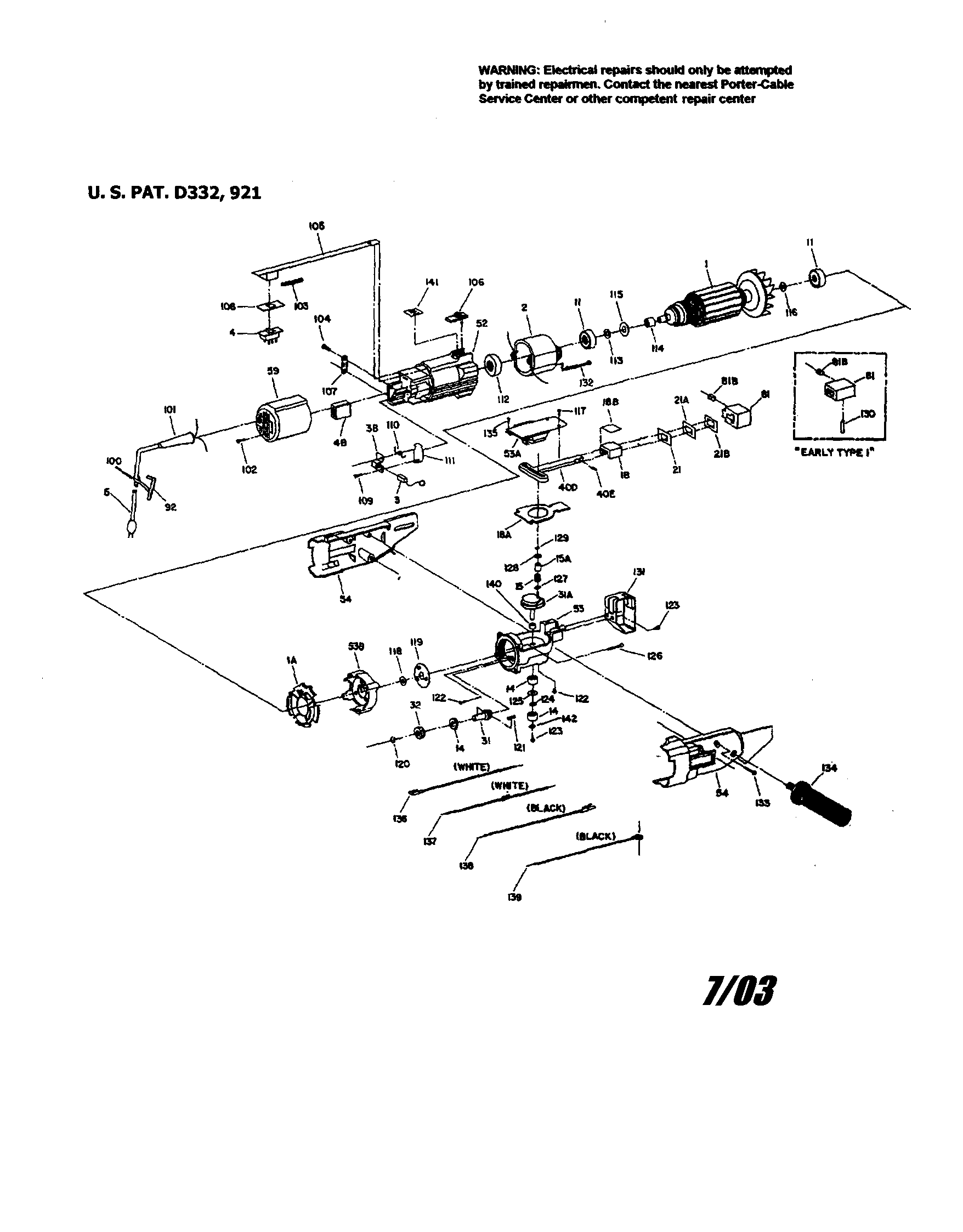

All purpose saw diagram

Guide pin

Part #800835

The manufacturer no longer makes this part, and there's no substitute part

Snap Ring 847564
#116

All purpose saw diagram

Snap ring

Part #847564

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 693991
#129

All purpose saw diagram

Retaining ring

Part #693991

The manufacturer no longer makes this part, and there's no substitute part

Screw 695185
#132

All purpose saw diagram

Screw

Part #695185

The manufacturer no longer makes this part, and there's no substitute part

Key 698202
#121

All purpose saw diagram

Key

Part #698202

The manufacturer no longer makes this part, and there's no substitute part

Porter Cable Gear Hsg. Cover 698162
#53A

All purpose saw diagram

Porter cable gear hsg. cover

Part #698162

The manufacturer no longer makes this part, and there's no substitute part

Insulator 698394
#114

All purpose saw diagram

Insulator

Part #698394

The manufacturer no longer makes this part, and there's no substitute part

Ring 698165
#120A

All purpose saw diagram

Ring

Part #698165

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Motor Brush 690741
#3

All purpose saw diagram

Power tool motor brush

Part #690741

The manufacturer no longer makes this part, and there's no substitute part

Roller 858779
#15

All purpose saw diagram

Roller

Part #858779

The manufacturer no longer makes this part, and there's no substitute part
