Frigidaire
Top-Mount Refrigerator

Model # FRT24TGCW0 Official Frigidaire top-mount refrigerator - 5995264230

Here are the diagrams and repair parts for Official Frigidaire FRT24TGCW0 top-mount refrigerator - 5995264230, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

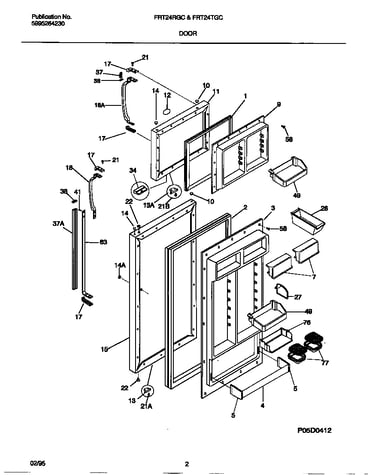

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 306 parts  |
Molo Body 3206327
#17

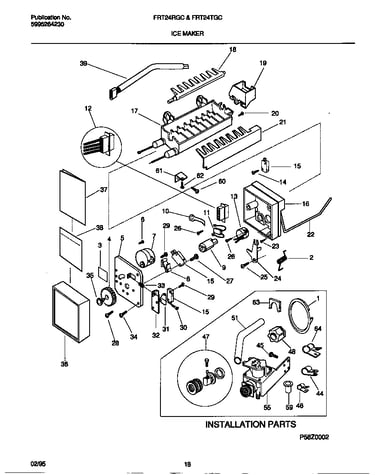

Ice maker diagram

Molo body

Part #3206327

Replaced by #241798231

?
Manufacturer substitution
This part replaces 3206327. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Filter 5308000027
#4

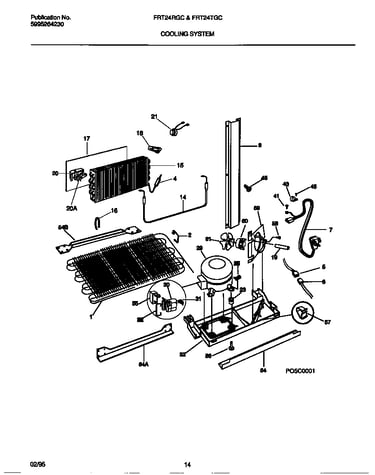

Cooling system diagram

Filter

Part #5308000027

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 5308000027. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Appliance Light Bulb, 40-watt 5303001179
#15

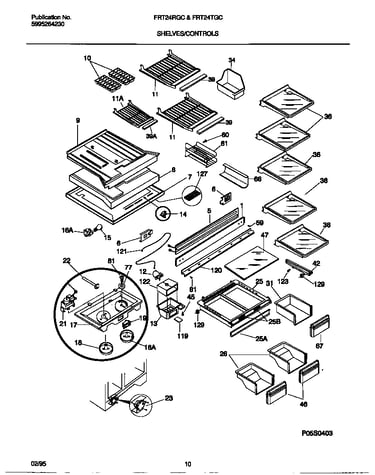

Shelves & controls diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Solenoid Valve 5303289068

#55A

All parts diagram

Solenoid valve

Part #5303289068

Replaced by #242252603

?
Manufacturer substitution
This part replaces 5303289068. Substitute parts can look different from the original.
BEST SELLER
$51.04 |
11% OFF Phone Price : $57.04
In Stock
Capacitor 216236200
#55

Cooling system diagram

Capacitor

Part #216236200

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 216236200. Substitute parts can look different from the original.
BEST SELLER
$47.29 |
11% OFF Phone Price : $53.29
In Stock
Refrigerator Thermostat 5316269001
#21

Cooling system diagram

Refrigerator thermostat

Part #5316269001

Replaced by #5303917954

?
Manufacturer substitution
This part replaces 5316269001. Substitute parts can look different from the original.
BEST SELLER
$24.36 |
20% OFF Phone Price : $30.36
In Stock
Ikea Refrigerator Evaporator Fan Shaft Washer 215474201
#13B

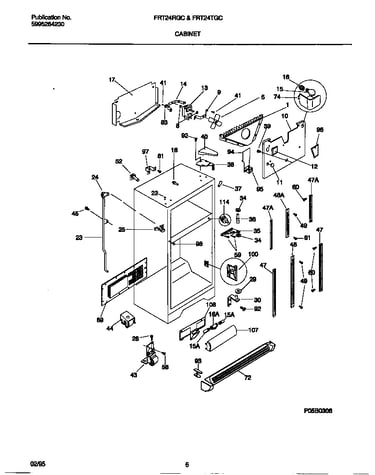

Cabinet diagram

Ikea refrigerator evaporator fan shaft washer

Part #215474201

This item is not returnable
$19.39 |
9% OFF Phone Price : $21.39
In Stock
Refrigerator Ice Cube Tray 215667501
#10

Shelves & controls diagram

Refrigerator ice cube tray

Part #215667501

This item is not returnable
$4.30 |
19% OFF Phone Price : $5.30
In Stock
Touch Paint 5303305345

#NI

All parts diagram

Touch paint

Part #5303305345

Replaced by #5303321321

?
Manufacturer substitution
This part replaces 5303305345. Substitute parts can look different from the original.
This item is not returnable
$21.97 |
21% OFF Phone Price : $27.97
In Stock
Refrigerator Hinge Screw 218188000

#59

All parts diagram

Refrigerator hinge screw

Part #218188000

Replaced by #240442708

?
Manufacturer substitution
This part replaces 218188000. Substitute parts can look different from the original.
This item is not returnable
$7.69
In Stock
