Model # GFDR270GH1WW Official GE gas dryer

Here are the diagrams and repair parts for Official GE GFDR270GH1WW gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

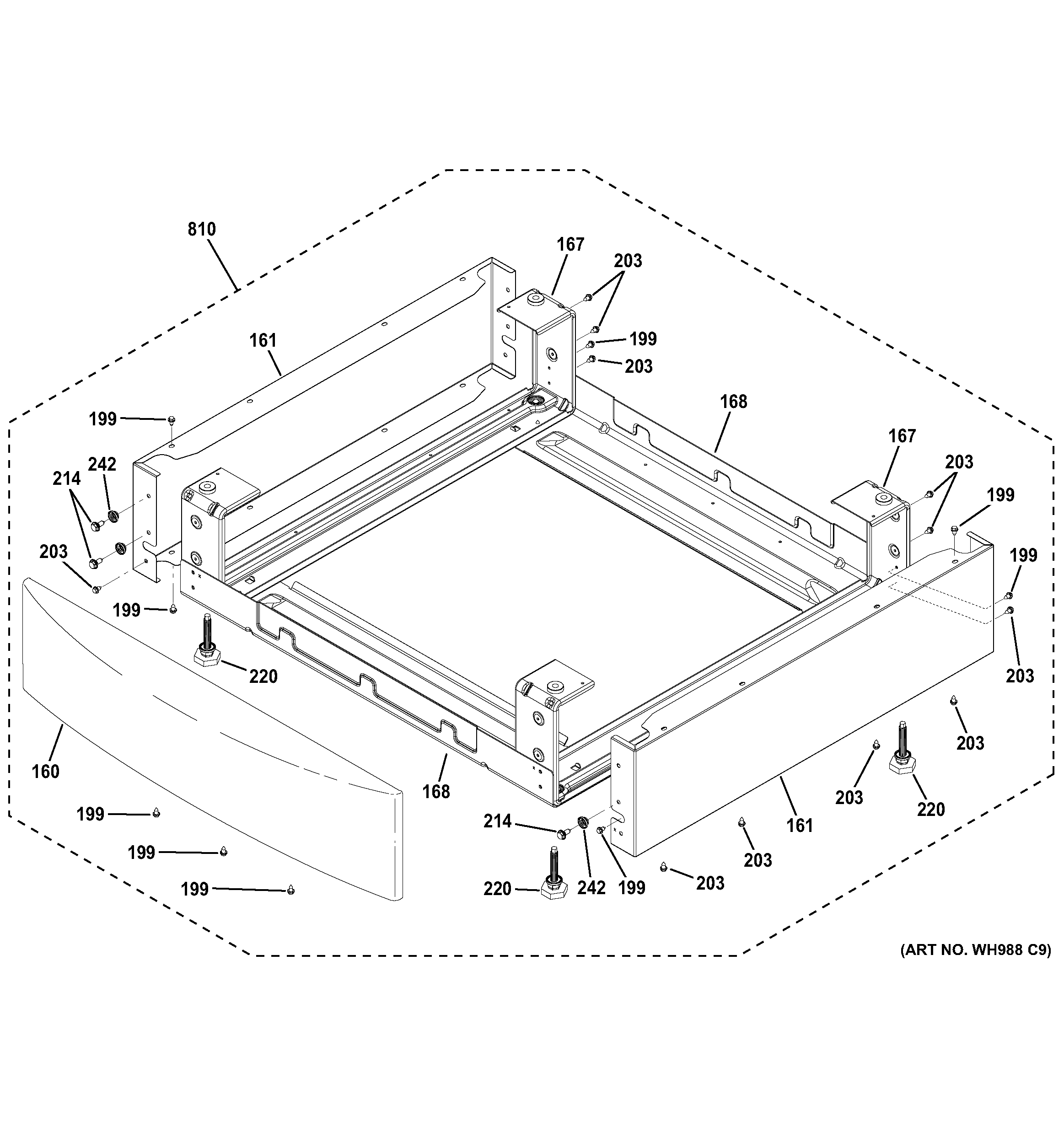

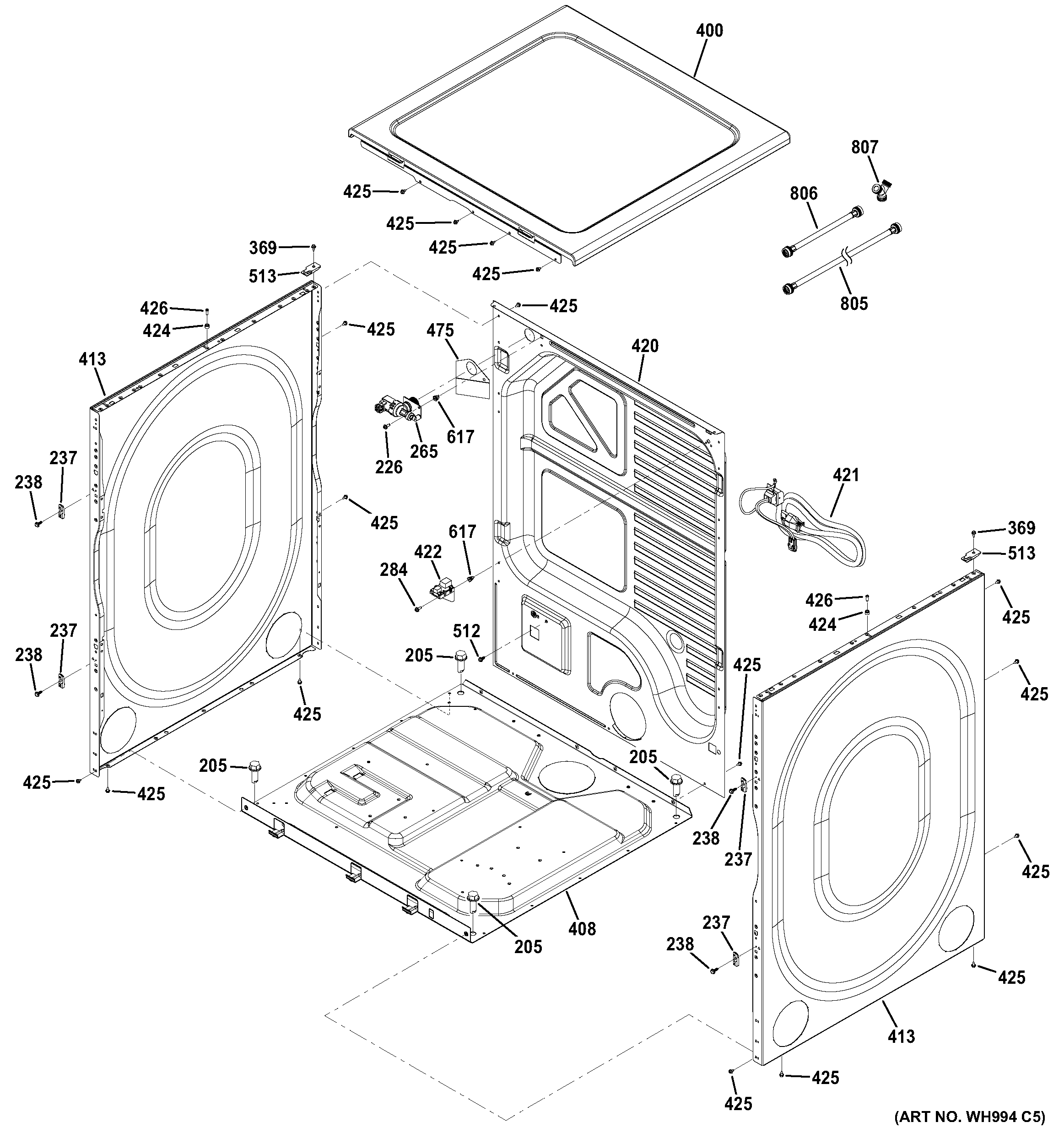

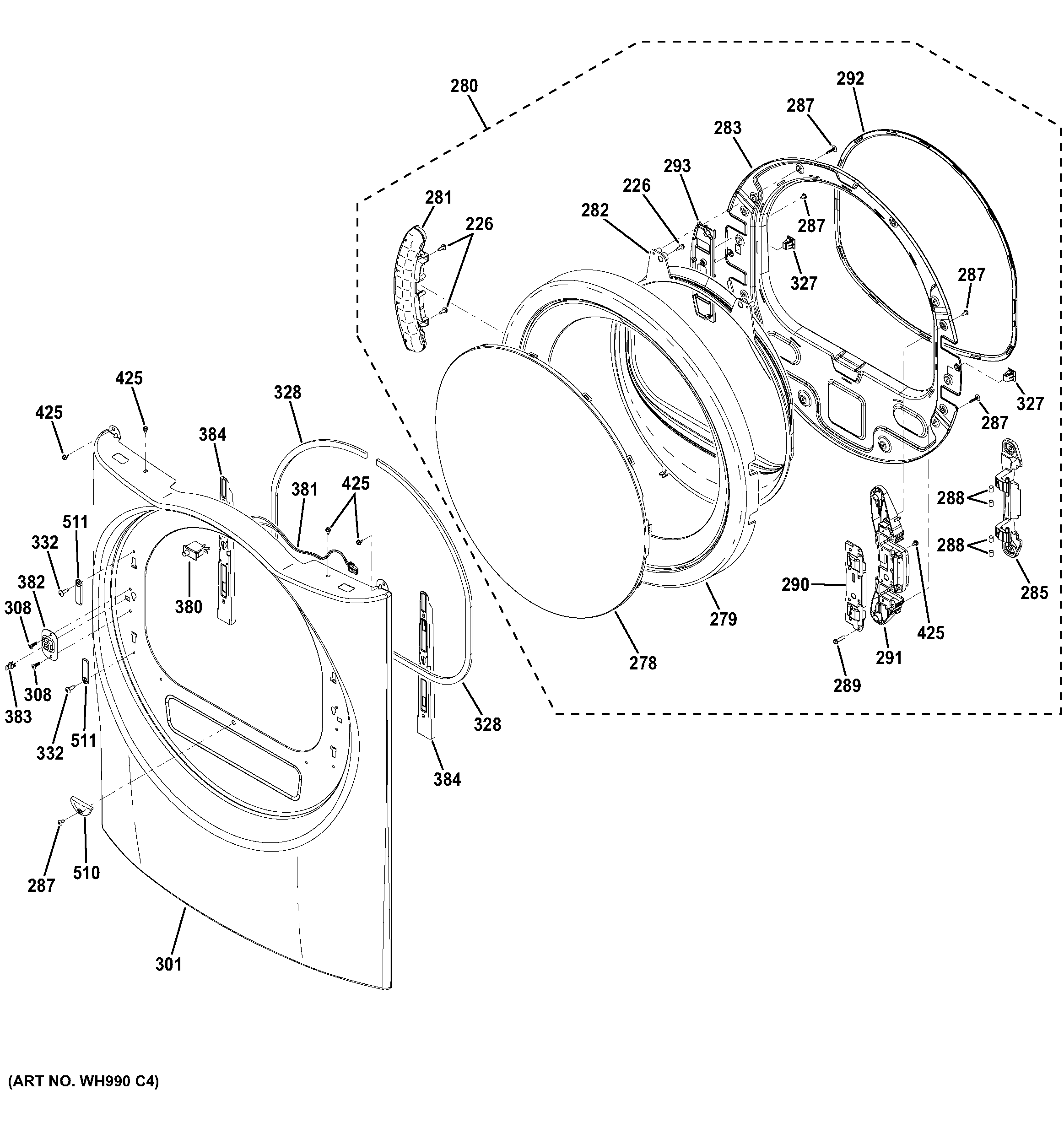

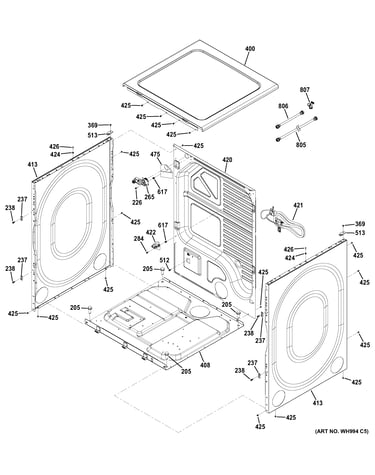

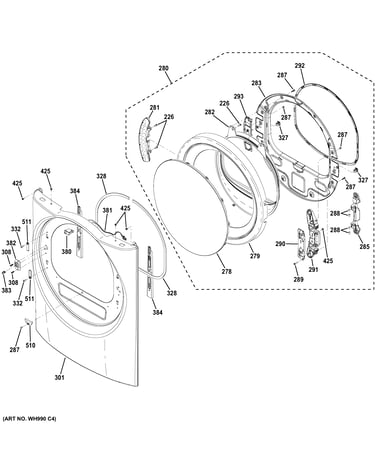

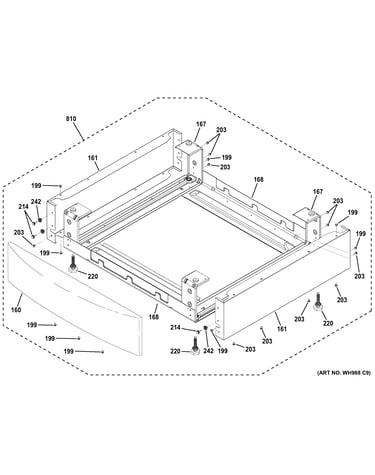

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 146 parts  |
Dryer Drum Support Roller Assembly (replaces We01x10384, We01x10385, We01x10386, We12m39) WE03X10016
#275

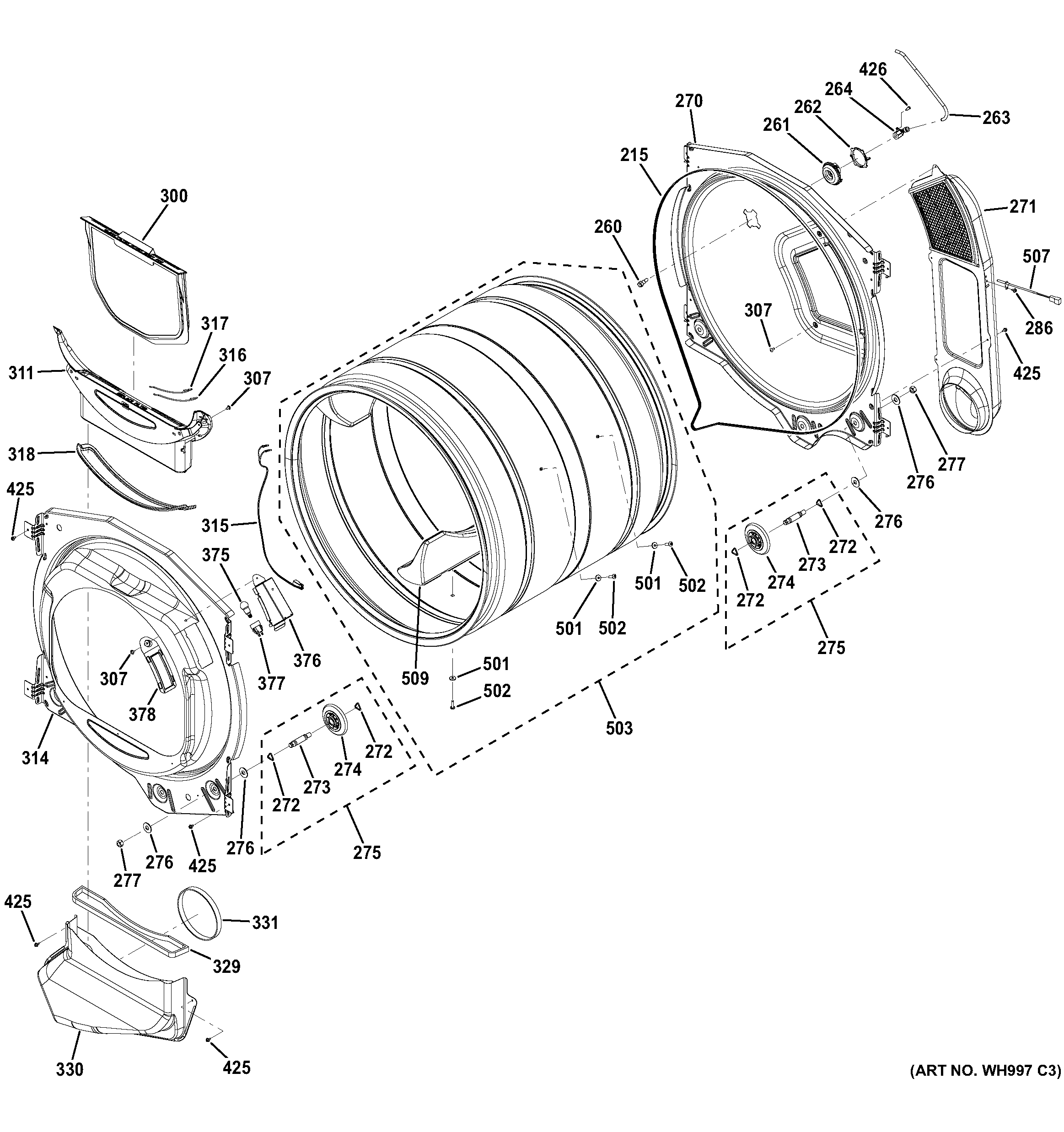

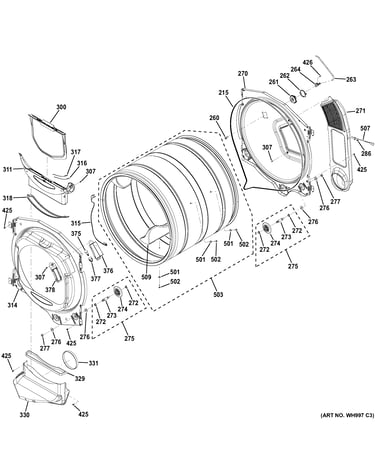

Drum diagram

Dryer drum support roller assembly (replaces we01x10384, we01x10385, we01x10386, we12m39)

Part #WE03X10016

BEST SELLER
$29.20 |
17% OFF Phone Price : $35.20
In Stock
Roller Axle WE01X10385
#273

Drum diagram

Roller axle

Part #WE01X10385

Replaced by #WE03X10016

?
Manufacturer substitution
This part replaces WE01X10385. Substitute parts can look different from the original.
BEST SELLER
$29.20 |
17% OFF Phone Price : $35.20
In Stock
Roller Wheel WE01X10384
#274

Drum diagram

Roller wheel

Part #WE01X10384

Replaced by #WE03X10016

?
Manufacturer substitution
This part replaces WE01X10384. Substitute parts can look different from the original.
BEST SELLER
$29.20 |
17% OFF Phone Price : $35.20
In Stock
Clip Retaini WE01X10386
#272

Drum diagram

Clip retaini

Part #WE01X10386

Replaced by #WE03X10016

?
Manufacturer substitution
This part replaces WE01X10386. Substitute parts can look different from the original.
BEST SELLER
$29.20 |
17% OFF Phone Price : $35.20
In Stock
Dryer Outlet Backup Thermostat WE04X10190
#230

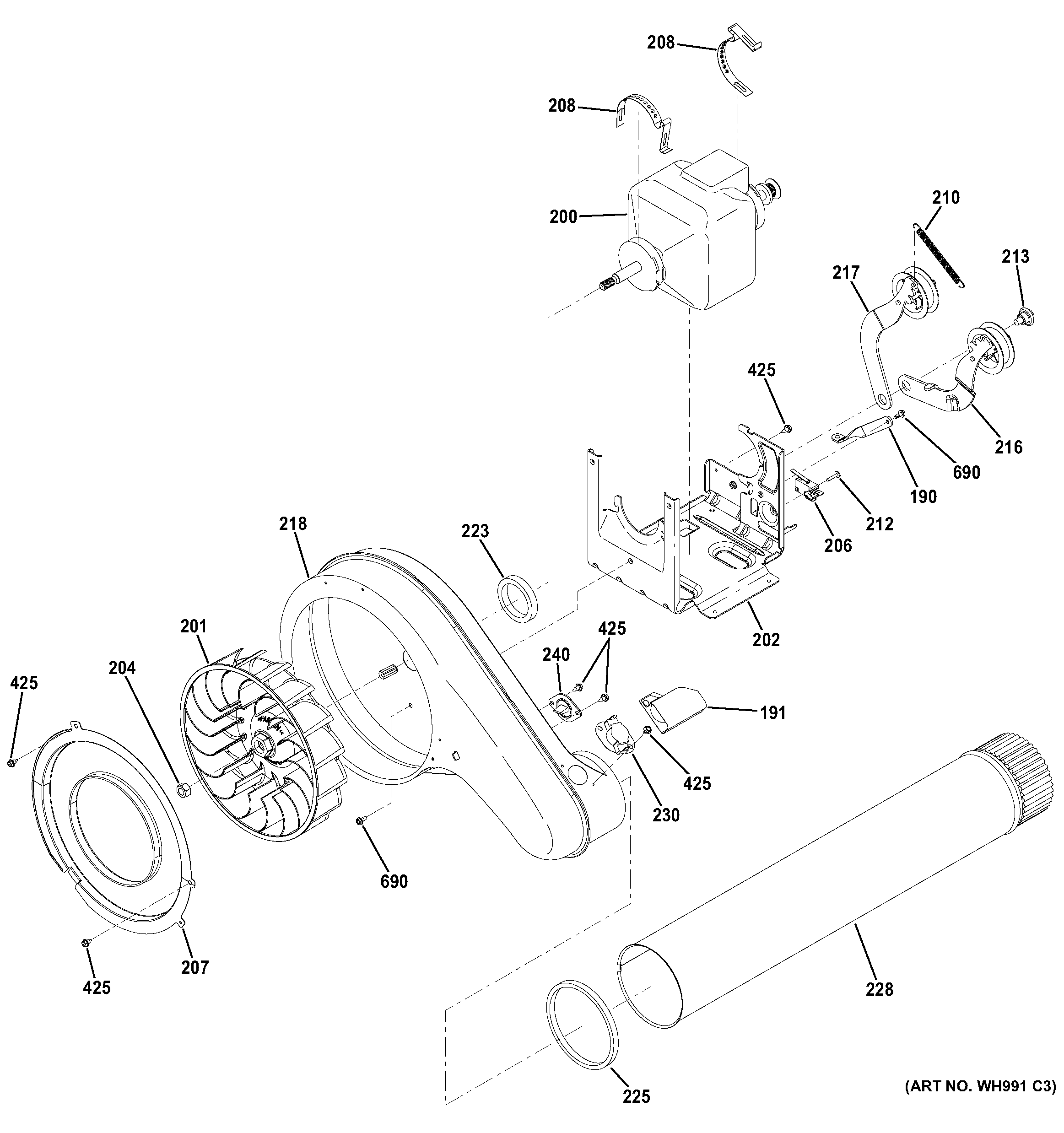

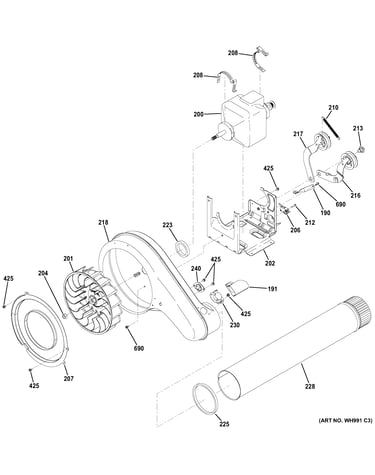

Blower & motor diagram

Dryer outlet backup thermostat

Part #WE04X10190

BEST SELLER
$22.54 |
21% OFF Phone Price : $28.54
In Stock
Scr 10-18 Pl WH02X1194
#502

Drum diagram

Scr 10-18 pl

Part #WH02X1194

Replaced by #WH2X1194

?
Manufacturer substitution
This part replaces WH02X1194. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Dryer Drum Belt WE12X10020
#215

Drum diagram

Dryer drum belt

Part #WE12X10020

$25.51 |
19% OFF Phone Price : $31.51
In Stock
Wire Tie WH01X10704
#23

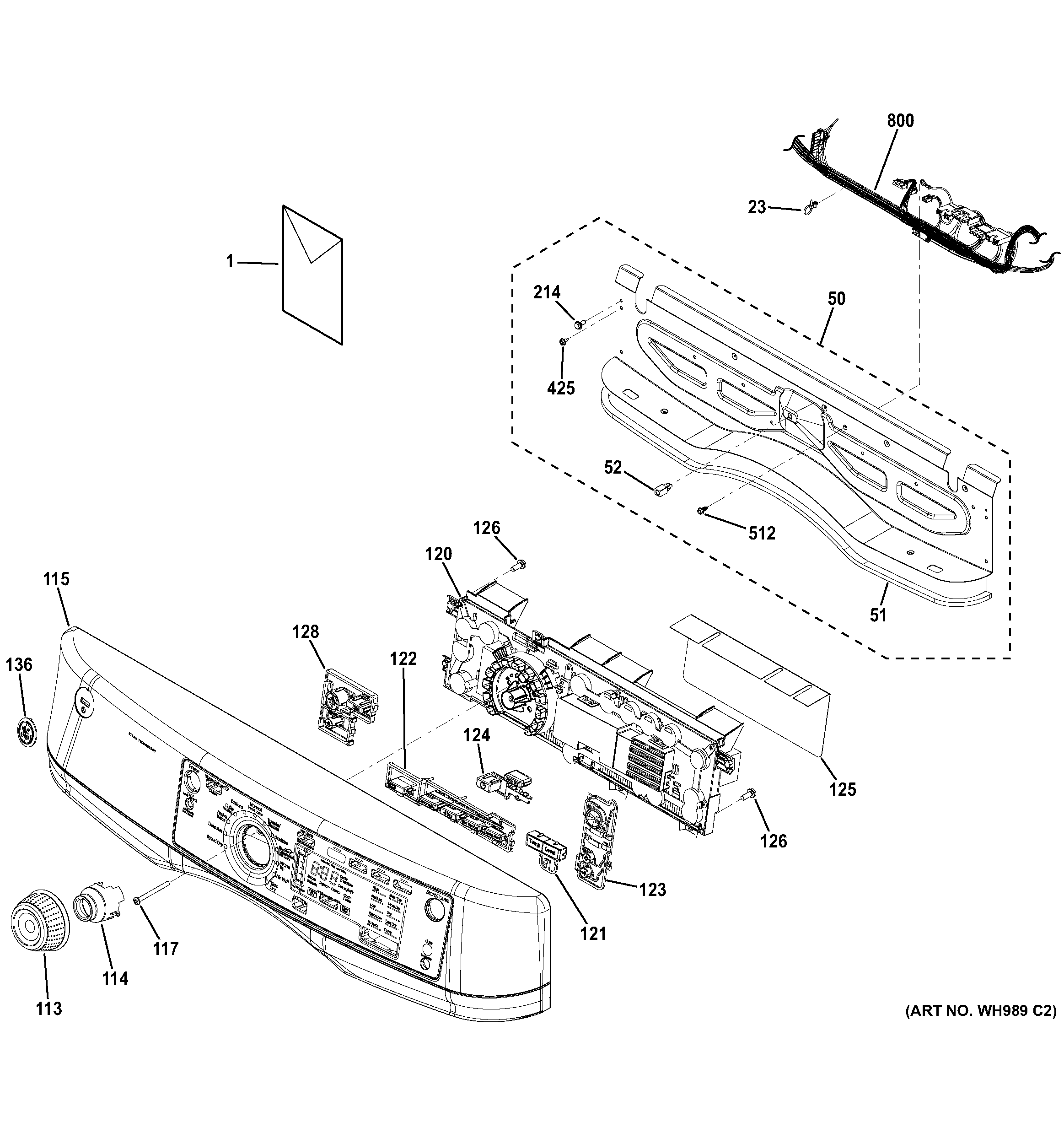

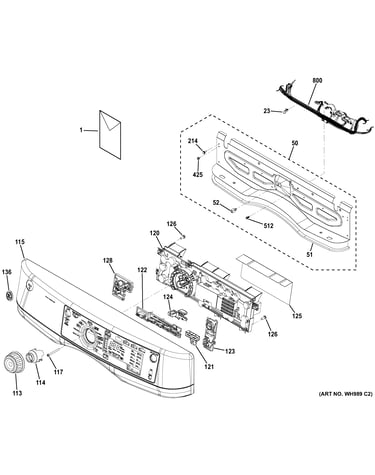

Control panel diagram

Wire tie

Part #WH01X10704

This item is not returnable
$7.14
In Stock
Sensor Radie WE04X10189
#604

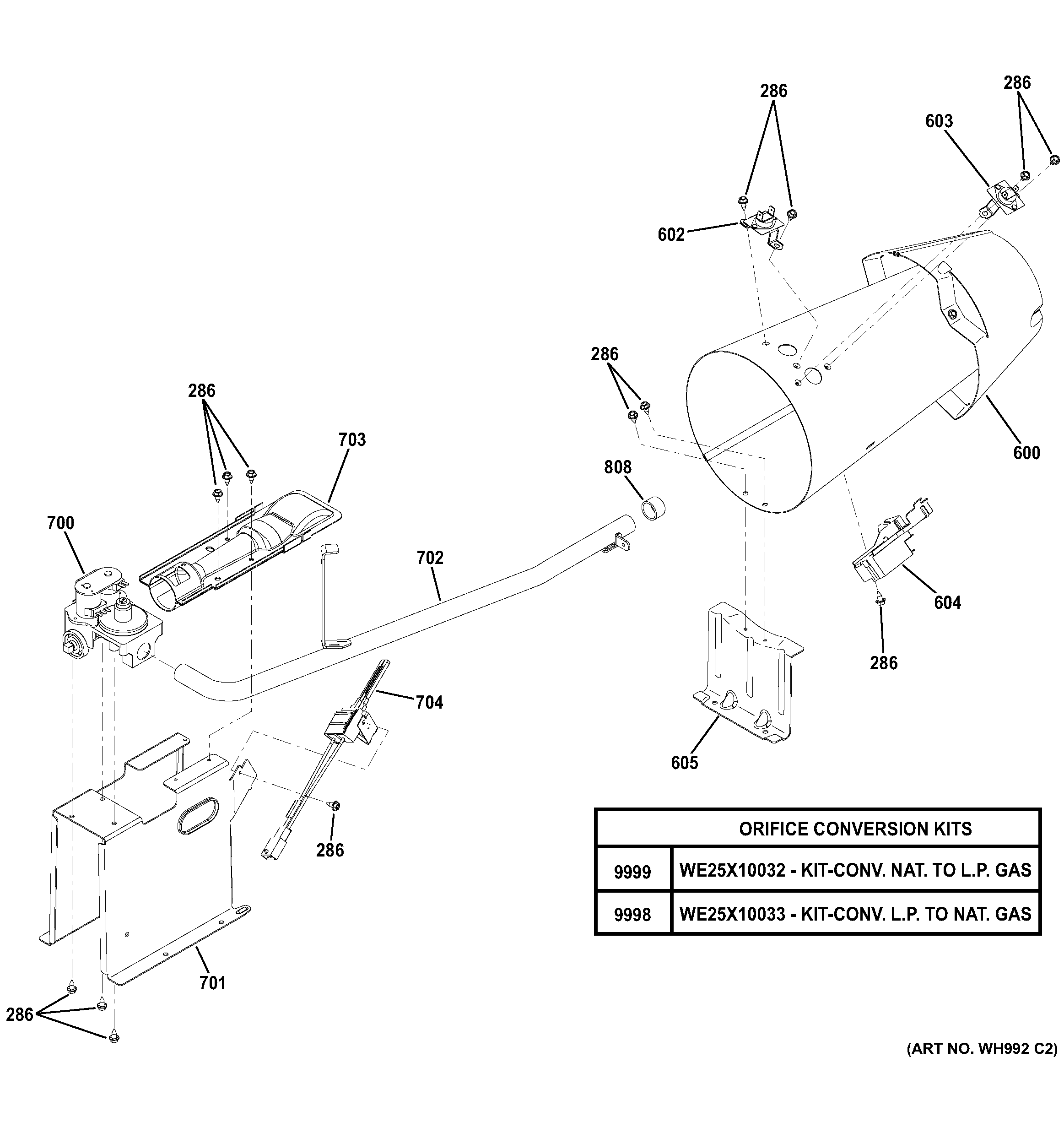

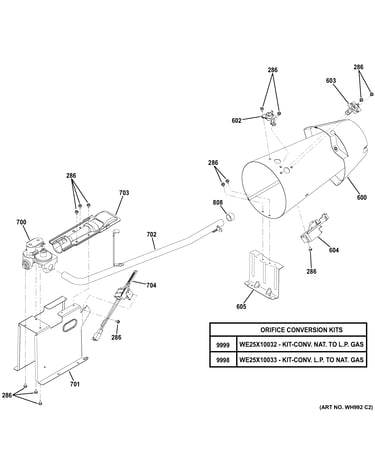

Gas valve & burner assembly diagram

Sensor radie

Part #WE04X10189

$39.77 |
13% OFF Phone Price : $45.77
In Stock
Dryer Lint Screen Housing WE18X10021
#311

Drum diagram

Dryer lint screen housing

Part #WE18X10021

$99.97 |
11% OFF Phone Price : $111.97
In Stock
