Model # WF455ARGSGR/AA-01 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WF455ARGSGR-AA-01 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

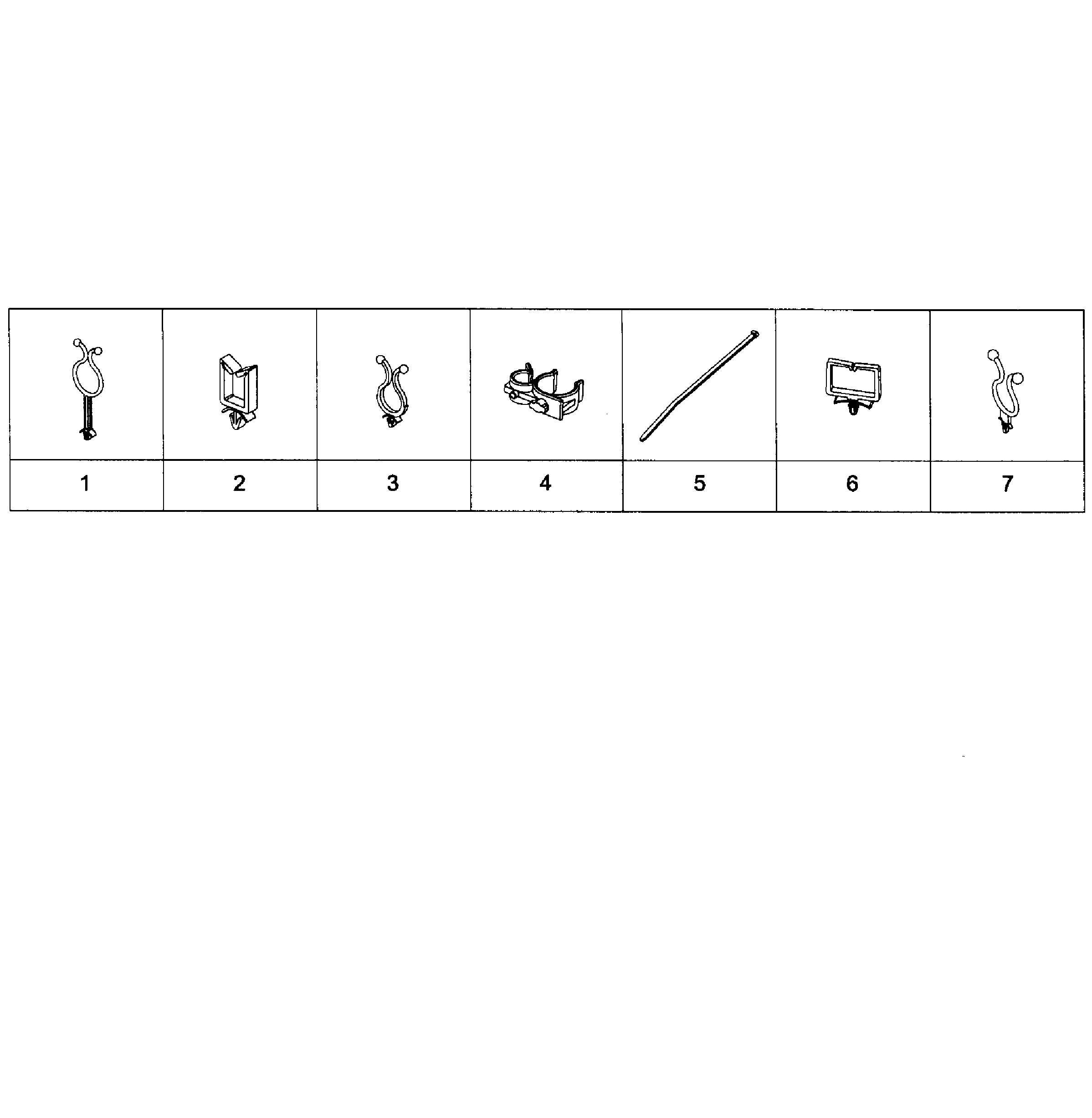

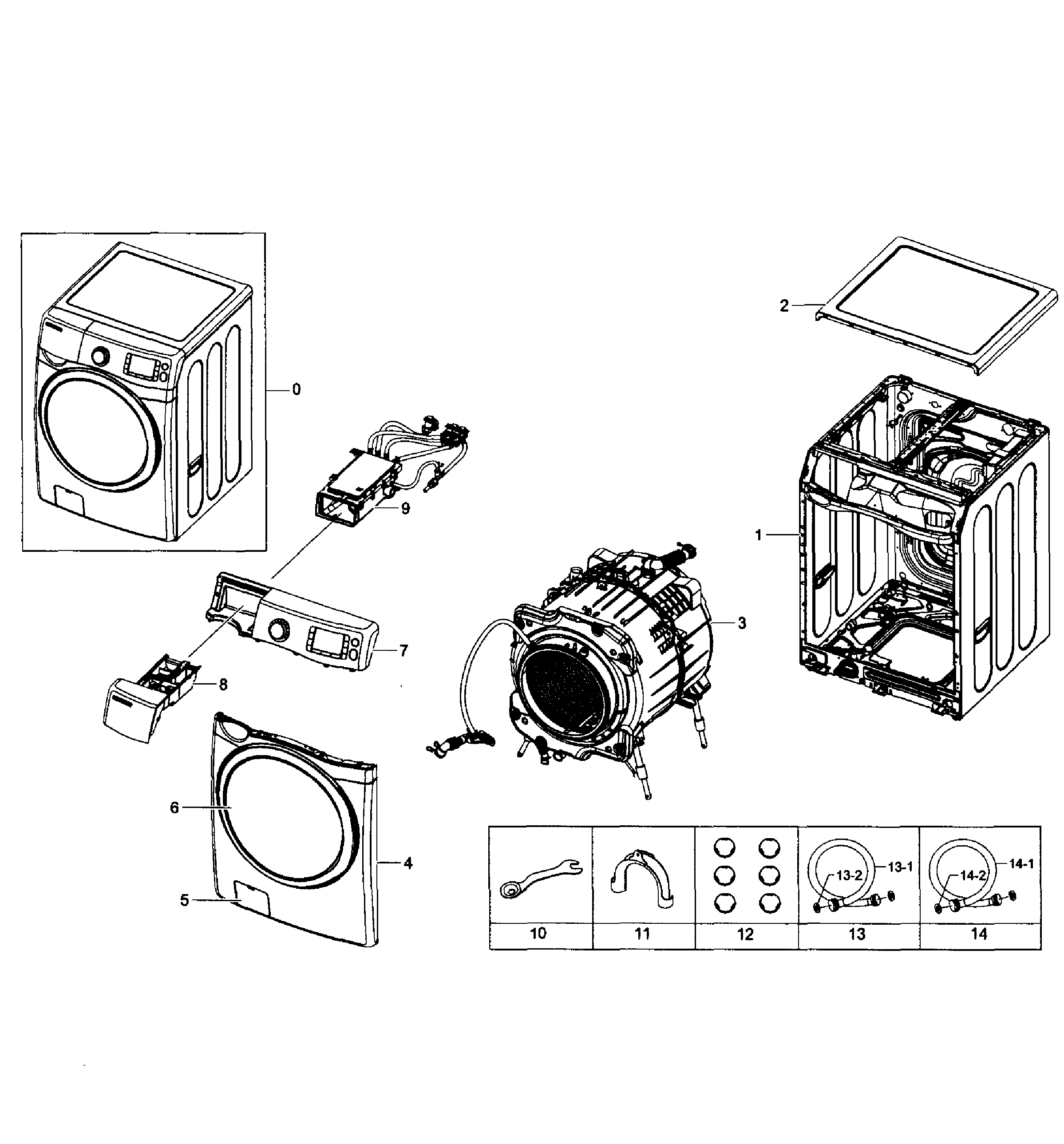

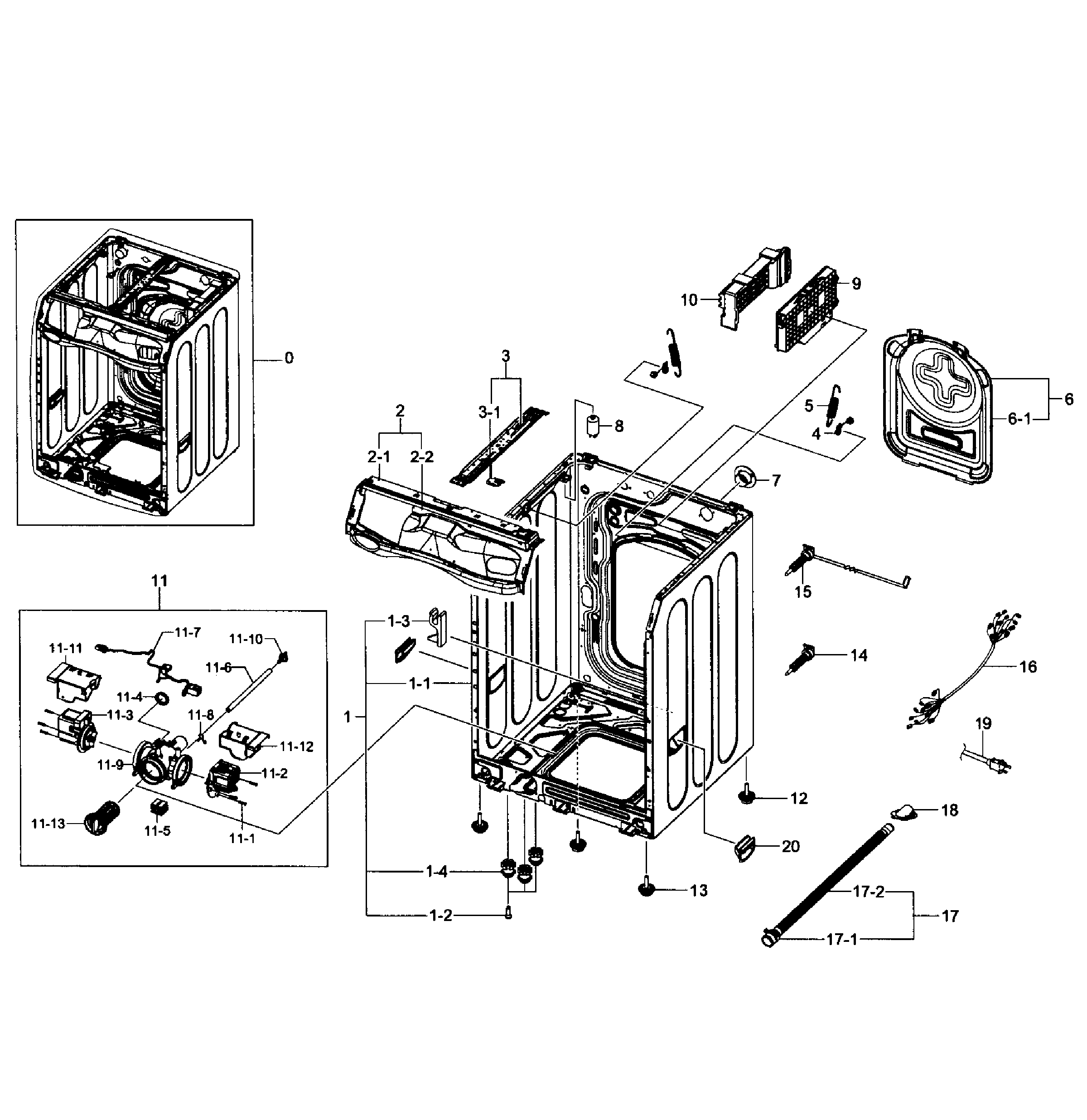

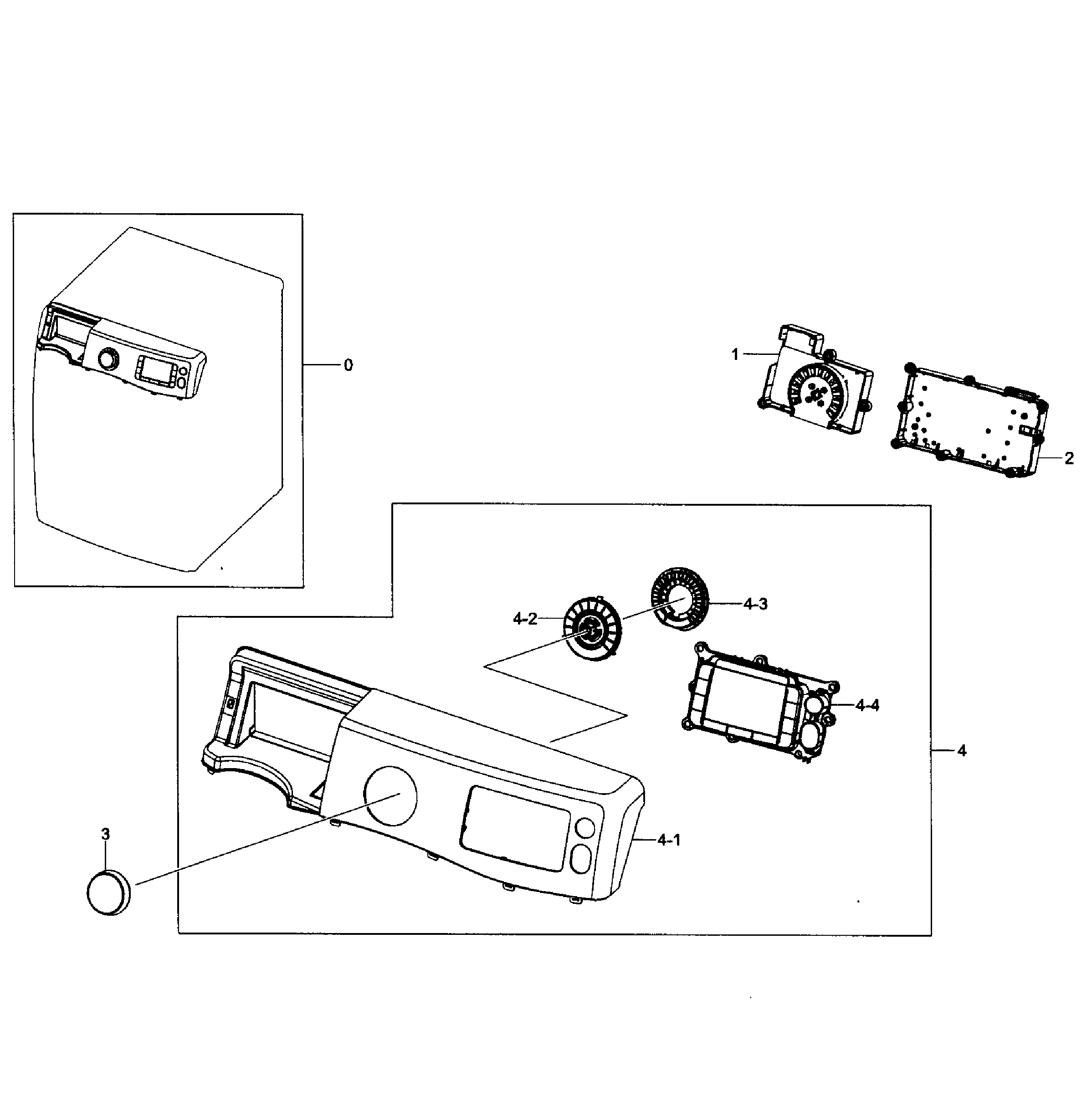

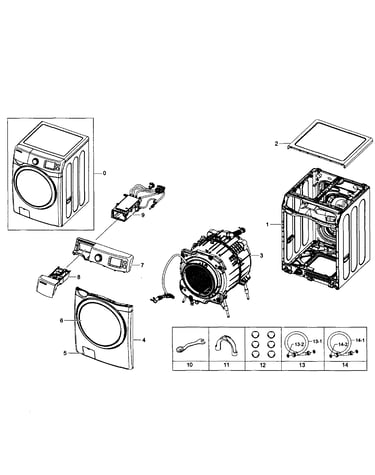

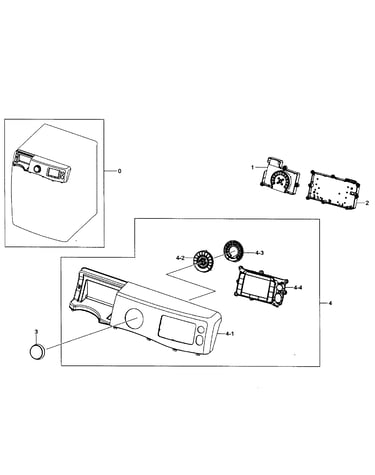

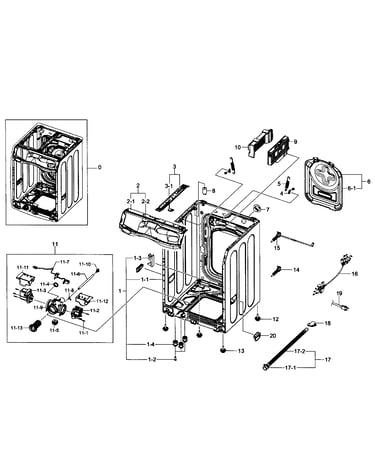

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 201 parts  |
Washer Shock Absorber (replaces Dc66-00650d) DC66-00470A
#8-3

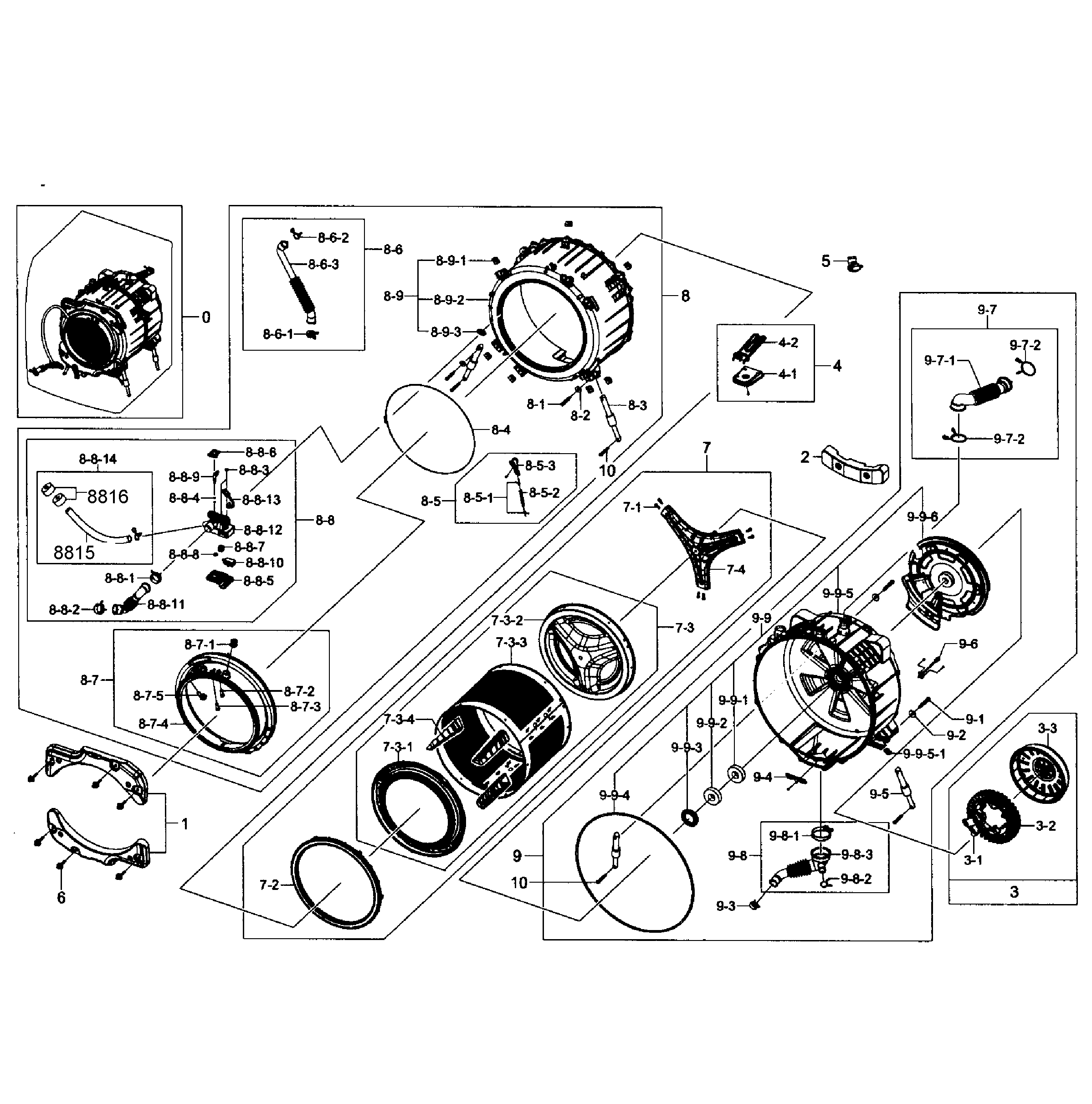

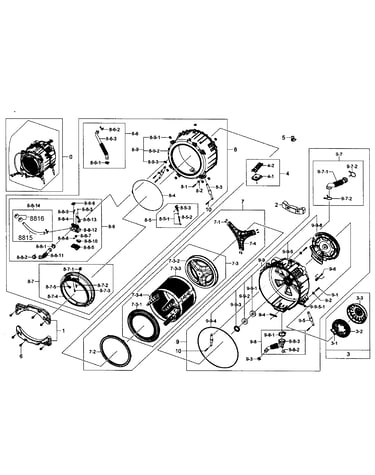

Drum assy diagram

Washer shock absorber (replaces dc66-00650d)

Part #DC66-00470A

BEST SELLER
$49.01 |
11% OFF Phone Price : $55.01
In Stock
Washer Shock Absorber (replaces Dc66-00650c) DC66-00470B
#9-5

Drum assy diagram

Washer shock absorber (replaces dc66-00650c)

Part #DC66-00470B

BEST SELLER
$30.91 |
16% OFF Phone Price : $36.91
In Stock
Washer Bolt (replaces Dc60-40138a) DC97-02412A
#6

Drum assy diagram

Washer bolt (replaces dc60-40138a)

Part #DC97-02412A

BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Washer Door Lock DC64-00519B
#7

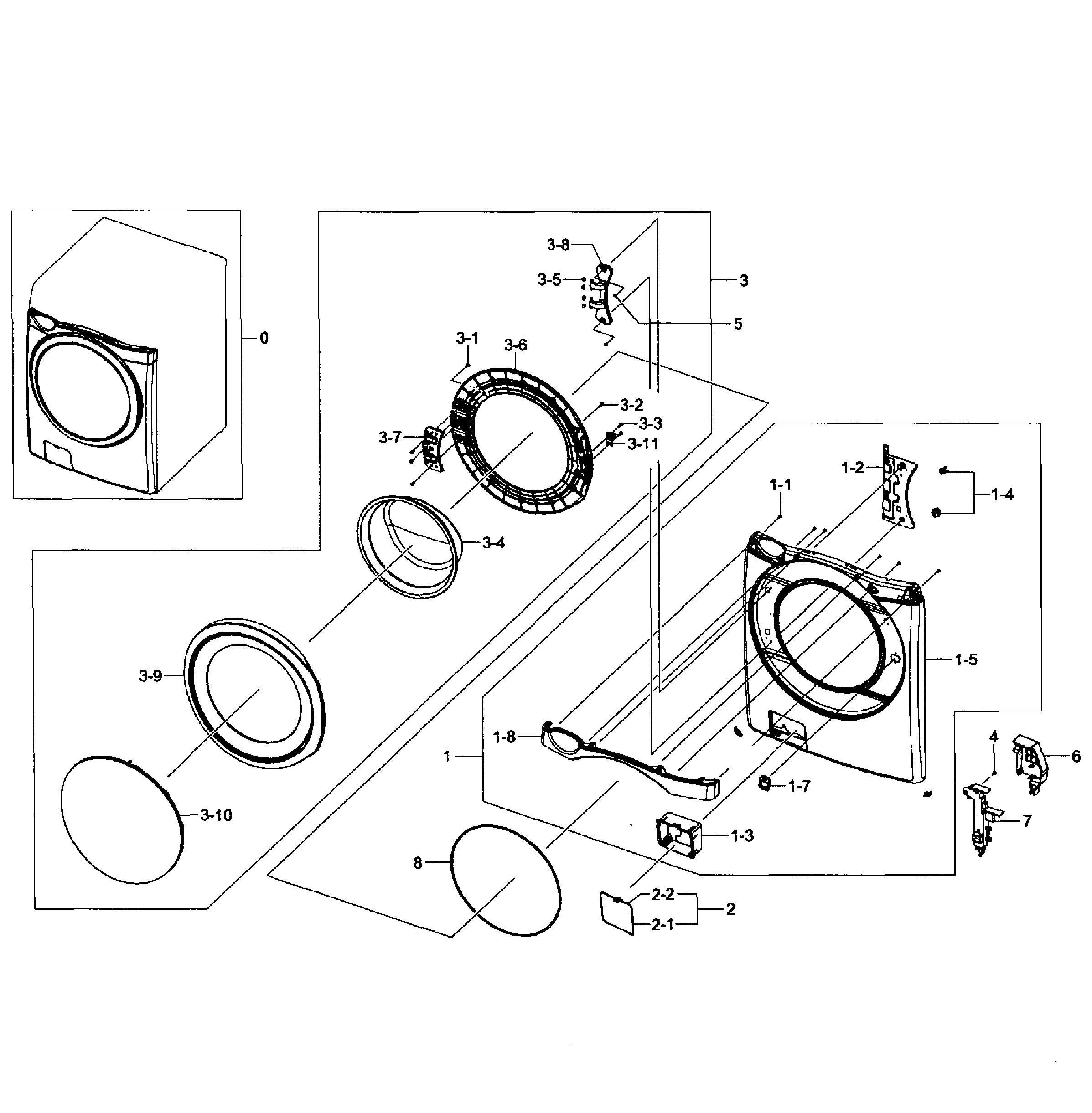

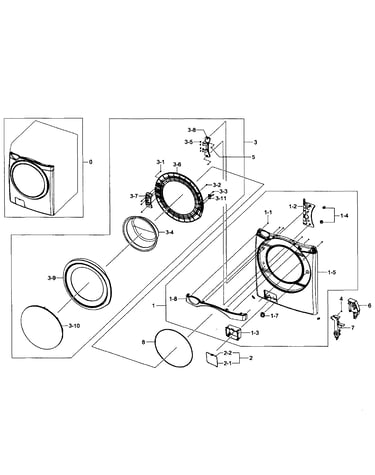

Front assy diagram

Washer door lock

Part #DC64-00519B

BEST SELLER
$28.89 |
17% OFF Phone Price : $34.89
In Stock
Washer Bolt (replaces 6011-001491) DC60-40137A
#7-1

Drum assy diagram

Washer bolt (replaces 6011-001491)

Part #DC60-40137A

BEST SELLER
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Washer Water-level Pressure Switch DC96-01703G
#5

Drum assy diagram

Washer water-level pressure switch

Part #DC96-01703G

BEST SELLER
$53.72 |
10% OFF Phone Price : $59.72
In Stock
Washer Motor Stator DC31-00124A
#3-2

Drum assy diagram

Washer motor stator

Part #DC31-00124A

BEST SELLER
$186.94 |
6% OFF Phone Price : $198.94
In Stock
Washer Outer Tub Gasket DC69-00804A
#994

Drum assy diagram

Washer outer tub gasket

Part #DC69-00804A

BEST SELLER
$24.00 |
20% OFF Phone Price : $30.00
In Stock
Washer Nut DC61-00201A
Washer nut

Part #DC61-00201A

BEST SELLER
This item is not returnable
$3.64 |
22% OFF Phone Price : $4.64
In Stock
Washer Water Inlet Valve DC62-00214M
#1

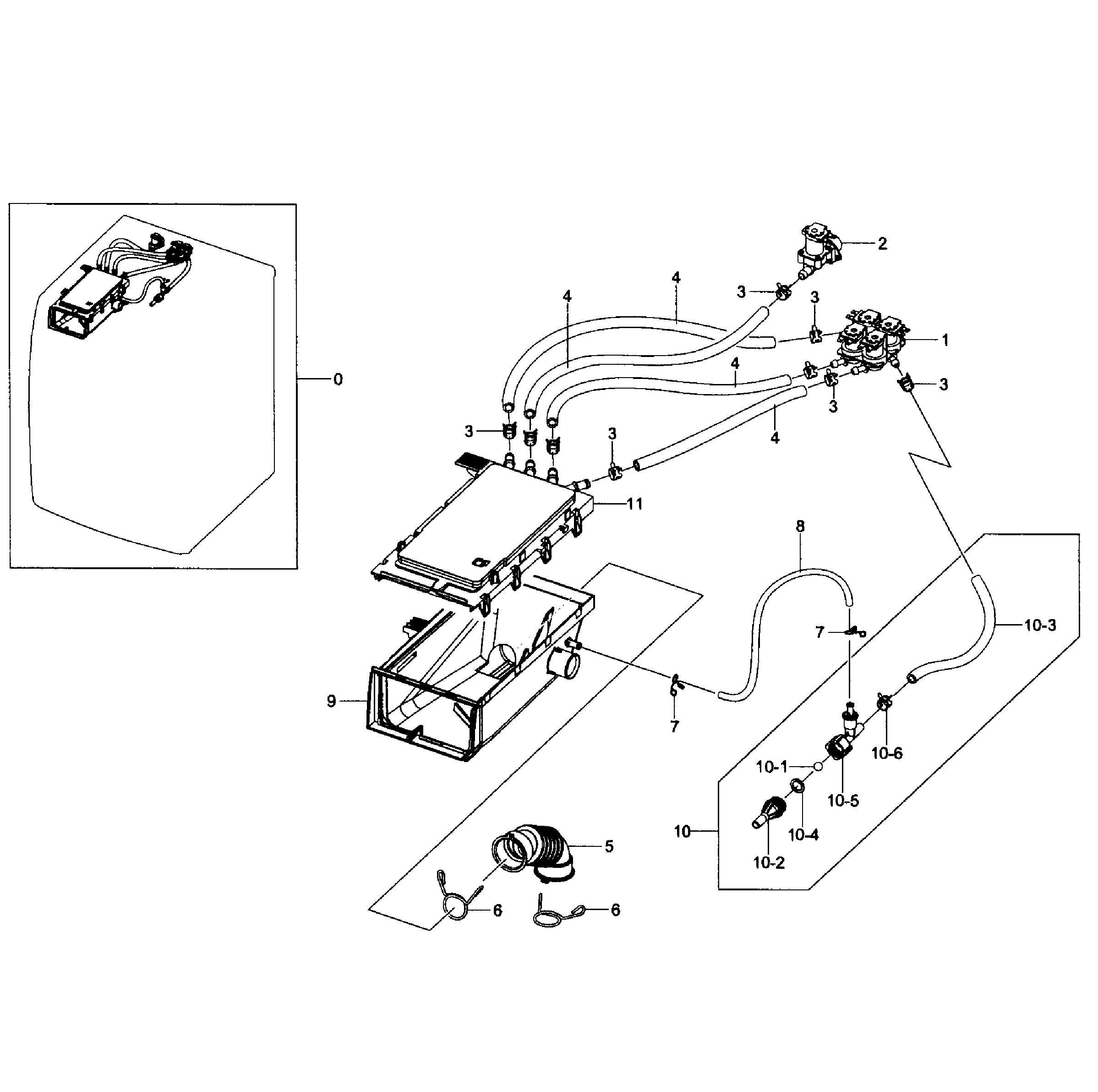

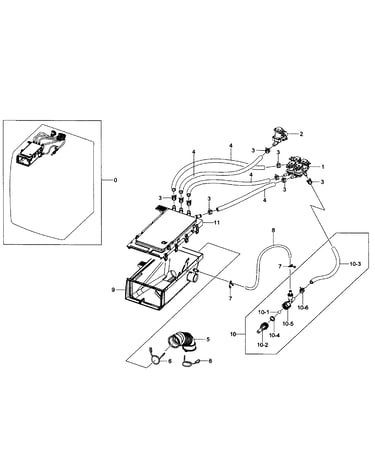

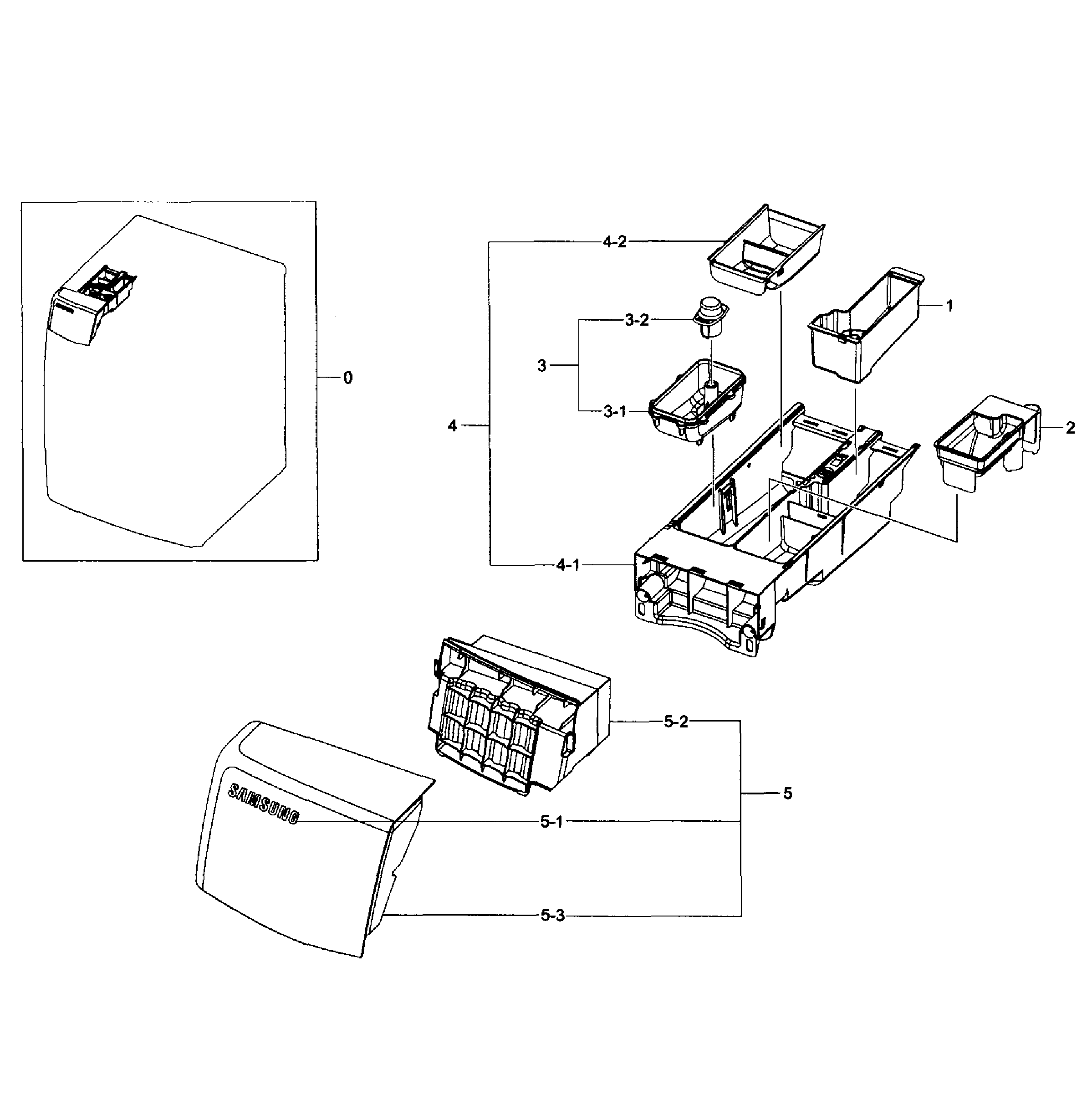

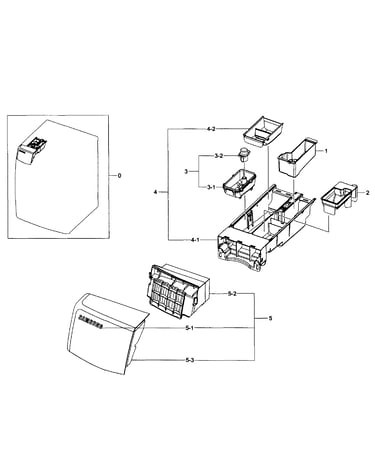

Drawer housing diagram
