Heating & Cooling Combined Unit

Model # PGMF42H135A Official ICP heating & cooling unit

Here are the diagrams and repair parts for Official ICP PGMF42H135A heating & cooling unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

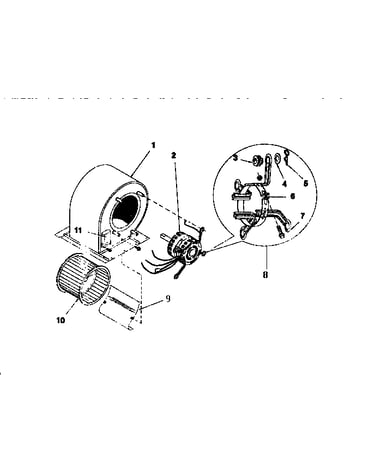

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Capacitor 1053918
#31

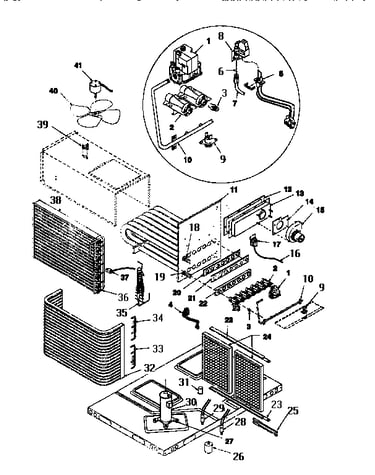

Functional, all models diagram

Capacitor

Part #1053918

Replaced by #PAKTRCF10

?
Manufacturer substitution
This part replaces 1053918. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Valve 1009093
#1A

Functional, all models diagram

Valve

Part #1009093

Replaced by #1170430

?
Manufacturer substitution
This part replaces 1009093. Substitute parts can look different from the original.
$674.90 |
$12.00 OFF Phone Price : $686.90
In Stock
Lp Valve 1009094
#1

Functional, all models diagram

Lp valve

Part #1009094

Replaced by #1170430

?
Manufacturer substitution
This part replaces 1009094. Substitute parts can look different from the original.
$674.90 |
$12.00 OFF Phone Price : $686.90
In Stock
Furnace Inducer Vent Motor Assembly 1054268
#15

Functional, all models diagram

Furnace inducer vent motor assembly

Part #1054268

$297.67 |
$12.00 OFF Phone Price : $309.67
In Stock
Hood Flue Al 1054621
#10

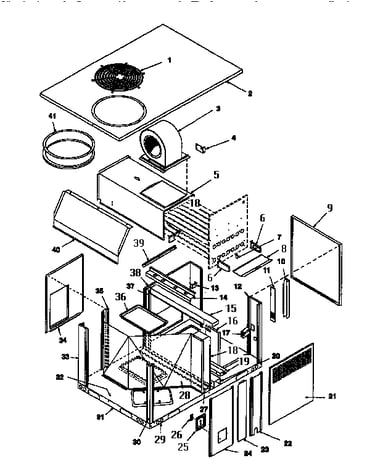

Non-functional, all models diagram

Hood flue al

Part #1054621

$228.16
In Stock
Dryer Filter 713894
#26

Functional, all models diagram

Dryer filter

Part #713894

$69.76
In Stock
Extension Bl 1054461
#17

Non-functional, all models diagram

Extension bl

Part #1054461

$158.46
In Stock
Post Cnr P 1068172
#30

Non-functional, all models diagram

Post cnr p

Part #1068172

$161.78
In Stock
Gasket Restr 1065212
#20

Functional, all models diagram

Gasket restr

Part #1065212

$14.71
In Stock
Panel Top P 1068157
#2

Non-functional, all models diagram

Panel top p

Part #1068157

$176.98
In Stock
