Model # UXT2036AAQ Official Whirlpool range hood
Here are the diagrams and repair parts for Official Whirlpool UXT2036AAQ range hood, as well as links to manuals and error code tables, if available.
Installation guideBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
UXT2036AAQ Range Hood
#4

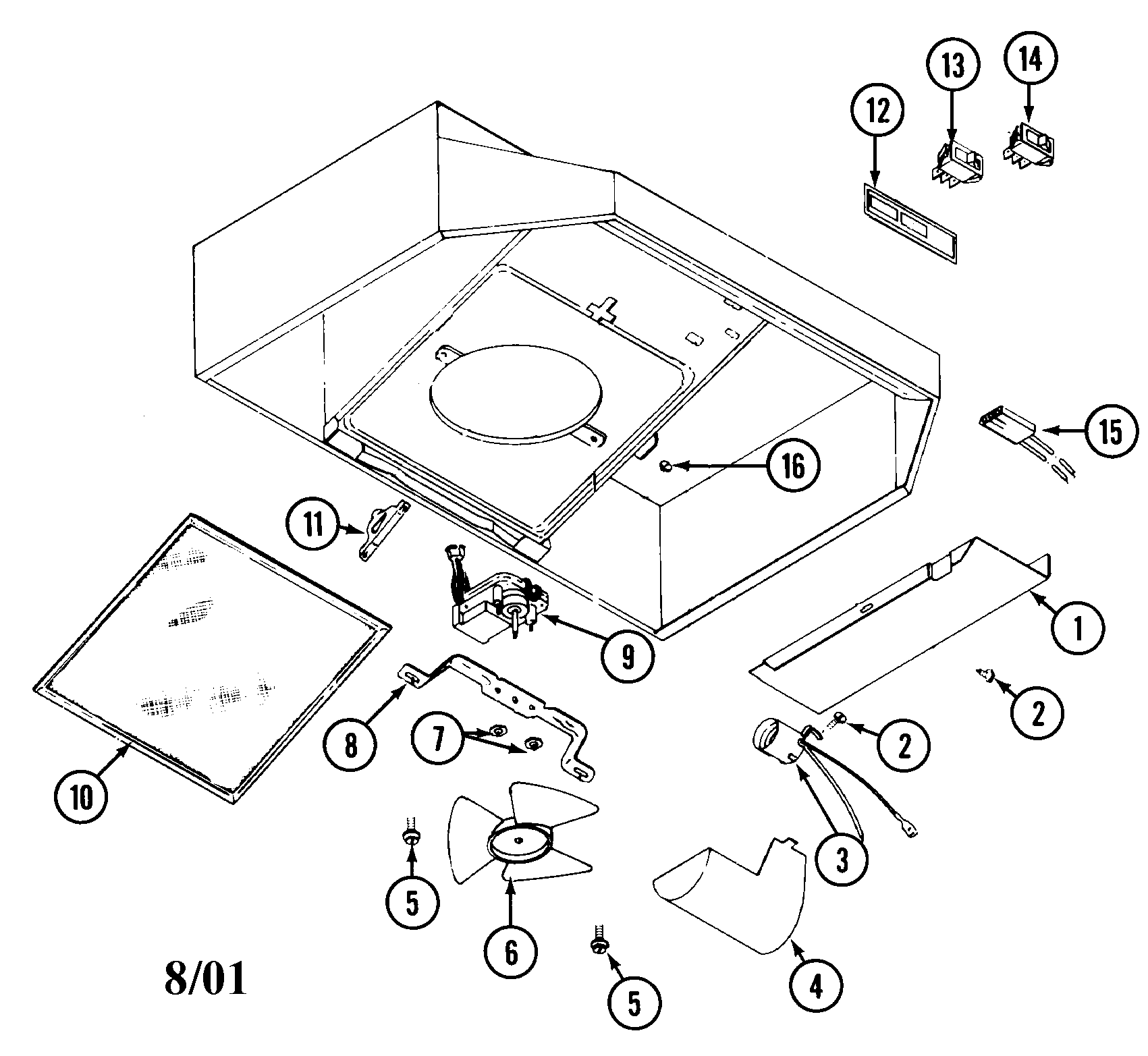

Body/internal parts diagram
Lens bulb
Part #47001057
Replaced by #WP8186930
?
Manufacturer substitution
This part replaces 47001057. Substitute parts can look different from the original.
This item is not returnable
$22.04 |
21% OFF Phone Price : $28.04
In Stock
#16
Body/internal parts diagram
Range screw
Part #71001171
Replaced by #WP71001171
?
Manufacturer substitution
This part replaces 71001171. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
#7
Body/internal parts diagram
Hex nut
Part #03050041
Replaced by #M0282005
?
Manufacturer substitution
This part replaces 03050041. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
#2
Body/internal parts diagram
Screw
Part #706189
Replaced by #WPY706189
?
Manufacturer substitution
This part replaces 706189. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
#13
Body/internal parts diagram
Motor switch
Part #47001066
Replaced by #WP3147265
?
Manufacturer substitution
This part replaces 47001066. Substitute parts can look different from the original.
$58.83 |
9% OFF Phone Price : $64.83
In Stock
#13A
Body/internal parts diagram
Motor switch
Part #47001081
Replaced by #WP8186941
?
Manufacturer substitution
This part replaces 47001081. Substitute parts can look different from the original.
$53.53
In Stock
#6
Body/internal parts diagram
Fan blade
Part #47001059
Replaced by #8190873
?
Manufacturer substitution
This part replaces 47001059. Substitute parts can look different from the original.
$35.69
In Stock
#14A
Body/internal parts diagram
Light switch
Part #47001082
Replaced by #WP8186941
?
Manufacturer substitution
This part replaces 47001082. Substitute parts can look different from the original.
$53.53
In Stock
#9
Body/internal parts diagram
Motor assembly
Part #47001088
The manufacturer no longer makes this part, and there's no substitute part
#14
Body/internal parts diagram
Light switch
Part #47001067
The manufacturer no longer makes this part, and there's no substitute part
