Element
LCD Television

Model # ELCHS321 Official Element lcd television

Here are the diagrams and repair parts for Official Element ELCHS321 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |
Side Label 1051670
#14

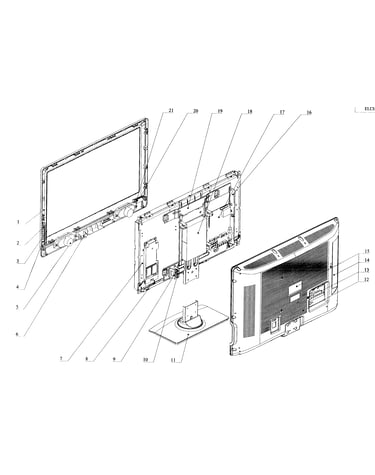

Cabinet parts diagram

Side label

Part #1051670

The manufacturer no longer makes this part, and there's no substitute part

Stand 1049482
#11

Cabinet parts diagram

Stand

Part #1049482

The manufacturer no longer makes this part, and there's no substitute part

Bracket 1051831
#8

Cabinet parts diagram

Bracket

Part #1051831

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 1051636
#NI

Cabinet parts diagram

Power cord

Part #1051636

The manufacturer no longer makes this part, and there's no substitute part

Television Owner's Manual 1052417
#NI

Cabinet parts diagram

Television owner's manual

Part #1052417

The manufacturer no longer makes this part, and there's no substitute part

Electric Outlet 1027054
#10

Cabinet parts diagram

Electric outlet

Part #1027054

The manufacturer no longer makes this part, and there's no substitute part

Button Bracket 1044829
#4

Cabinet parts diagram

Button bracket

Part #1044829

The manufacturer no longer makes this part, and there's no substitute part

Cover 1051723
#12

Cabinet parts diagram

Cover

Part #1051723

The manufacturer no longer makes this part, and there's no substitute part

Battery 1028333
#NI

Cabinet parts diagram

Battery

Part #1028333

The manufacturer no longer makes this part, and there's no substitute part

Television Power Supply Board 117312
#18

Cabinet parts diagram

Television power supply board

Part #117312

The manufacturer no longer makes this part, and there's no substitute part
