Model # GFC700P-01 Official GE garbage disposal

Here are the diagrams and repair parts for Official GE GFC700P-01 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Garbage Disposal Splash Guard (replaces Wc03x0089, Wc3x89) WC3X124
#2002

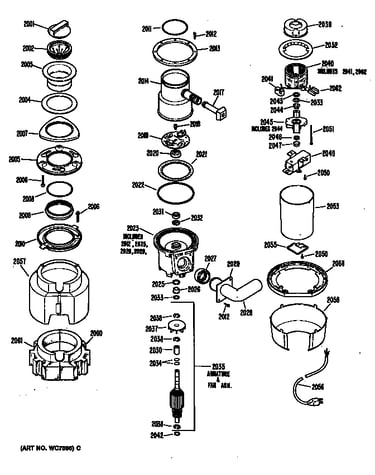

Disposer assembly diagram

Garbage disposal splash guard (replaces wc03x0089, wc3x89)

Part #WC3X124

This item is not returnable
$8.11
In Stock
Sink Flange WC15X44
#2003

Disposer assembly diagram

Sink flange

Part #WC15X44

The manufacturer no longer makes this part, and there's no substitute part
