Front-Engine Lawn Tractor

Model # 917252671 Official Craftsman front-engine lawn tractor

Here are the diagrams and repair parts for Official Craftsman 917252671 front-engine lawn tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

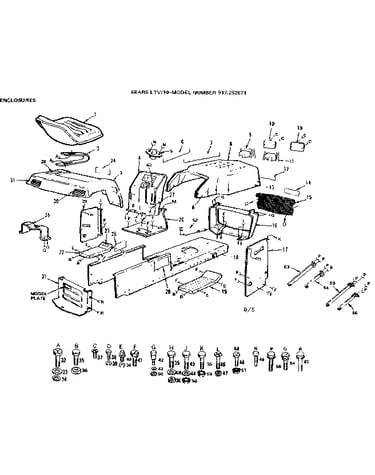

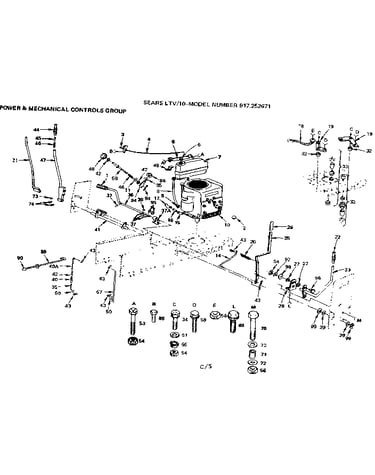

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 309 parts  |
Solenoid 2008J
#20

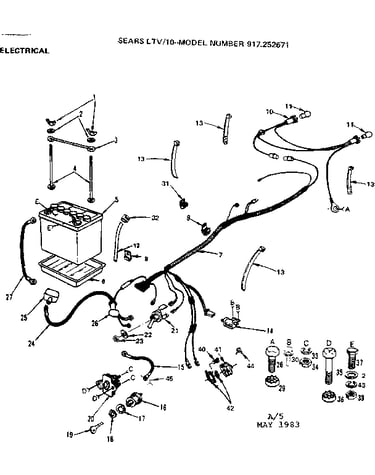

10/electrical diagram

Solenoid

Part #2008J

Replaced by #532146154

?
Manufacturer substitution
This part replaces 2008J. Substitute parts can look different from the original.
BEST SELLER
$24.60 |
20% OFF Phone Price : $30.60
In Stock
Tire 100692K
#9

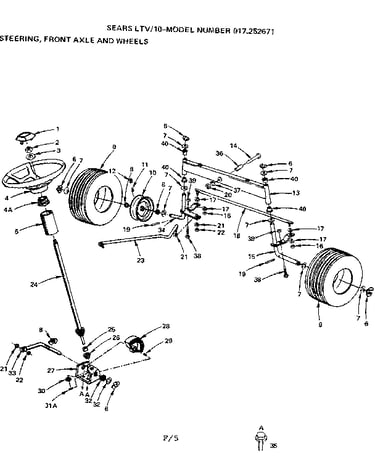

10/steering front axle and wheels diagram

Tire

Part #100692K

Replaced by #532122073

?
Manufacturer substitution
This part replaces 100692K. Substitute parts can look different from the original.
BEST SELLER
$61.64 |
9% OFF Phone Price : $67.64
In Stock
Washer, 13/32 X 1-1/4 X 12 19132012
#17

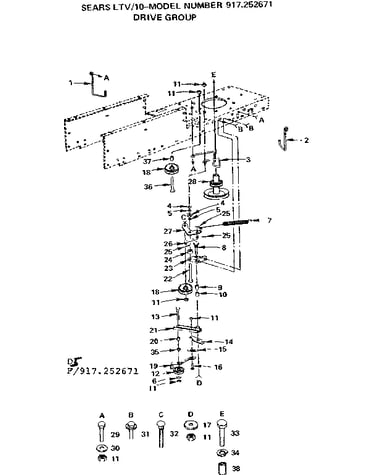

10/drive group diagram

Washer, 13/32 x 1-1/4 x 12

Part #19132012

Replaced by #596134901

?
Manufacturer substitution
This part replaces 19132012. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Washer 19132510
#30

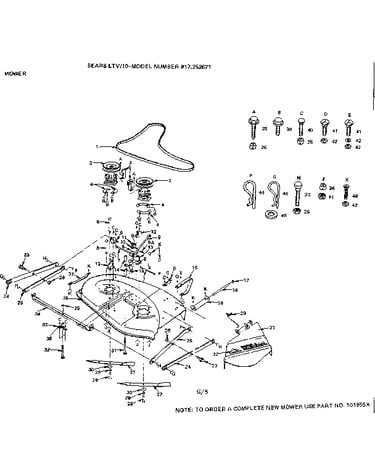

10/mower diagram

Washer

Part #19132510

Replaced by #596134901

?
Manufacturer substitution
This part replaces 19132510. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Lawn Tractor Bearing 3366R
#40

10/steering front axle and wheels diagram

Lawn tractor bearing

Part #3366R

Replaced by #532003366

?
Manufacturer substitution
This part replaces 3366R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hardened Race Thrust Bearing 6266H
#32

10/steering front axle and wheels diagram

Hardened race thrust bearing

Part #6266H

Replaced by #532006266

?
Manufacturer substitution
This part replaces 6266H. Substitute parts can look different from the original.
BEST SELLER
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Wizard Lawn Tractor Tire Valve Stem (replaces 20267, 24167, 24297, 24373, 3930j, 400162, 407229, 493215, 532065139, 5320651-39, 532124718, 55-21v, 56-21v, 65333, 74289, 76-21v, 77-21v, 78-21v, 795r) 65139
Wizard lawn tractor tire valve stem (replaces 20267, 24167, 24297, 24373, 3930j, 400162, 407229, 493215, 532065139, 5320651-39, 532124718, 55-21v, 56-21v, 65333, 74289, 76-21v, 77-21v, 78-21v, 795r)

Part #65139

BEST SELLER
$10.49 |
16% OFF Phone Price : $12.49
In Stock
E-ring 12000001
#41

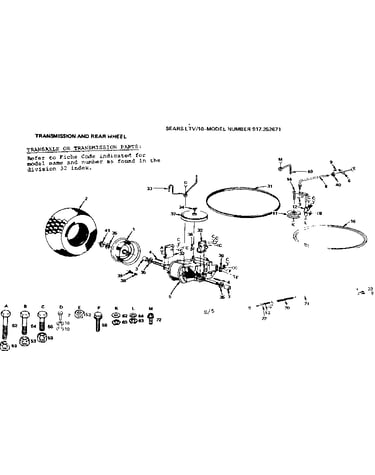

10/transmission & rear wheel diagram

E-ring

Part #12000001

Replaced by #812000029

?
Manufacturer substitution
This part replaces 12000001. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Starter Switch 4406R
#16

10/electrical diagram

Starter switch

Part #4406R

Replaced by #532365402

?
Manufacturer substitution
This part replaces 4406R. Substitute parts can look different from the original.
BEST SELLER
$28.82 |
17% OFF Phone Price : $34.82
In Stock
Tower Lawn Tractor Lock Nut (replaces 5394h, 73750600, 751592) 73930600
#11

10/mower diagram

Tower lawn tractor lock nut (replaces 5394h, 73750600, 751592)

Part #73930600

Replaced by #596322601

?
Manufacturer substitution
This part replaces 73930600. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
