Electric Cooktop

Model # JP3036DL2BB Official GE electric counter unit

Here are the diagrams and repair parts for Official GE JP3036DL2BB electric counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Range Radiant Surface Element, 5-1/2-in (replaces Wb30t10127) WB30T10145
#56

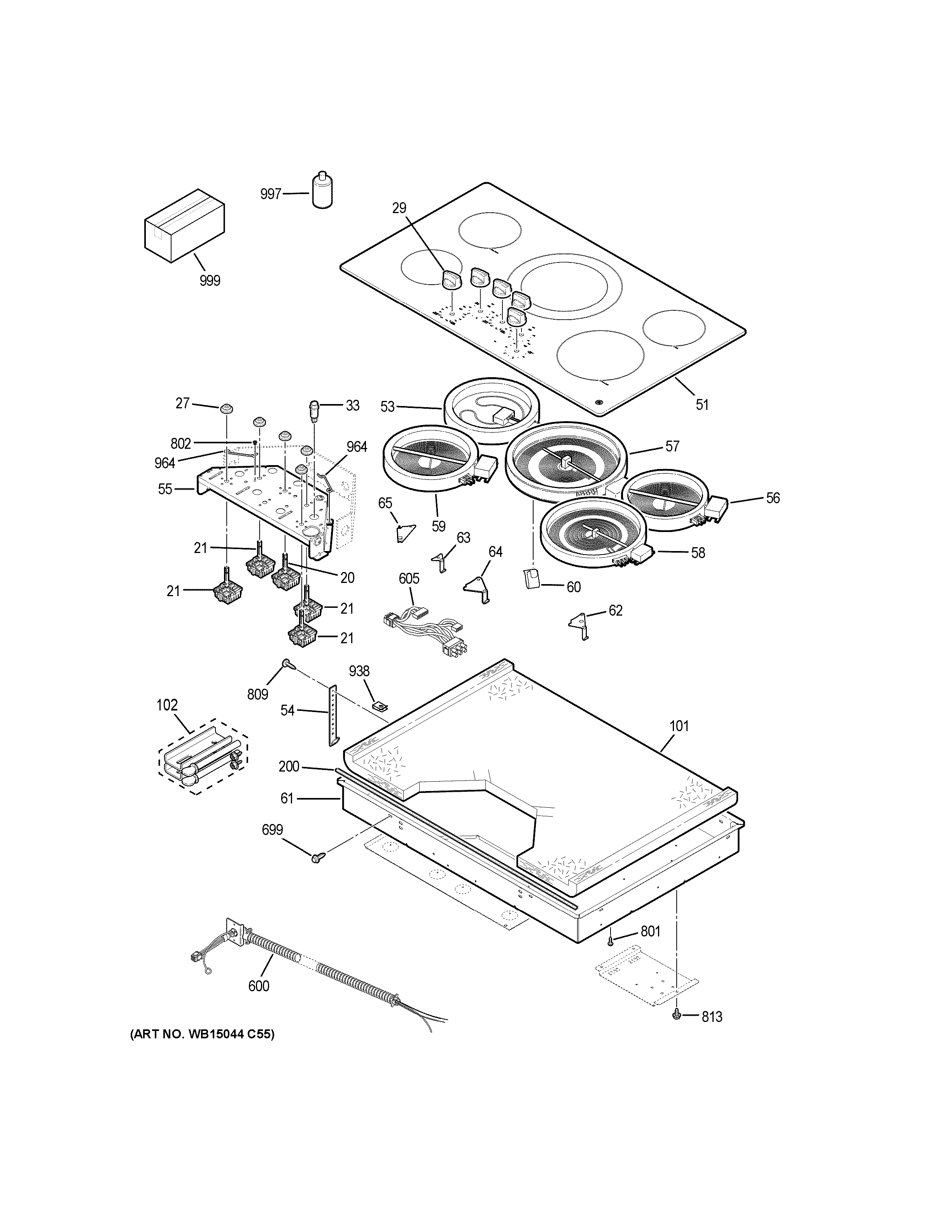

Control panel & cooktop diagram

Range radiant surface element, 5-1/2-in (replaces wb30t10127)

Part #WB30T10145

BEST SELLER
$89.97 |
6% OFF Phone Price : $95.97
In Stock
Cooktop Element Control Switch WB24X22341
#21

Control panel & cooktop diagram

Cooktop element control switch

Part #WB24X22341

Replaced by #WB24X40331

?
Manufacturer substitution
This part replaces WB24X22341. Substitute parts can look different from the original.
BEST SELLER
$40.83
In Stock
Range Radiant Surface Element, 8-in WB30T10136
#58

Control panel & cooktop diagram

Range radiant surface element, 8-in

Part #WB30T10136

BEST SELLER
$107.70 |
10% OFF Phone Price : $119.70
In Stock
Range Radiant Surface Element, 6-in (replaces Wb30t10125) WB30T10129
#59

Control panel & cooktop diagram

Range radiant surface element, 6-in (replaces wb30t10125)

Part #WB30T10129

BEST SELLER
$112.74 |
10% OFF Phone Price : $124.74
In Stock
Screw WB01X1137
#809

Control panel & cooktop diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Scr 8-32 Tt WB01X23501
#802

Control panel & cooktop diagram

Scr 8-32 tt

Part #WB01X23501

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wire Harness WB18X24528
#605

Control panel & cooktop diagram

Wire harness

Part #WB18X24528

Replaced by #WB18X32532

?
Manufacturer substitution
This part replaces WB18X24528. Substitute parts can look different from the original.
$72.76
In Stock
Insulation WB35X24172
#101

Control panel & cooktop diagram

Insulation

Part #WB35X24172

$91.00
In Stock
Cooktop Element, 12-in WB30T10151
#57

Control panel & cooktop diagram

Cooktop element, 12-in

Part #WB30T10151

$194.51 |
6% OFF Phone Price : $206.51
In Stock
Knob Bk WB03X29629
#29

Control panel & cooktop diagram

Knob bk

Part #WB03X29629

This item is not returnable
$5.55
In Stock
