Model # 217586612 Official Craftsman outboard motor

Here are the diagrams and repair parts for Official Craftsman 217586612 outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

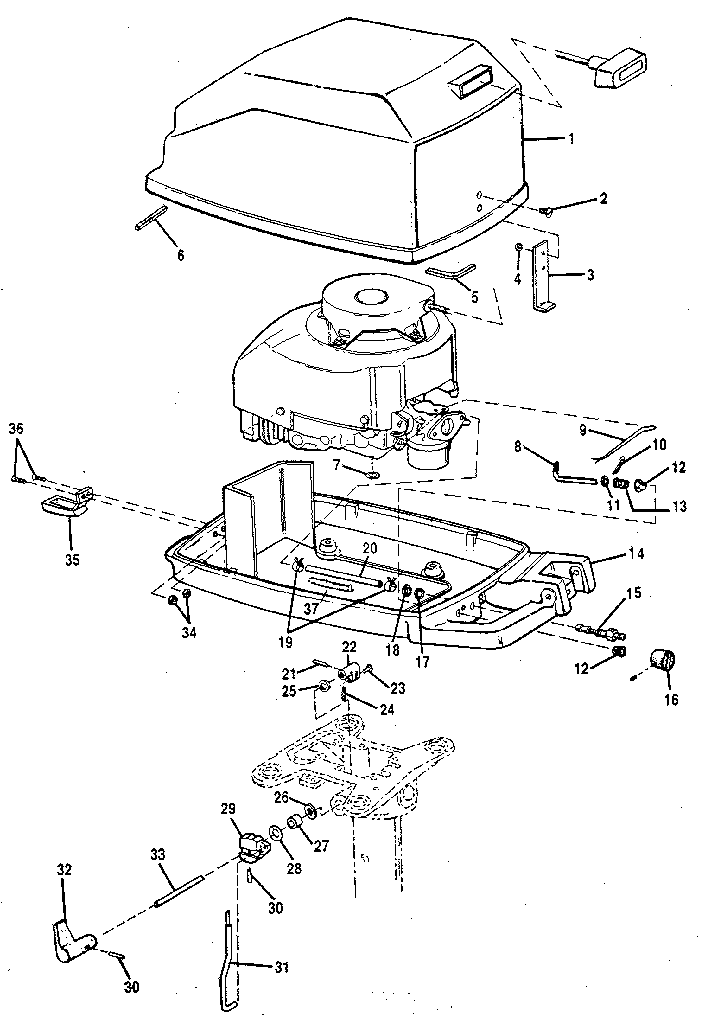

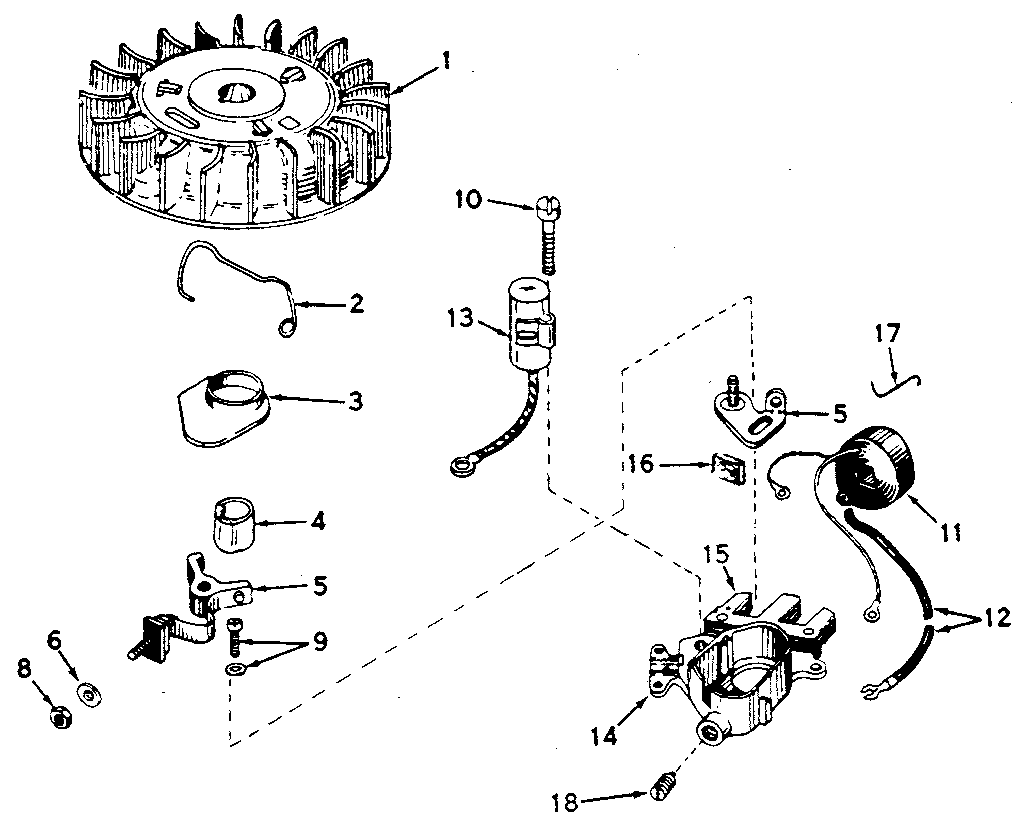

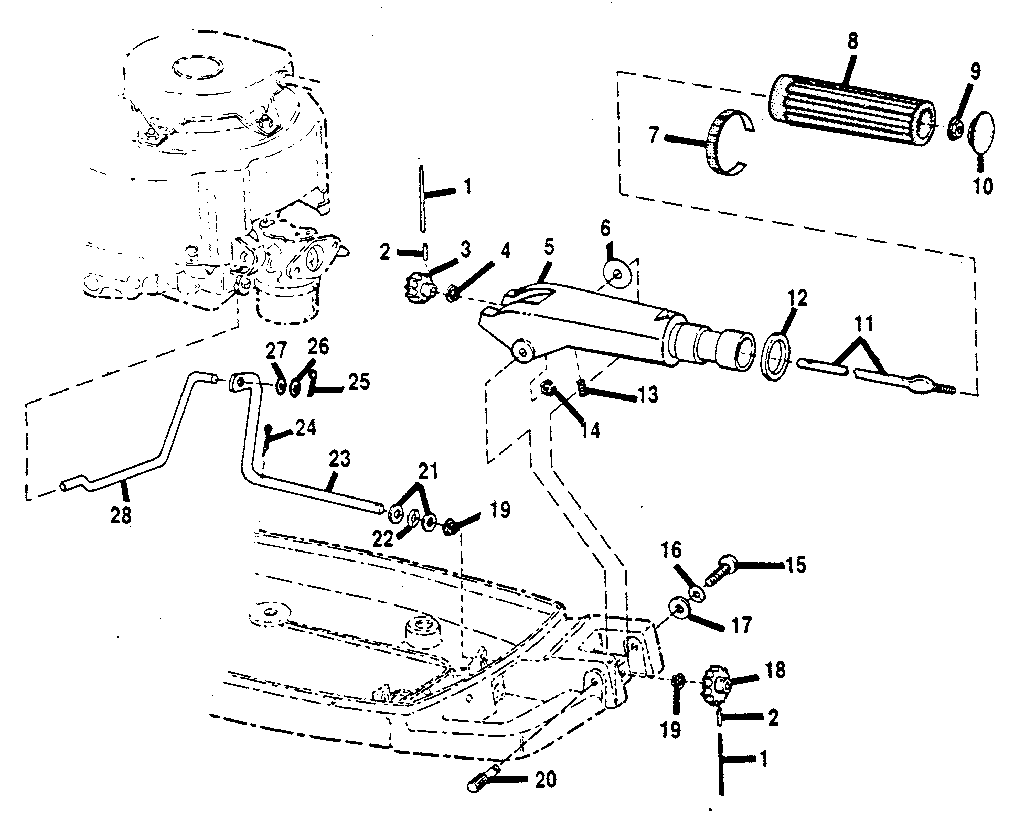

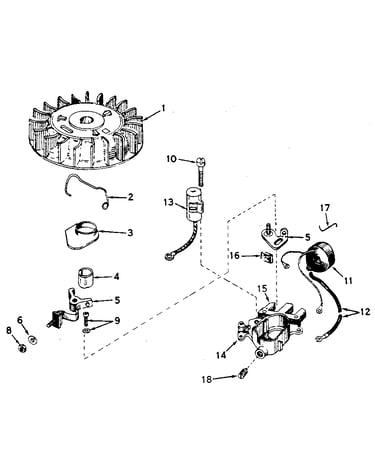

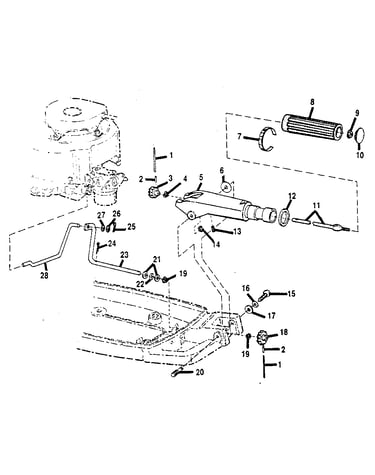

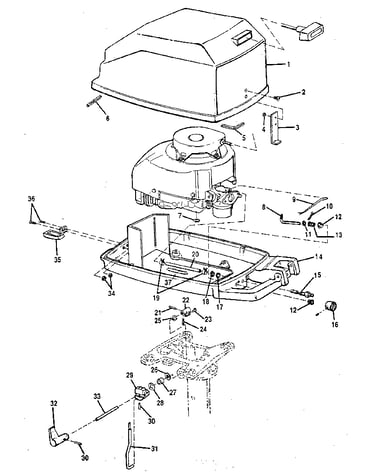

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 277 parts  |
Seal 510319
#26

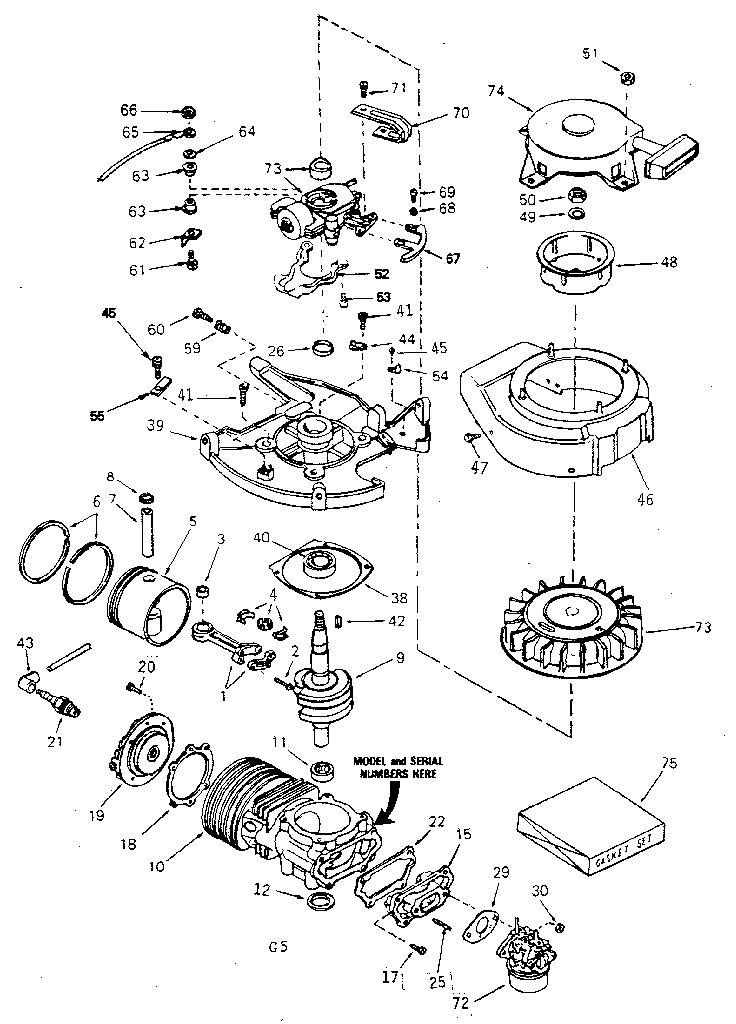

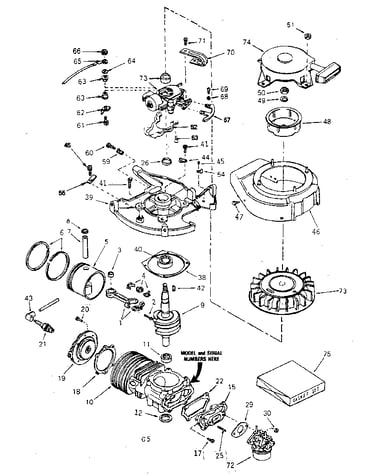

Engine assembly diagram

Seal

Part #510319

The manufacturer no longer makes this part, and there's no substitute part

Spring 630735
#8

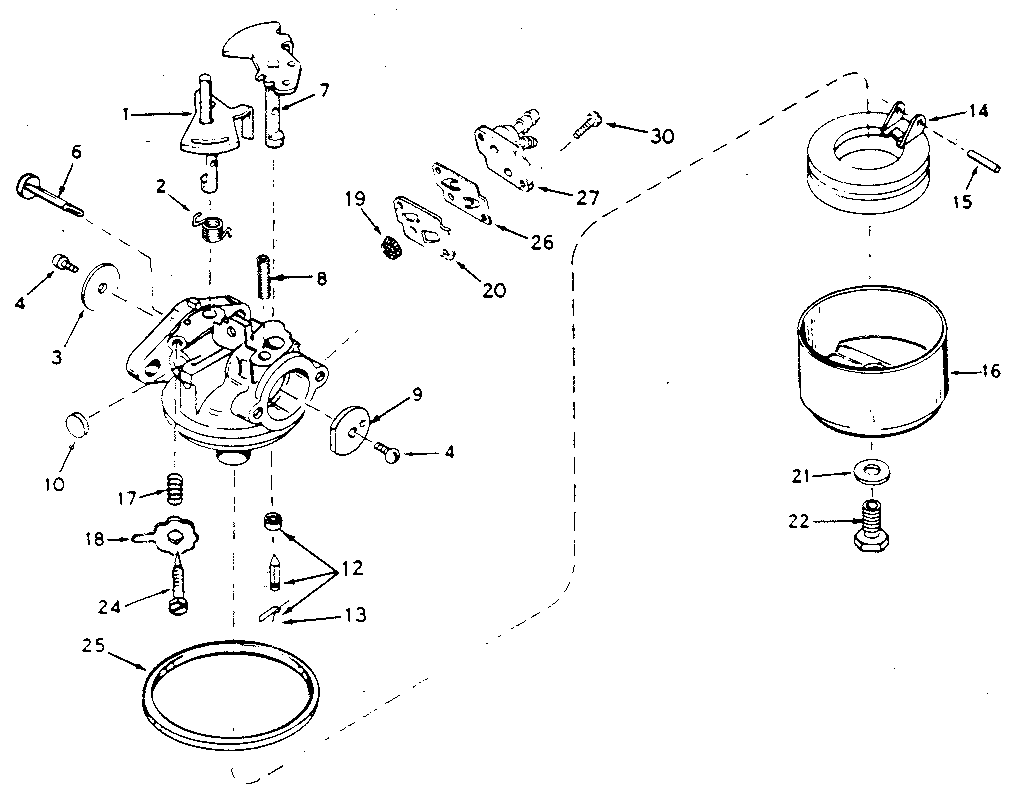

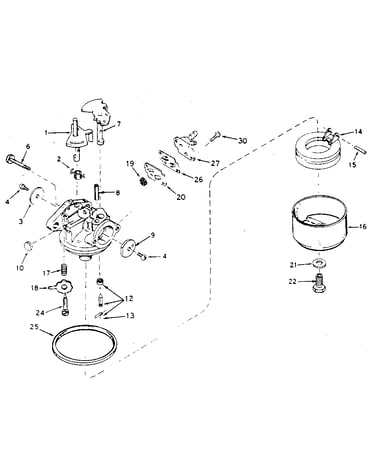

Carburetor assembly & parts list diagram

Spring

Part #630735

The manufacturer no longer makes this part, and there's no substitute part

Spring 590412
#5

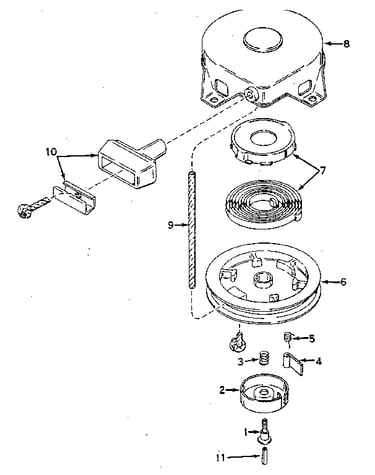

Rewind starter assem. 590420 diagram

Spring

Part #590412

The manufacturer no longer makes this part, and there's no substitute part

Clip 631022
#13

Carburetor assembly & parts list diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Preway Roll Pin 7058
#15

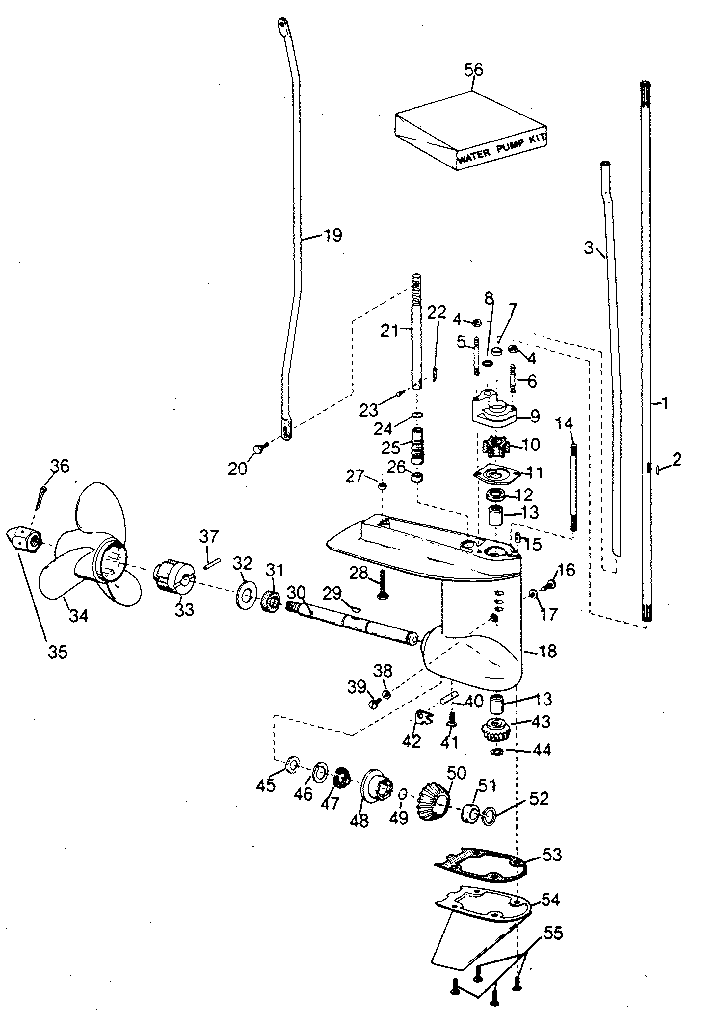

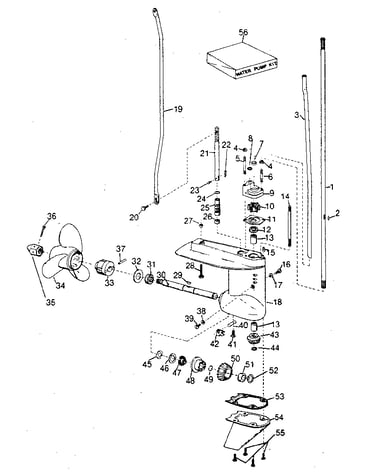

Gear housing assembly diagram

Preway roll pin

Part #7058

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Gasket 26804
#53

Gear housing assembly diagram

Boat motor gasket

Part #26804

The manufacturer no longer makes this part, and there's no substitute part

Gasket (gray) 26945
#1

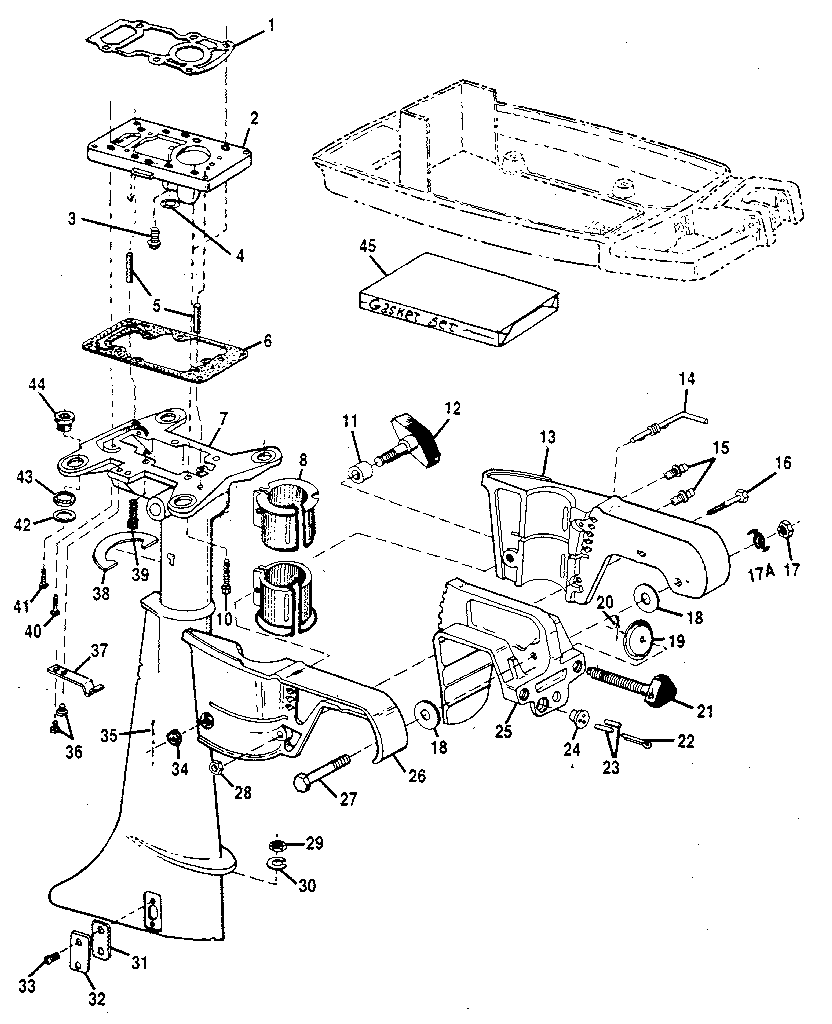

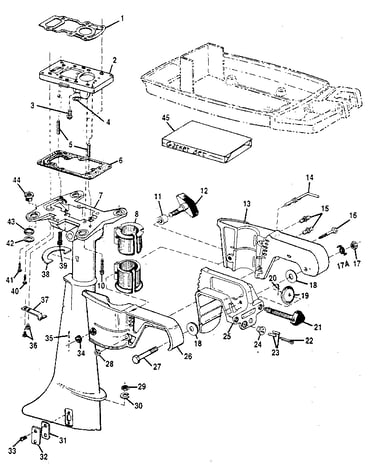

Column assembly diagram

Gasket (gray)

Part #26945

The manufacturer no longer makes this part, and there's no substitute part

Preway Boat Motor Propeller Nut 26011
#35

Gear housing assembly diagram

Preway boat motor propeller nut

Part #26011

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Washer 5631
#43

Column assembly diagram

Boat motor washer

Part #5631

The manufacturer no longer makes this part, and there's no substitute part

Oil Seal (black) 95717
#31

Gear housing assembly diagram

Oil seal (black)

Part #95717

The manufacturer no longer makes this part, and there's no substitute part
