Craftsman
Lawn Sweeper

Model # 486241322 Official Craftsman lawn sweeper

Here are the diagrams and repair parts for Official Craftsman 486241322 lawn sweeper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Lawn Tractor Attachment Cotter Pin, 3/32-in 43055
#63

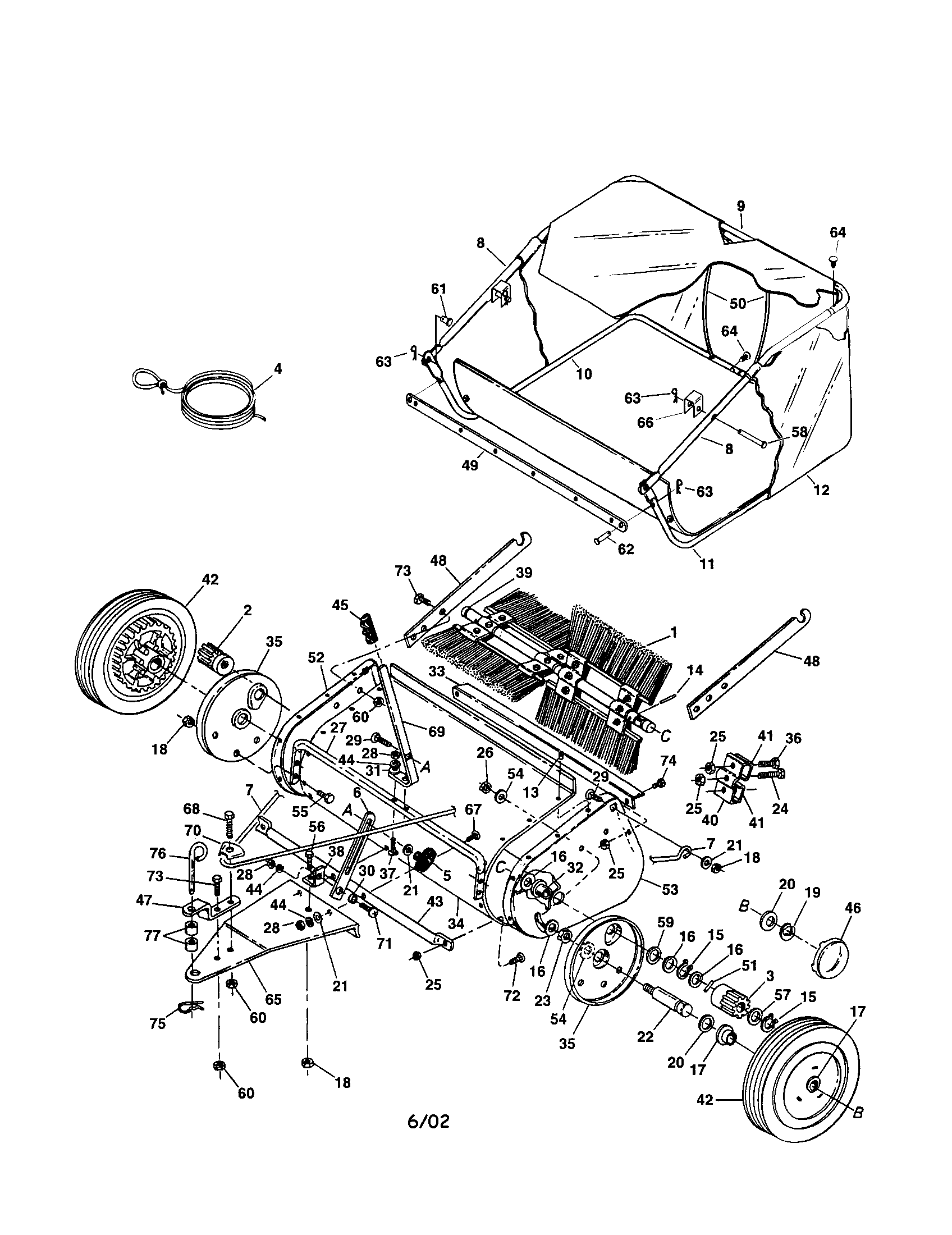

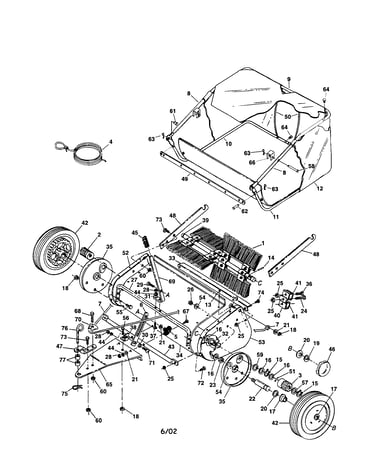

Lawn sweeper diagram

Lawn tractor attachment cotter pin, 3/32-in

Part #43055

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Lawn Sweeper Brush Retainer (replaces Af-23580) 23580
#40

Lawn sweeper diagram

Lawn sweeper brush retainer (replaces af-23580)

Part #23580

BEST SELLER
This item is not returnable
$5.29 |
16% OFF Phone Price : $6.29
In Stock
Lawn Sweeper Drive Pin (replaces Af-47046) 47046
#51

Lawn sweeper diagram

Lawn sweeper drive pin (replaces af-47046)

Part #47046

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Sweeper Brush Retainer (replaces Af-23581) 23581
#41

Lawn sweeper diagram

Lawn sweeper brush retainer (replaces af-23581)

Part #23581

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Washer, 5/16-in (replaces 736-0242) 43081
#21

Lawn sweeper diagram

Lawn tractor attachment washer, 5/16-in (replaces 736-0242)

Part #43081

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Lawn & Garden Equipment Lock Washer 43086
#44

Lawn sweeper diagram

Lawn & garden equipment lock washer

Part #43086

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Carriage Bolt, 5/16-18 X 3/4-in 43080
#29

Lawn sweeper diagram

Lawn & garden equipment carriage bolt, 5/16-18 x 3/4-in

Part #43080

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Lawn Sweeper Attachment Hopper Rope (replaces Af-43737) 43737
#4

Lawn sweeper diagram

Lawn tractor lawn sweeper attachment hopper rope (replaces af-43737)

Part #43737

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Lawn Sweeper Attachment Retainer Ring (replaces Af-1650-21) 1650-21
#15

Lawn sweeper diagram

Lawn tractor lawn sweeper attachment retainer ring (replaces af-1650-21)

Part #1650-21

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Lawn Sweeper Attachment Wheel Bearing 741-0249
#17

Lawn sweeper diagram

Lawn tractor lawn sweeper attachment wheel bearing

Part #741-0249

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
