Jenn-Air
Electric Wall Oven

Model # JJW8130AAB Official Jenn-Air electric oven

Here are the diagrams and repair parts for Official Jenn-Air JJW8130AAB electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

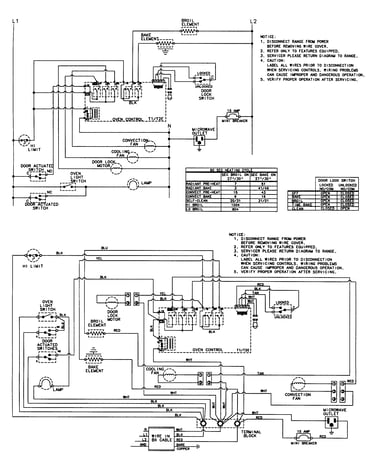

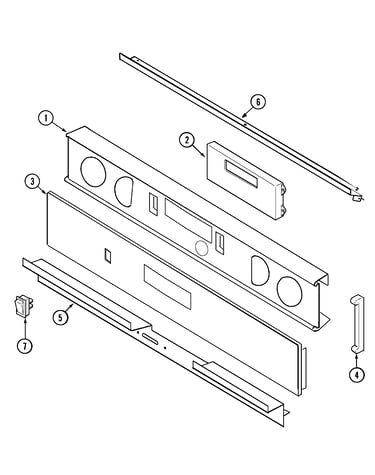

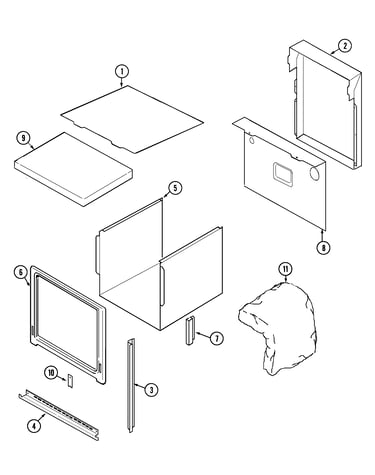

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Terminal Block 7401P039-60
#11

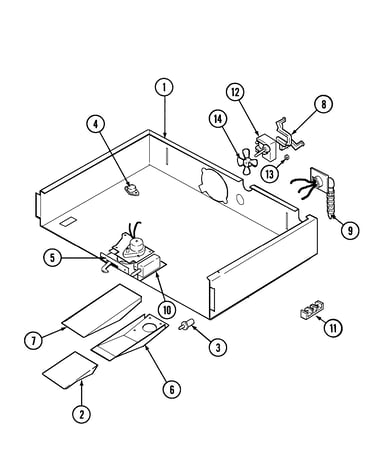

Internal controls diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Oven Sensor 71003083
#12

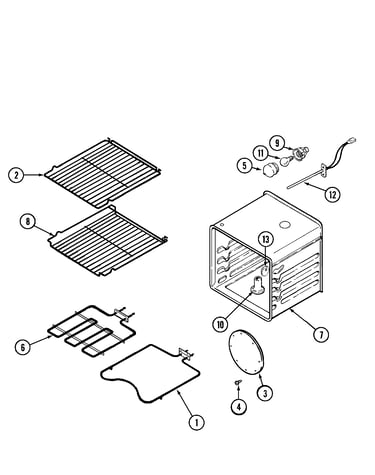

Oven diagram

Oven sensor

Part #71003083

Replaced by #12001656

?
Manufacturer substitution
This part replaces 71003083. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Bake Element 71001638
#1

Oven diagram

Bake element

Part #71001638

Replaced by #WPW10310258

?
Manufacturer substitution
This part replaces 71001638. Substitute parts can look different from the original.
$82.70 |
7% OFF Phone Price : $88.70
In Stock
Screw (#8ab) 71001183
Screw (#8ab)

Part #71001183

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 71001183. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Broiler Element 74004812
#6

Oven diagram

Broiler element

Part #74004812

Replaced by #WPW10310260

?
Manufacturer substitution
This part replaces 74004812. Substitute parts can look different from the original.
$95.40 |
11% OFF Phone Price : $107.40
In Stock
Wall Oven Door Seal 71001841
#6

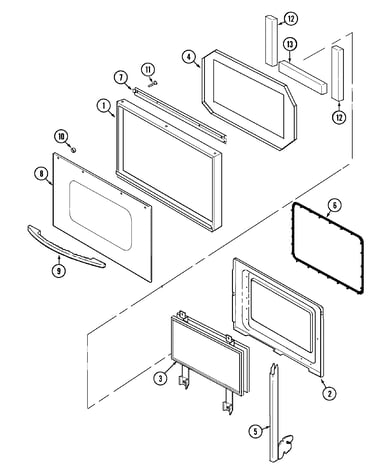

Door diagram

Wall oven door seal

Part #71001841

Replaced by #WP71001841

?
Manufacturer substitution
This part replaces 71001841. Substitute parts can look different from the original.
$76.09 |
7% OFF Phone Price : $82.09
In Stock
Receptacle 71001866
#9

Oven diagram

Receptacle

Part #71001866

Replaced by #WP74011278

?
Manufacturer substitution
This part replaces 71001866. Substitute parts can look different from the original.
$71.99 |
8% OFF Phone Price : $77.99
In Stock
Range High-limit Thermostat 71001844
#4

Internal controls diagram

Range high-limit thermostat

Part #71001844

Replaced by #WP71001844

?
Manufacturer substitution
This part replaces 71001844. Substitute parts can look different from the original.
$88.79 |
6% OFF Phone Price : $94.79
In Stock
Oven Rack 71001862
#2

Oven diagram

Oven rack

Part #71001862

Replaced by #WPW10282527

?
Manufacturer substitution
This part replaces 71001862. Substitute parts can look different from the original.
$74.41 |
7% OFF Phone Price : $80.41
In Stock
Oven Rack 71001865
#8

Oven diagram

Oven rack

Part #71001865

Replaced by #WPW10282527

?
Manufacturer substitution
This part replaces 71001865. Substitute parts can look different from the original.
$74.41 |
7% OFF Phone Price : $80.41
In Stock
