Model # JCB909BK6BB Official GE electric range

Name: Official GE JCB909BK6BB electric range Parts
Brand: GE
SKU: JCB909BK6BB
Availability: InStock

Here are the diagrams and repair parts for Official GE JCB909BK6BB electric range, as well as links to manuals and error code tables, if available.

Error Codes

By Schematic

By Part

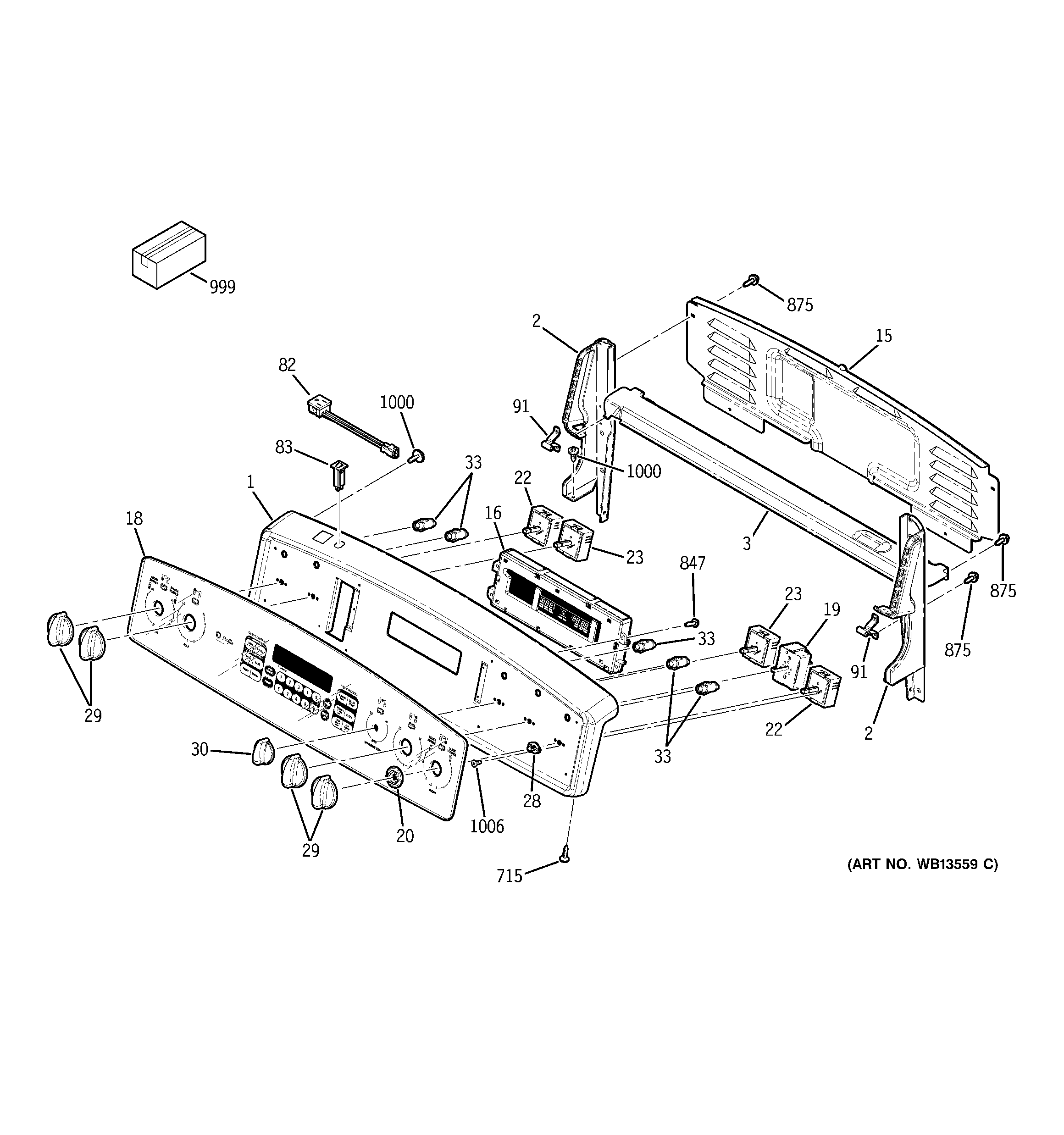

SELECT DIAGRAM

Browse Parts forJCB909BK6BB Ranges

#257

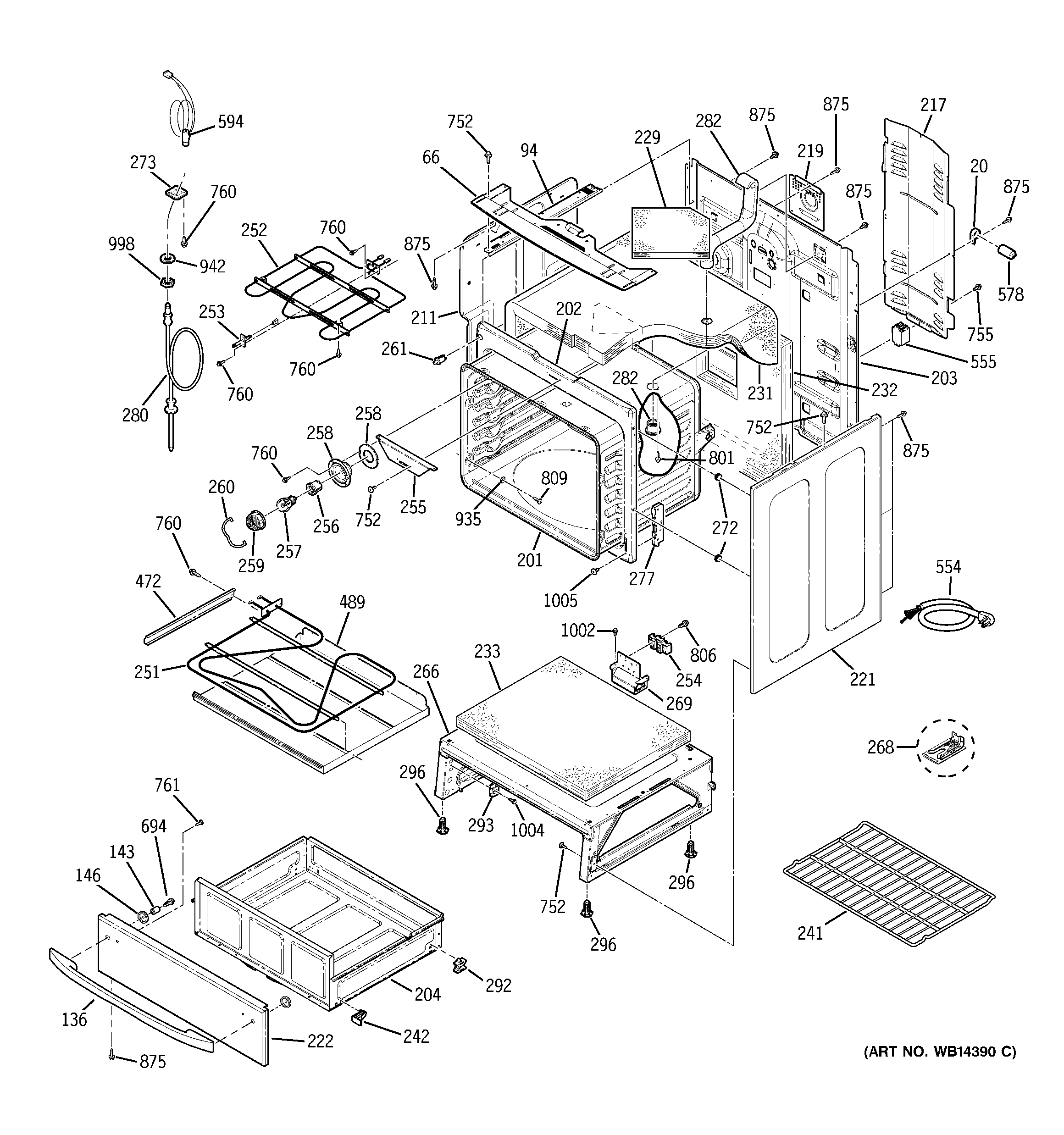

Body parts diagram
Range oven light bulb
Part #WX12X1510
Replaced by #40A15
?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
1.72 (18)
$16.24 |
11% OFF Phone Price : $18.24
In Stock
Qty
#58

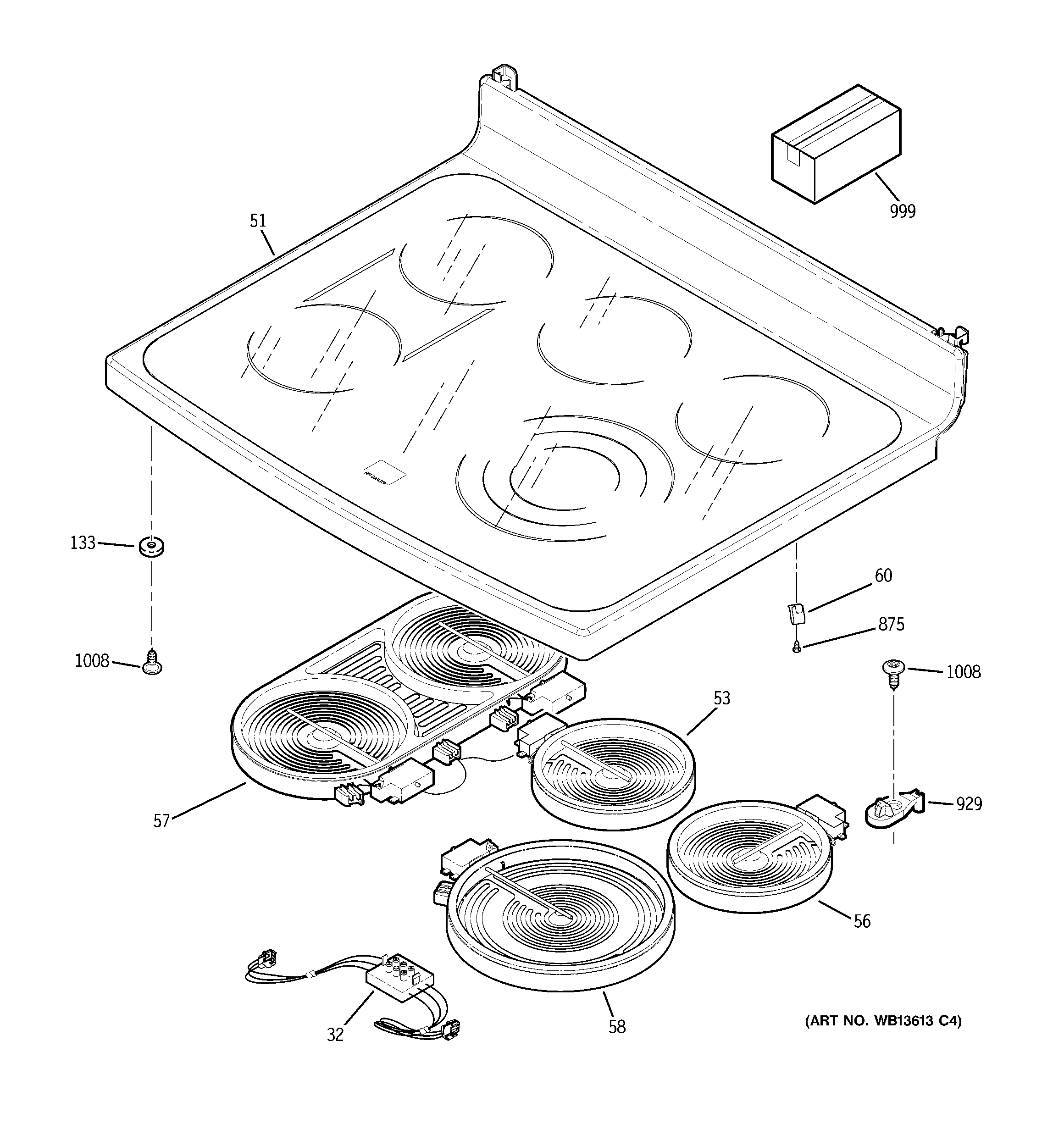

Cooktop diagram
G.e. range halogen surface element
Part #WB30T10130
3.57 (7)
$157.87 |
7% OFF Phone Price : $169.87
In Stock
Qty
#253
Body parts diagram
Wall oven temperature sensor
Part #WB21T10007
Replaced by #WB21X22134
?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
4 (3)
$20.01 |
23% OFF Phone Price : $26.01
In Stock
Qty
#338

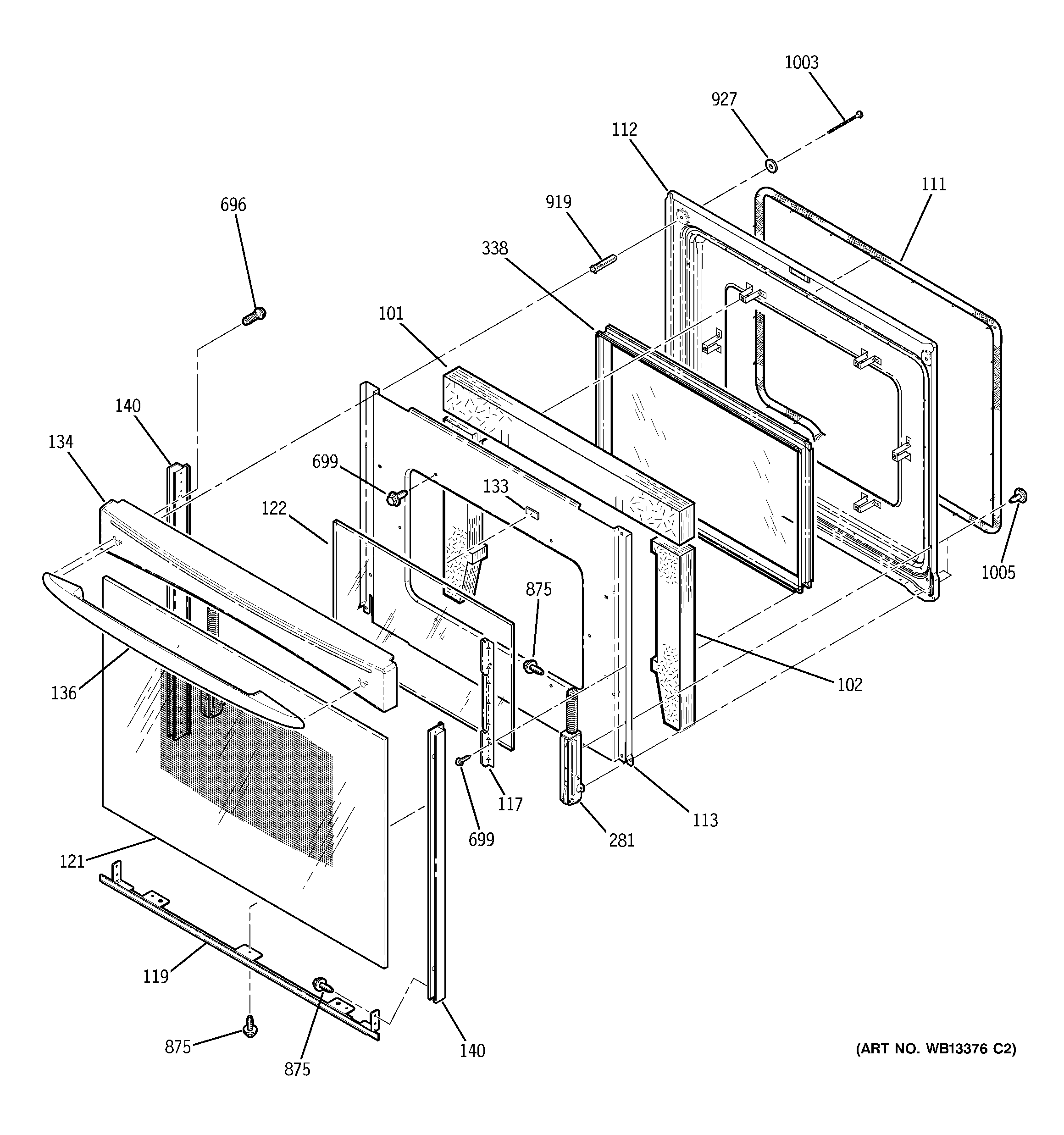

Door diagram
G.e. range oven door middle glass
Part #WB56T10105
4.8 (10)
$117.09 |
9% OFF Phone Price : $129.09
In Stock
Qty
#261
Body parts diagram
Range oven door switch
Part #WB24T10147
4 (2)
This item is not returnable
$18.69 |
10% OFF Phone Price : $20.69
In Stock
Qty
#298

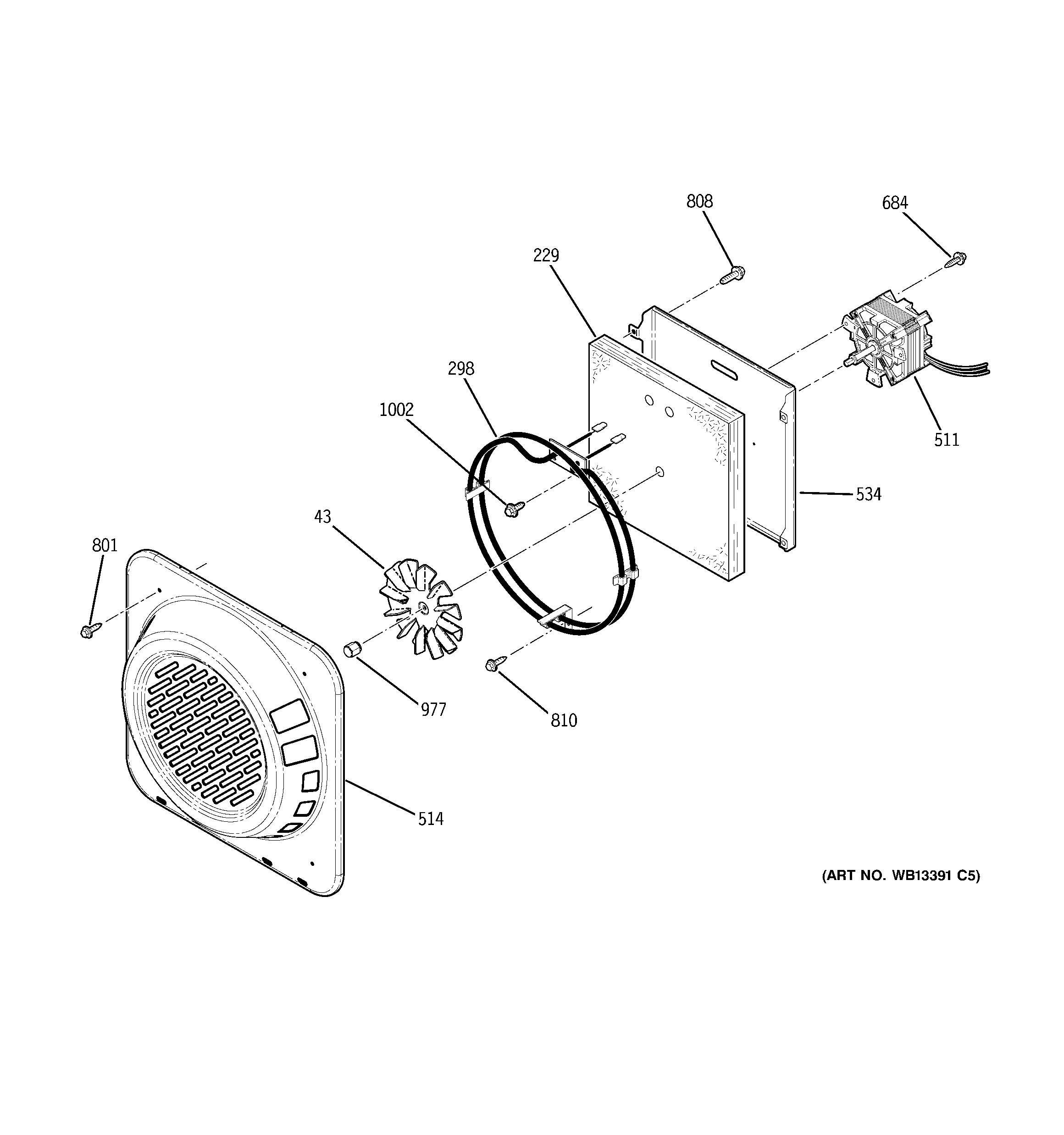

Convection fan diagram
Range convection element
Part #WB44T10053
3 (2)
$72.30 |
8% OFF Phone Price : $78.30
In Stock
Qty
#251
Body parts diagram
Unit asm (h/
Part #WB44T10049
Replaced by #WB44X45499
?
Manufacturer substitution
This part replaces WB44T10049. Substitute parts can look different from the original.
$121.17
In Stock
Qty
#977
Convection fan diagram
Nut
Part #WB02T10017
This item is not returnable
$11.04 |
15% OFF Phone Price : $13.04
In Stock
Qty
#56
Cooktop diagram
Range radiant surface element, 6-in
Part #WB30T10129
5 (1)
$105.55 |
10% OFF Phone Price : $117.55
In Stock
Qty
Cooking appliance screw, #10-32
Part #WB01T10008
This item is not returnable
$9.89 |
9% OFF Phone Price : $10.89
In Stock
Qty
