Model # 36-3032-00-05 Official Tappan gas range - lt32489310

Here are the diagrams and repair parts for Official Tappan 36-3032-00-05 gas range - lt32489310, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

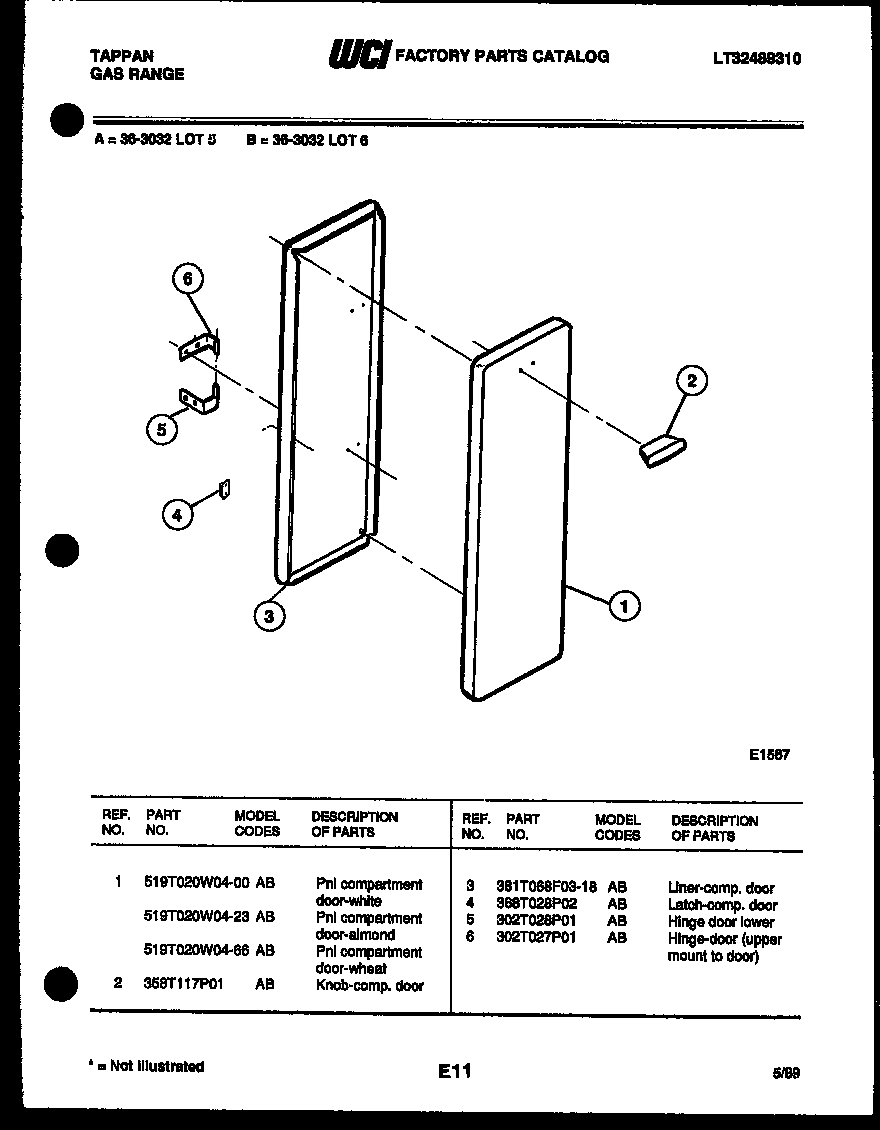

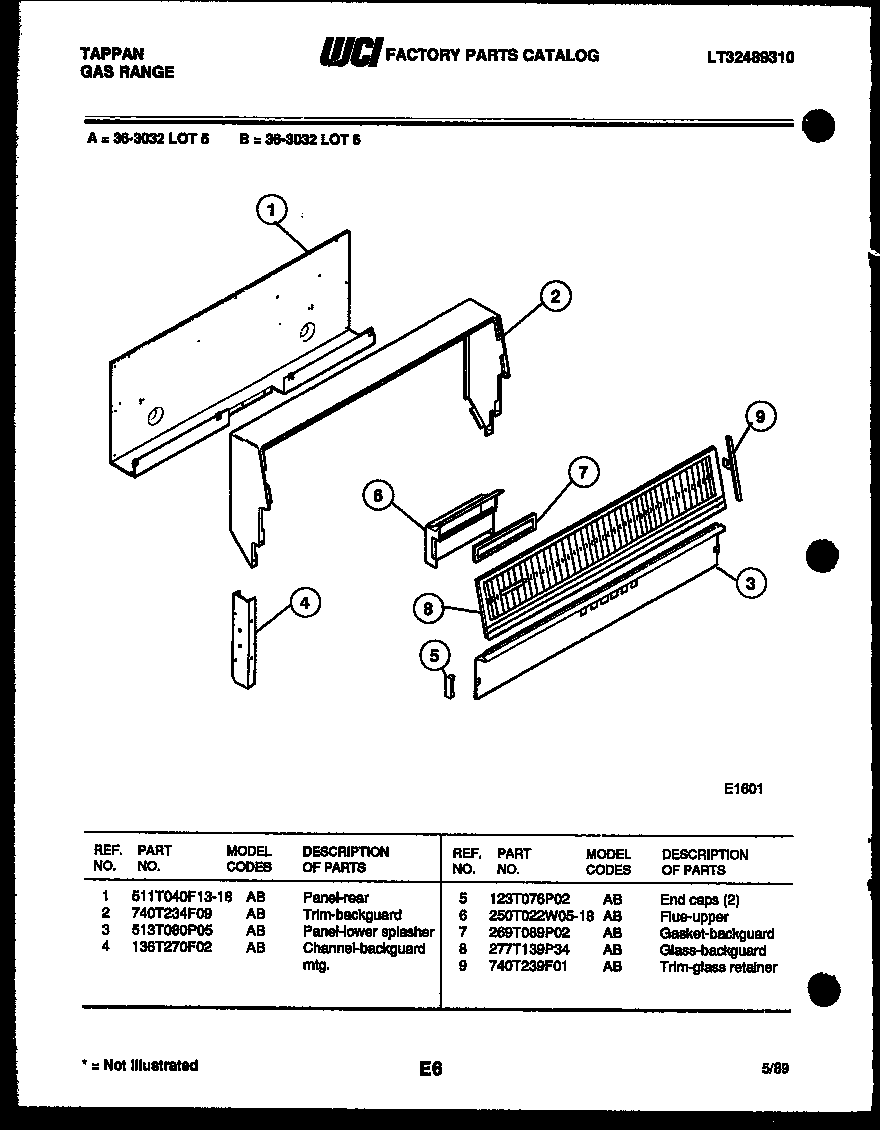

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Nut 479T069P03
#1

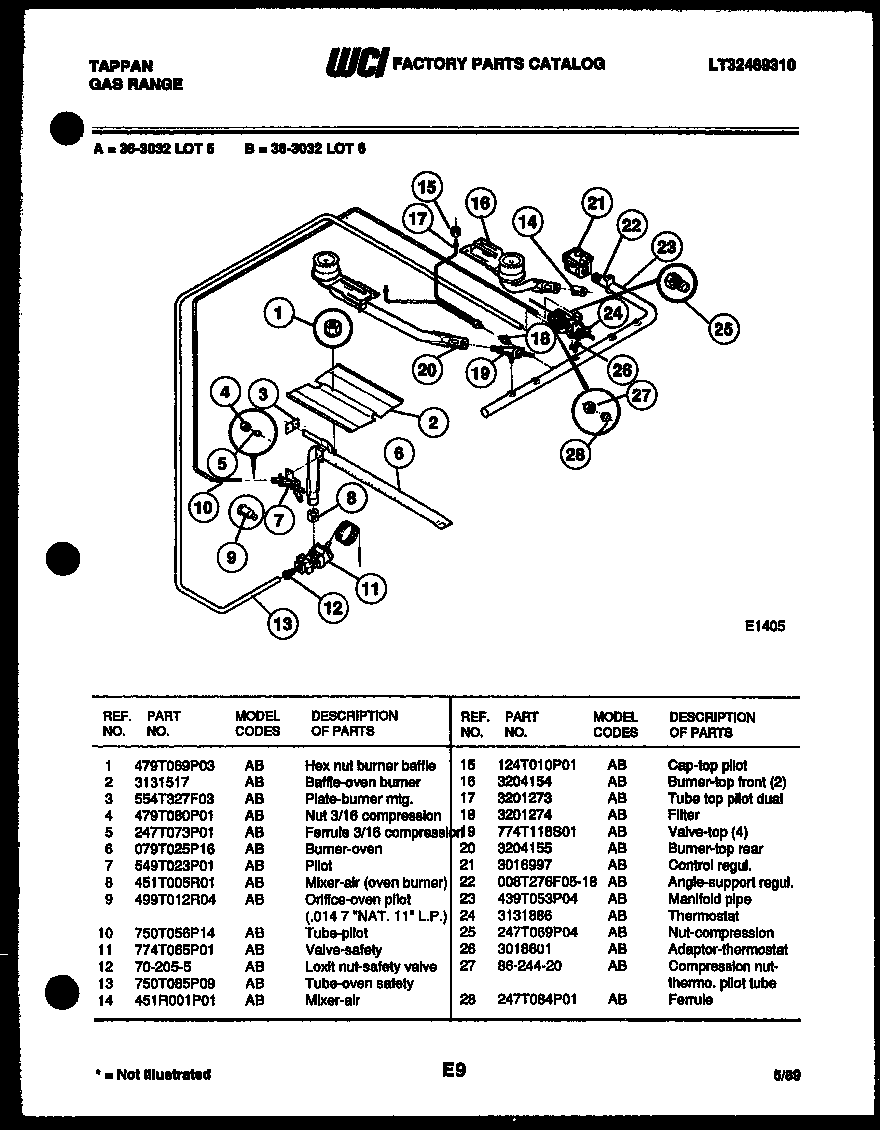

Burner, manifold and gas control diagram

Nut

Part #479T069P03

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 479T069P03. Substitute parts can look different from the original.
This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Clip 3011805
#13

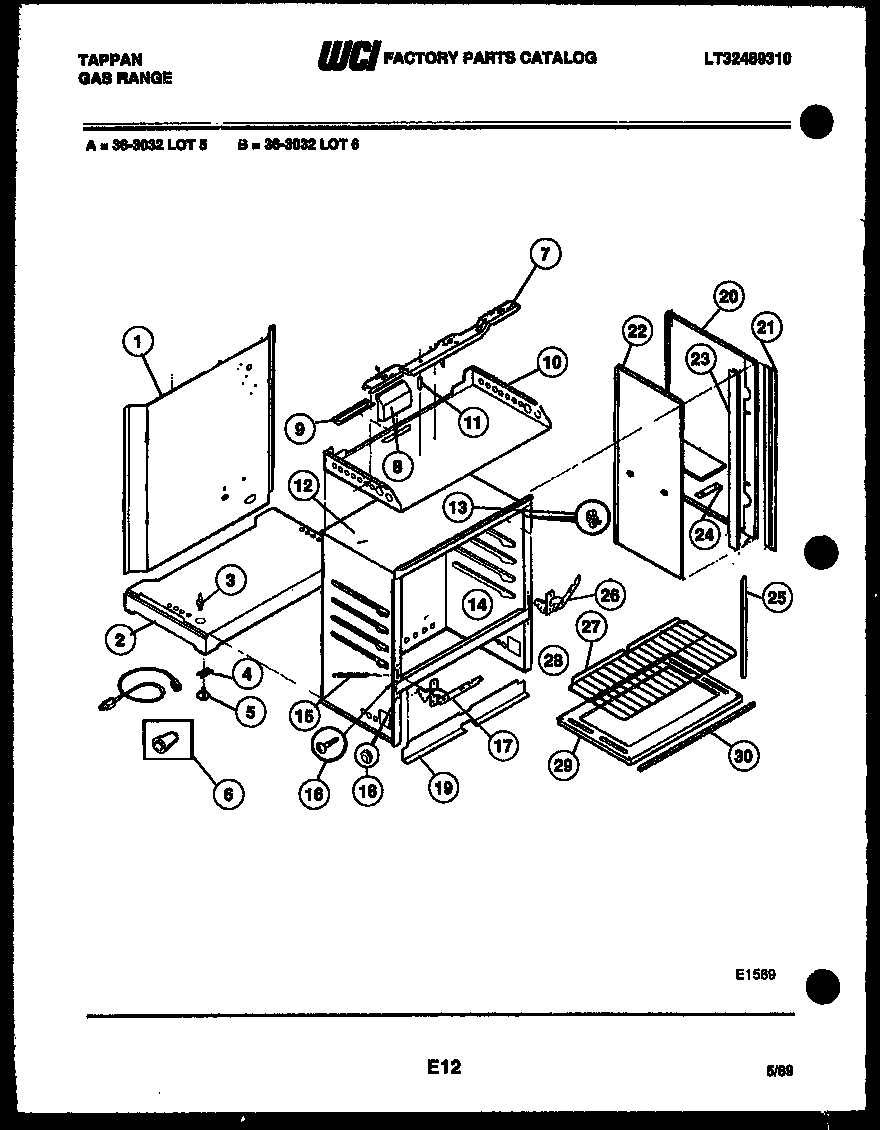

Body parts diagram

Clip

Part #3011805

Replaced by #5303284616

?
Manufacturer substitution
This part replaces 3011805. Substitute parts can look different from the original.
This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Clip 3012323

#NI

All parts diagram

Clip

Part #3012323

This item is not returnable
$2.16
In Stock
Screw 241T017P180
#5

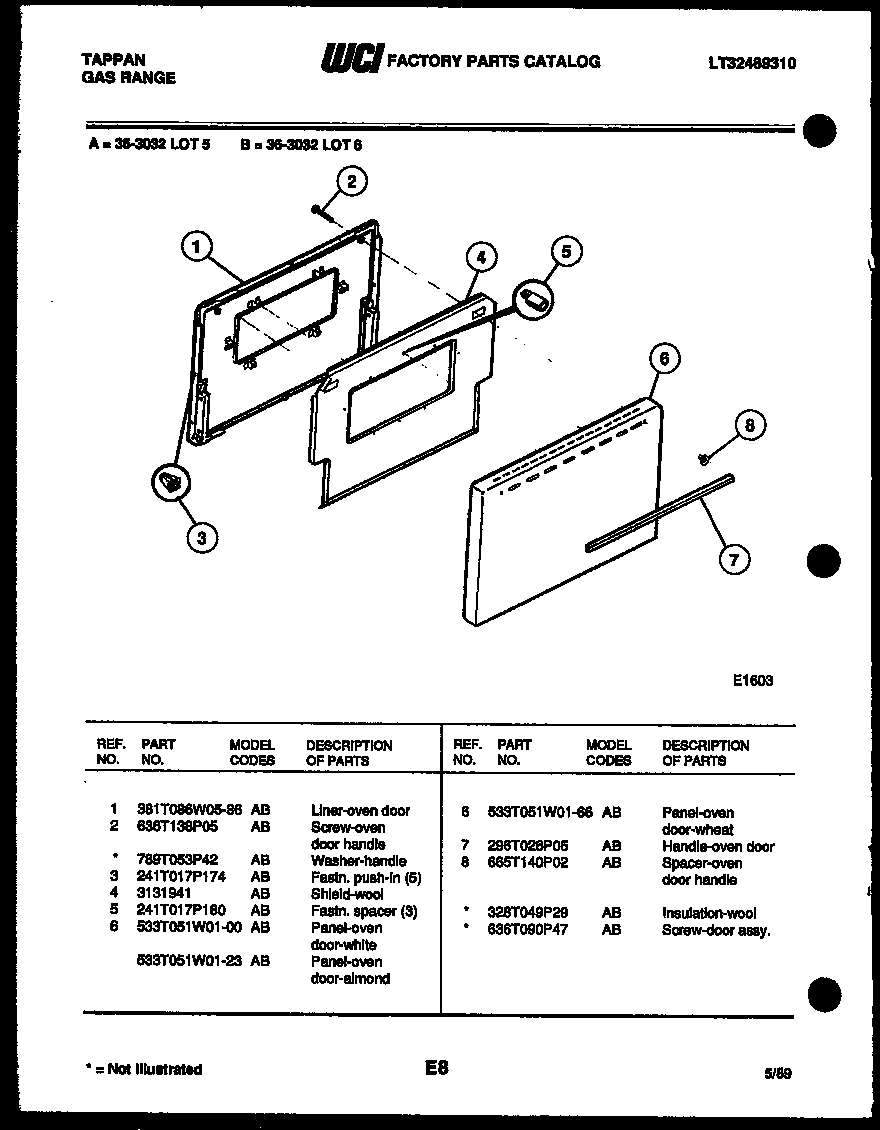

Door parts diagram

Screw

Part #241T017P180

This item is not returnable
$2.16
In Stock
Grate 3012700
#7

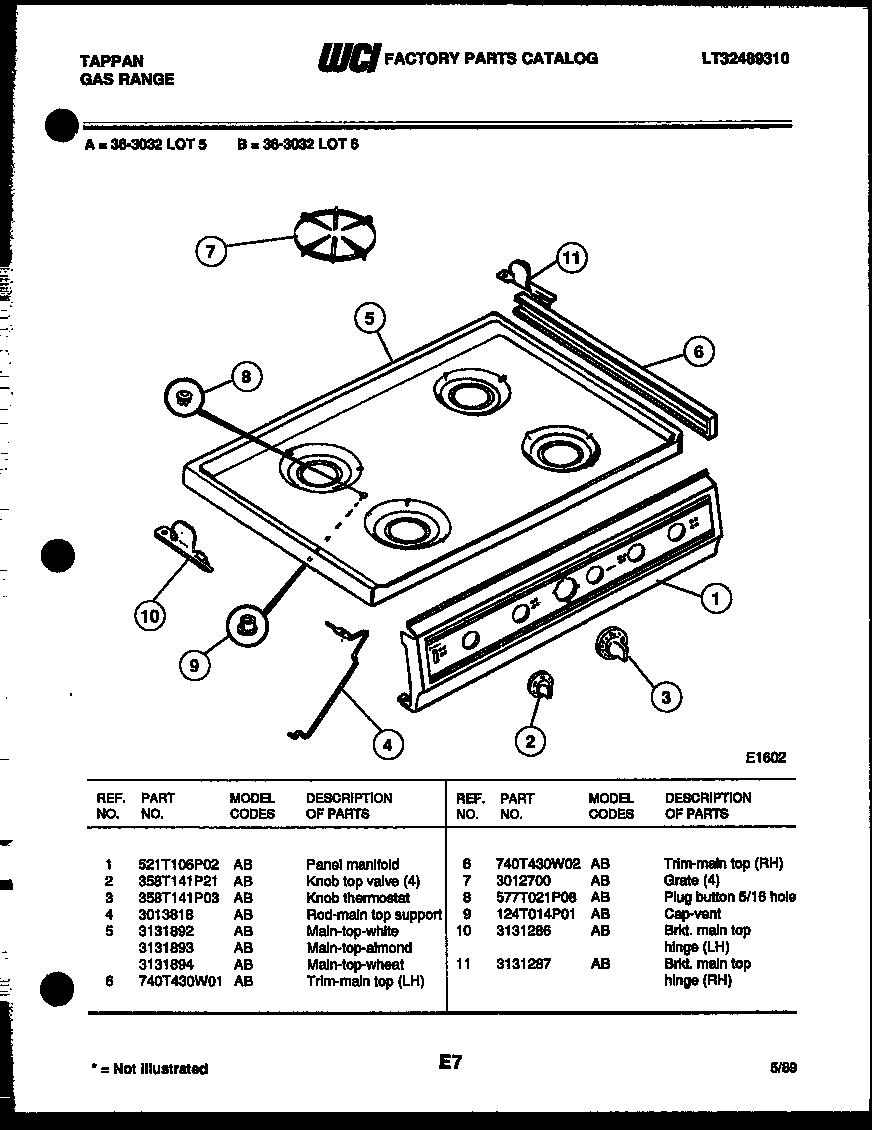

Cooktop parts diagram

Grate

Part #3012700

Replaced by #316055800

?
Manufacturer substitution
This part replaces 3012700. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
Screw 636T147P01
#5

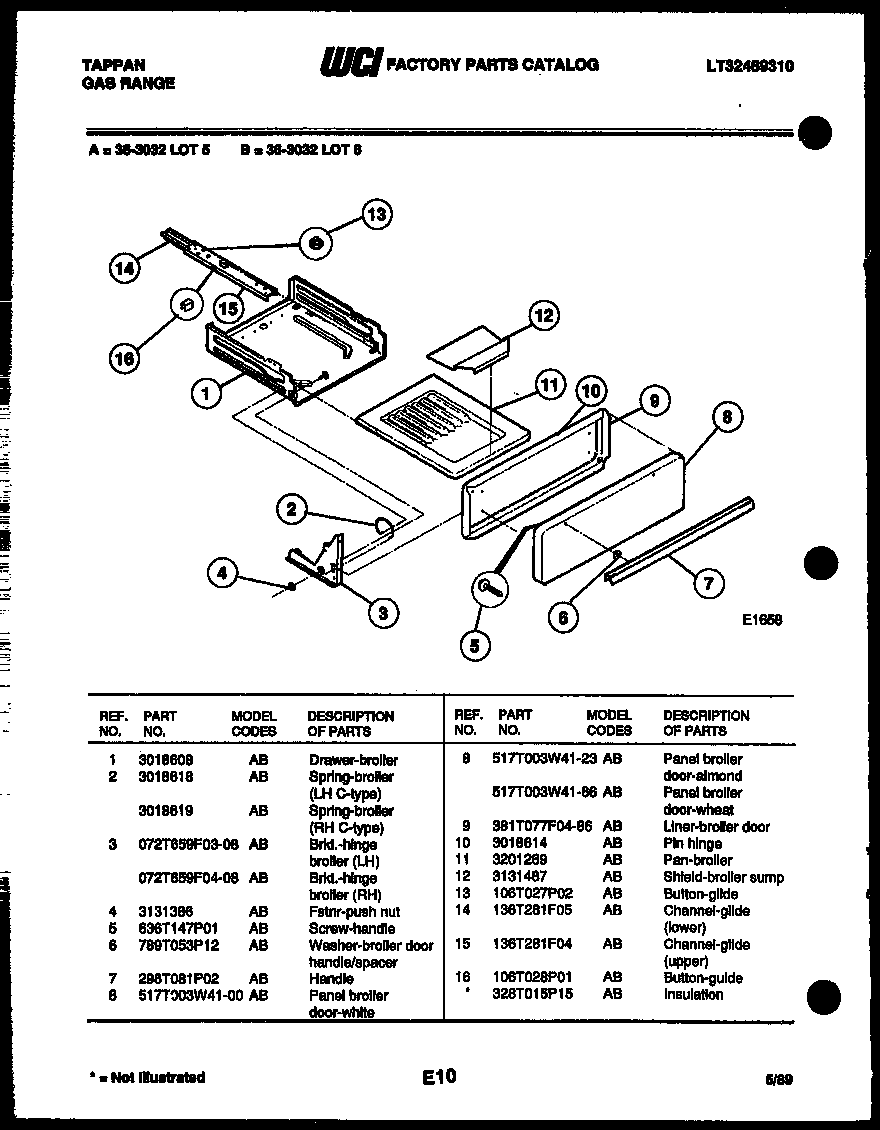

Broiler drawer parts diagram

Screw

Part #636T147P01

Replaced by #5303292012

?
Manufacturer substitution
This part replaces 636T147P01. Substitute parts can look different from the original.
$13.29
In Stock
Panel 515T047F16-00
#20

Body parts diagram

Panel

Part #515T047F16-00

The manufacturer no longer makes this part, and there's no substitute part

Cover 174T133P02
#6

Body parts diagram

Cover

Part #174T133P02

The manufacturer no longer makes this part, and there's no substitute part

Liner 381T086W05-86
#1

Door parts diagram

Liner

Part #381T086W05-86

The manufacturer no longer makes this part, and there's no substitute part

Knob 358T141P21
#2

Cooktop parts diagram

Knob

Part #358T141P21

The manufacturer no longer makes this part, and there's no substitute part
