Model # DUR202-19-OK Official Caloric dishwasher

Here are the diagrams and repair parts for Official Caloric DUR202-19-OK dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

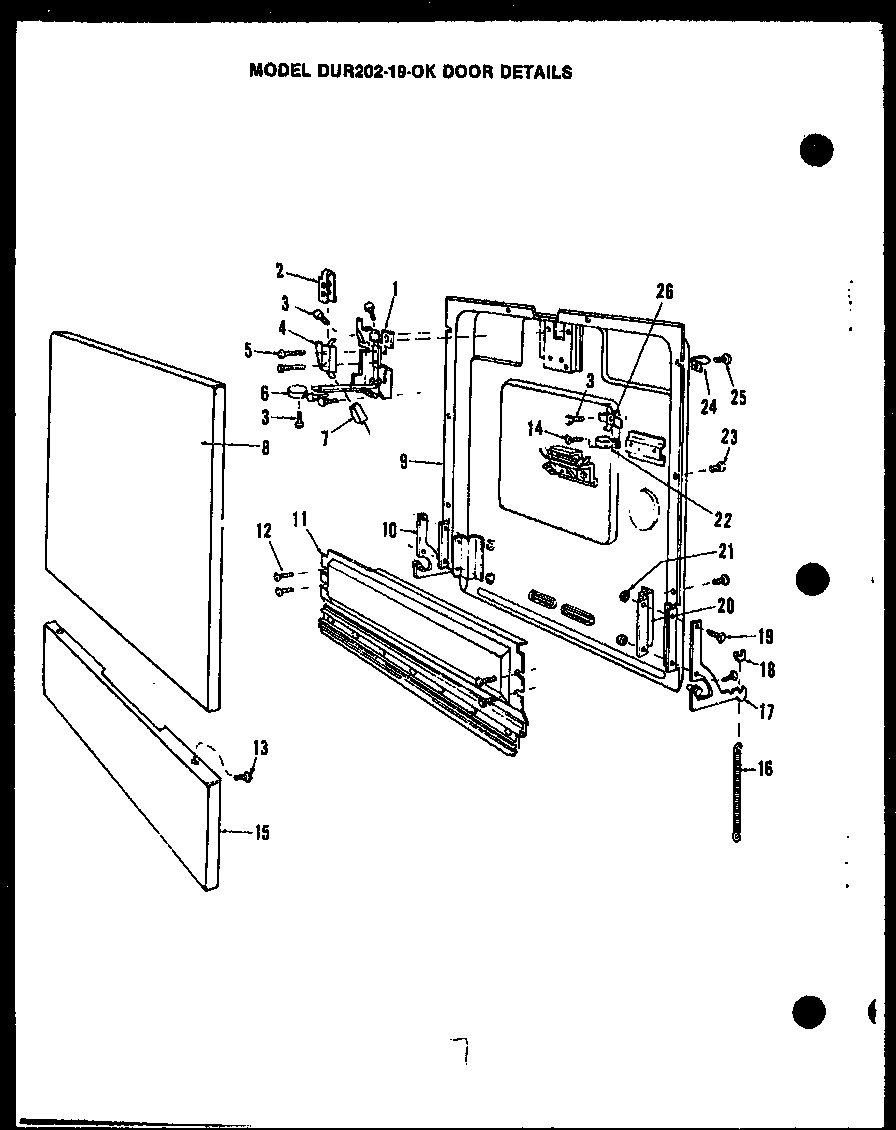

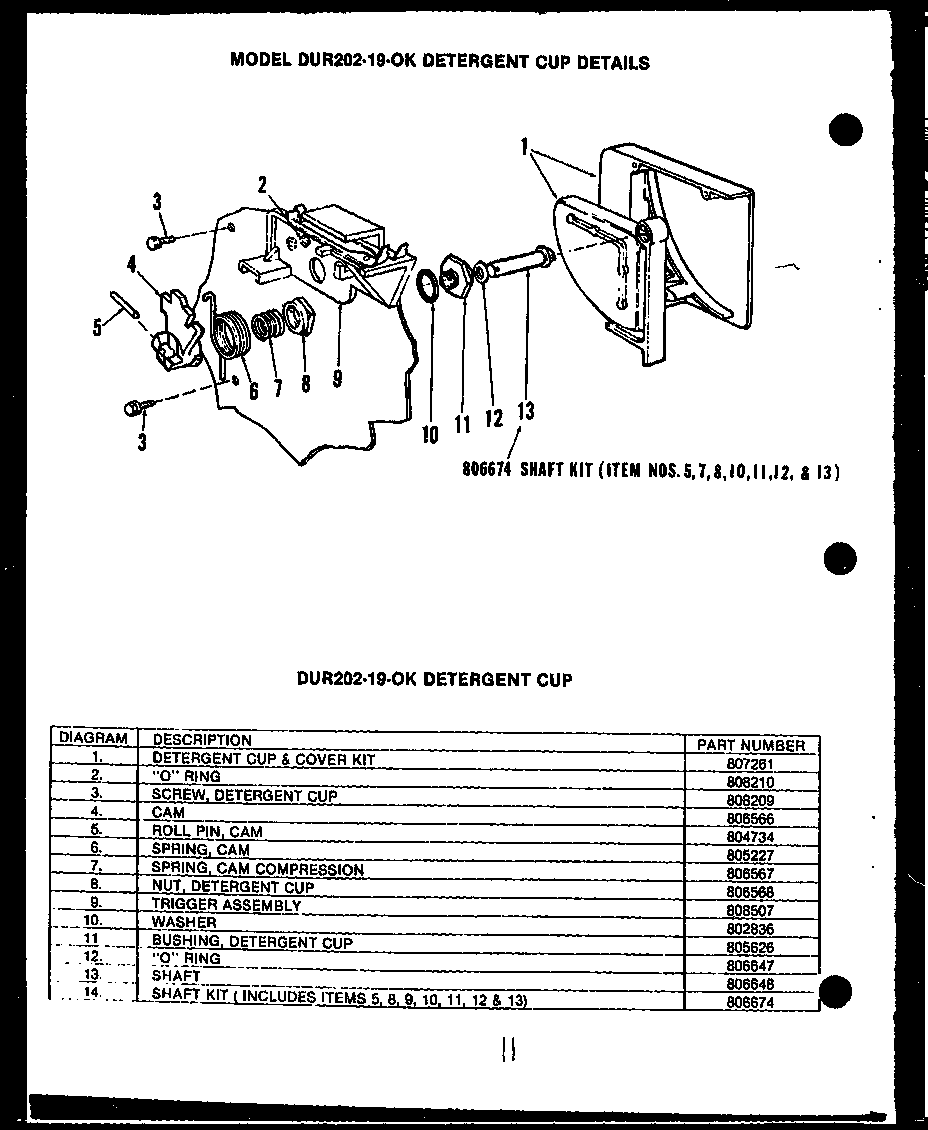

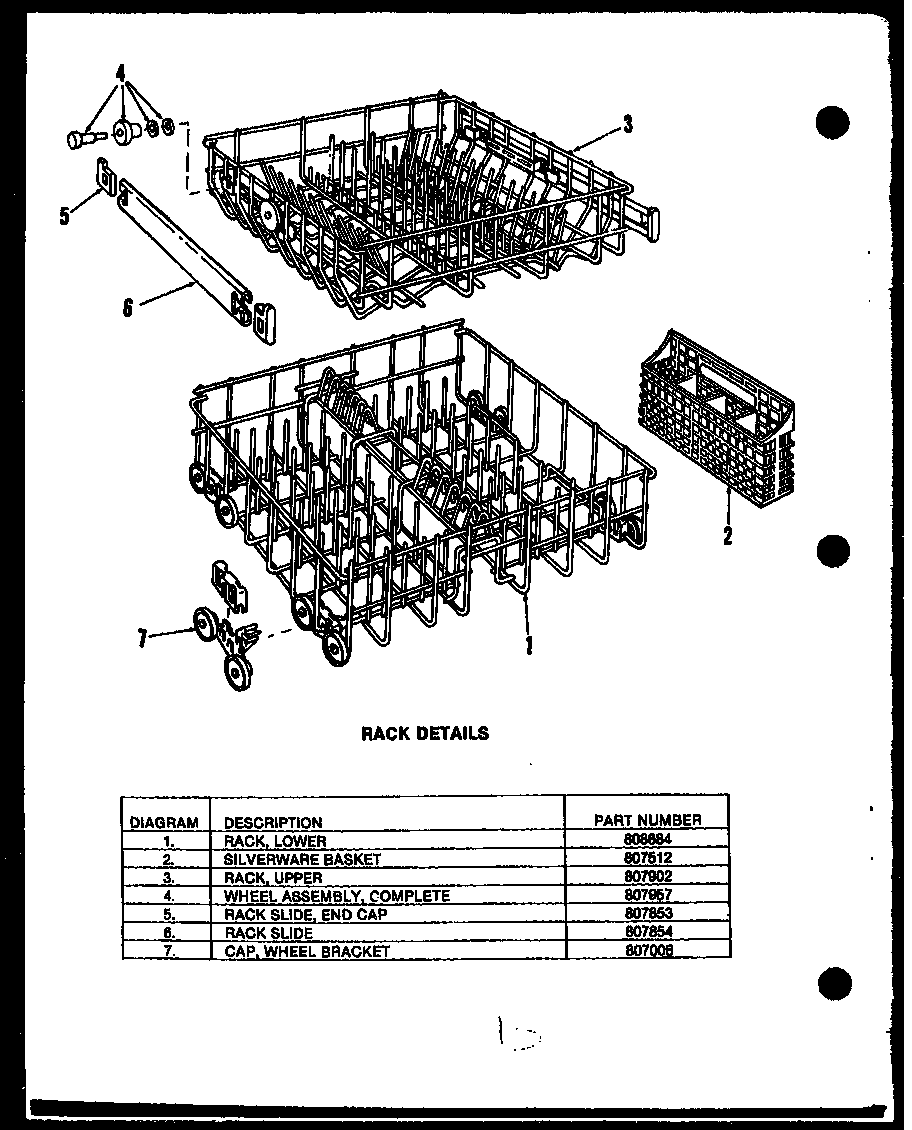

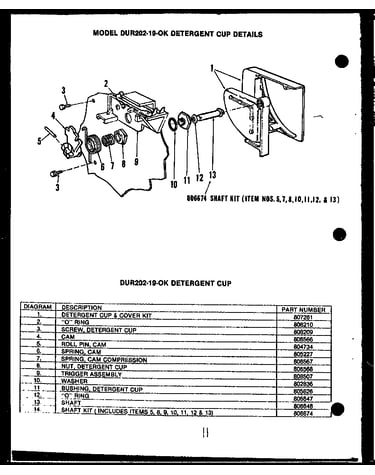

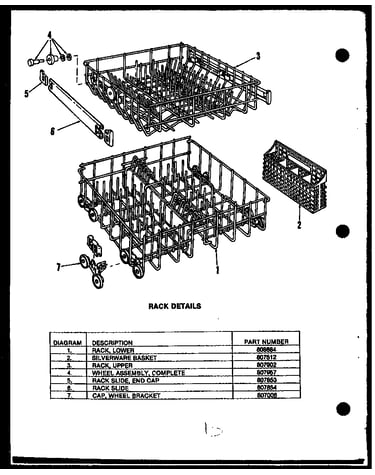

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Clamp Ring(p 807712
#15

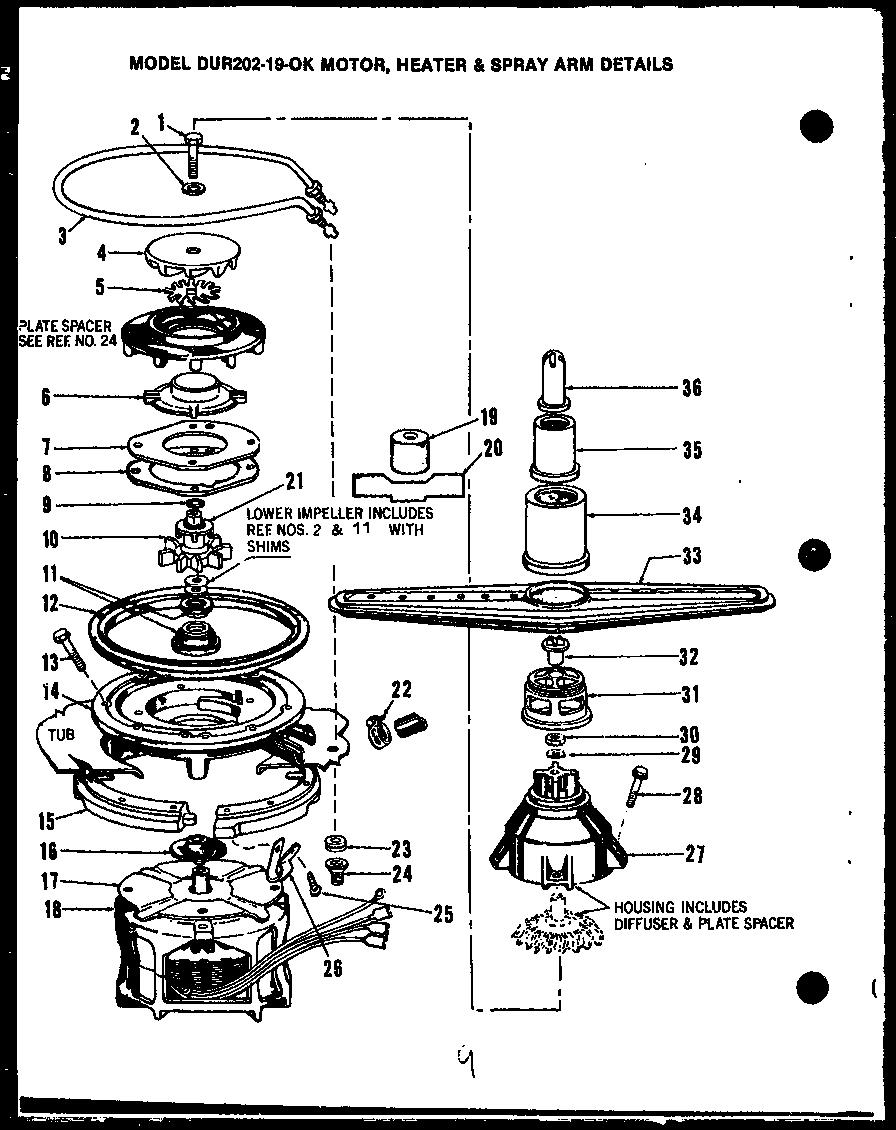

Motor diagram

Clamp ring(p

Part #807712

The manufacturer no longer makes this part, and there's no substitute part

Screw 806890
#8

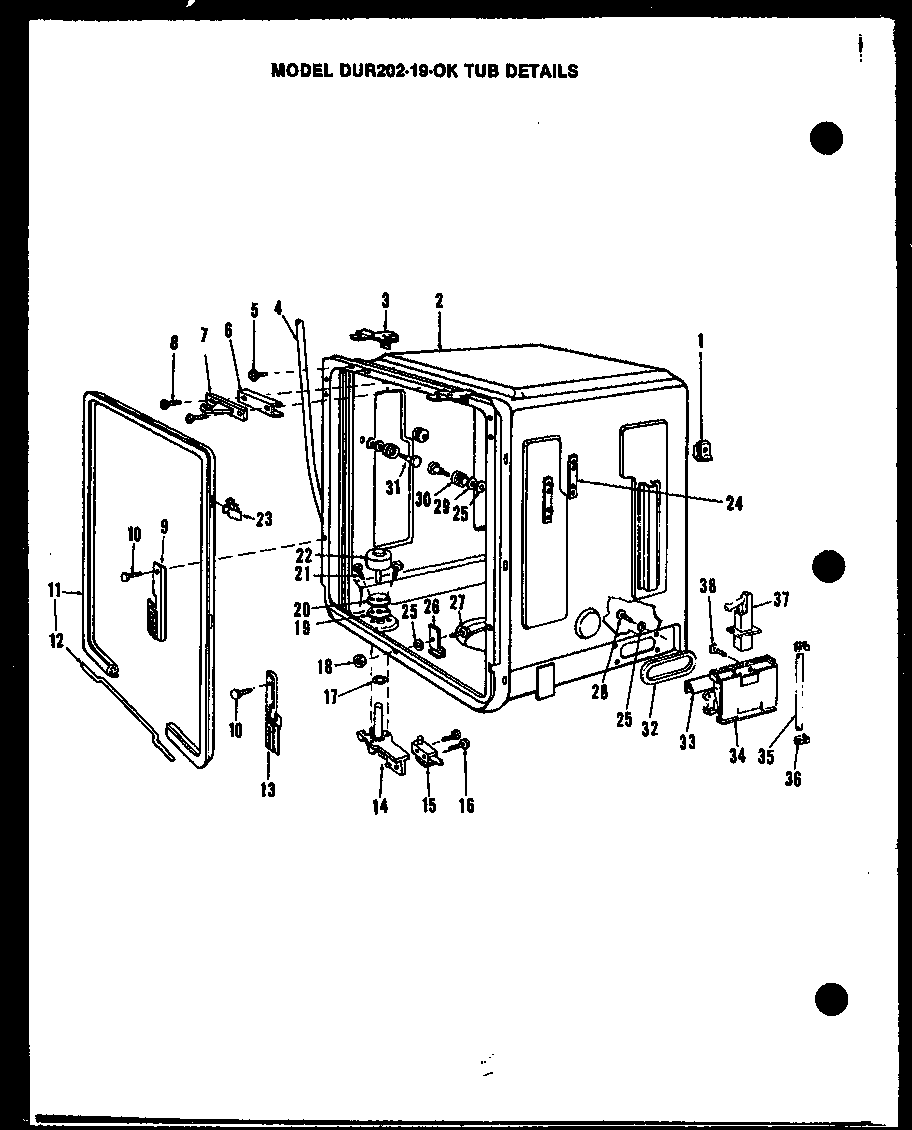

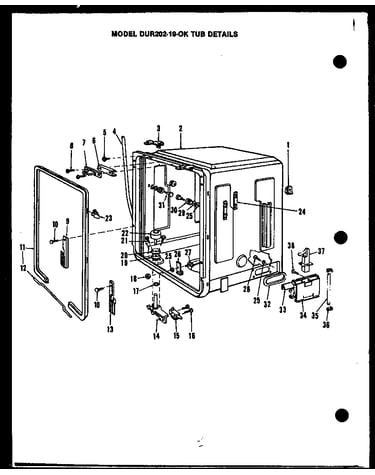

Tub diagram

Screw

Part #806890

Replaced by #WP22001496

?
Manufacturer substitution
This part replaces 806890. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Gasket 808063
#19

Tub diagram

Gasket

Part #808063

Replaced by #5300808063

?
Manufacturer substitution
This part replaces 808063. Substitute parts can look different from the original.
This item is not returnable
$4.51 |
18% OFF Phone Price : $5.51
In Stock
Gasket 805763
#23

Tub diagram

Gasket

Part #805763

Replaced by #5300805763

?
Manufacturer substitution
This part replaces 805763. Substitute parts can look different from the original.
$84.49
In Stock
Nut 804527
#30

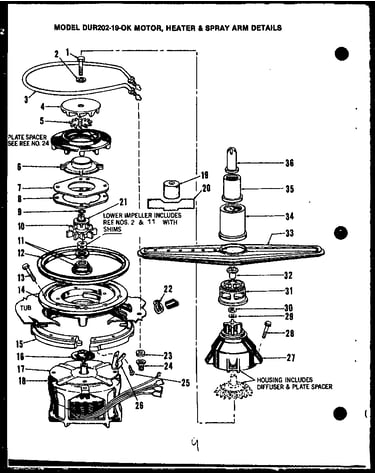

Motor diagram

Nut

Part #804527

Replaced by #316205500

?
Manufacturer substitution
This part replaces 804527. Substitute parts can look different from the original.
This item is not returnable
$11.20
In Stock
Nut 804619
#31

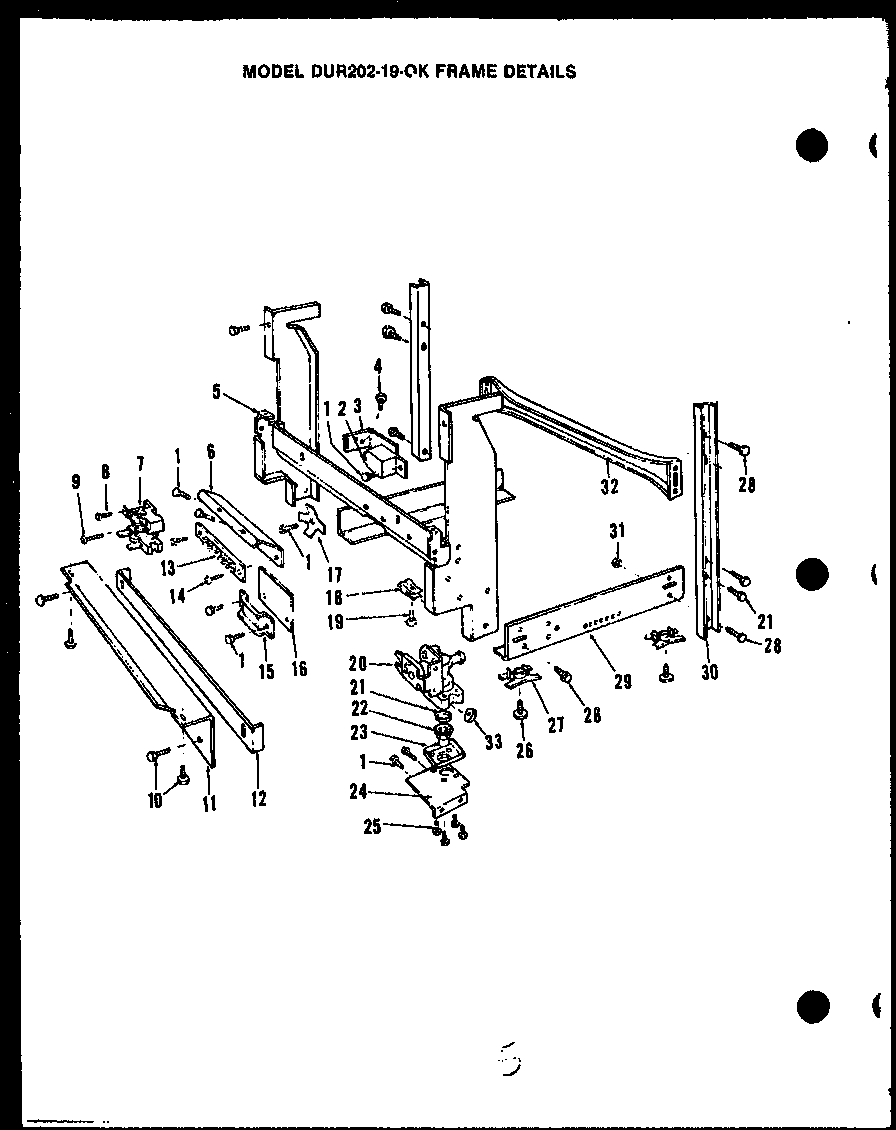

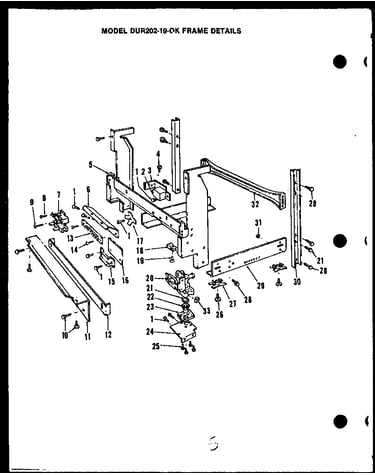

Frame details diagram

Nut

Part #804619

The manufacturer no longer makes this part, and there's no substitute part

Screw 806593
#8

Frame details diagram

Screw

Part #806593

The manufacturer no longer makes this part, and there's no substitute part

Leveler 807672
#26

Frame details diagram

Leveler

Part #807672

The manufacturer no longer makes this part, and there's no substitute part

Sealing Washer 805776
#25

Tub diagram

Sealing washer

Part #805776

The manufacturer no longer makes this part, and there's no substitute part

Console Panel (for Dus-808781) 808624
#9

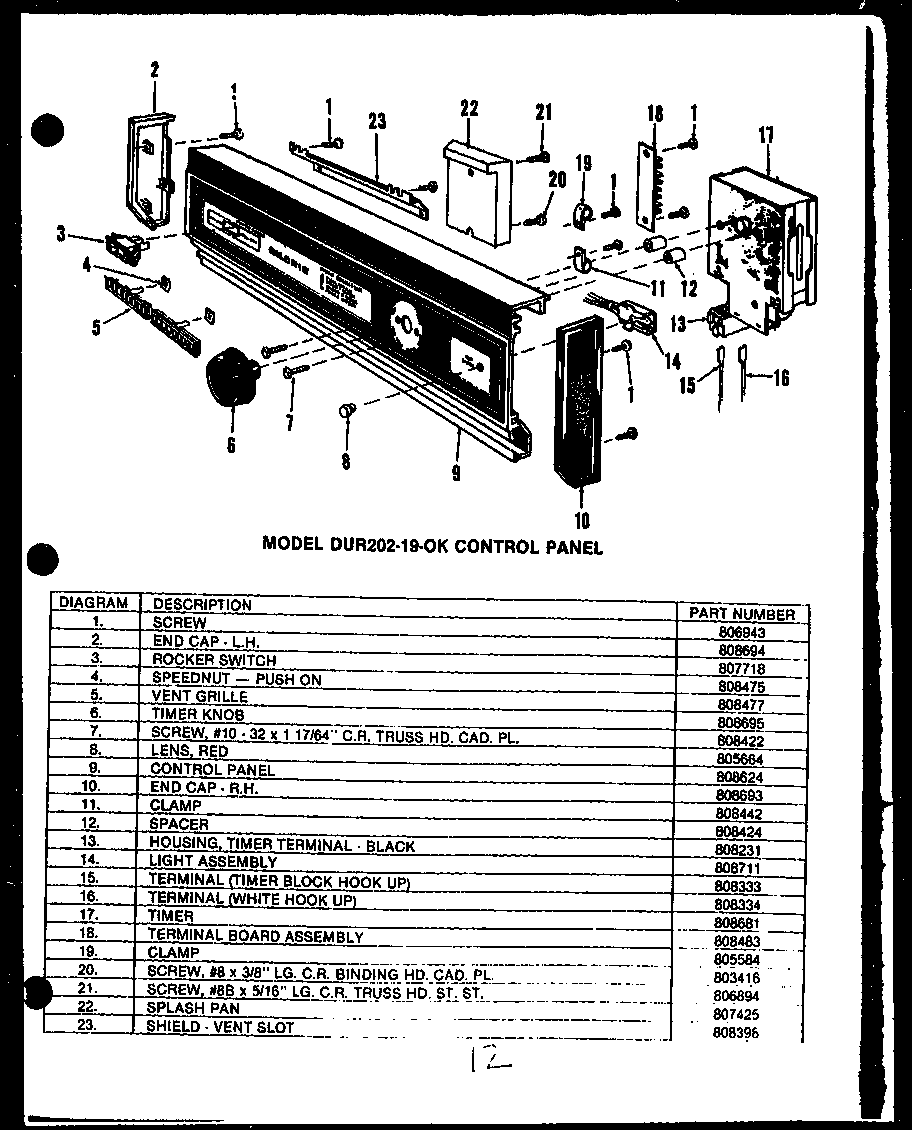

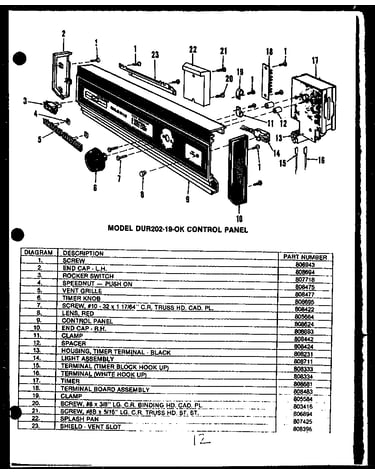

Control panel diagram

Console panel (for dus-808781)

Part #808624

The manufacturer no longer makes this part, and there's no substitute part
