Model # 8711900 Official Sears lightweight typewriter

Here are the diagrams and repair parts for Official Sears 8711900 lightweight typewriter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

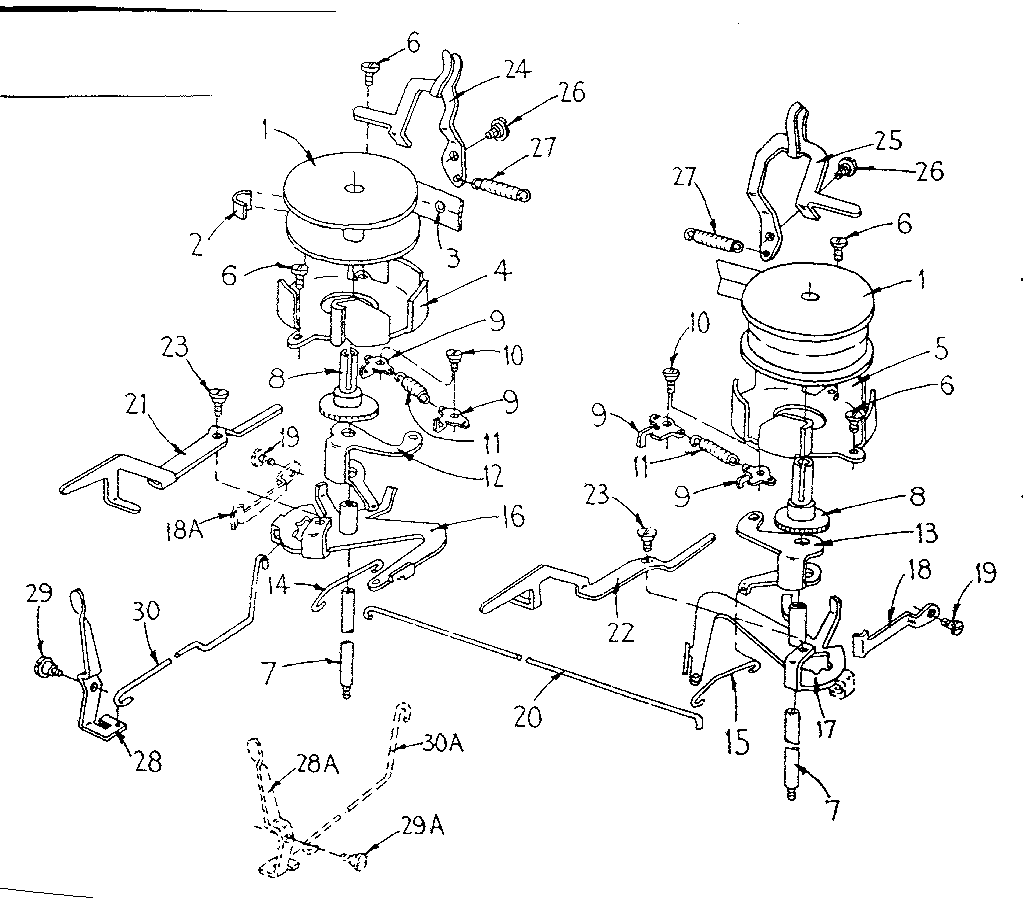

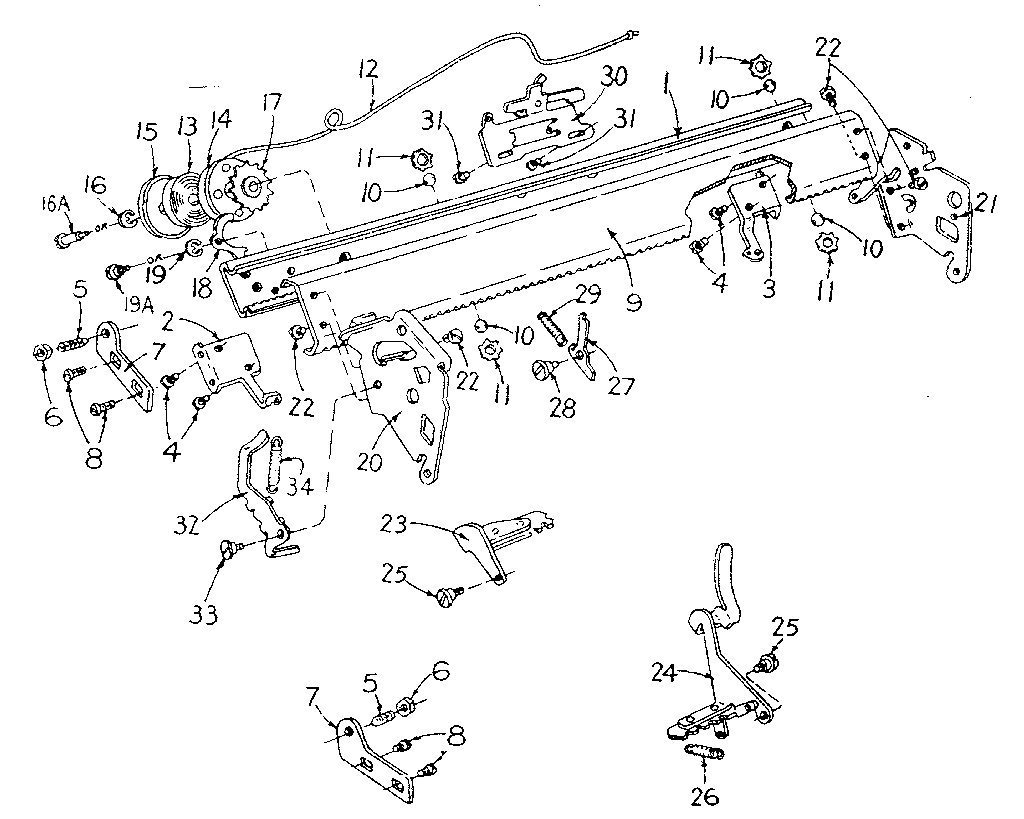

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 474 parts  |
Coverplate 407251-01
#12B

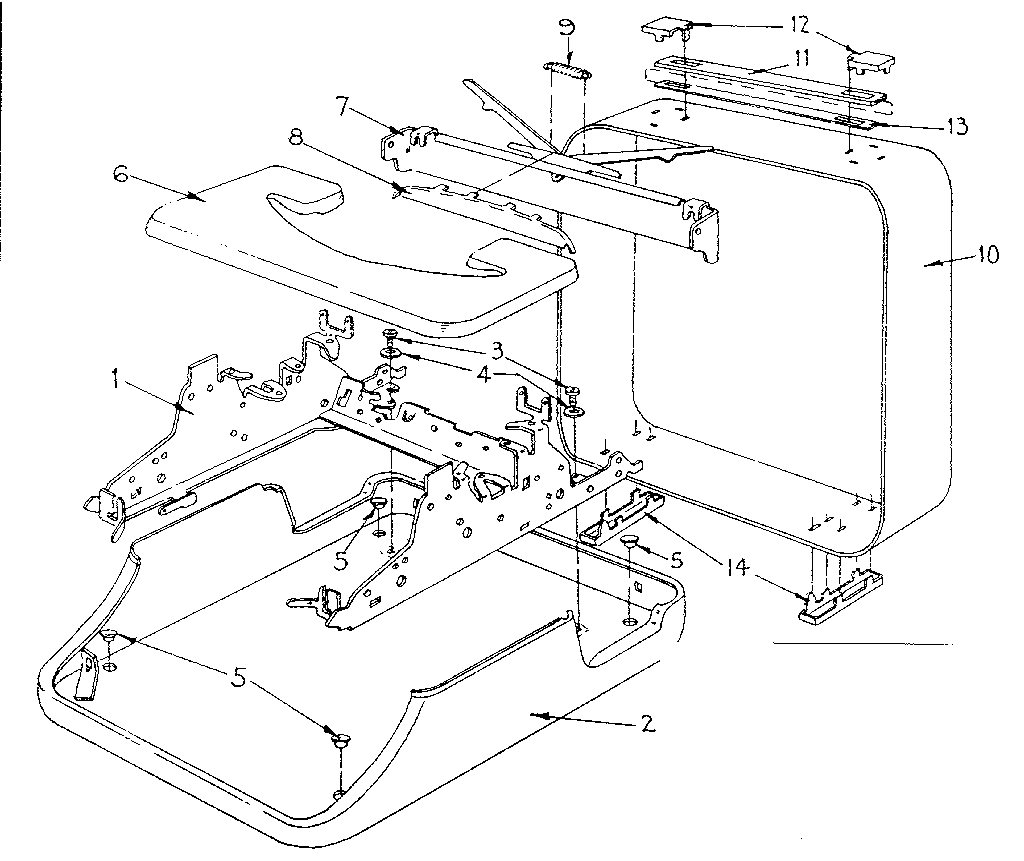

Frame & jacket diagram

Coverplate

Part #407251-01

The manufacturer no longer makes this part, and there's no substitute part

Support Screw 407270
#13

Frame & jacket diagram

Support screw

Part #407270

The manufacturer no longer makes this part, and there's no substitute part

Bail XMA260
#6

Paper feed diagram

Bail

Part #XMA260

The manufacturer no longer makes this part, and there's no substitute part

Spring 470690
#4

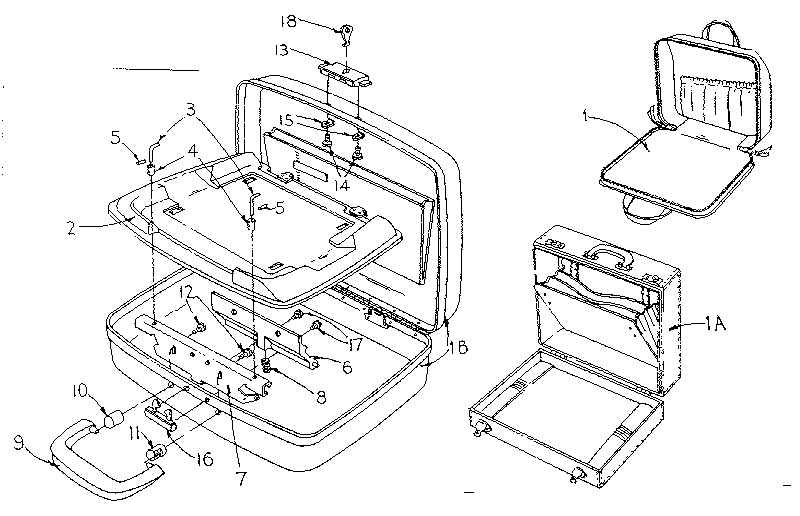

Carrying case diagram

Spring

Part #470690

The manufacturer no longer makes this part, and there's no substitute part

Screw XA270A
#12

Platen & linespace diagram

Screw

Part #XA270A

The manufacturer no longer makes this part, and there's no substitute part

Jacket Assem 2XMA4S-AS
#2C

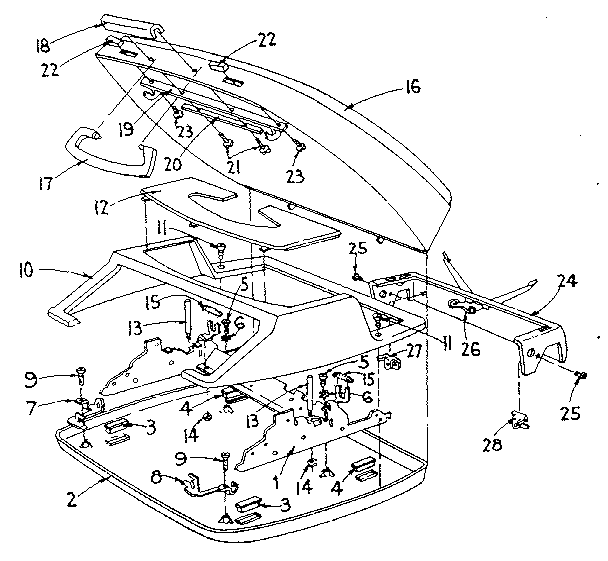

Frame & jacket diagram

Jacket assem

Part #2XMA4S-AS

The manufacturer no longer makes this part, and there's no substitute part

Type Bar 417520
#28C

Keyboard chart diagram

Type bar

Part #417520

The manufacturer no longer makes this part, and there's no substitute part

Vibrator XA160
#1A

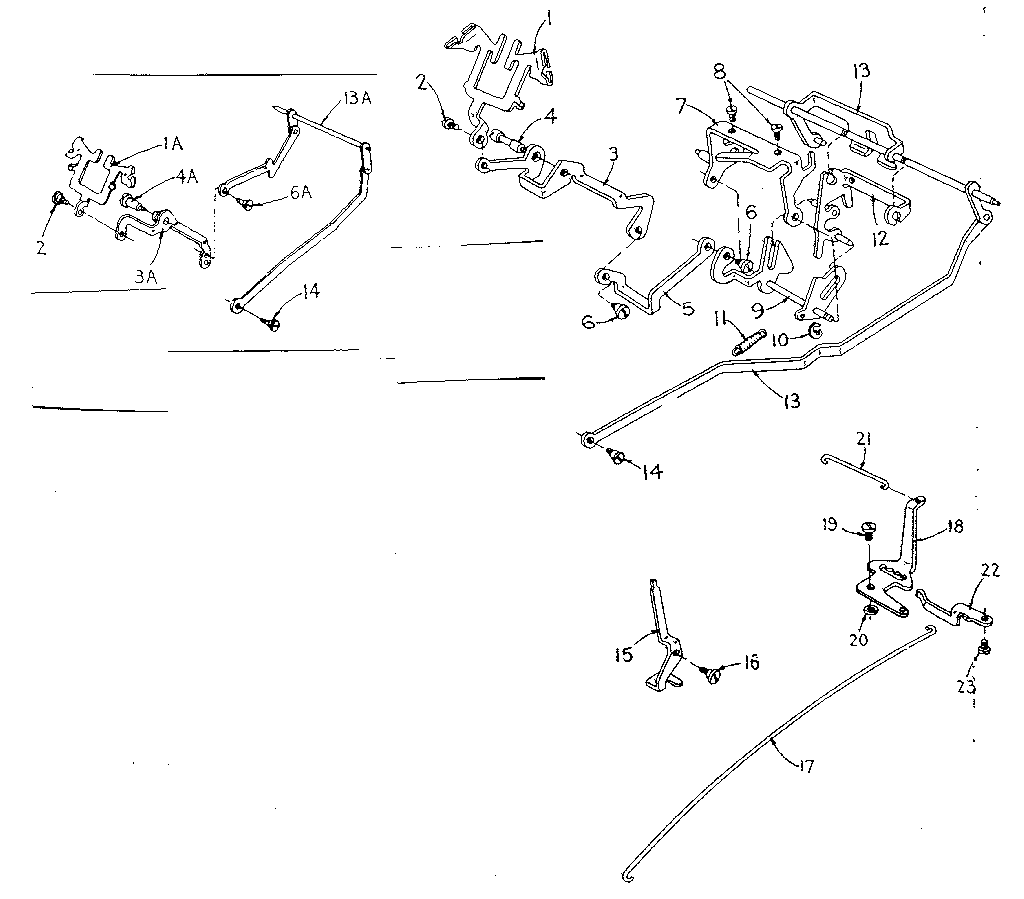

Ribbon actuation diagram

Vibrator

Part #XA160

The manufacturer no longer makes this part, and there's no substitute part

Dog 461060
#7

Tabulator diagram

Dog

Part #461060

The manufacturer no longer makes this part, and there's no substitute part

Wire 417130
#15

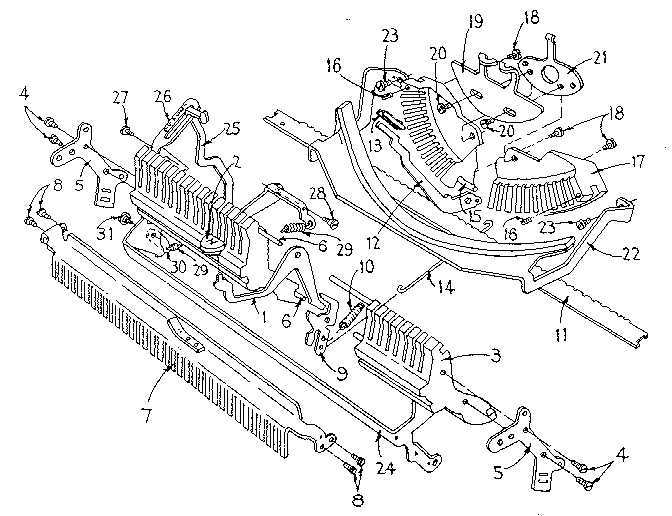

Key action & touch control diagram

Wire

Part #417130

The manufacturer no longer makes this part, and there's no substitute part
