Model # Q100 Official Weber lp gas grill

Here are the diagrams and repair parts for Official Weber Q100 lp gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Gas Grill Lid Handle Spacer 42473
#3

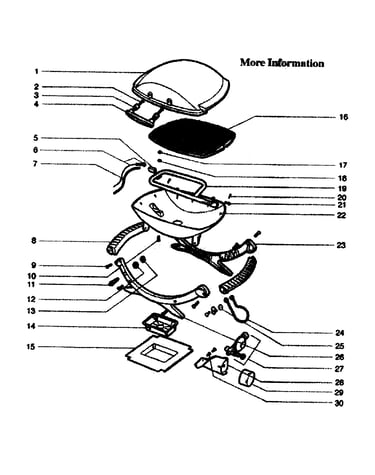

Grill diagram

Gas grill lid handle spacer

Part #42473

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Screw 41686
#2

Grill diagram

Gas grill screw

Part #41686

The manufacturer no longer makes this part, and there's no substitute part

Electrode 41897
#6

Grill diagram

Electrode

Part #41897

The manufacturer no longer makes this part, and there's no substitute part

Regulator 41643
#27

Grill diagram

Regulator

Part #41643

The manufacturer no longer makes this part, and there's no substitute part

Bracket 41661
#28

Grill diagram

Bracket

Part #41661

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Cooking Grate 41658
#16

Grill diagram

Gas grill cooking grate

Part #41658

The manufacturer no longer makes this part, and there's no substitute part

Ground Wire 41898
#7

Grill diagram

Ground wire

Part #41898

The manufacturer no longer makes this part, and there's no substitute part

Hinge Pin 41656
#21

Grill diagram

Hinge pin

Part #41656

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin 86950
#20

Grill diagram

Cotter pin

Part #86950

The manufacturer no longer makes this part, and there's no substitute part

Catch Pan 41667
#15

Grill diagram

Catch pan

Part #41667

The manufacturer no longer makes this part, and there's no substitute part
