Kenmore
Toaster

Model # 87463380 Official Kenmore 2-slice toaster

Here are the diagrams and repair parts for Official Kenmore 87463380 2-slice toaster, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

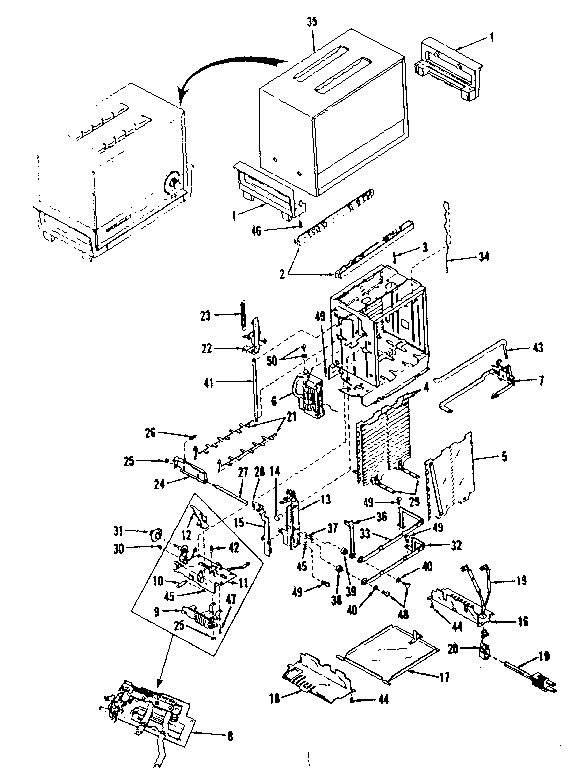

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Crumb Tray K122-125-1
#17

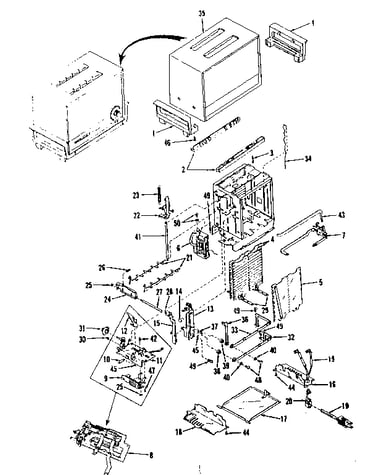

Replacement parts diagram

Crumb tray

Part #K122-125-1

The manufacturer no longer makes this part, and there's no substitute part

Relief B102-837
#20

Replacement parts diagram

Relief

Part #B102-837

The manufacturer no longer makes this part, and there's no substitute part

Screw B102-822
#42

Replacement parts diagram

Screw

Part #B102-822

The manufacturer no longer makes this part, and there's no substitute part

Reset Arm B122-167-2
#15

Replacement parts diagram

Reset arm

Part #B122-167-2

The manufacturer no longer makes this part, and there's no substitute part

Spring B122-802
#28

Replacement parts diagram

Spring

Part #B122-802

The manufacturer no longer makes this part, and there's no substitute part

Bi-metal B102-63-4
#9

Replacement parts diagram

Bi-metal

Part #B102-63-4

The manufacturer no longer makes this part, and there's no substitute part

Bracket B102-407
#24

Replacement parts diagram

Bracket

Part #B102-407

The manufacturer no longer makes this part, and there's no substitute part

Carriage B122-155
#22

Replacement parts diagram

Carriage

Part #B122-155

The manufacturer no longer makes this part, and there's no substitute part

Bus Bar B102-506
#29

Replacement parts diagram

Bus bar

Part #B102-506

The manufacturer no longer makes this part, and there's no substitute part

Pivot Shaft B102-406
#27

Replacement parts diagram

Pivot shaft

Part #B102-406

The manufacturer no longer makes this part, and there's no substitute part
