Kenmore
Room Air Conditioner

Model # 59678079890 Official Kenmore room air conditioner

Here are the diagrams and repair parts for Official Kenmore 59678079890 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

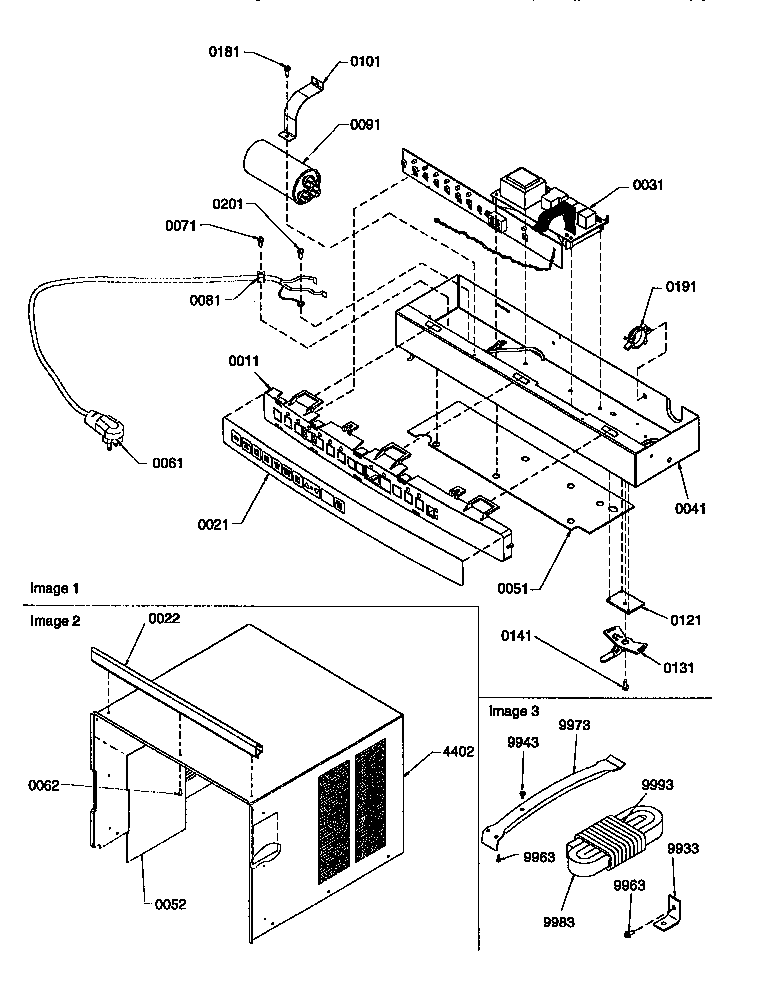

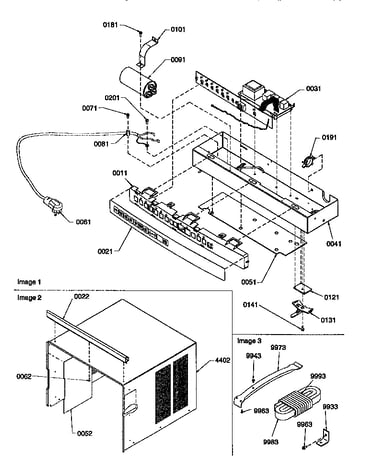

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Screw M0211017
Screw

Part #M0211017

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0211017. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Fan-pl Cond 20051601
#71

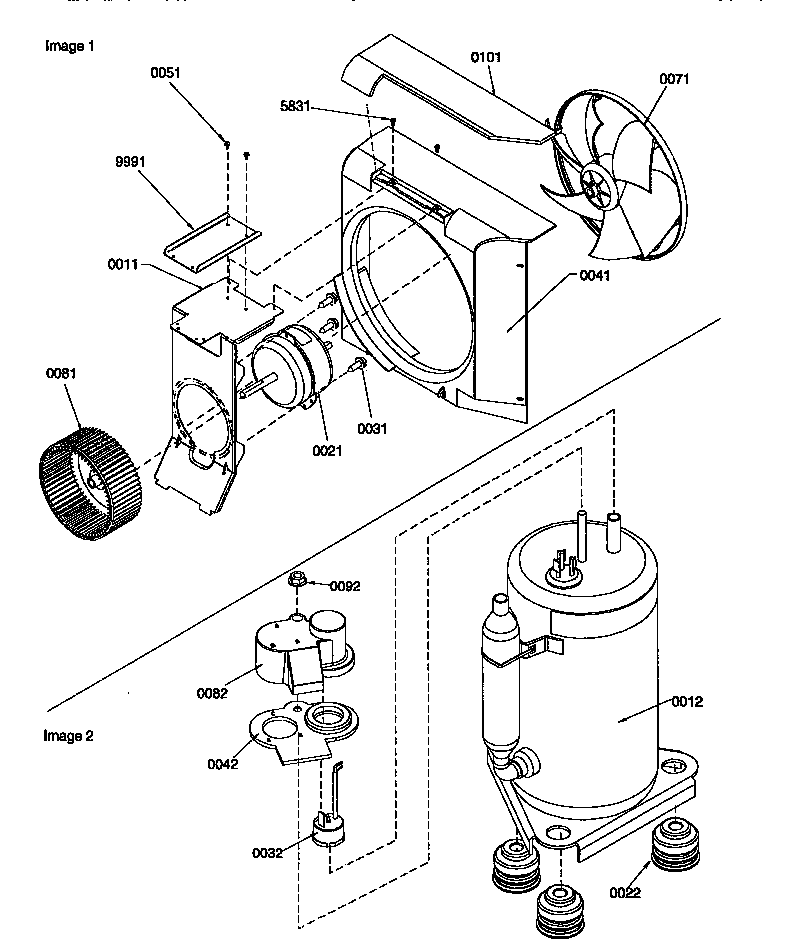

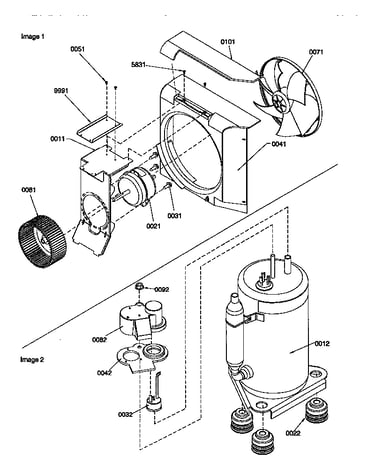

Fan motor/compressor assemblies diagram

Fan-pl cond

Part #20051601

Replaced by #20051601

?
Manufacturer substitution
This part replaces 20051601. Substitute parts can look different from the original.
$9.47
In Stock
Screw M0211016
#5821

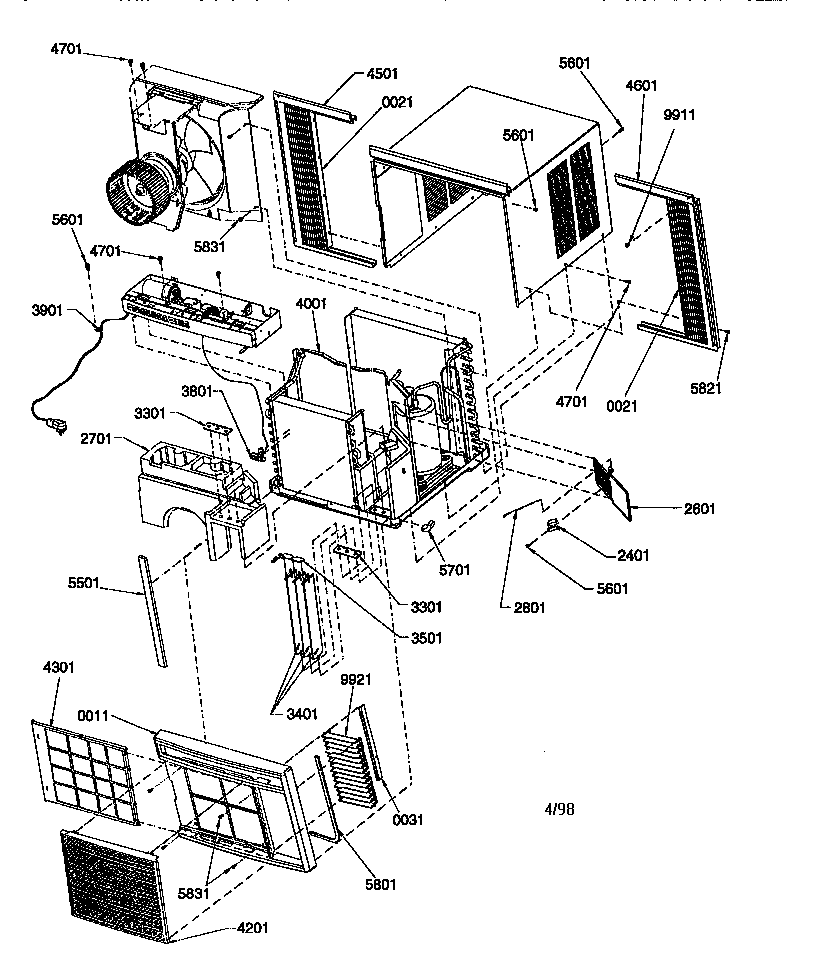

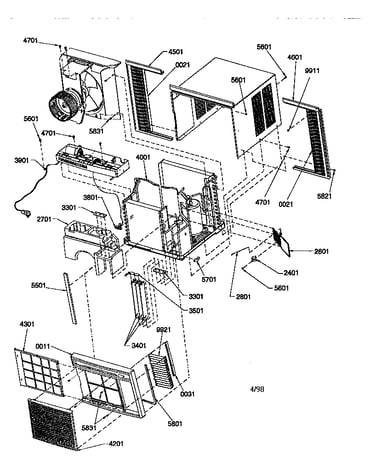

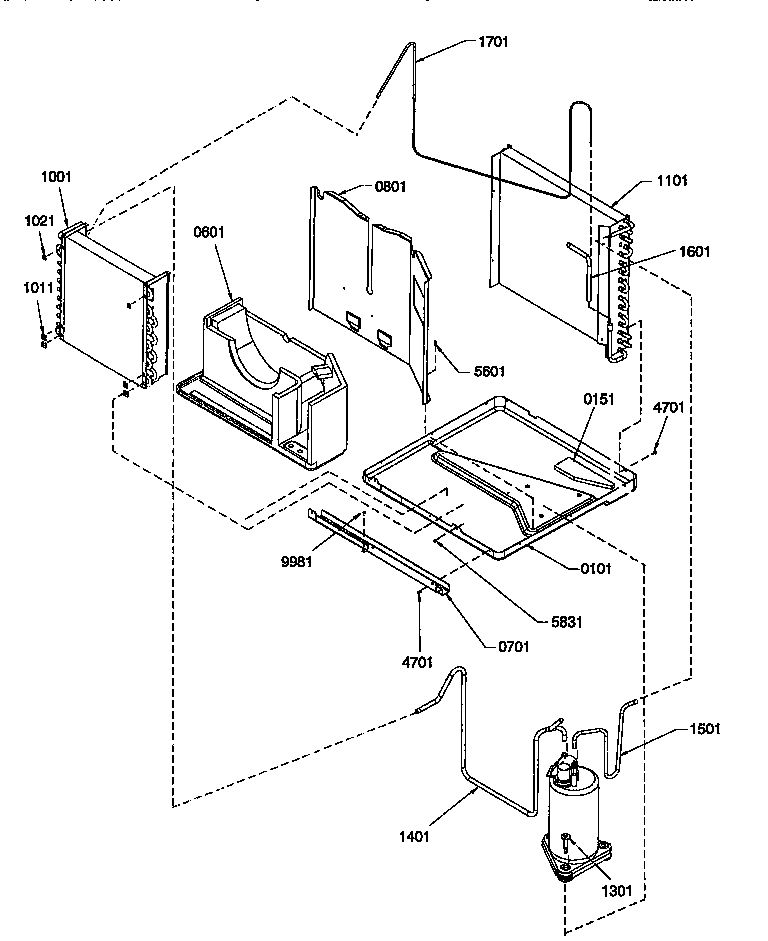

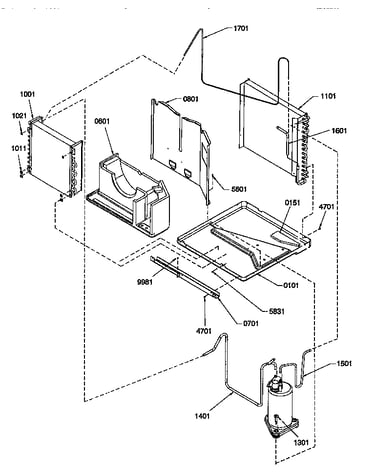

Chassis assembly diagram

Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Screw M0254830
#31

Fan motor/compressor assemblies diagram

Screw

Part #M0254830

Replaced by #WP308544

?
Manufacturer substitution
This part replaces M0254830. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Scroll 20055303
#601

Chassis assembly diagram

Scroll

Part #20055303

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Wheel 10558601
#81

Fan motor/compressor assemblies diagram

Air conditioner blower wheel

Part #10558601

The manufacturer no longer makes this part, and there's no substitute part

Retainer 20051102
#31

Chassis assembly diagram

Retainer

Part #20051102

The manufacturer no longer makes this part, and there's no substitute part

Curtain 20054901
#21

Chassis assembly diagram

Curtain

Part #20054901

The manufacturer no longer makes this part, and there's no substitute part

Shroud 20051201
#41

Fan motor/compressor assemblies diagram

Shroud

Part #20051201

The manufacturer no longer makes this part, and there's no substitute part

Louver-vert 20050902
#3401

Chassis assembly diagram

Louver-vert

Part #20050902

The manufacturer no longer makes this part, and there's no substitute part
