Model # 502473254 Official Sears 27" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502473254 27" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
R Derailleur 302705
#33

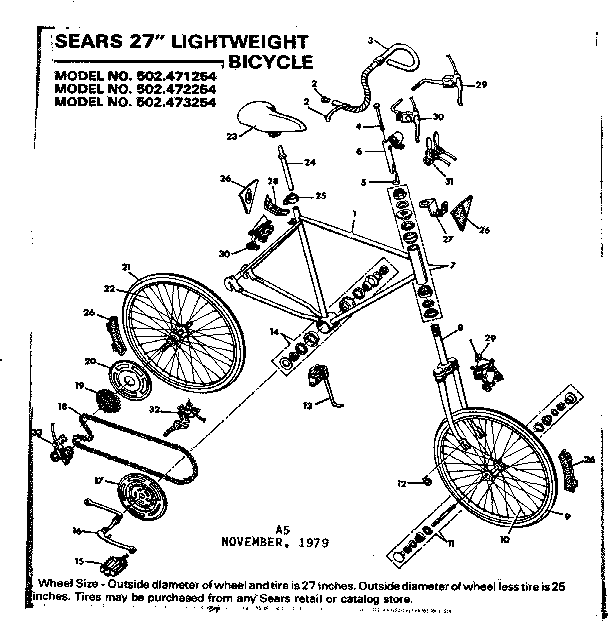

Unit parts diagram

R derailleur

Part #302705

The manufacturer no longer makes this part, and there's no substitute part

Eagle Ii 302809
#19

Shimano front derailleur diagram

Eagle ii

Part #302809

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe 308697
#12

Caliper brake diagram

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

Handlebar 28765C
#3

Unit parts diagram

Handlebar

Part #28765C

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual F-4112

#NI

All parts diagram

Owner's manual

Part #F-4112

The manufacturer no longer makes this part, and there's no substitute part

Fork 27681C-BGD
#8C

Unit parts diagram

Fork

Part #27681C-BGD

The manufacturer no longer makes this part, and there's no substitute part

Axle 301213
#8

Rear small flange hub diagram

Axle

Part #301213

The manufacturer no longer makes this part, and there's no substitute part

Plate 300520
#16

Shimano front derailleur diagram

Plate

Part #300520

The manufacturer no longer makes this part, and there's no substitute part

Front Wheel 303021C
#9

Unit parts diagram

Front wheel

Part #303021C

The manufacturer no longer makes this part, and there's no substitute part

Cable Bridge 304223
#13

Caliper brake diagram

Cable bridge

Part #304223

The manufacturer no longer makes this part, and there's no substitute part
