LG
Top-Mount Refrigerator

Model # LRTP0931W Official LG refrigerator

Here are the diagrams and repair parts for Official LG LRTP0931W refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

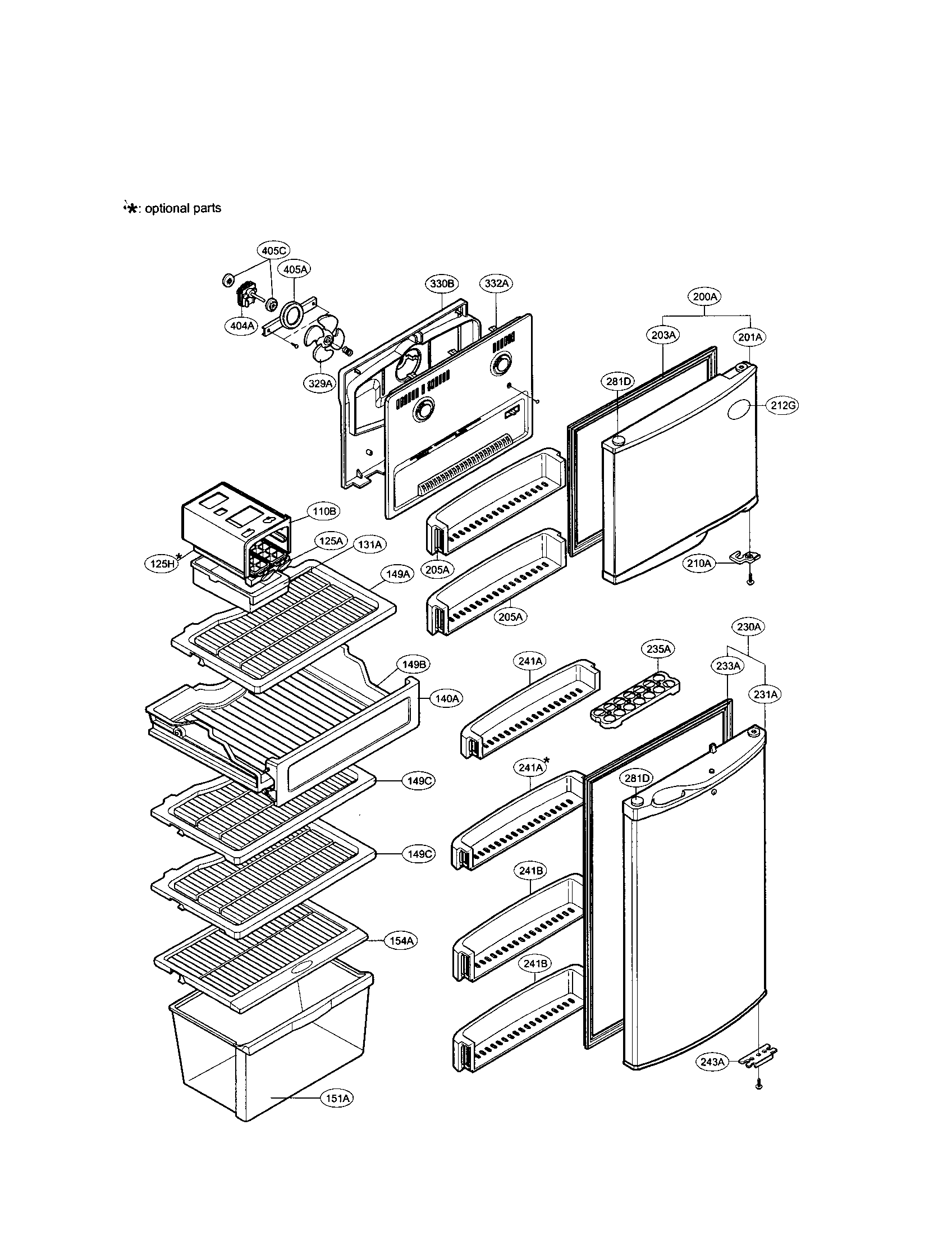

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Refrigerator Capacitor 0CZZJB2003G

#410G

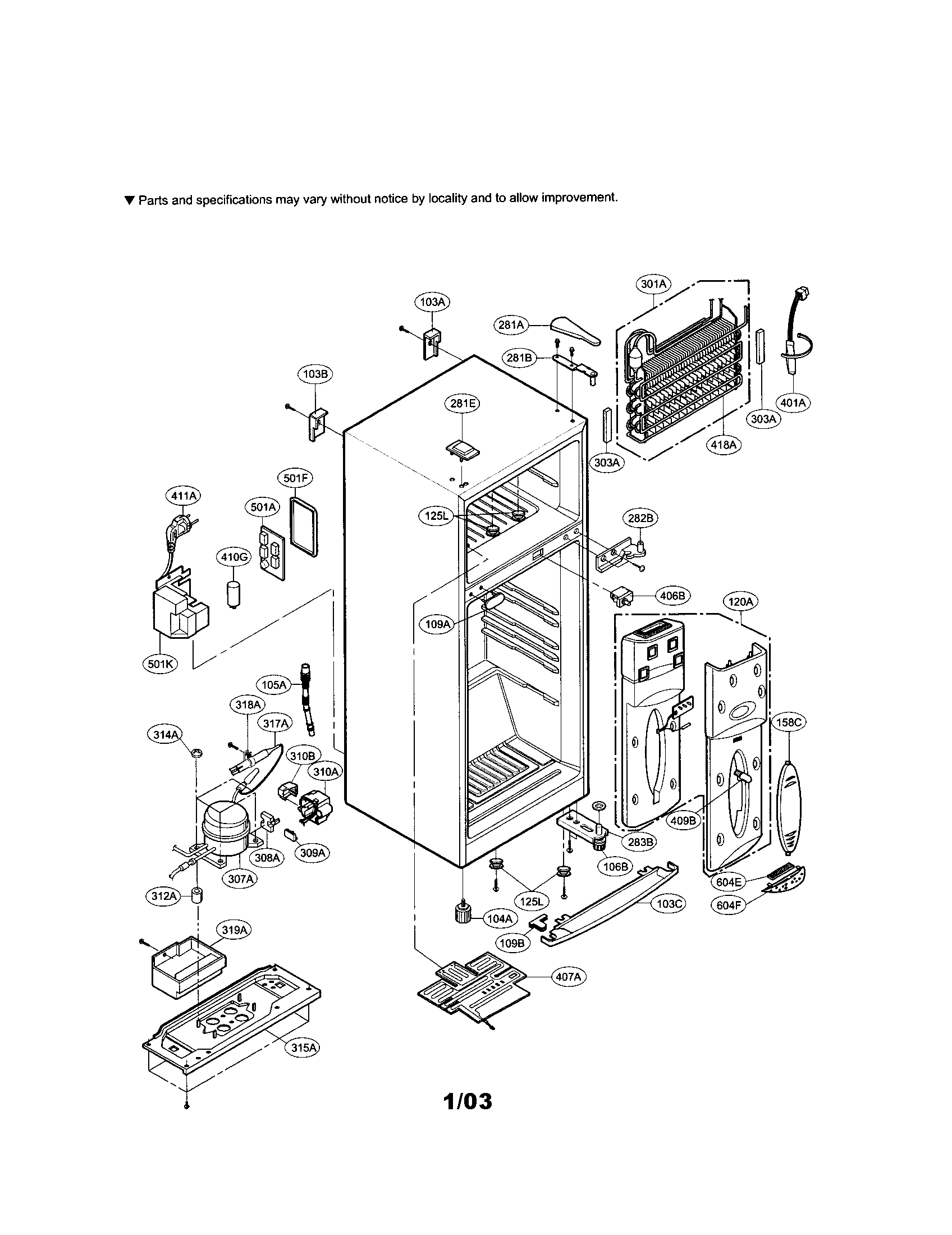

All parts diagram

Refrigerator capacitor

Part #0CZZJB2003G

Replaced by #0CZZJB2010G

?
Manufacturer substitution
This part replaces 0CZZJB2003G. Substitute parts can look different from the original.
$32.35 |
16% OFF Phone Price : $38.35
In Stock
Stopper 4J03277A

#314A

All parts diagram

Stopper

Part #4J03277A

This item is not returnable
$6.98 |
13% OFF Phone Price : $7.98
In Stock
Refrigerator Drain 5250JA2009B

#105A

All parts diagram

Refrigerator drain

Part #5250JA2009B

$26.60 |
18% OFF Phone Price : $32.60
In Stock
Refrigerator Tray Cover 3650JA3032Q

#103A

All parts diagram

Refrigerator tray cover

Part #3650JA3032Q

Replaced by #3650JA3032Q

?
Manufacturer substitution
This part replaces 3650JA3032Q. Substitute parts can look different from the original.
$8.97
In Stock
Refrigerator Tray Cover 3650JA3032R

#103B

All parts diagram

Refrigerator tray cover

Part #3650JA3032R

Replaced by #3650JA3041X

?
Manufacturer substitution
This part replaces 3650JA3032R. Substitute parts can look different from the original.
$8.97
In Stock
Refrigerator Push Switch 6600JB1002K

#406B

All parts diagram

Refrigerator push switch

Part #6600JB1002K

Replaced by #6600JB1002K

?
Manufacturer substitution
This part replaces 6600JB1002K. Substitute parts can look different from the original.
$14.29
In Stock
Refrigerator Motor Bracket 4810JA3064A

#405A

All parts diagram

Refrigerator motor bracket

Part #4810JA3064A

The manufacturer no longer makes this part, and there's no substitute part

Case, Pwb 3110JA1036A

#501K

All parts diagram

Case, pwb

Part #3110JA1036A

The manufacturer no longer makes this part, and there's no substitute part

P.t.c 6748JA3001A

#308A

All parts diagram

P.t.c

Part #6748JA3001A

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Basket 5004JD1117A

#241A

All parts diagram

Refrigerator door basket

Part #5004JD1117A

The manufacturer no longer makes this part, and there's no substitute part
