Model # JP346SM1SS Official GE electric cooktop

Here are the diagrams and repair parts for Official GE JP346SM1SS electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Kenmore Range Surface Element Control Switch (replaces Wb24k10066, Wb24t10057) WB24T10119
#20

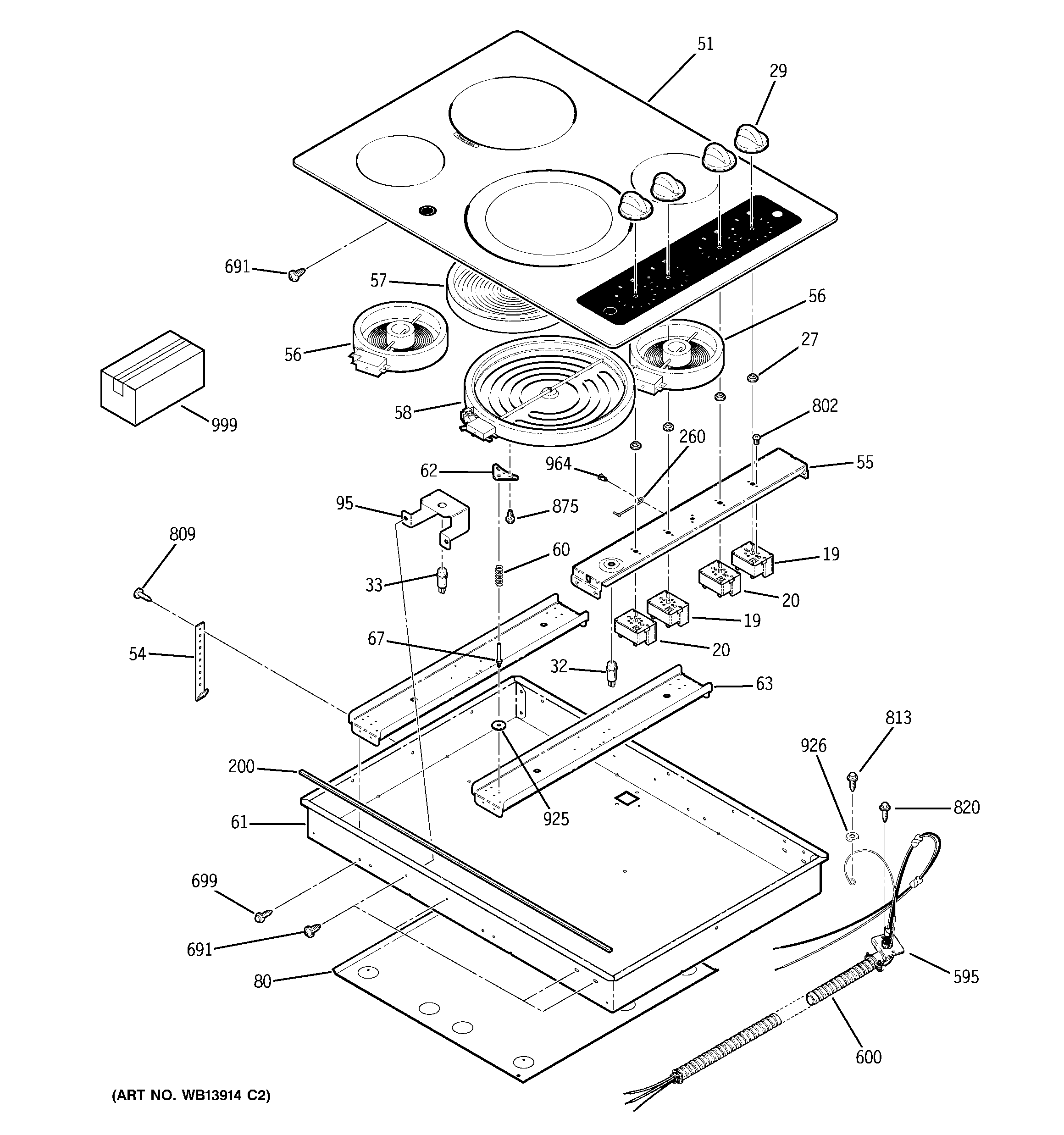

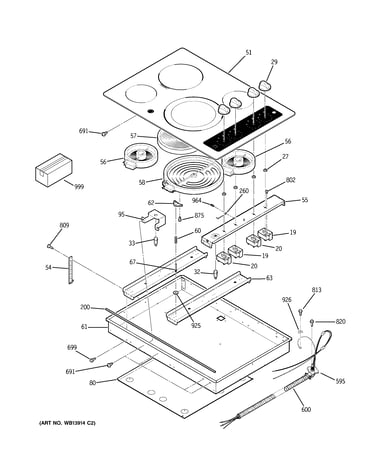

Control panel & cooktop diagram

Kenmore range surface element control switch (replaces wb24k10066, wb24t10057)

Part #WB24T10119

BEST SELLER
$68.42 |
8% OFF Phone Price : $74.42
In Stock
Control Element WB23M0008
#19

Control panel & cooktop diagram

Control element

Part #WB23M0008

Replaced by #WB23M8

?
Manufacturer substitution
This part replaces WB23M0008. Substitute parts can look different from the original.
BEST SELLER
$44.22 |
12% OFF Phone Price : $50.22
In Stock
Cooktop Indicator Light WB25T10012
#33

Control panel & cooktop diagram

Cooktop indicator light

Part #WB25T10012

This item is not returnable
$20.49 |
23% OFF Phone Price : $26.49
In Stock
Foam Tape WB06K5042
#200

Control panel & cooktop diagram

Foam tape

Part #WB06K5042

Replaced by #WB02X26088

?
Manufacturer substitution
This part replaces WB06K5042. Substitute parts can look different from the original.
$51.24 |
10% OFF Phone Price : $57.24
In Stock
Screw WB01K5150
#699

Control panel & cooktop diagram

Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw WB01M0001
#820

Control panel & cooktop diagram

Screw

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Cooktop Main Top Seal (replaces Wb02x11333) WB06T10007
#200

Control panel & cooktop diagram

Cooktop main top seal (replaces wb02x11333)

Part #WB06T10007

$32.79 |
15% OFF Phone Price : $38.79
In Stock
Cooktop Burner Knob WB03T10271
#29

Control panel & cooktop diagram

Cooktop burner knob

Part #WB03T10271

$28.69 |
17% OFF Phone Price : $34.69
In Stock
Brkt Hold Dn WB02K5328
#54

Control panel & cooktop diagram

Brkt hold dn

Part #WB02K5328

Replaced by #WB2K5328

?
Manufacturer substitution
This part replaces WB02K5328. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Range Radiant Surface Element, 6-in WB30T10043
#56

Control panel & cooktop diagram

Range radiant surface element, 6-in

Part #WB30T10043

$230.10 |
5% OFF Phone Price : $242.10
In Stock
