Model # 917174742 Official Craftsman transaxle

Here are the diagrams and repair parts for Official Craftsman 917174742 transaxle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Hardened Race Thrust Bearing 6266H
#12

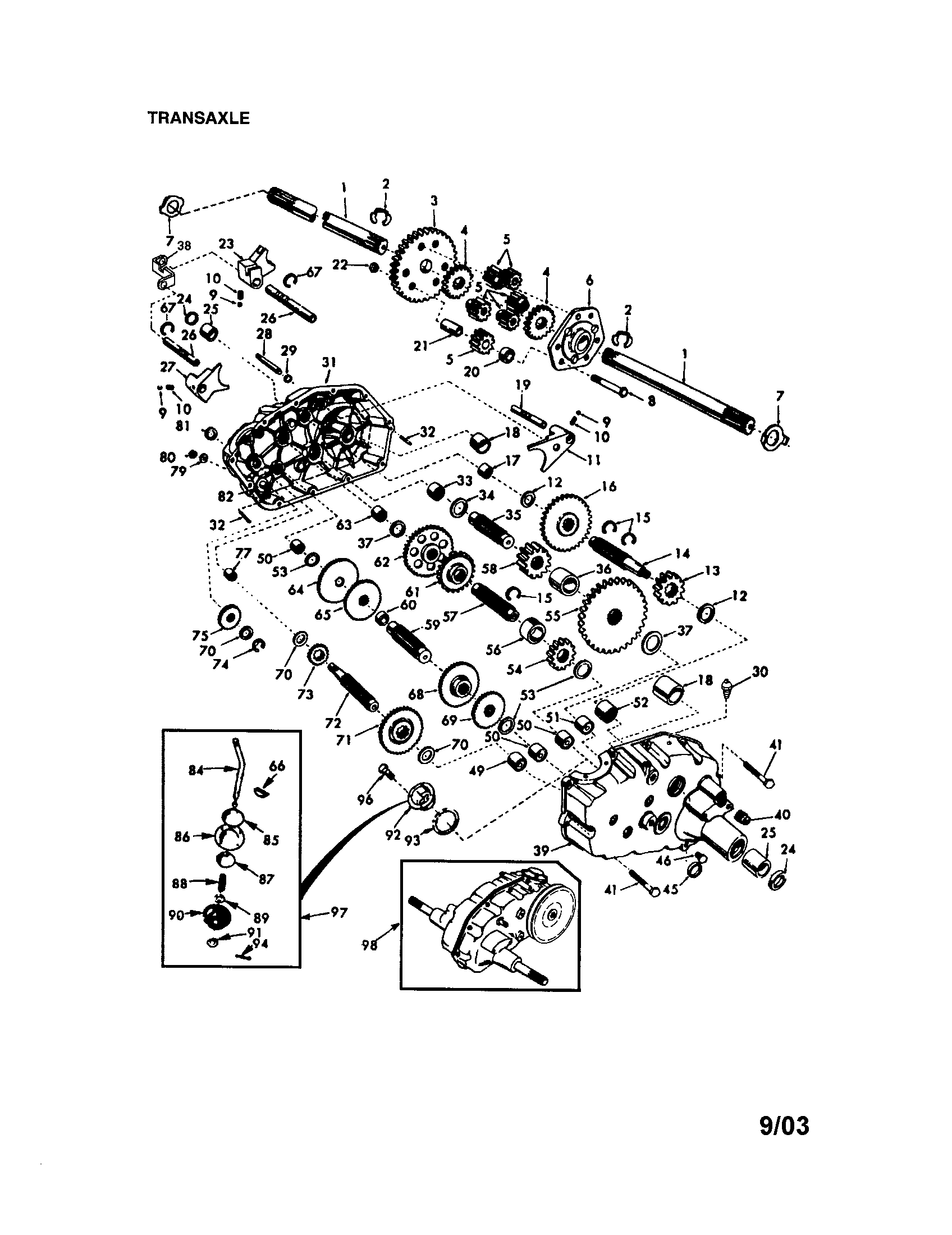

Transaxle diagram

Hardened race thrust bearing

Part #6266H

Replaced by #532006266

?
Manufacturer substitution
This part replaces 6266H. Substitute parts can look different from the original.
BEST SELLER
$11.30 |
15% OFF Phone Price : $13.30
In Stock
Lawn & Garden Equipment E-ring, 2-pack 12000034
#2

Transaxle diagram

Lawn & garden equipment e-ring, 2-pack

Part #12000034

Replaced by #812000029

?
Manufacturer substitution
This part replaces 12000034. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Gripco Nut 7810H
#22

Transaxle diagram

Gripco nut

Part #7810H

Replaced by #596322601

?
Manufacturer substitution
This part replaces 7810H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Needle Brg 4895H
#49

Transaxle diagram

Needle brg

Part #4895H

Replaced by #532004895

?
Manufacturer substitution
This part replaces 4895H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$13.31 |
13% OFF Phone Price : $15.31
In Stock
Bearing 6803J
#77

Transaxle diagram

Bearing

Part #6803J

Replaced by #532006803

?
Manufacturer substitution
This part replaces 6803J. Substitute parts can look different from the original.
This item is not returnable
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Seal 110542X
#90

Transaxle diagram

Seal

Part #110542X

Replaced by #532110542

?
Manufacturer substitution
This part replaces 110542X. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Bolt 17580520
#41

Transaxle diagram

Bolt

Part #17580520

Replaced by #817580520

?
Manufacturer substitution
This part replaces 17580520. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Thrust Bearing 1370H
#70

Transaxle diagram

Thrust bearing

Part #1370H

Replaced by #532001370

?
Manufacturer substitution
This part replaces 1370H. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Oil Seal 7393R
#24

Transaxle diagram

Oil seal

Part #7393R

Replaced by #532007393

?
Manufacturer substitution
This part replaces 7393R. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lever Guide 8739H1
#87

Transaxle diagram

Lever guide

Part #8739H1

Replaced by #532008739

?
Manufacturer substitution
This part replaces 8739H1. Substitute parts can look different from the original.
$30.64
In Stock
