Model # ZIFS360NXALH Official GE freezer - x series
Here are the diagrams and repair parts for Official GE ZIFS360NXALH freezer - x series, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

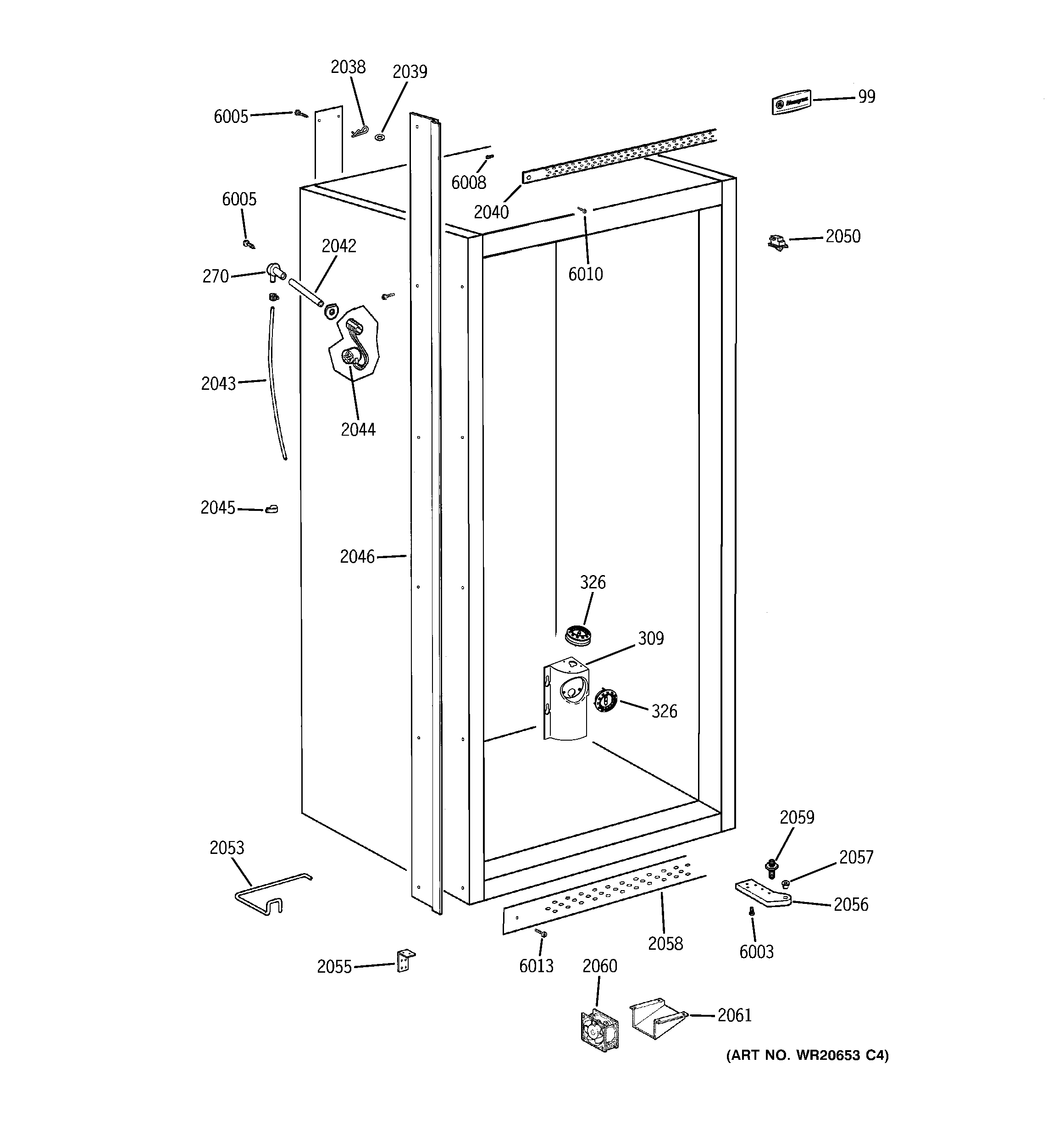

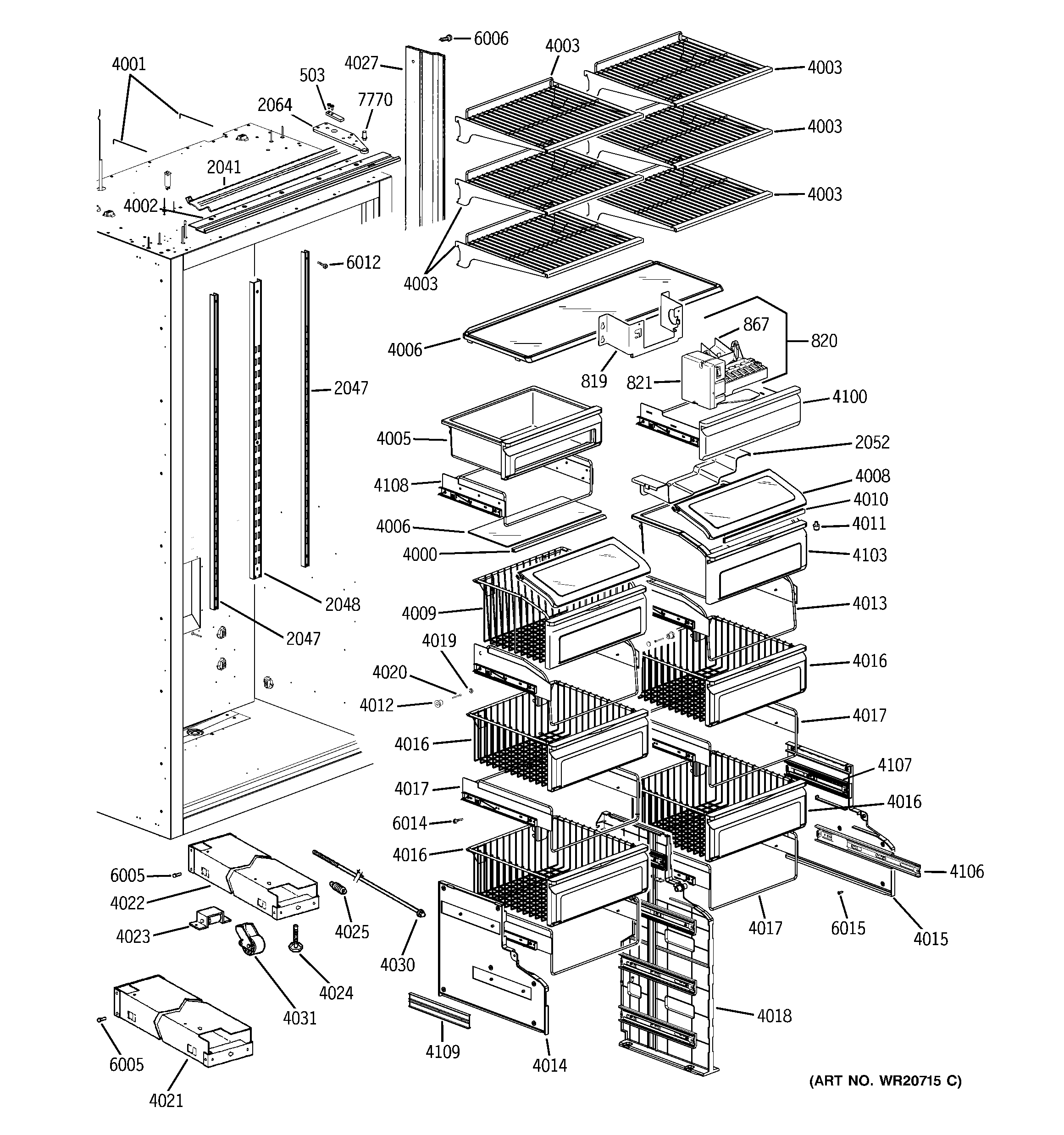

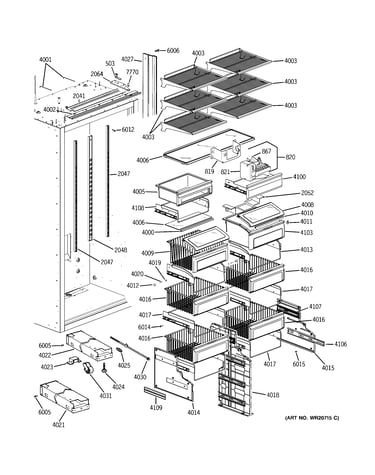

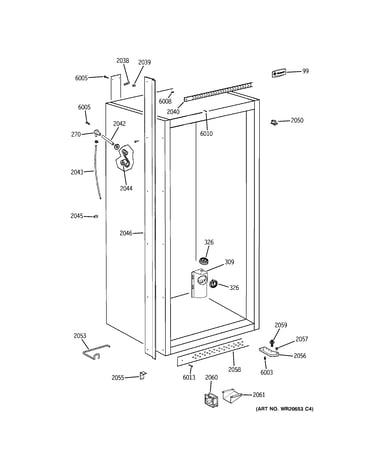

SELECT DIAGRAM
Browse Parts for
ZIFS360NXALH Freestanding Freezers
#268

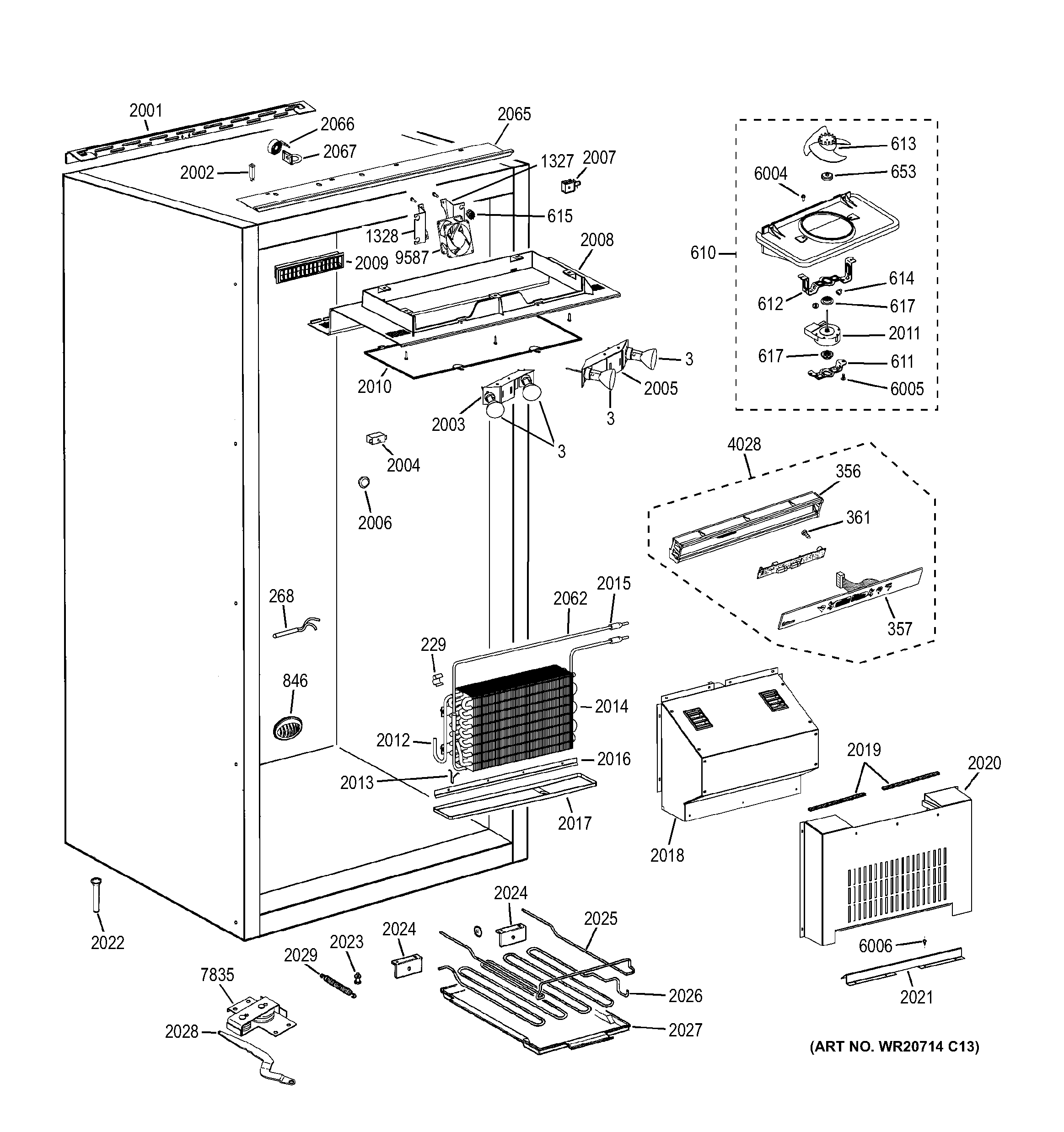

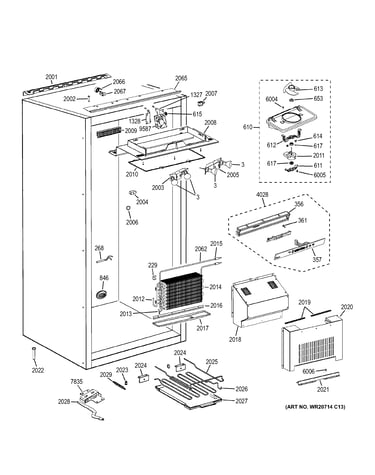

Cabinet (1) diagram
Temperature sensor
Part #WR55X10711
Replaced by #WR55X10025
?
Manufacturer substitution
This part replaces WR55X10711. Substitute parts can look different from the original.
$19.47 |
9% OFF Phone Price : $21.47
In Stock
#790

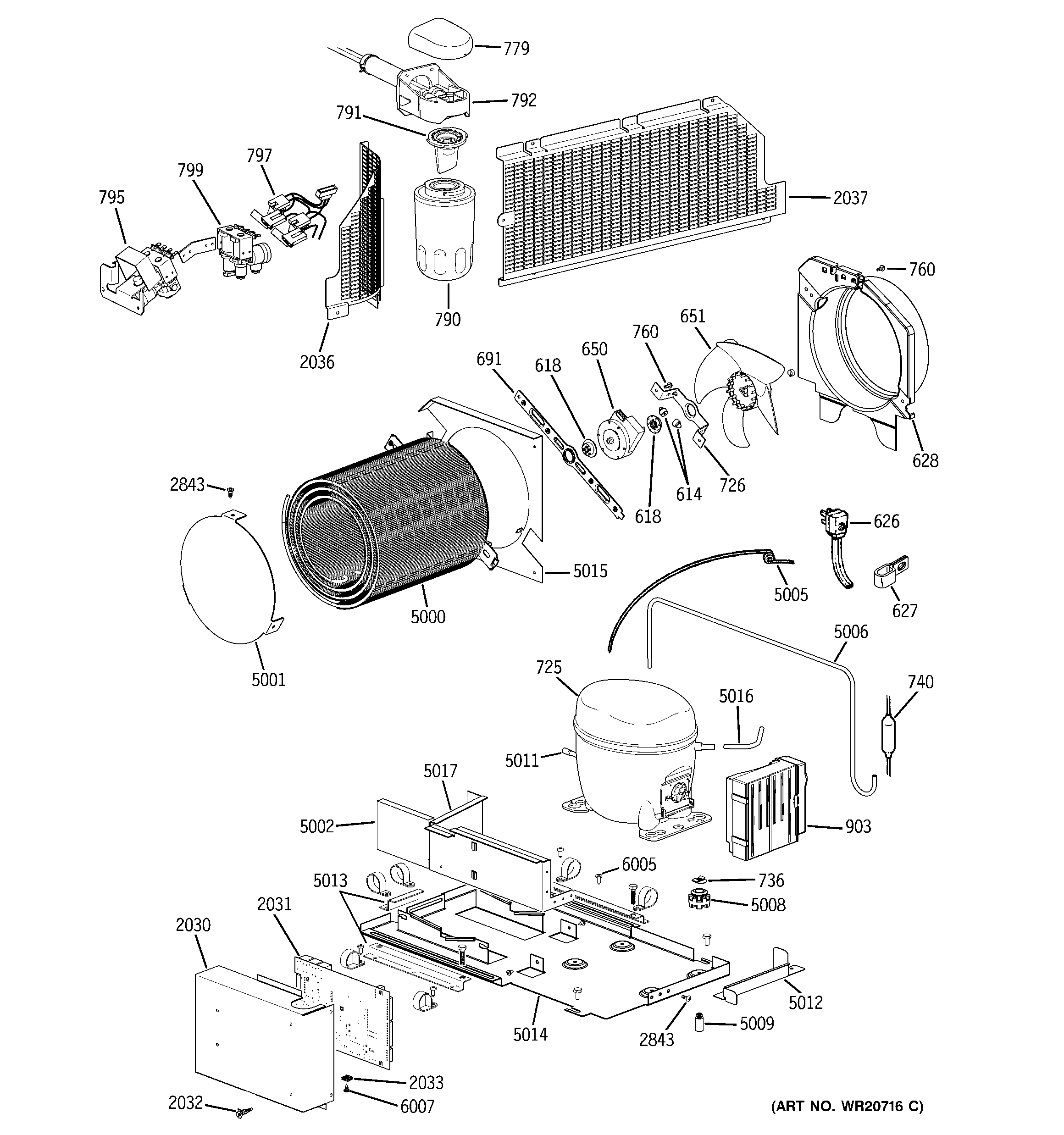

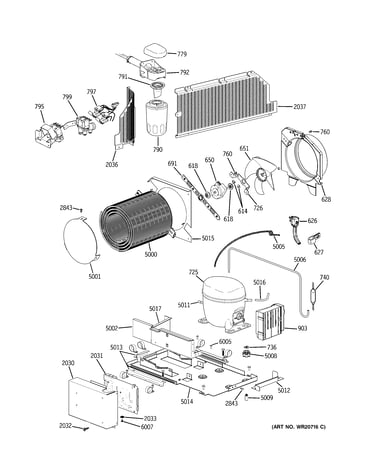

Machine compartment diagram
Ge refrigerator water filter (replaces 9970, mwfpa)
Part #MWF
Replaced by #MWFP
?
Manufacturer substitution
This part replaces MWF. Substitute parts can look different from the original.
$105.92
In Stock
#613
Cabinet (1) diagram
Refrigerator evaporator fan blade
Part #WR60X10208
Replaced by #WR60X30922
?
Manufacturer substitution
This part replaces WR60X10208. Substitute parts can look different from the original.
$85.08 |
7% OFF Phone Price : $91.08
In Stock
#725
Machine compartment diagram
G.e. refrigerator compressor (replaces wr87x10044, wr87x10064, wr87x10121, wr87x10123, wr87x10180)
Part #WR87X10111
$608.56 |
$12.00 OFF Phone Price : $620.56
In Stock
#650
Machine compartment diagram
Condenser motor
Part #WR60X10216
Replaced by #WR60X10209
?
Manufacturer substitution
This part replaces WR60X10216. Substitute parts can look different from the original.
$60.86 |
9% OFF Phone Price : $66.86
In Stock
#795
Machine compartment diagram
Refrigerator water inlet valve assembly (replaces wr57x10092)
Part #WR57X10084
$100.45 |
11% OFF Phone Price : $112.45
In Stock
#617
Cabinet (1) diagram
Refrigerator evaporator fan motor grommet
Part #WR02X12008
$37.63
In Stock
#651
Machine compartment diagram
Refrigerator condenser fan blade
Part #WR60X10206
Replaced by #WR60X24484
?
Manufacturer substitution
This part replaces WR60X10206. Substitute parts can look different from the original.
This item is not returnable
$26.55 |
18% OFF Phone Price : $32.55
In Stock
#1007

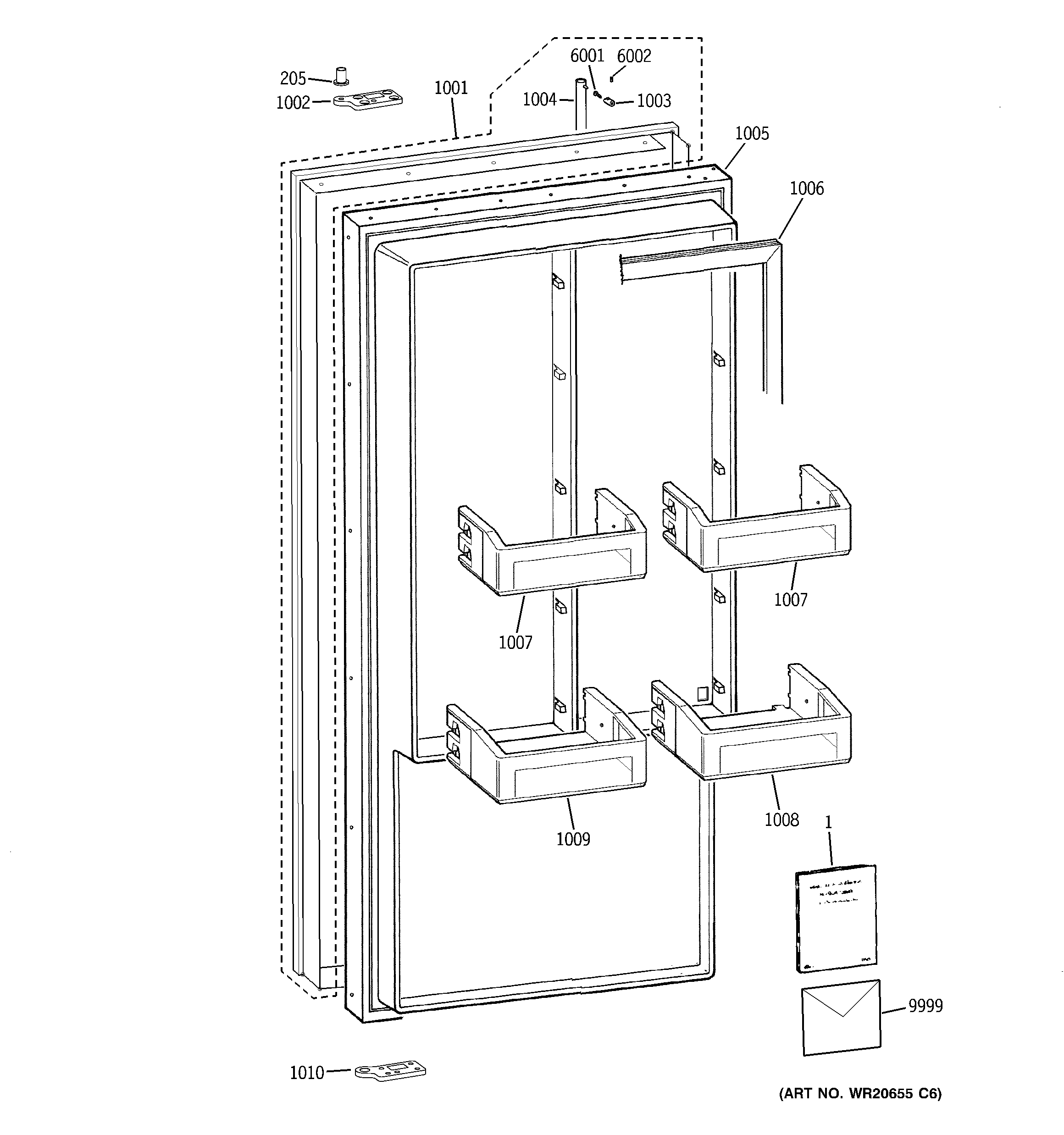

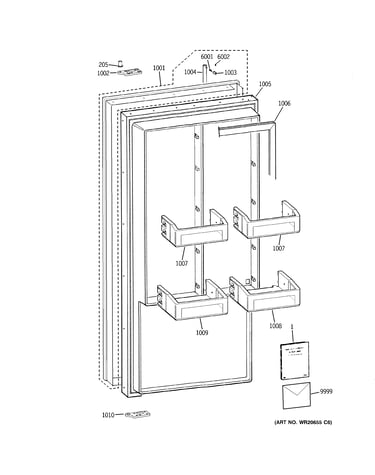

Door diagram
G.e. refrigerator door bin
Part #WR71X10138
$78.99 |
7% OFF Phone Price : $84.99
In Stock
#791
Machine compartment diagram
Refrigerator water filter bypass
Part #WR02X11705
Replaced by #WR17X22070
?
Manufacturer substitution
This part replaces WR02X11705. Substitute parts can look different from the original.
This item is not returnable
$7.57 |
12% OFF Phone Price : $8.57
In Stock
