Model # DSC-W650/R Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-W650-R digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Frame,grou 418767001
#158

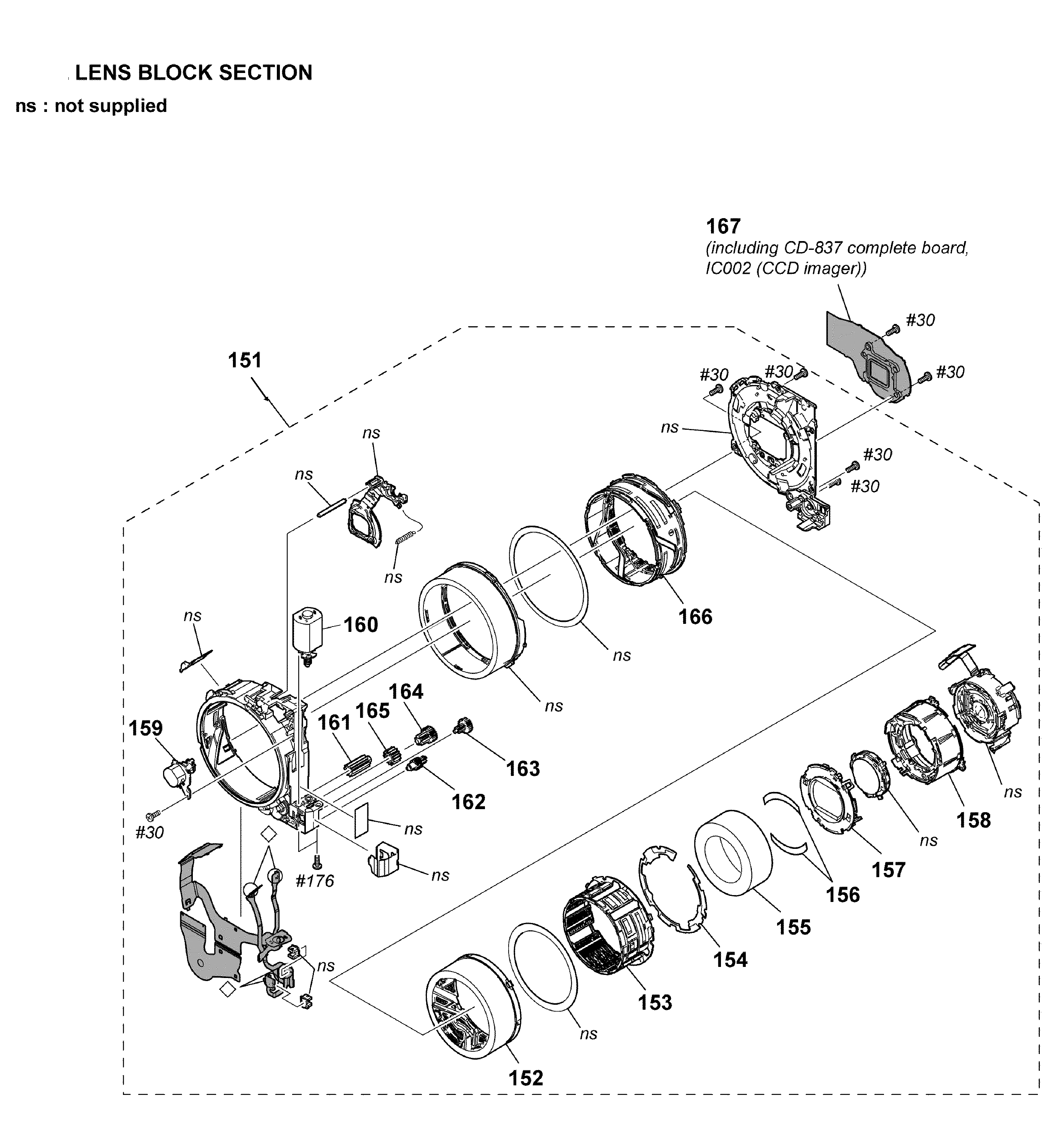

Lens assy diagram

Frame,grou

Part #418767001

This item is not returnable
$3.93
In Stock
Tape 414710901
#156

Lens assy diagram

Tape

Part #414710901

$28.11
In Stock
Block B A1799624A
#163

Lens assy diagram

Block b

Part #A1799624A

This item is not returnable
$6.49
In Stock
Sony Lid Dc,red 441577951
#2

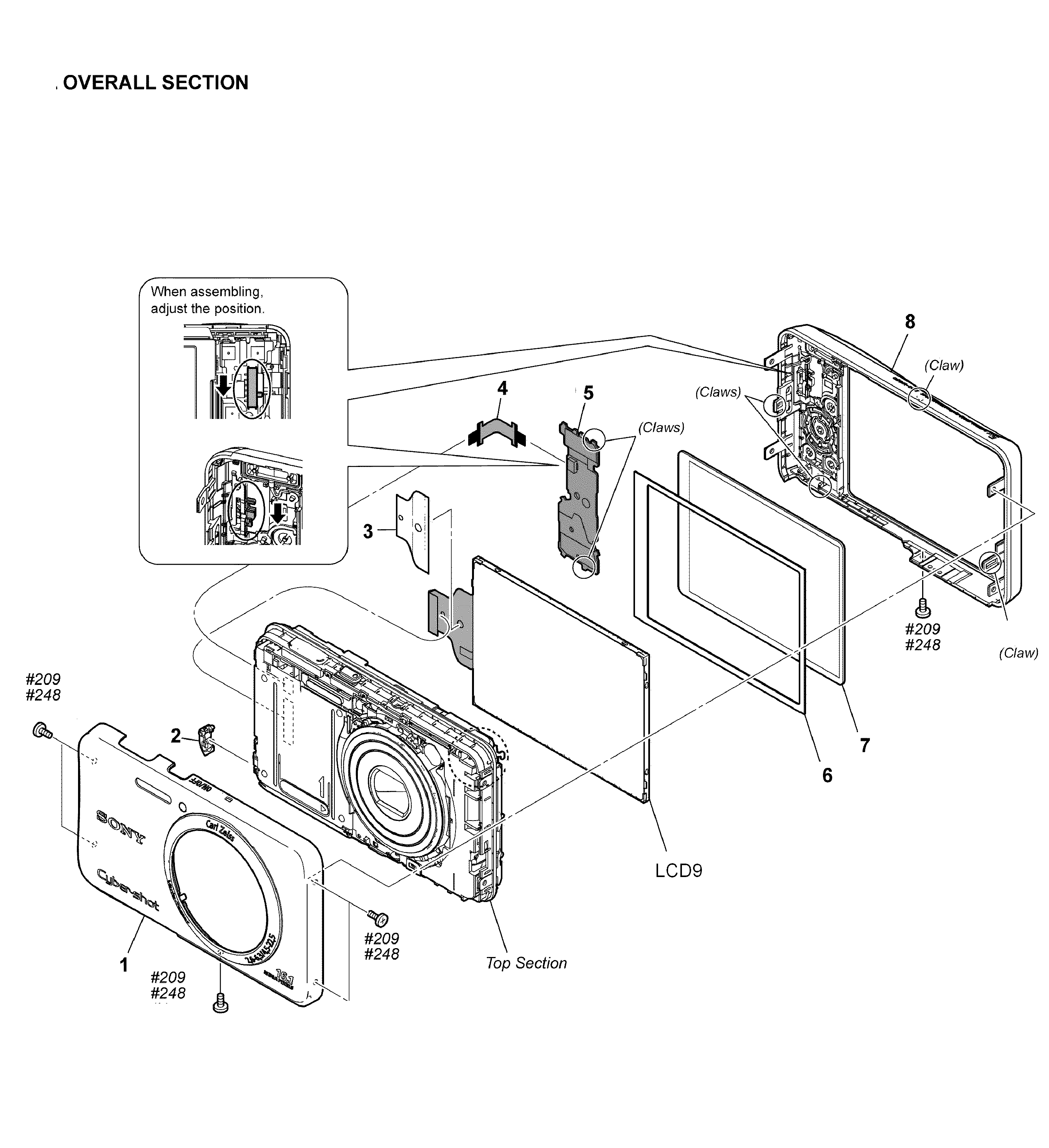

Overall assy diagram

Sony lid dc,red

Part #441577951

$22.31
In Stock
Block A A1799625A
#162

Lens assy diagram

Block a

Part #A1799625A

This item is not returnable
$6.49
In Stock
Pcb Cd-837 A1856272A
#167

Lens assy diagram

Pcb cd-837

Part #A1856272A

$119.77
In Stock
Pcb Sw-583 A1856270A
#5

Overall assy diagram

Pcb sw-583

Part #A1856270A

$28.74
In Stock
Cushion 441205101
#54

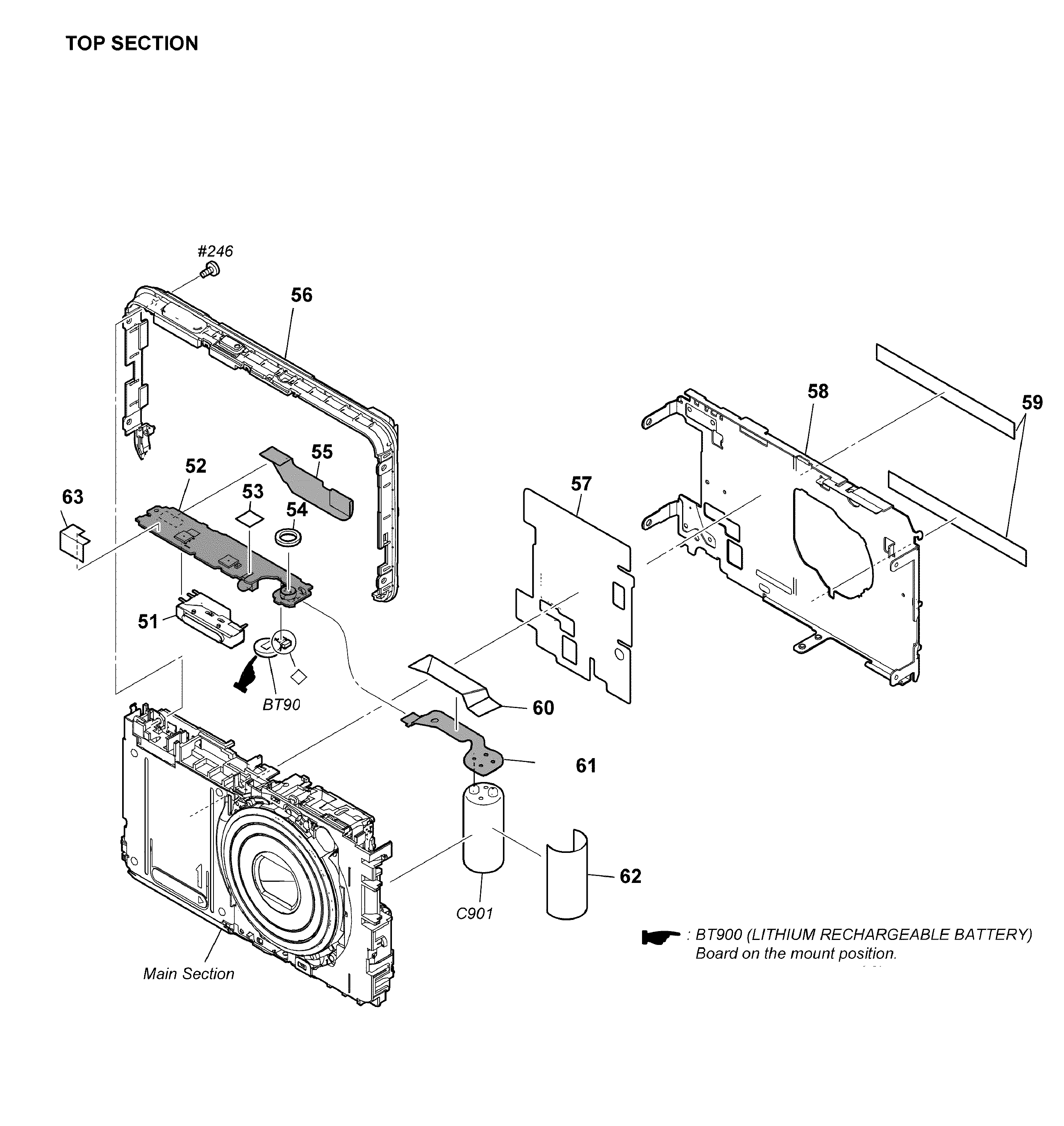

Top assy diagram

Cushion

Part #441205101

This item is not returnable
$5.65
In Stock
Cushion 417115401
#6

Overall assy diagram

Cushion

Part #417115401

$35.98
In Stock
Terminal P 178093611
#BH70

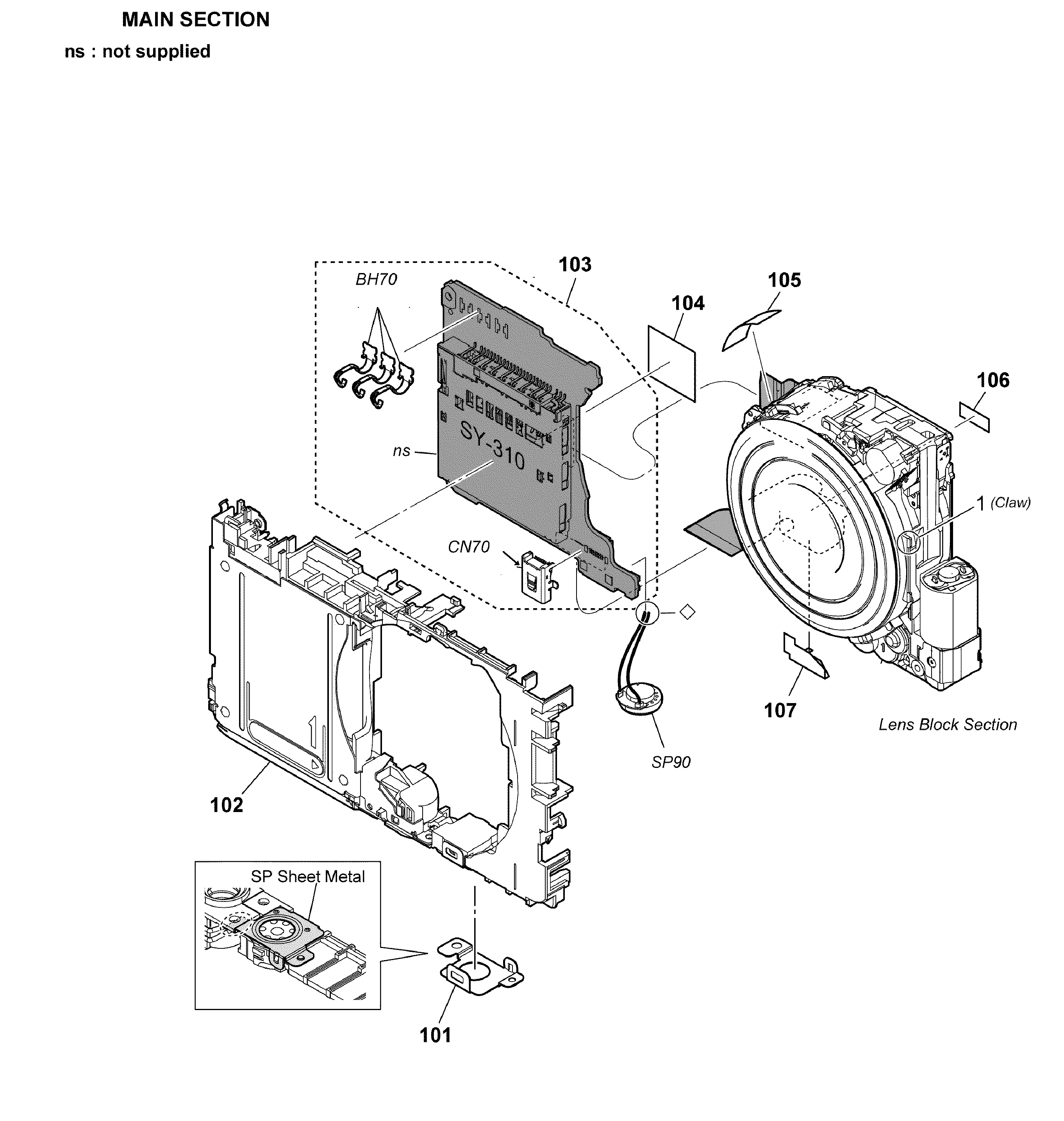

Main assy diagram

Terminal p

Part #178093611

$22.31
In Stock
