Whirlpool
Dishwasher

Model # WDT540HAMZ1 Official Whirlpool dishwasher

Here are the diagrams and repair parts for Official Whirlpool WDT540HAMZ1 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

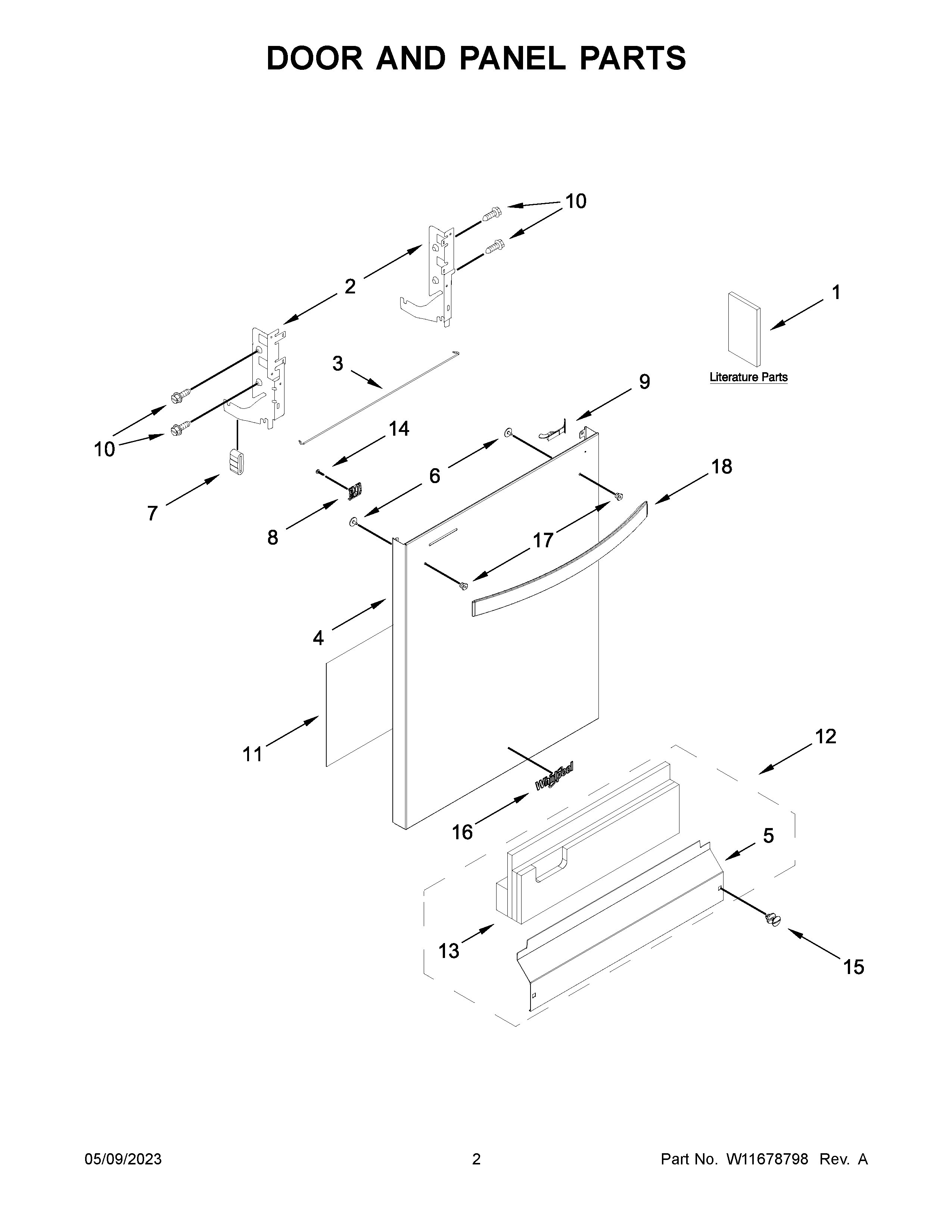

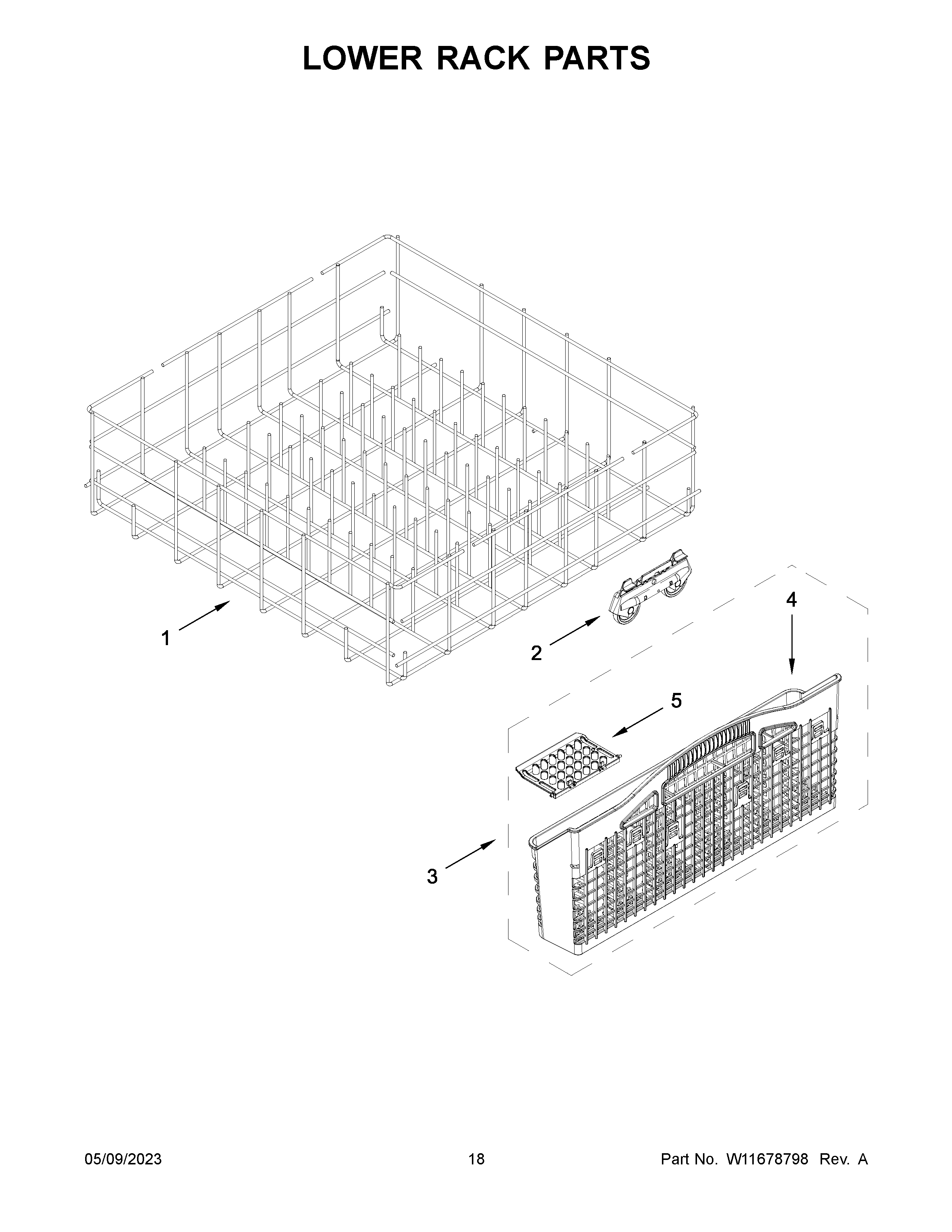

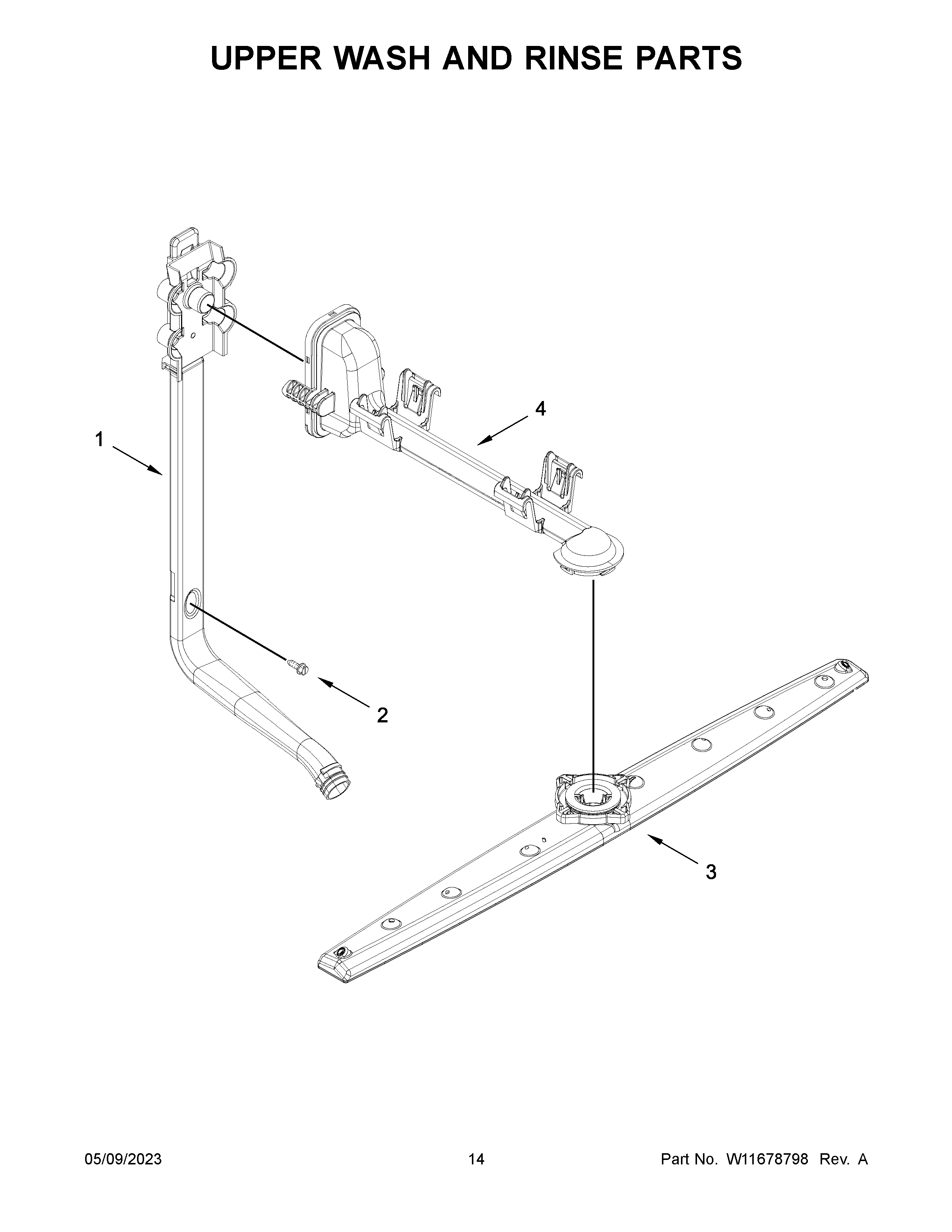

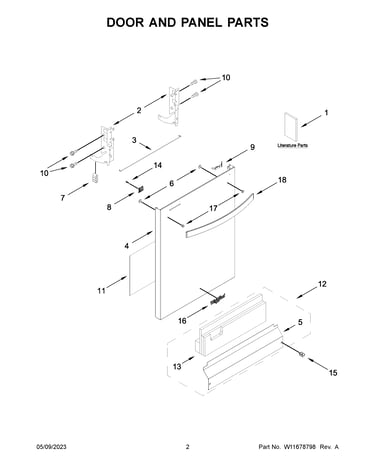

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Element Assembly W10441445
#22

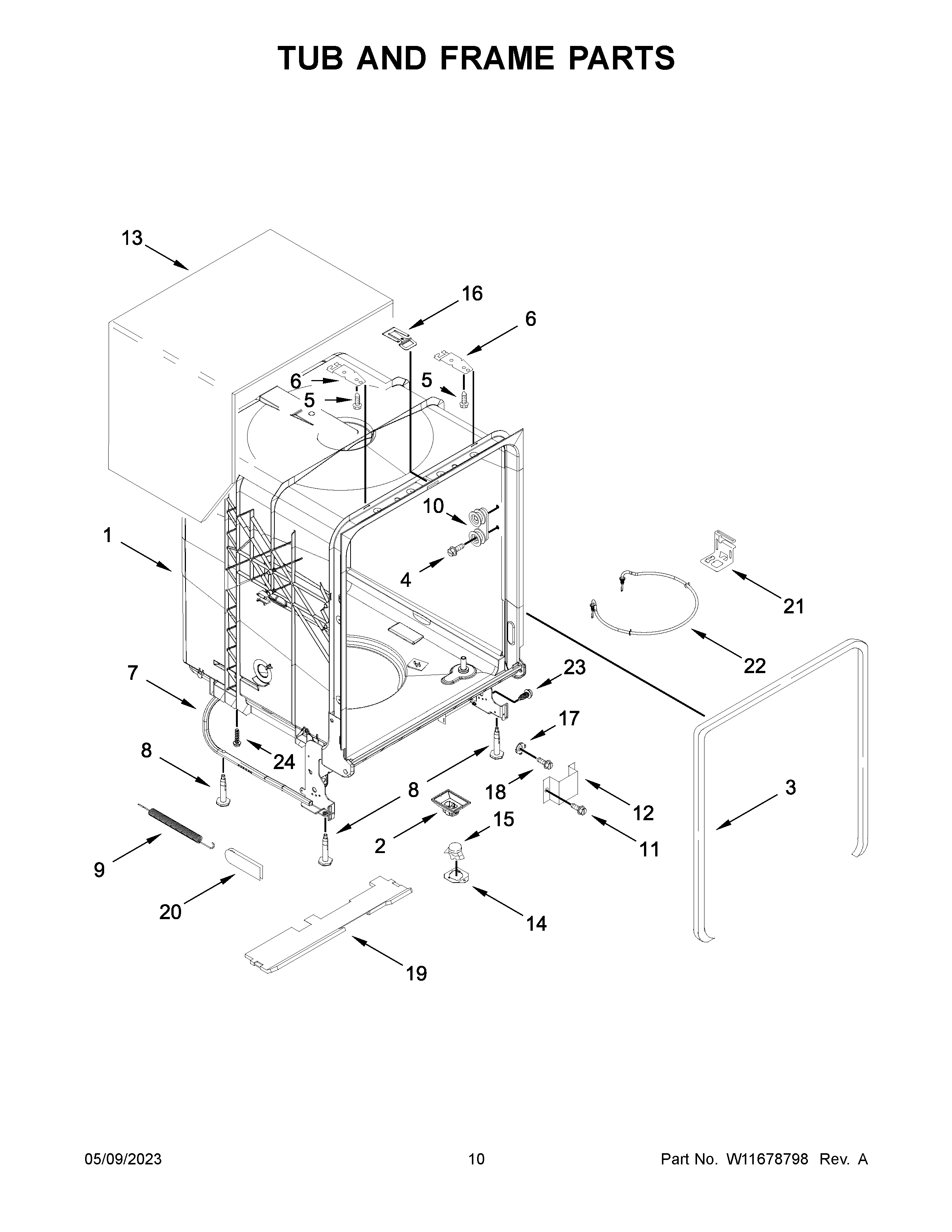

Tub and frame parts diagram

Element assembly

Part #W10441445

Replaced by #W10518394

?
Manufacturer substitution
This part replaces W10441445. Substitute parts can look different from the original.
BEST SELLER
$60.11 |
9% OFF Phone Price : $66.11
In Stock
Valve-water W11130744
#7

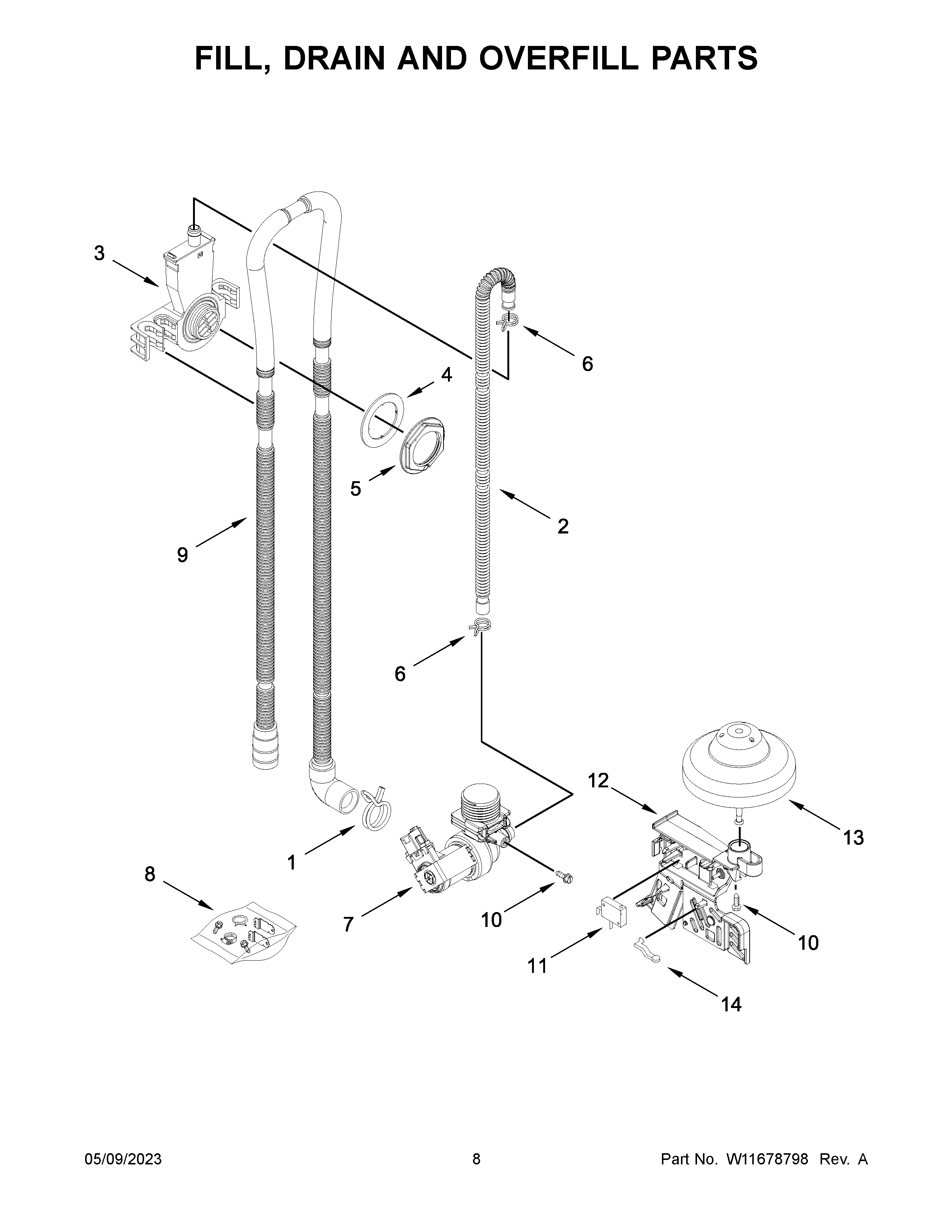

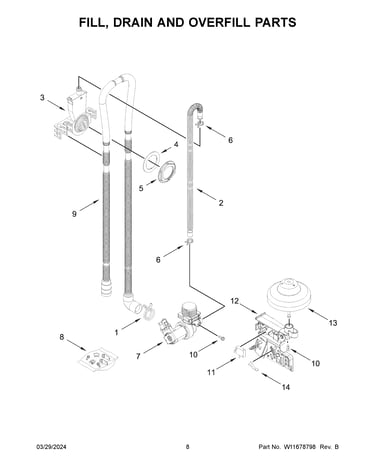

Fill, drain and overfill parts diagram

Valve-water

Part #W11130744

Replaced by #W11175771

?
Manufacturer substitution
This part replaces W11130744. Substitute parts can look different from the original.
BEST SELLER
$48.97 |
11% OFF Phone Price : $54.97
In Stock
Grommet W11182008
#12

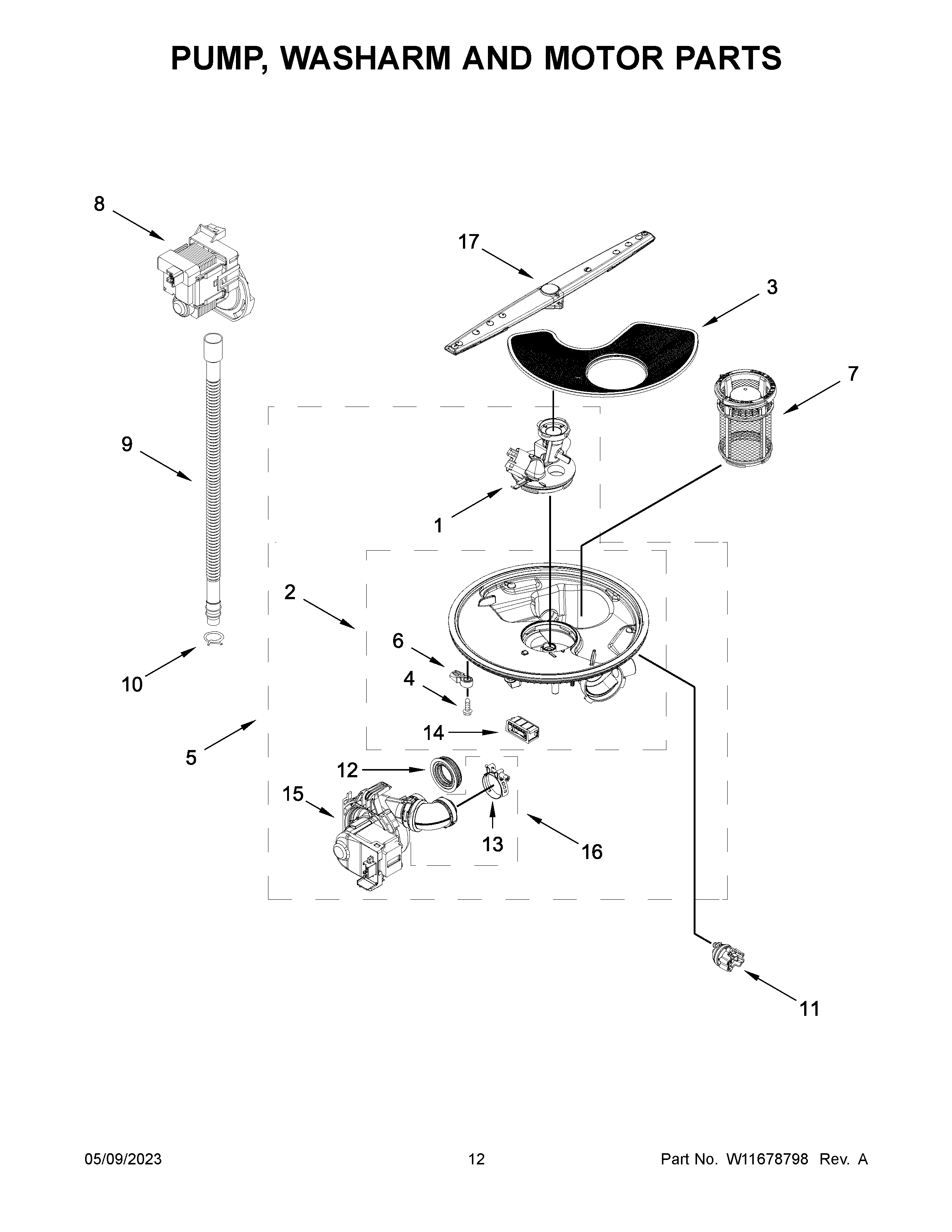

Pump, washarm and motor parts diagram

Grommet

Part #W11182008

Replaced by #WPW10538166

?
Manufacturer substitution
This part replaces W11182008. Substitute parts can look different from the original.
BEST SELLER
$21.32 |
22% OFF Phone Price : $27.32
In Stock
Dishwasher Drain Pump W10724439
#8

Pump, washarm and motor parts diagram

Dishwasher drain pump

Part #W10724439

Replaced by #W10876537

?
Manufacturer substitution
This part replaces W10724439. Substitute parts can look different from the original.
BEST SELLER
$51.78 |
10% OFF Phone Price : $57.78
In Stock
Stop W10082860
#4

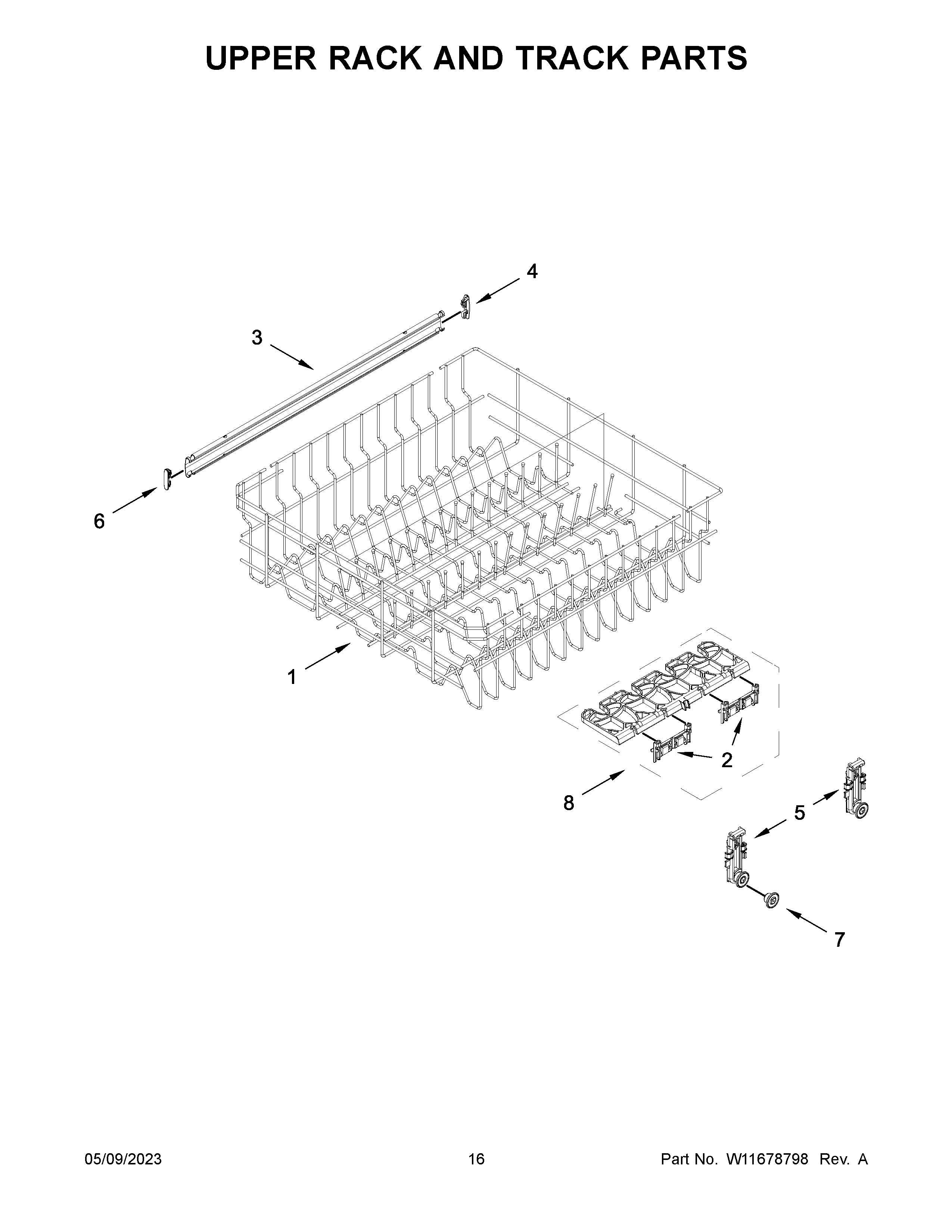

Upper rack and track parts diagram

Stop

Part #W10082860

Replaced by #WP8565925

?
Manufacturer substitution
This part replaces W10082860. Substitute parts can look different from the original.
BEST SELLER
$8.76 |
10% OFF Phone Price : $9.76
In Stock
Dishwasher Door Latch W10653840
#6

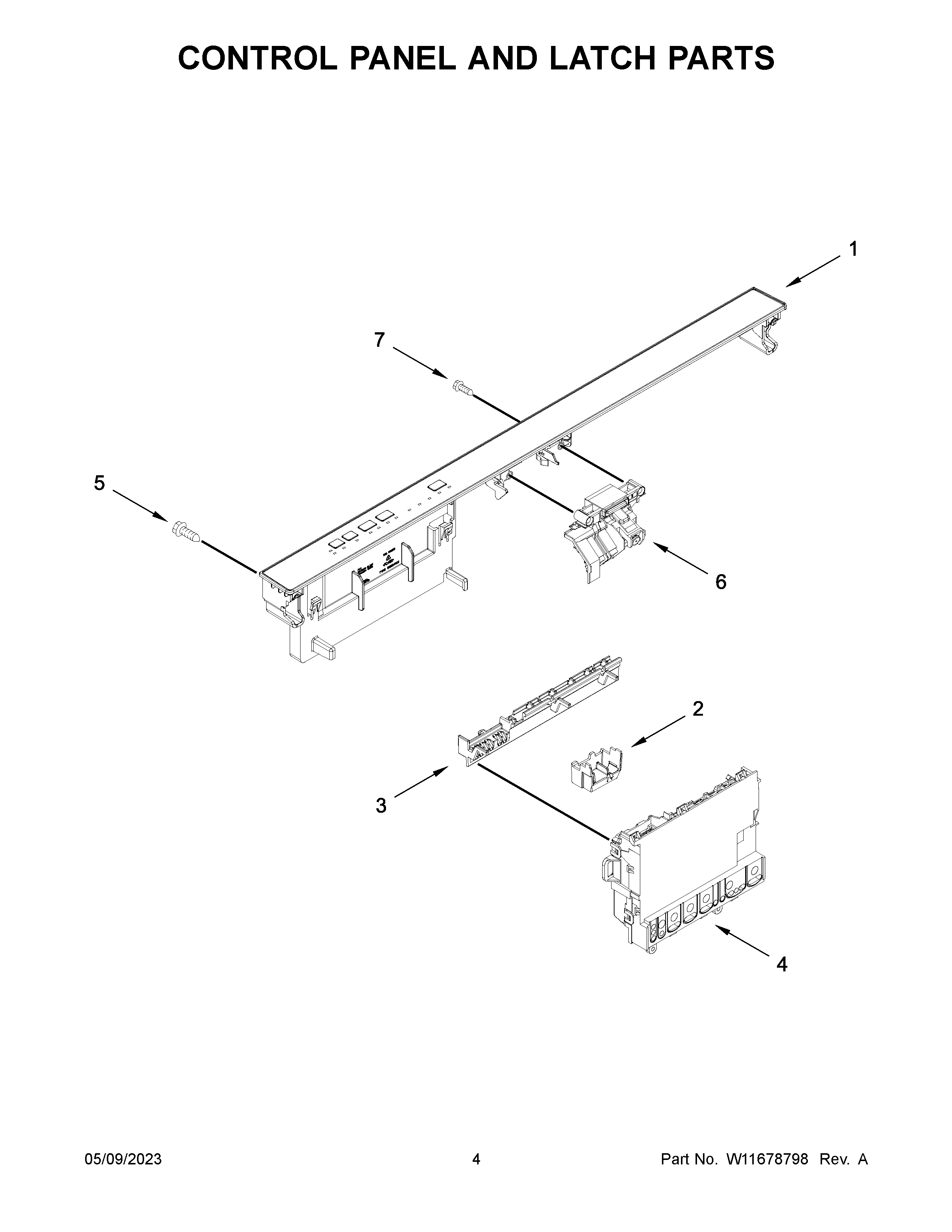

Control panel and latch parts diagram

Dishwasher door latch

Part #W10653840

Replaced by #WPW10653840

?
Manufacturer substitution
This part replaces W10653840. Substitute parts can look different from the original.
BEST SELLER
$25.70 |
19% OFF Phone Price : $31.70
In Stock
Dishwasher Drain Hose 8269144
#9

Pump, washarm and motor parts diagram

Dishwasher drain hose

Part #8269144

Replaced by #8269144A

?
Manufacturer substitution
This part replaces 8269144. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Dishwasher Drain Hose W10545278
#9

Fill, drain and overfill parts diagram

Dishwasher drain hose

Part #W10545278

Replaced by #WPW10545278

?
Manufacturer substitution
This part replaces W10545278. Substitute parts can look different from the original.
BEST SELLER
$41.40 |
13% OFF Phone Price : $47.40
In Stock
Dishwasher Detergent Dispenser W10620296
#8

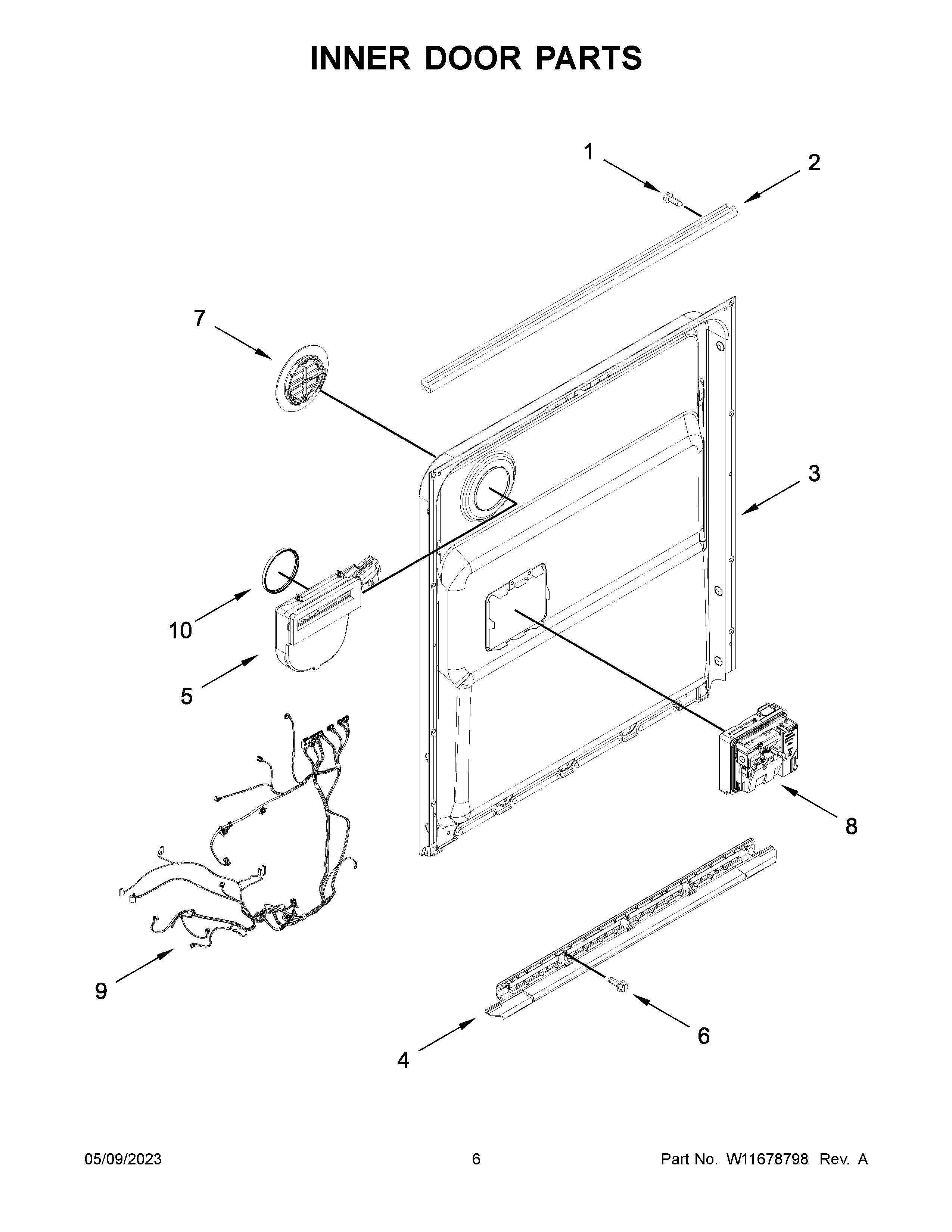

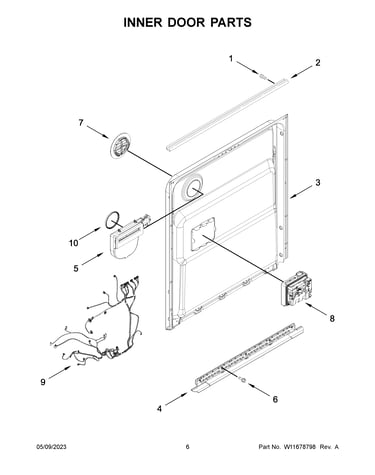

Inner door parts diagram

Dishwasher detergent dispenser

Part #W10620296

Replaced by #W10861000

?
Manufacturer substitution
This part replaces W10620296. Substitute parts can look different from the original.
BEST SELLER
$84.12 |
7% OFF Phone Price : $90.12
In Stock
Thermostat 3371618
#15

Tub and frame parts diagram

Thermostat

Part #3371618

Replaced by #WP661566

?
Manufacturer substitution
This part replaces 3371618. Substitute parts can look different from the original.
BEST SELLER
$27.41 |
18% OFF Phone Price : $33.41
In Stock
