Kenmore
Gas Range

Model # 79070504010 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 79070504010 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |
Range Oven Burner Igniter 316489402
#19

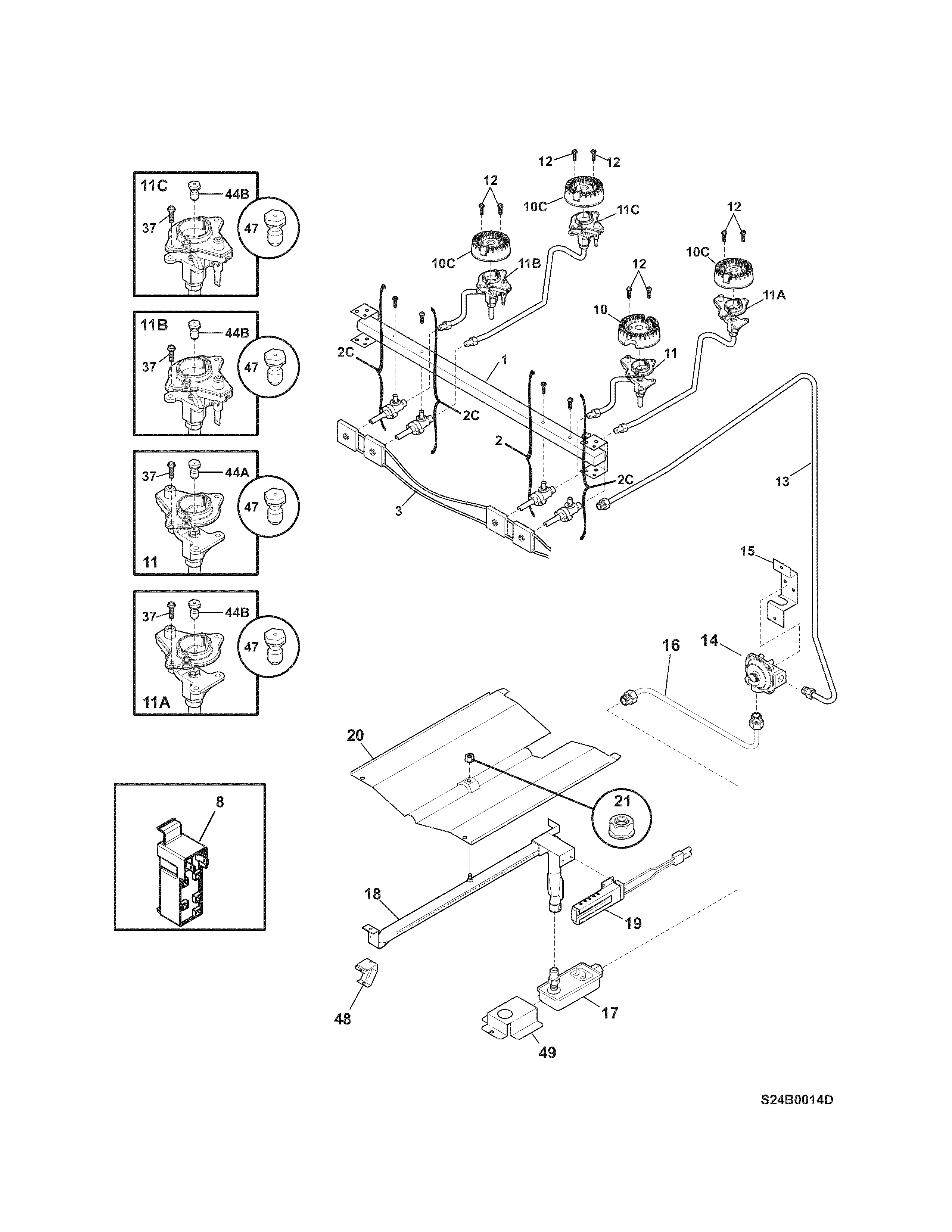

Burner diagram

Range oven burner igniter

Part #316489402

Replaced by #5304509706

?
Manufacturer substitution
This part replaces 316489402. Substitute parts can look different from the original.
BEST SELLER
$116.54 |
9% OFF Phone Price : $128.54
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

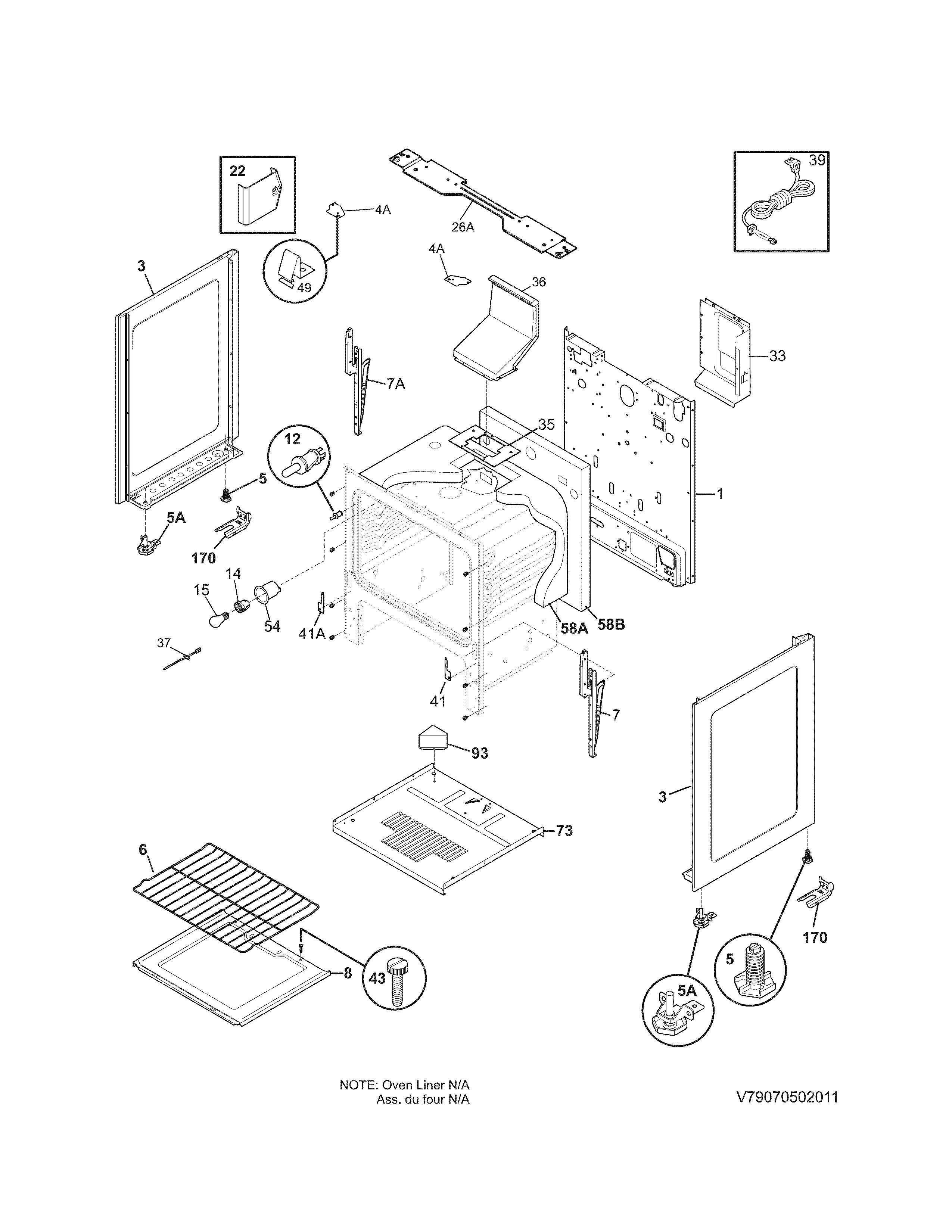

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Range Screw (replaces 5304472956, 7316240600) 316240600
#37

Burner diagram

Range screw (replaces 5304472956, 7316240600)

Part #316240600

BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Range Screw (replaces 316518100, 7316540900) 316540900
#12

Burner diagram

Range screw (replaces 316518100, 7316540900)

Part #316540900

BEST SELLER
$14.63 |
12% OFF Phone Price : $16.63
In Stock
Range Oven Door Inner Glass 316237100
#8

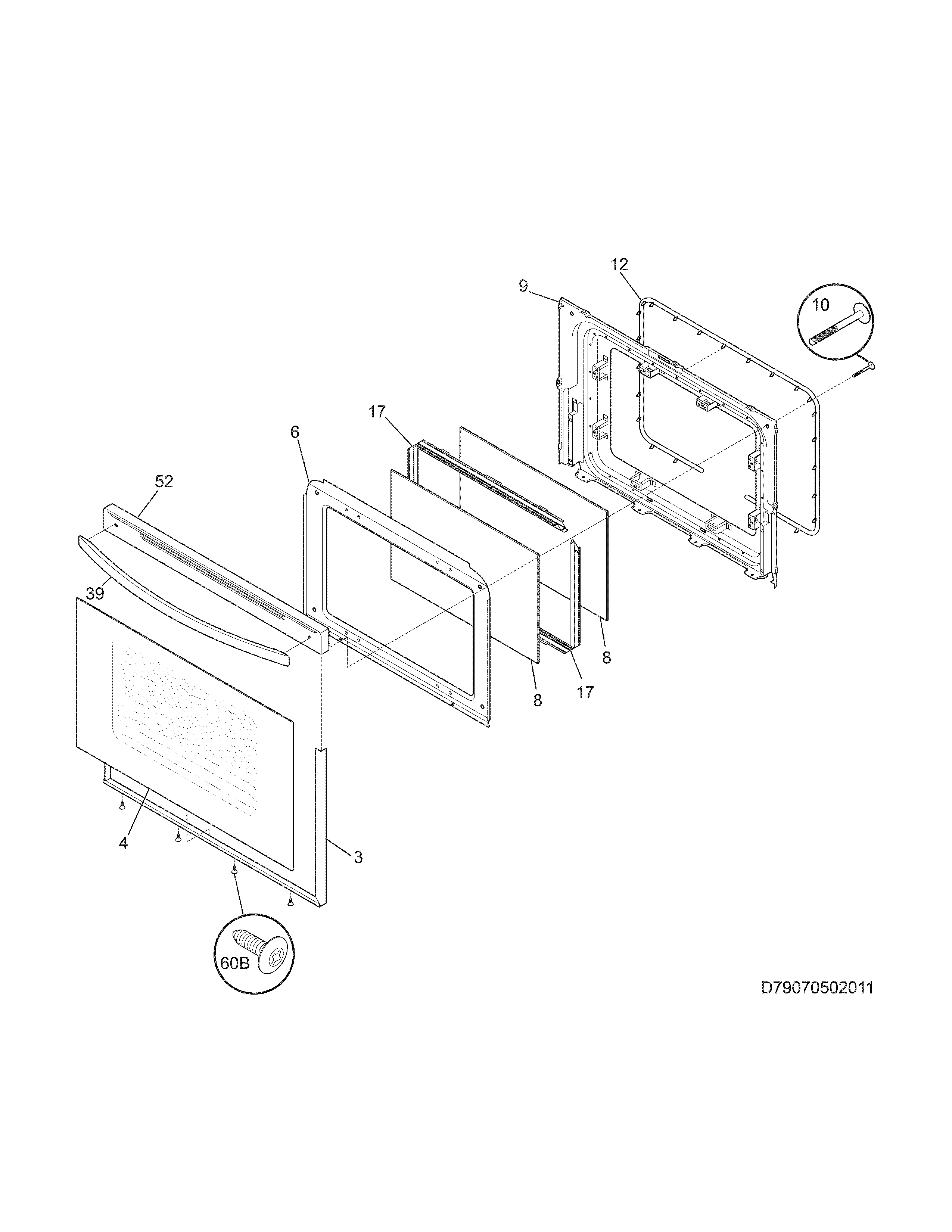

Door diagram

Range oven door inner glass

Part #316237100

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316237100. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Range Surface Burner Igniter And Orifice Holder (replaces 316449302) 316536602
#11B

Burner diagram

Range surface burner igniter and orifice holder (replaces 316449302)

Part #316536602

BEST SELLER
$76.09 |
7% OFF Phone Price : $82.09
In Stock
Frigidaire Range Oven Control Board 316455430 316455430
#20

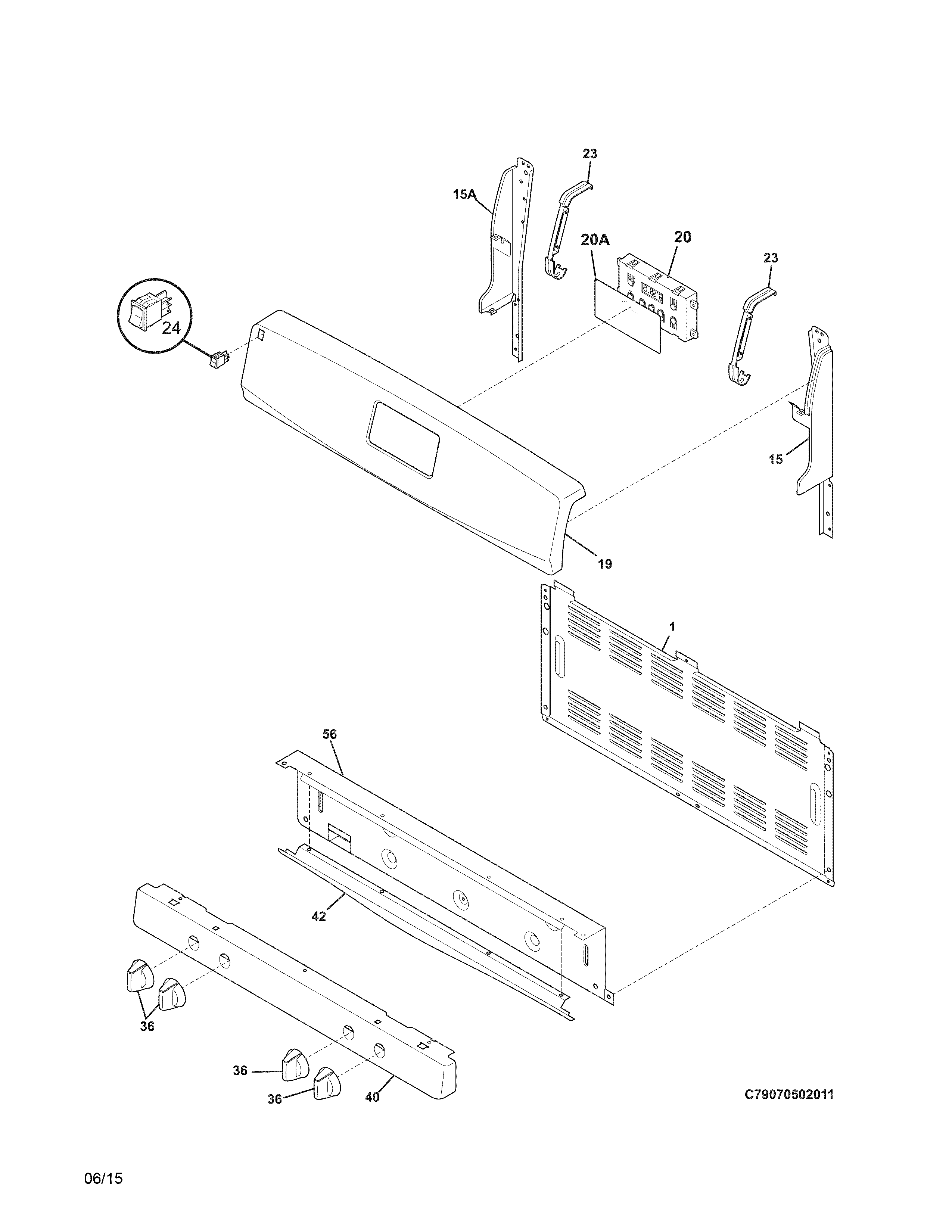

Backguard diagram

Frigidaire range oven control board 316455430

Part #316455430

BEST SELLER
$197.31 |
6% OFF Phone Price : $209.31
In Stock
Range Surface Burner Cap, 9,500-btu (matte Black) 316261804
#22C

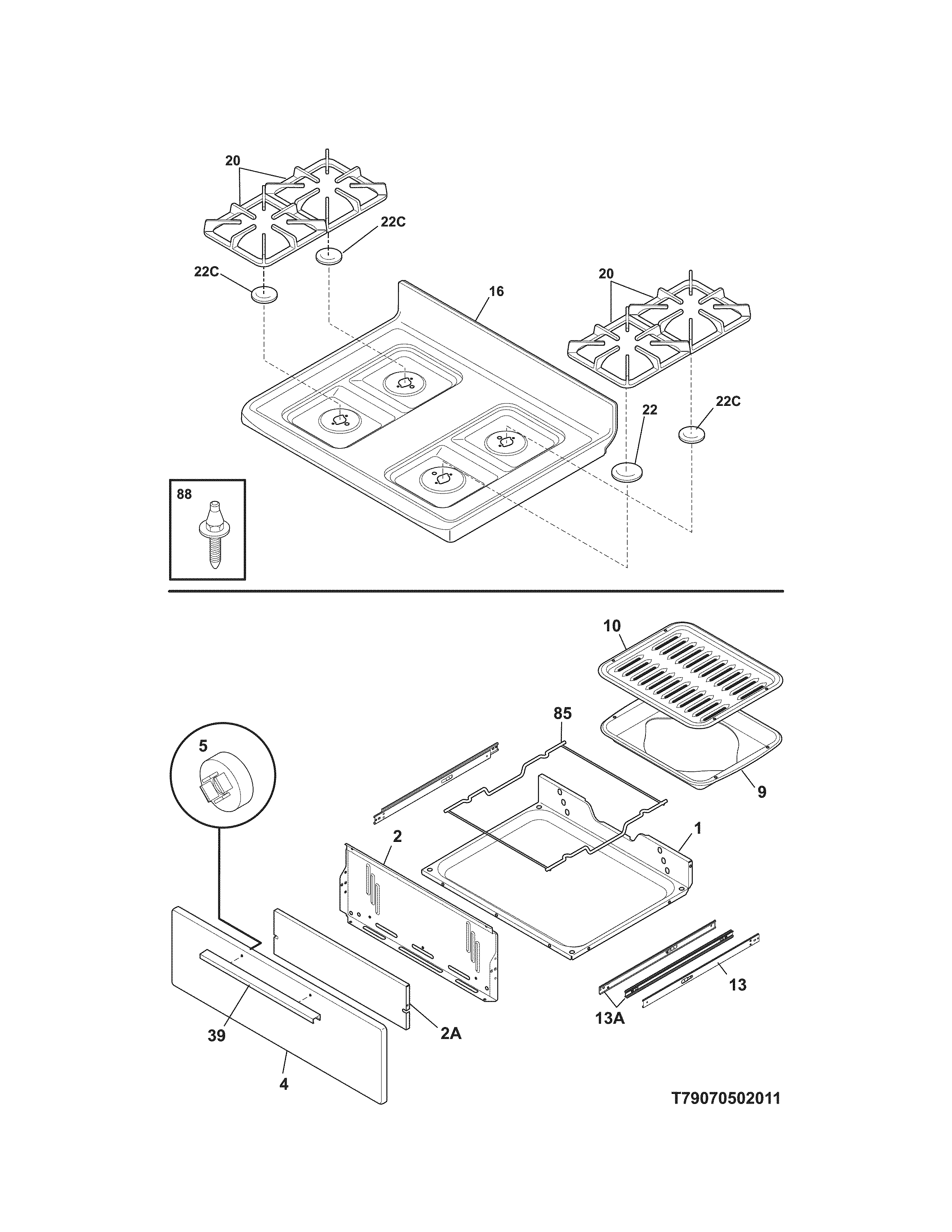

Top/drawer diagram

Range surface burner cap, 9,500-btu (matte black)

Part #316261804

Replaced by #5304508442

?
Manufacturer substitution
This part replaces 316261804. Substitute parts can look different from the original.
BEST SELLER
$27.10 |
18% OFF Phone Price : $33.10
In Stock
Range Oven Control Overlay 316354402
#20A

Backguard diagram

Range oven control overlay

Part #316354402

BEST SELLER
$34.02 |
15% OFF Phone Price : $40.02
In Stock
Range Igniter Switch And Harness Assembly 316580611
#3

Burner diagram

Range igniter switch and harness assembly

Part #316580611

BEST SELLER
$58.40 |
9% OFF Phone Price : $64.40
In Stock
