Model # 217592060 Official Craftsman electric fishing motor

Here are the diagrams and repair parts for Official Craftsman 217592060 electric fishing motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

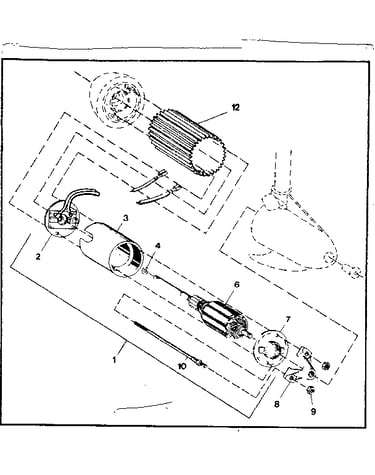

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |

Rocker Switch 76341
#1

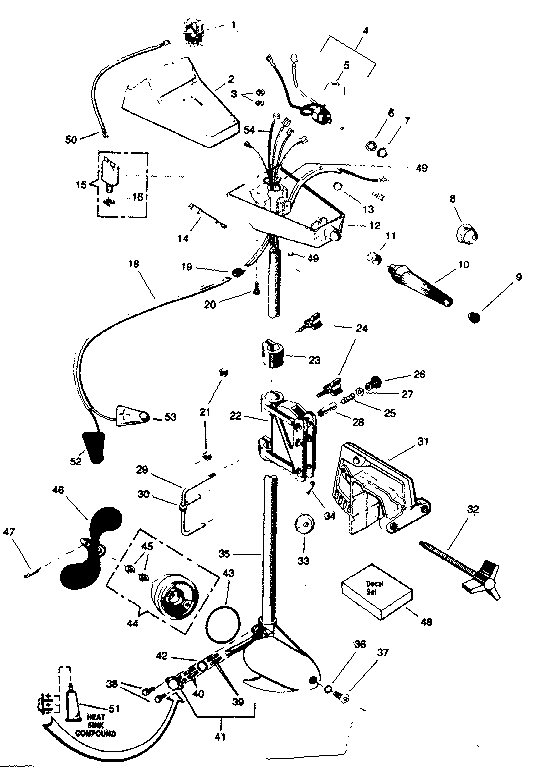

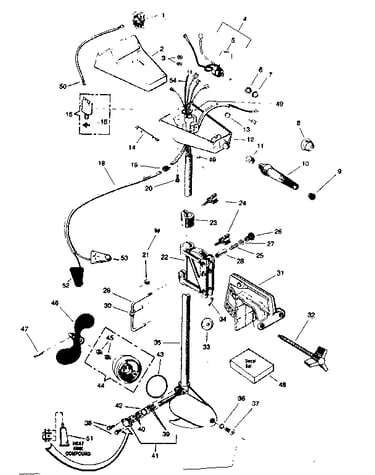

Troller assembly diagram

Rocker switch

Part #76341

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 7459
#28

Troller assembly diagram

Roll pin

Part #7459

The manufacturer no longer makes this part, and there's no substitute part

Pin (silver) 6415
#47

Troller assembly diagram

Pin (silver)

Part #6415

The manufacturer no longer makes this part, and there's no substitute part

Oil Seal 26329
#45

Troller assembly diagram

Oil seal

Part #26329

The manufacturer no longer makes this part, and there's no substitute part

Resistor 36571
#5

Troller assembly diagram

Resistor

Part #36571

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 66271
#11

Troller assembly diagram

Sleeve

Part #66271

The manufacturer no longer makes this part, and there's no substitute part

Collar 26444
#23

Troller assembly diagram

Collar

Part #26444

The manufacturer no longer makes this part, and there's no substitute part

Circuit Breaker 76468
#15

Troller assembly diagram

Circuit breaker

Part #76468

The manufacturer no longer makes this part, and there's no substitute part

Tubing 36729
#39

Troller assembly diagram

Tubing

Part #36729

The manufacturer no longer makes this part, and there's no substitute part

Screw 878
#37

Troller assembly diagram

Screw

Part #878

The manufacturer no longer makes this part, and there's no substitute part
