Model # 400 DLD (5ADE) Official Smith Corona typewriter

Here are the diagrams and repair parts for Official Smith Corona 400-DLD-5ADE typewriter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

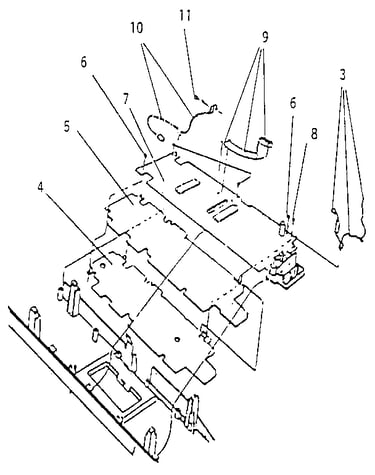

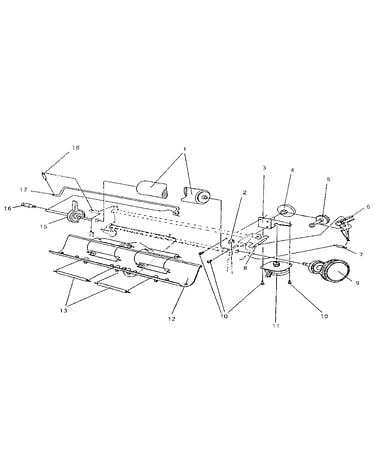

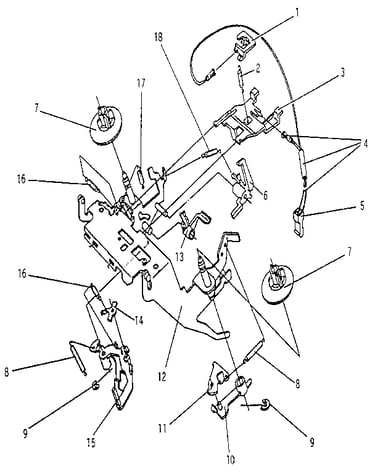

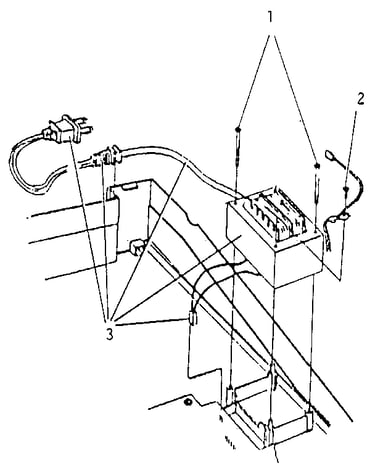

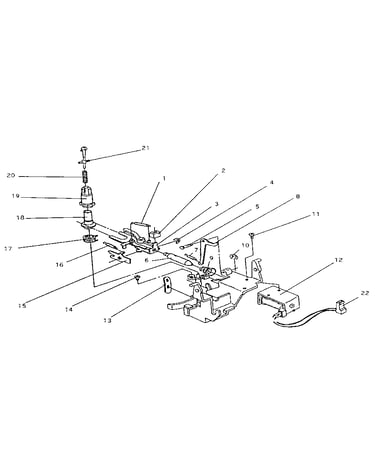

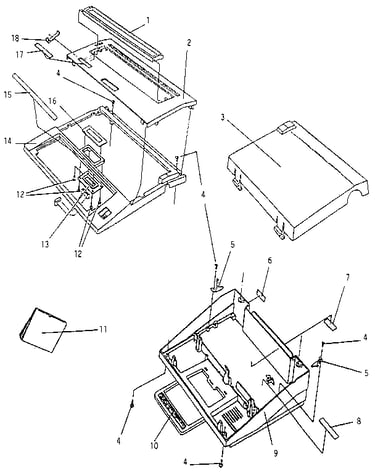

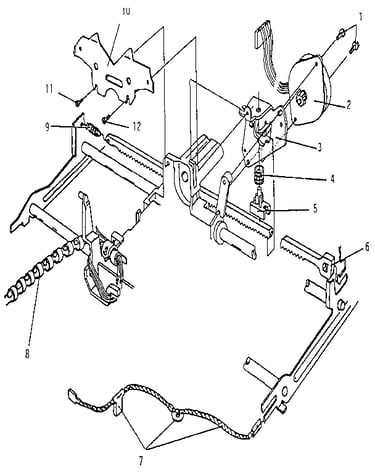

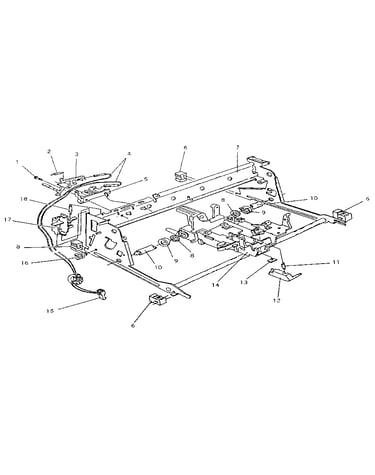

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 228 parts  |
Cvr Up Rbbn 59055

#NI

All parts diagram

Cvr up rbbn

Part #59055

The manufacturer no longer makes this part, and there's no substitute part

Pivot Screw 771794
#3

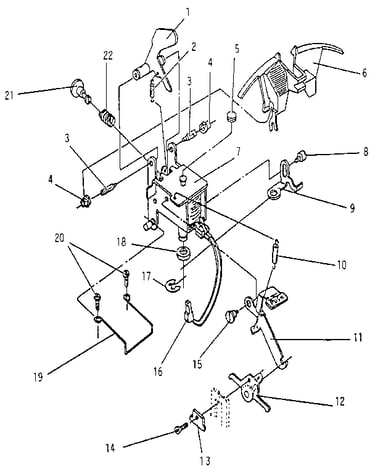

Hammer diagram

Pivot screw

Part #771794

The manufacturer no longer makes this part, and there's no substitute part

Hammer Plate 770432
#12

Hammer diagram

Hammer plate

Part #770432

The manufacturer no longer makes this part, and there's no substitute part

./. 778448
#49

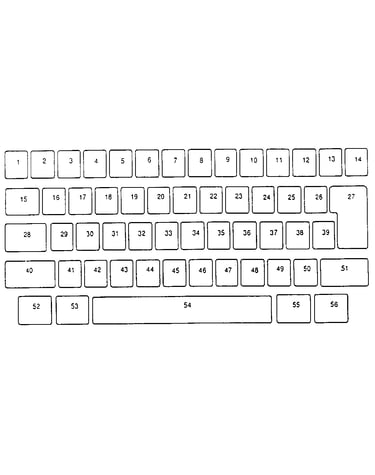

Keybutton reference chart diagram

./.

Part #778448

The manufacturer no longer makes this part, and there's no substitute part

Rtrn Bail 778280
#3

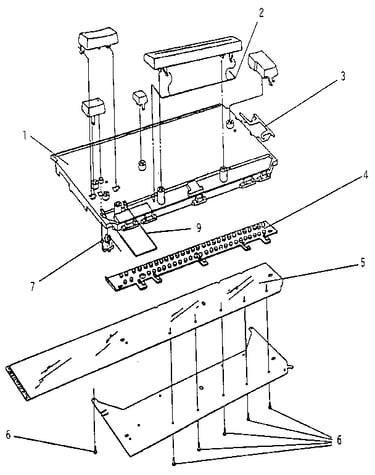

Keyboard diagram

Rtrn bail

Part #778280

The manufacturer no longer makes this part, and there's no substitute part

Keybutton,t 778599
#20

Keybutton reference chart diagram

Keybutton,t

Part #778599

The manufacturer no longer makes this part, and there's no substitute part

Spcbr/hlfspc 778654
#54

Keybutton reference chart diagram

Spcbr/hlfspc

Part #778654

The manufacturer no longer makes this part, and there's no substitute part

Gear Shaft 745321
#4

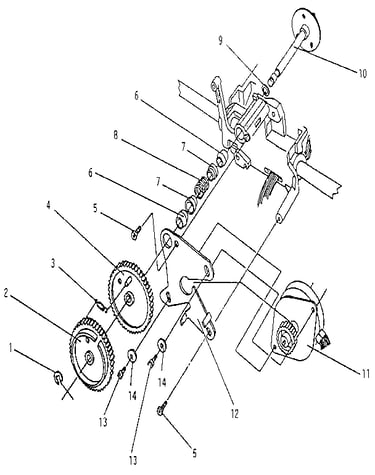

Element drive diagram

Gear shaft

Part #745321

The manufacturer no longer makes this part, and there's no substitute part

Keybutton,y 778600
#21

Keybutton reference chart diagram

Keybutton,y

Part #778600

The manufacturer no longer makes this part, and there's no substitute part

Key Button 778411
#12

Keybutton reference chart diagram

Key button

Part #778411

The manufacturer no longer makes this part, and there's no substitute part
