Ryobi
Drill/Driver

Model # CTH1442K2 Official Ryobi 12-v 14.4-v handle drill

Here are the diagrams and repair parts for Official Ryobi CTH1442K2 12-v 14.4-v handle drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

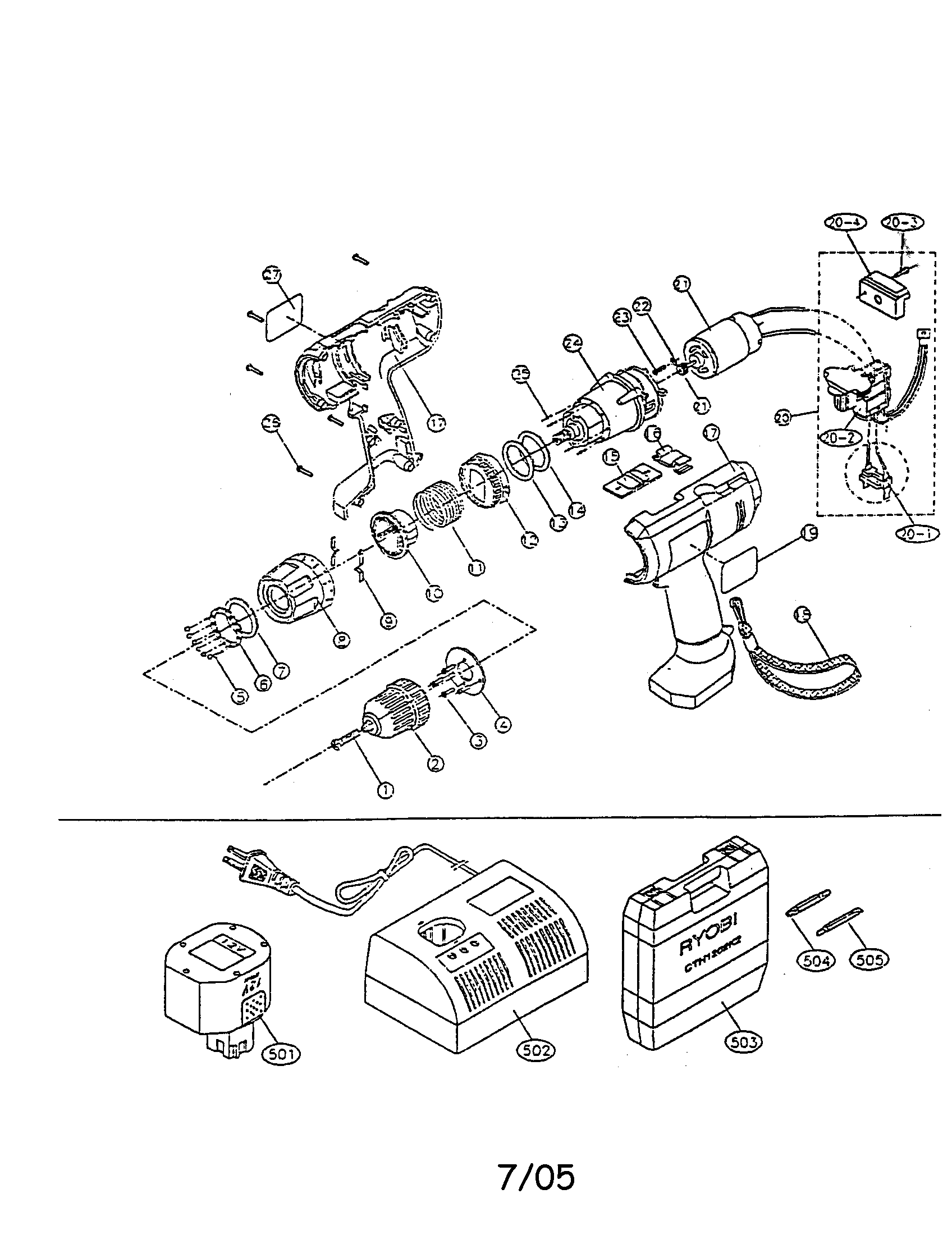

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Screw 1130047
#23A

12v/14.4 v ctr handle drill diagram

Screw

Part #1130047

The manufacturer no longer makes this part, and there's no substitute part

Plastic Sleeve 4900097
#10

12v/14.4 v ctr handle drill diagram

Plastic sleeve

Part #4900097

The manufacturer no longer makes this part, and there's no substitute part

Ball Steel 1290002
#25

12v/14.4 v ctr handle drill diagram

Ball steel

Part #1290002

The manufacturer no longer makes this part, and there's no substitute part

Charger 1400666B
#502

12v/14.4 v ctr handle drill diagram

Charger

Part #1400666B

The manufacturer no longer makes this part, and there's no substitute part

Location Cup, Plastic 4360005
#12

12v/14.4 v ctr handle drill diagram

Location cup, plastic

Part #4360005

The manufacturer no longer makes this part, and there's no substitute part

Housing 1800073
#17

12v/14.4 v ctr handle drill diagram

Housing

Part #1800073

The manufacturer no longer makes this part, and there's no substitute part

Washer 4900095
#7

12v/14.4 v ctr handle drill diagram

Washer

Part #4900095

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 4030016
#21A

12v/14.4 v ctr handle drill diagram

Motor assembly

Part #4030016

The manufacturer no longer makes this part, and there's no substitute part

Steel Ball 3.0mm (6) 1290021
#5

12v/14.4 v ctr handle drill diagram

Steel ball 3.0mm (6)

Part #1290021

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 1400652
#501

12v/14.4 v ctr handle drill diagram

Battery pack

Part #1400652

The manufacturer no longer makes this part, and there's no substitute part
