Model # 91725600 Official Craftsman super 14 hydro-trac tractor

Here are the diagrams and repair parts for Official Craftsman 91725600 super 14 hydro-trac tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

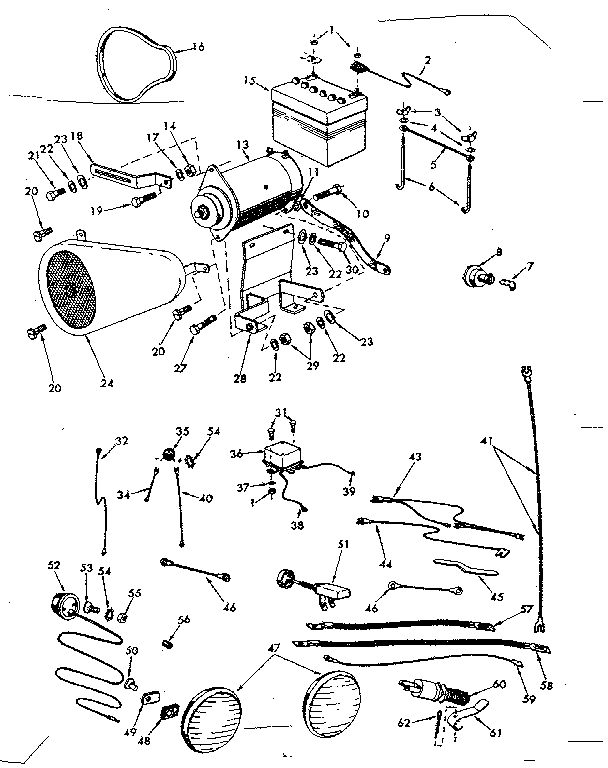

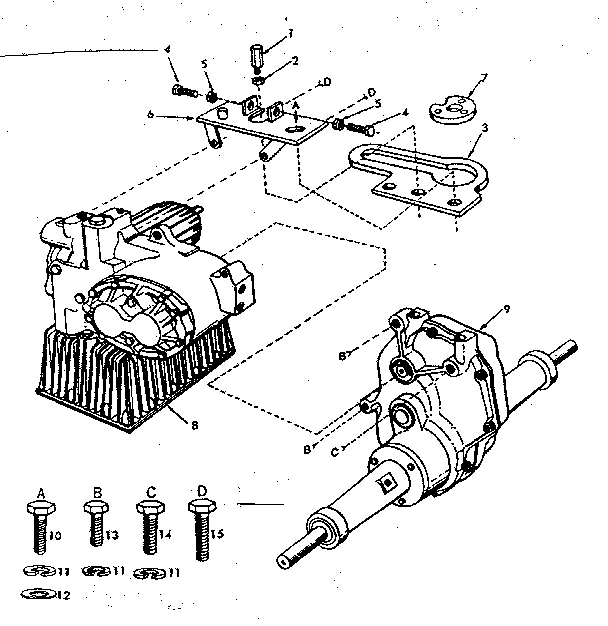

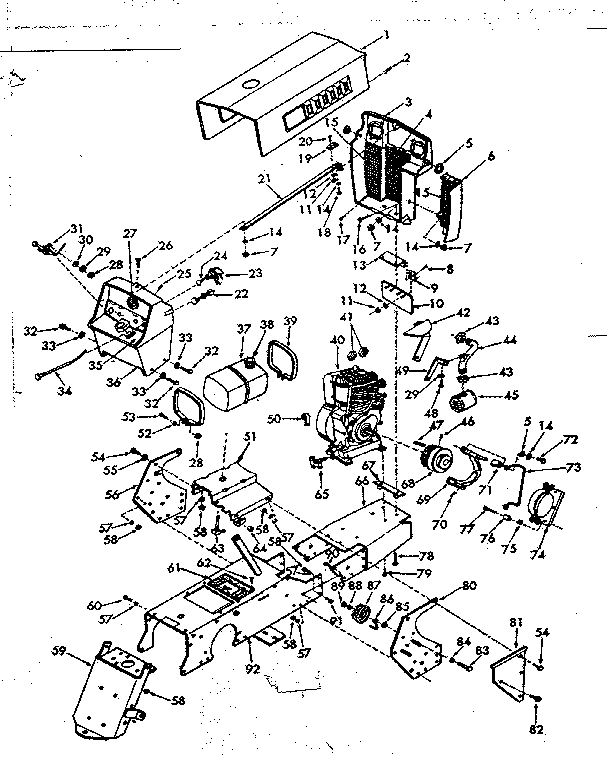

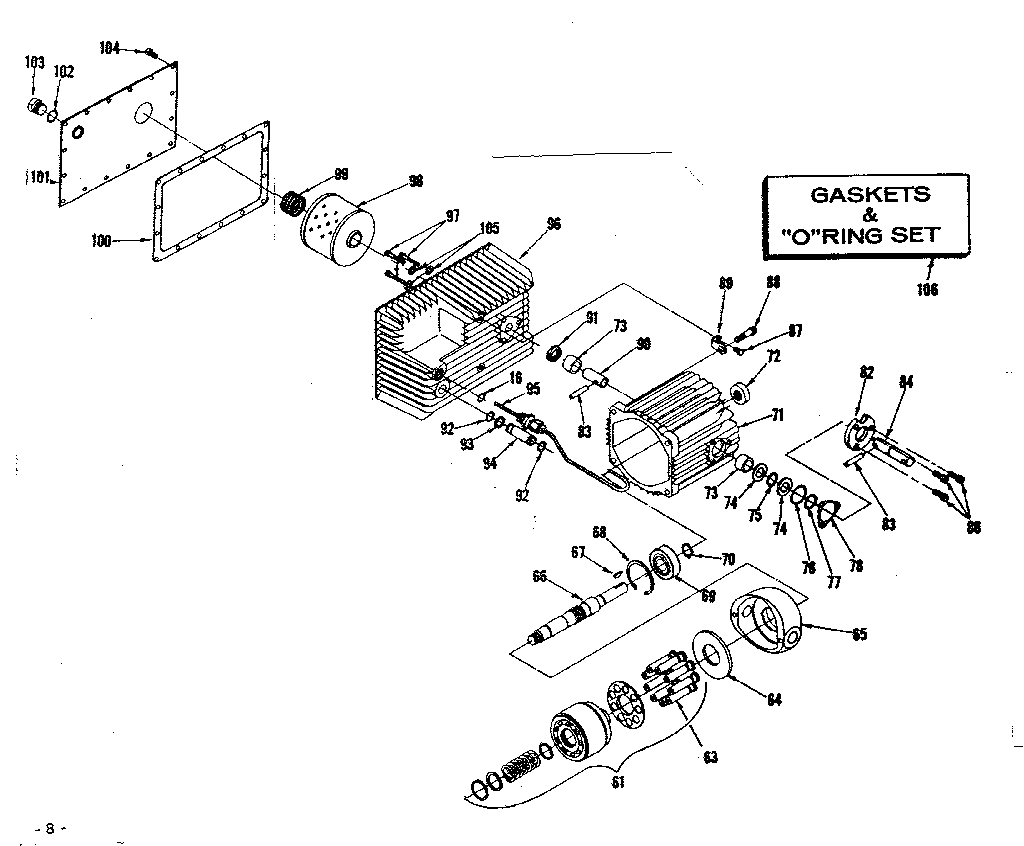

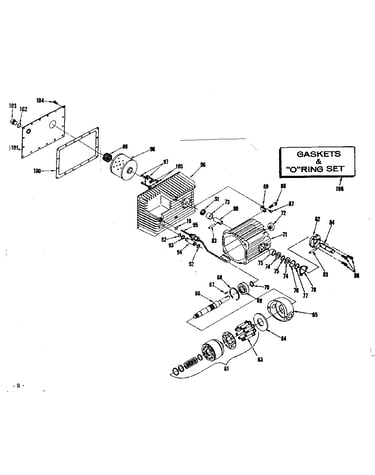

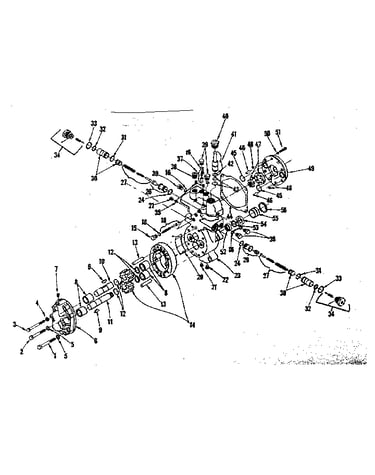

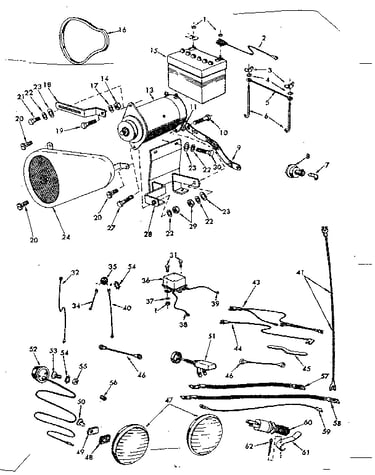

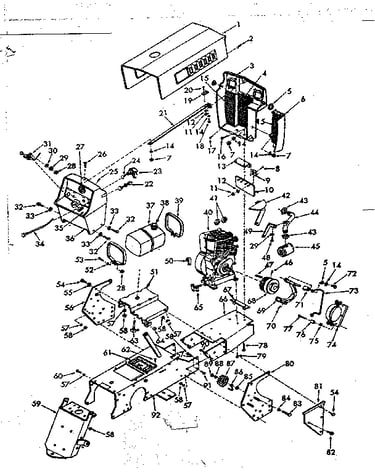

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 426 parts  |
Valve 795R
#77

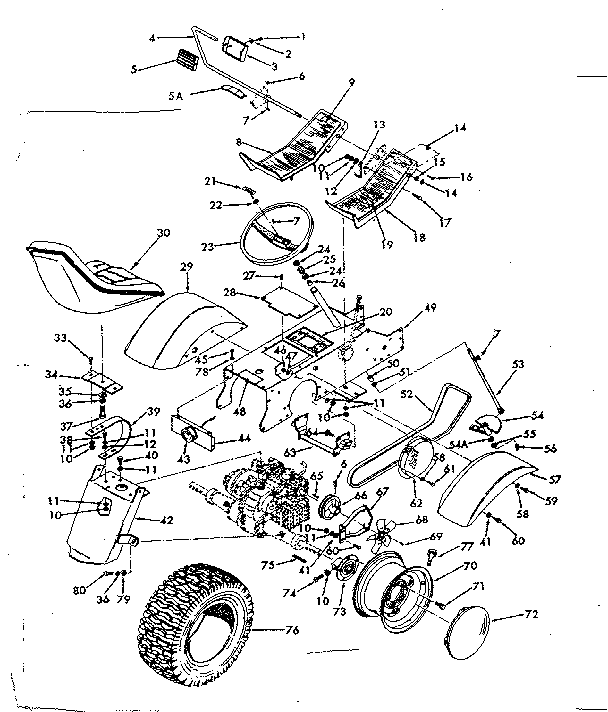

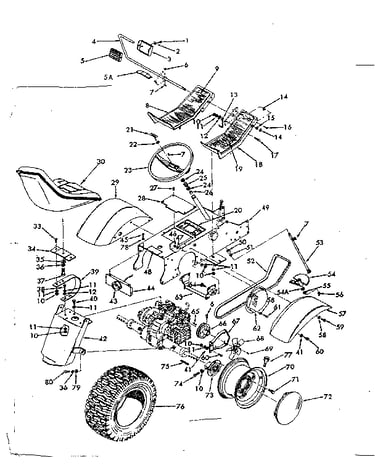

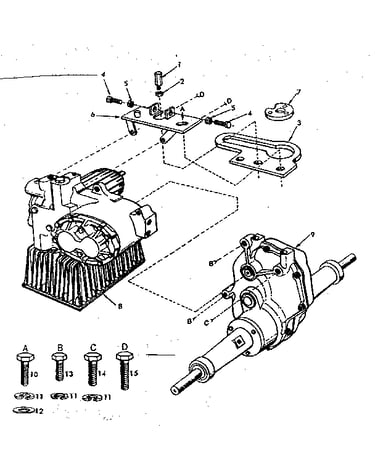

Drive assembly diagram

Valve

Part #795R

Replaced by #65139

?
Manufacturer substitution
This part replaces 795R. Substitute parts can look different from the original.
BEST SELLER
$10.49 |
16% OFF Phone Price : $12.49
In Stock
E-ring 5000P
E-ring

Part #5000P

Replaced by #812000029

?
Manufacturer substitution
This part replaces 5000P. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Huglock Nut 6684H
#35

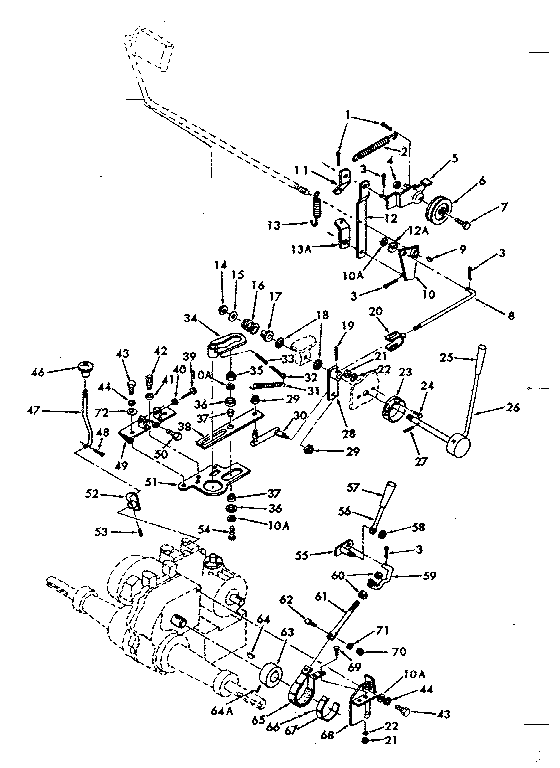

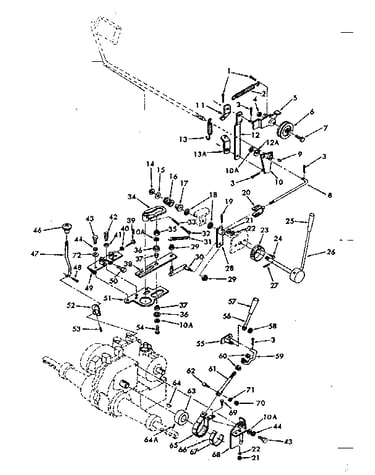

Lift assembly diagram

Huglock nut

Part #6684H

Replaced by #596322601

?
Manufacturer substitution
This part replaces 6684H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Hub Bolt 1304H
#71

Drive assembly diagram

Hub bolt

Part #1304H

Replaced by #596218701

?
Manufacturer substitution
This part replaces 1304H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Tire 8135H
#8

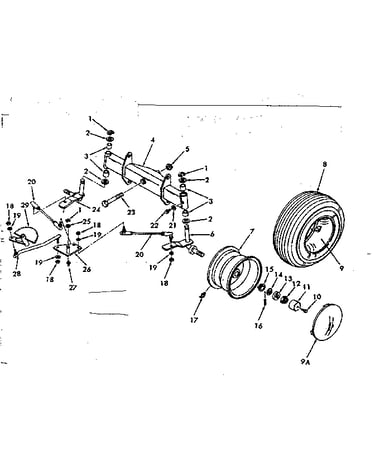

Front axle assembly diagram

Tire

Part #8135H

Replaced by #532122075

?
Manufacturer substitution
This part replaces 8135H. Substitute parts can look different from the original.
BEST SELLER
$71.47 |
8% OFF Phone Price : $77.47
In Stock
Pin 786026
#37

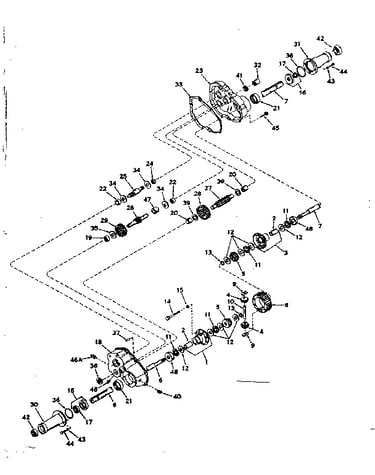

Drive assembly 7940384 diagram

Pin

Part #786026

Replaced by #786026B

?
Manufacturer substitution
This part replaces 786026. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.60 |
18% OFF Phone Price : $5.60
In Stock
Flat Washer 1528P
#2

Front axle assembly diagram

Flat washer

Part #1528P

Replaced by #819272016

?
Manufacturer substitution
This part replaces 1528P. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Wizard Lawn Tractor Axle Flange Bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, P-1246, P-1622) 9040H
#15

Front axle assembly diagram

Wizard lawn tractor axle flange bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, p-1246, p-1622)

Part #9040H

Replaced by #532009040

?
Manufacturer substitution
This part replaces 9040H. Substitute parts can look different from the original.
This item is not returnable
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Cutting Screw 5503P
#61

Drive assembly diagram

Cutting screw

Part #5503P

The manufacturer no longer makes this part, and there's no substitute part

Hex Fin Bolt 3114P
#24

Lift assembly diagram

Hex fin bolt

Part #3114P

Replaced by #74780408

?
Manufacturer substitution
This part replaces 3114P. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
