Model # 917352560 Official Craftsman 2.5-hp chainsaw

Here are the diagrams and repair parts for Official Craftsman 917352560 2.5-hp chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

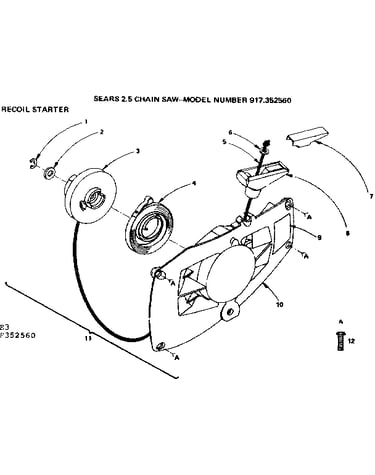

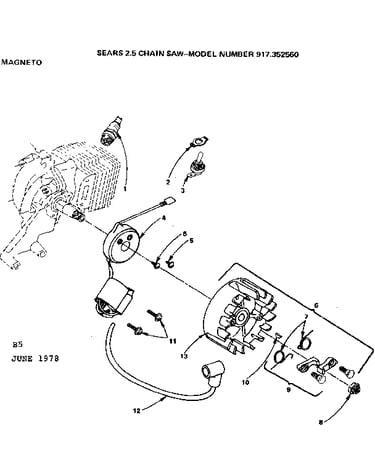

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 204 parts  |
Chain 1111J
#49

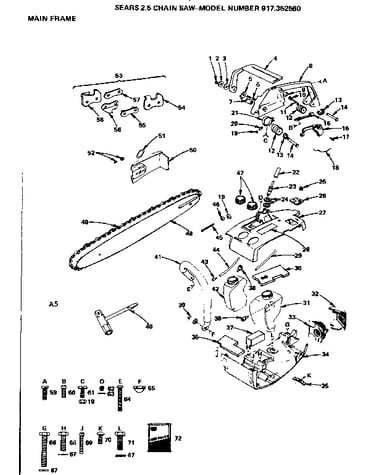

Main frame diagram

Chain

Part #1111J

Replaced by #91PXL059G

?
Manufacturer substitution
This part replaces 1111J. Substitute parts can look different from the original.
$34.27
In Stock
Detent Pin 8004R
#11

Main frame diagram

Detent pin

Part #8004R

The manufacturer no longer makes this part, and there's no substitute part

Pump Cover 016980
#12

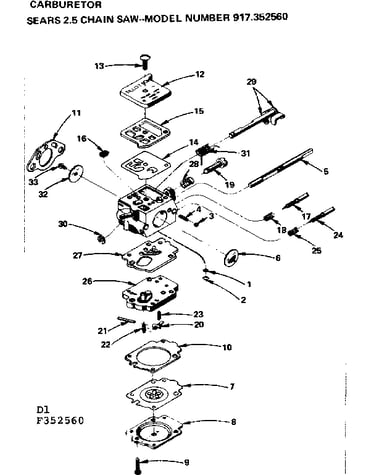

Carburetor diagram

Pump cover

Part #016980

The manufacturer no longer makes this part, and there's no substitute part

Needle Bearing 5249R
#31

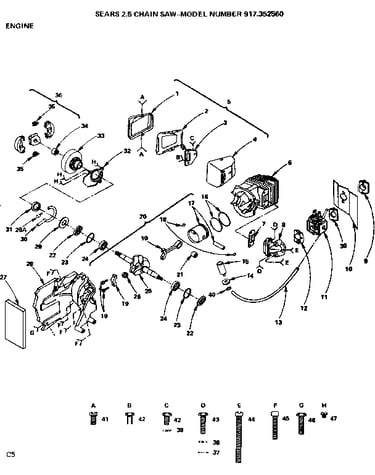

Engine diagram

Needle bearing

Part #5249R

The manufacturer no longer makes this part, and there's no substitute part

Screw 3215P
#45

Main frame diagram

Screw

Part #3215P

The manufacturer no longer makes this part, and there's no substitute part

Screen 95-197
#16

Carburetor diagram

Screen

Part #95-197

The manufacturer no longer makes this part, and there's no substitute part

Ball 04784
#3

Carburetor diagram

Ball

Part #04784

The manufacturer no longer makes this part, and there's no substitute part

Pin 876J
#14

Main frame diagram

Pin

Part #876J

The manufacturer no longer makes this part, and there's no substitute part

Air Barrier 7042R
#30

Main frame diagram

Air barrier

Part #7042R

The manufacturer no longer makes this part, and there's no substitute part

Screw 5543P
Screw

Part #5543P

The manufacturer no longer makes this part, and there's no substitute part
