Ryobi
Power Sander

Model # S-550 Official Ryobi sander

Here are the diagrams and repair parts for Official Ryobi S-550 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |

Cord Holder 6560101
#14

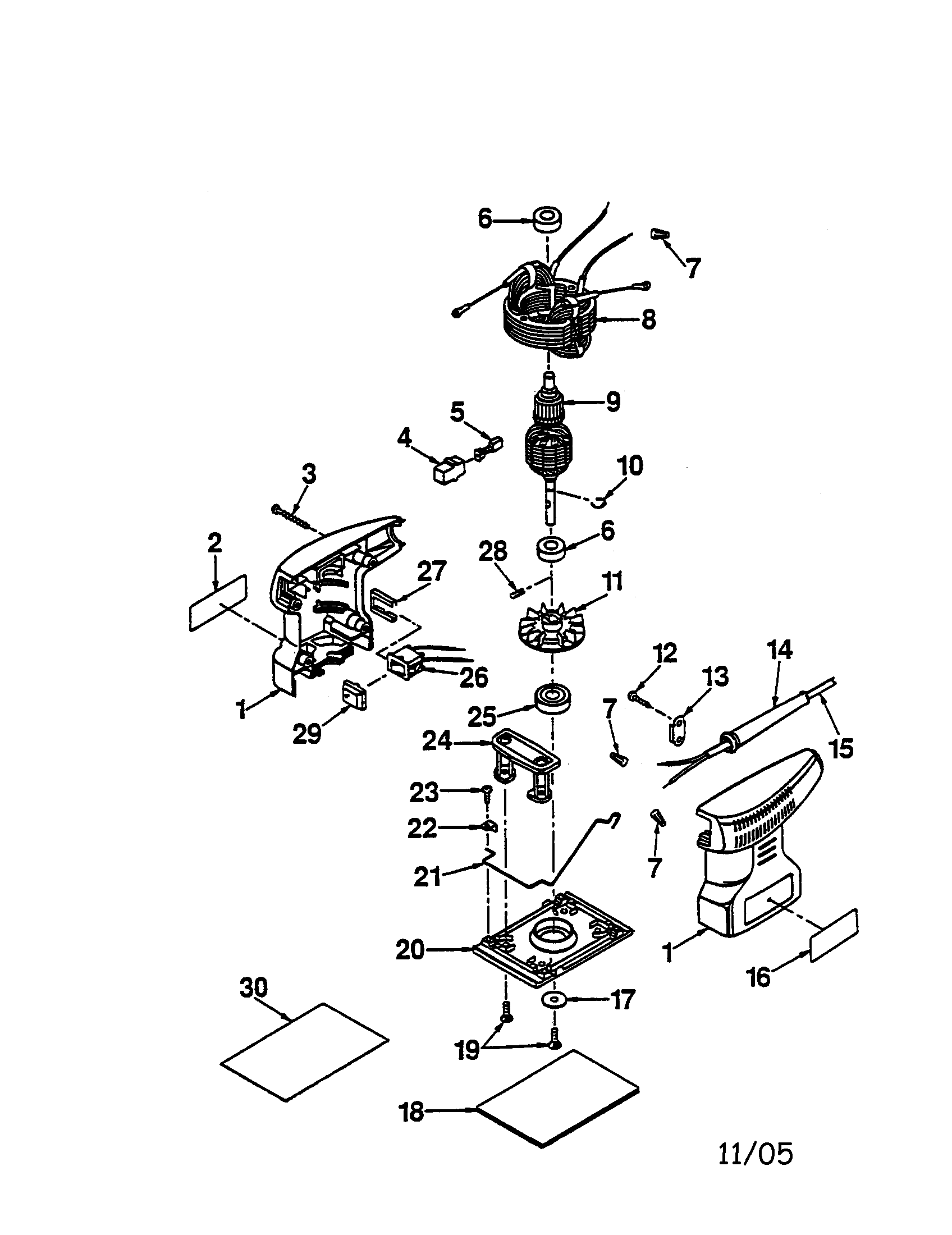

Sander diagram

Cord holder

Part #6560101

The manufacturer no longer makes this part, and there's no substitute part

Fan 6490337
#11

Sander diagram

Fan

Part #6490337

The manufacturer no longer makes this part, and there's no substitute part

Brush Tube 6570090
#4

Sander diagram

Brush tube

Part #6570090

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin 9402512
#28

Sander diagram

Roll pin

Part #9402512

The manufacturer no longer makes this part, and there's no substitute part

Flat Screw 9140410
#19

Sander diagram

Flat screw

Part #9140410

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly 6540013
#5

Sander diagram

Brush assembly

Part #6540013

The manufacturer no longer makes this part, and there's no substitute part

Screw 9040406
#23

Sander diagram

Screw

Part #9040406

The manufacturer no longer makes this part, and there's no substitute part

Paper Clamp (2) 6180566
#21

Sander diagram

Paper clamp (2)

Part #6180566

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 662693001
#2

Sander diagram

Data plate

Part #662693001

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 623173001
#7

Sander diagram

Twist-on wire connector

Part #623173001

The manufacturer no longer makes this part, and there's no substitute part
