Model # 587736712 Official Kenmore portable dishwasher

Here are the diagrams and repair parts for Official Kenmore 587736712 portable dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

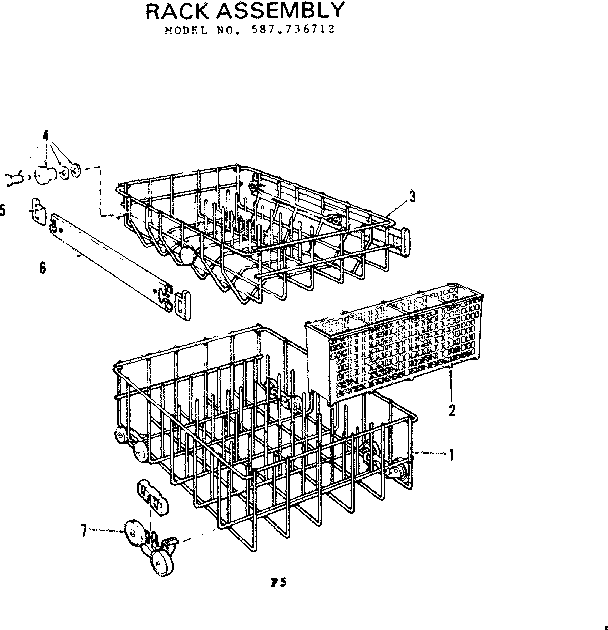

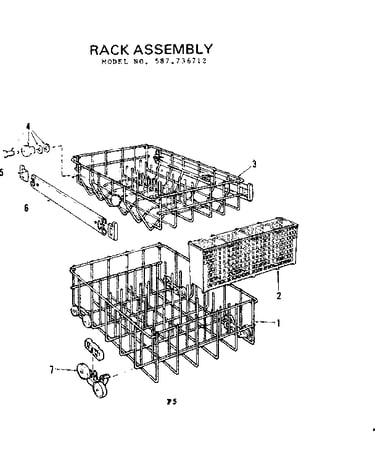

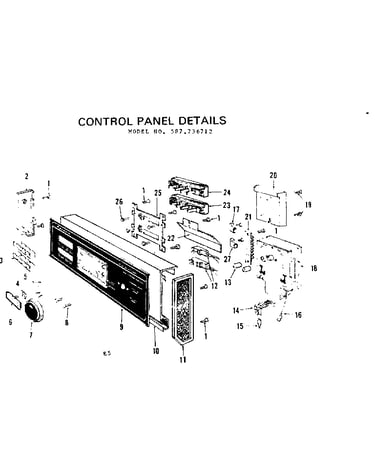

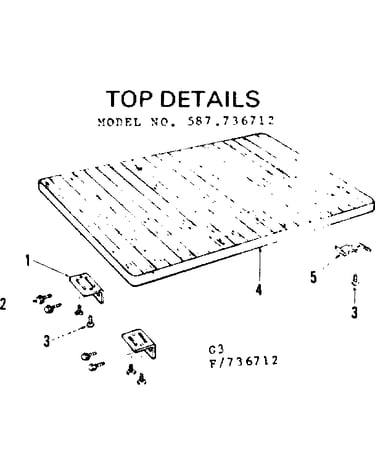

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 229 parts  |
Nut 806834
#18

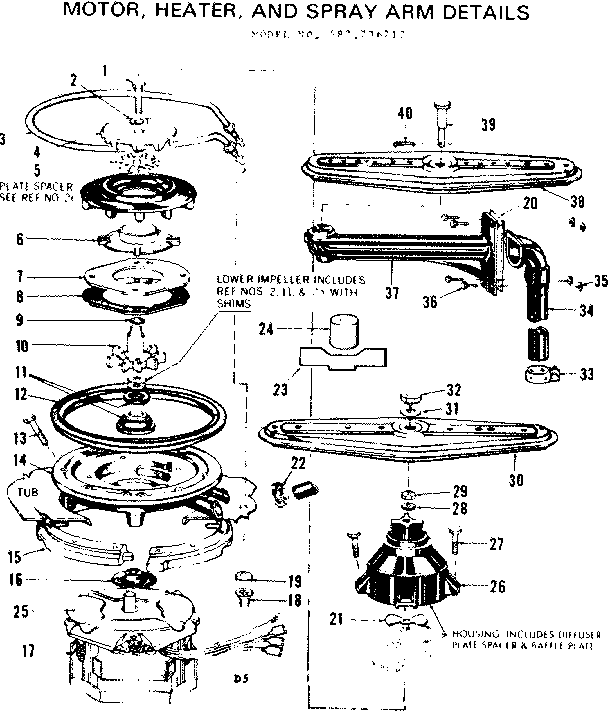

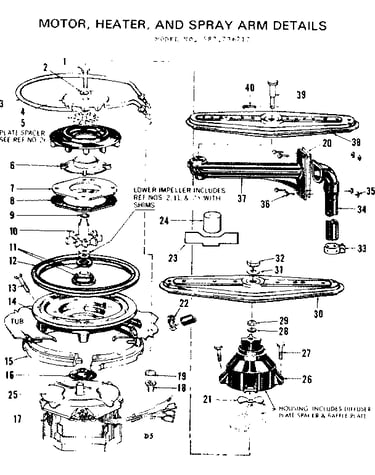

Motor heater and spray arm details diagram

Nut

Part #806834

Replaced by #154106202

?
Manufacturer substitution
This part replaces 806834. Substitute parts can look different from the original.
BEST SELLER
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Lock Nut 808470
#22

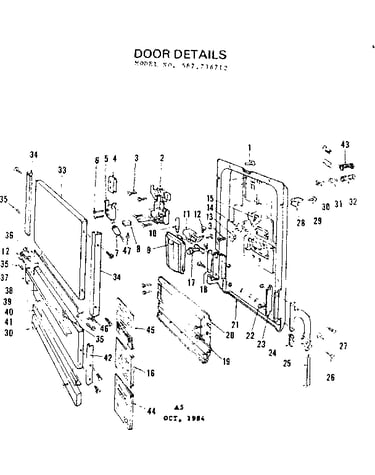

Door details diagram

Lock nut

Part #808470

Replaced by #5303013272

?
Manufacturer substitution
This part replaces 808470. Substitute parts can look different from the original.
This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
Screw 807293
#35

Door details diagram

Screw

Part #807293

Replaced by #5300807293

?
Manufacturer substitution
This part replaces 807293. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw 806890
#4

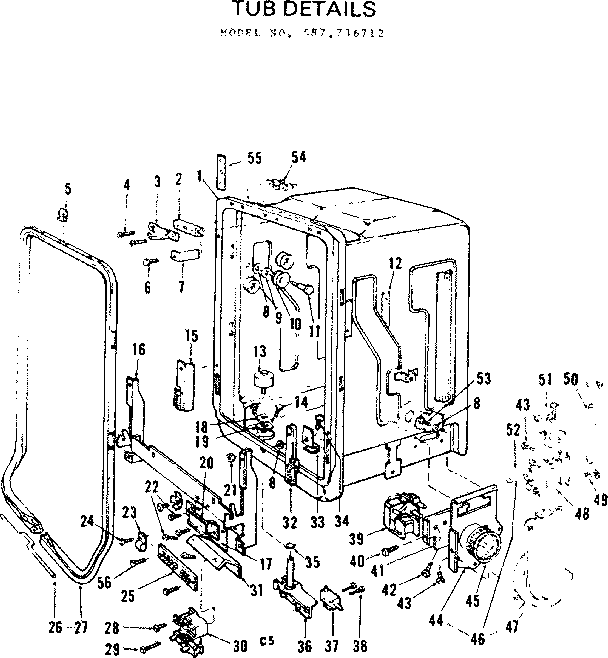

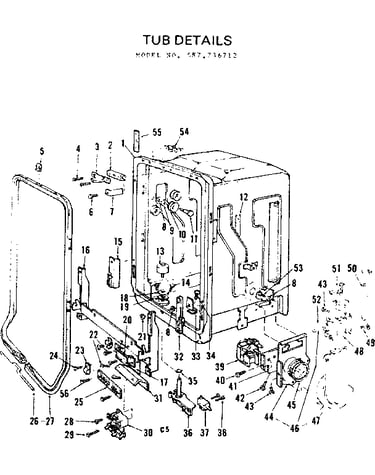

Tub details diagram

Screw

Part #806890

Replaced by #131302901

?
Manufacturer substitution
This part replaces 806890. Substitute parts can look different from the original.
This item is not returnable
$5.40 |
16% OFF Phone Price : $6.40
In Stock
Clamp 808442
Clamp

Part #808442

Replaced by #5308000133

?
Manufacturer substitution
This part replaces 808442. Substitute parts can look different from the original.
$11.20
In Stock
Washer 807373
#6

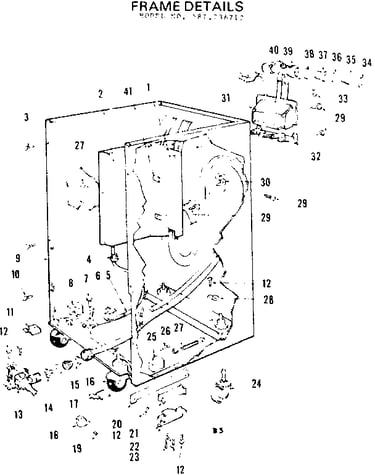

Frame details diagram

Washer

Part #807373

Replaced by #5300807373

?
Manufacturer substitution
This part replaces 807373. Substitute parts can look different from the original.
This item is not returnable
$7.49
In Stock
Cam Spring 806567
#7

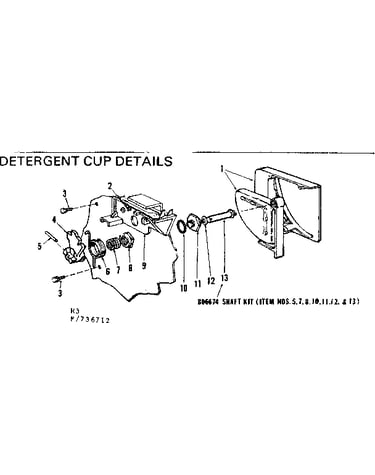

Detergent cup details diagram

Cam spring

Part #806567

Replaced by #5300806567

?
Manufacturer substitution
This part replaces 806567. Substitute parts can look different from the original.
$29.93
In Stock
Screw 808658
#46

Door details diagram

Screw

Part #808658

Replaced by #154419403

?
Manufacturer substitution
This part replaces 808658. Substitute parts can look different from the original.
$12.69
In Stock
Gasket 807709
#8

Motor heater and spray arm details diagram

Gasket

Part #807709

Replaced by #5300807709

?
Manufacturer substitution
This part replaces 807709. Substitute parts can look different from the original.
$64.33 |
9% OFF Phone Price : $70.33
In Stock
Gasket 805763
#5

Tub details diagram

Gasket

Part #805763

Replaced by #5300805763

?
Manufacturer substitution
This part replaces 805763. Substitute parts can look different from the original.
$84.49
In Stock
