LG
Electric Range

Model # LSE3090ST/00 Official LG electric range

Here are the diagrams and repair parts for Official LG LSE3090ST-00 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

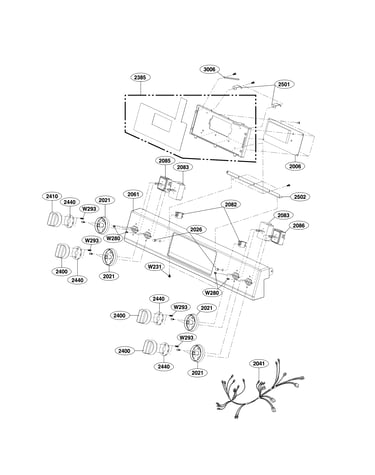

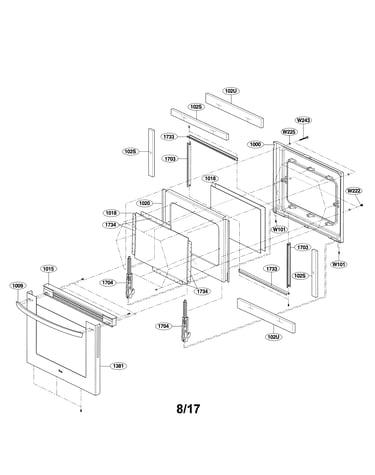

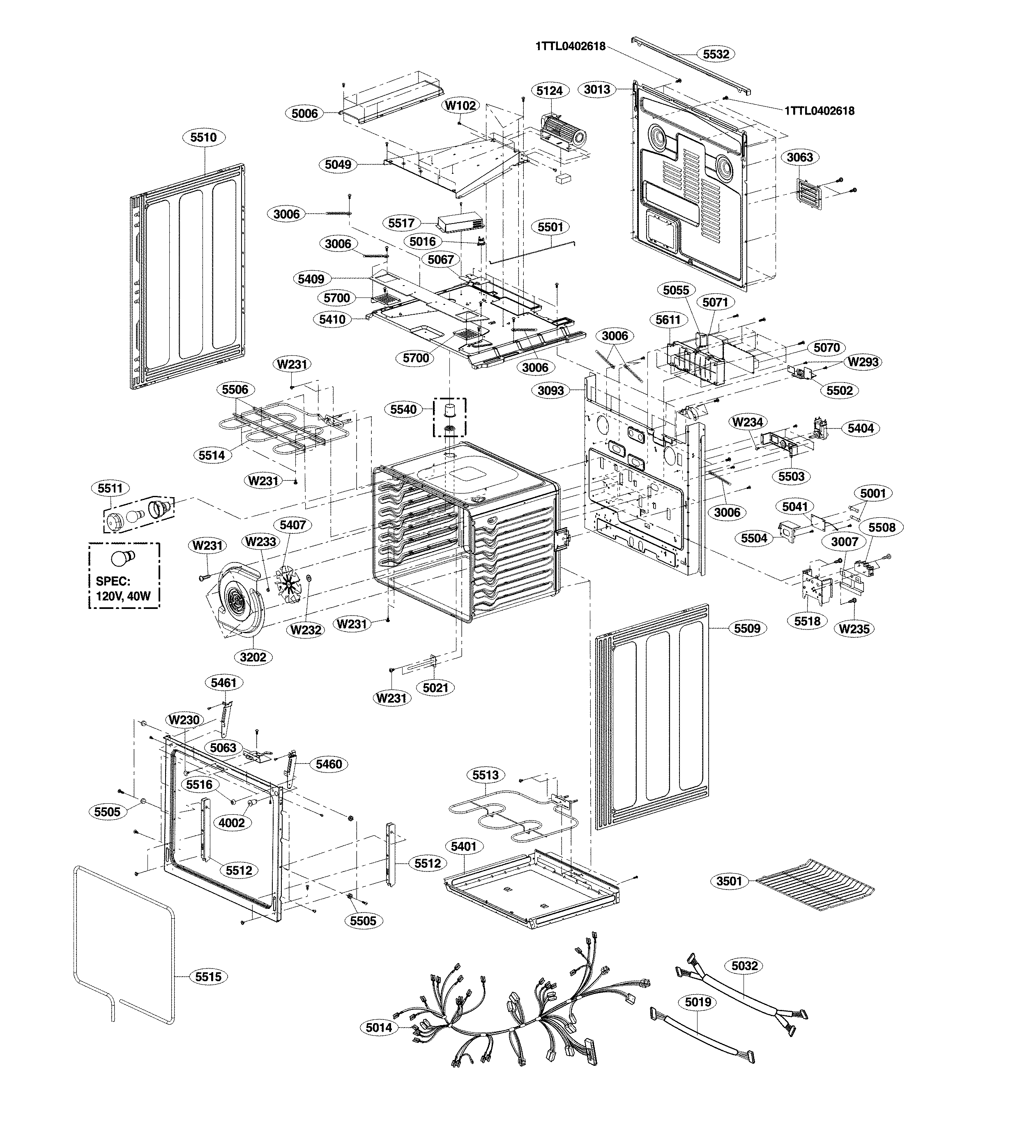

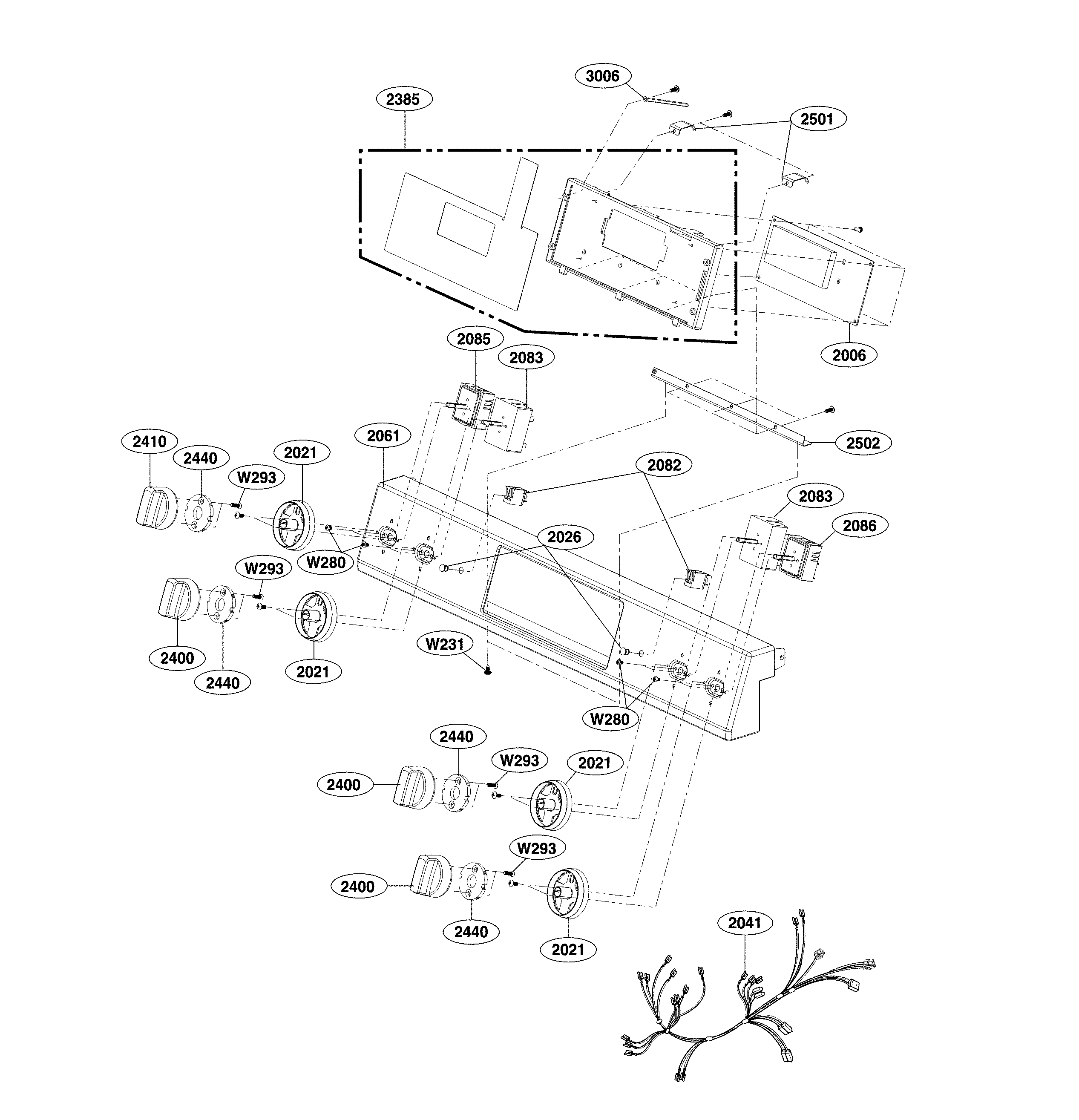

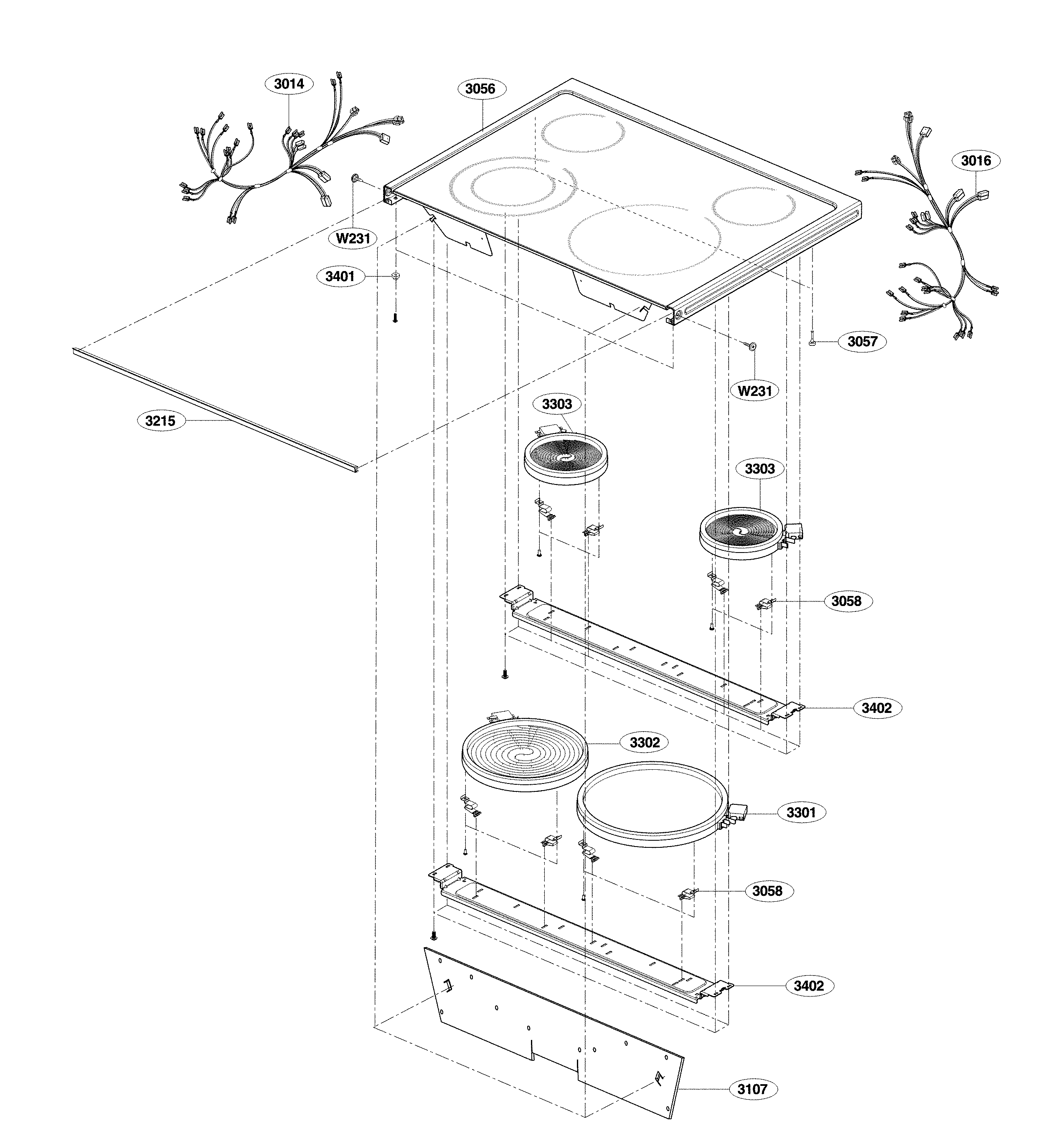

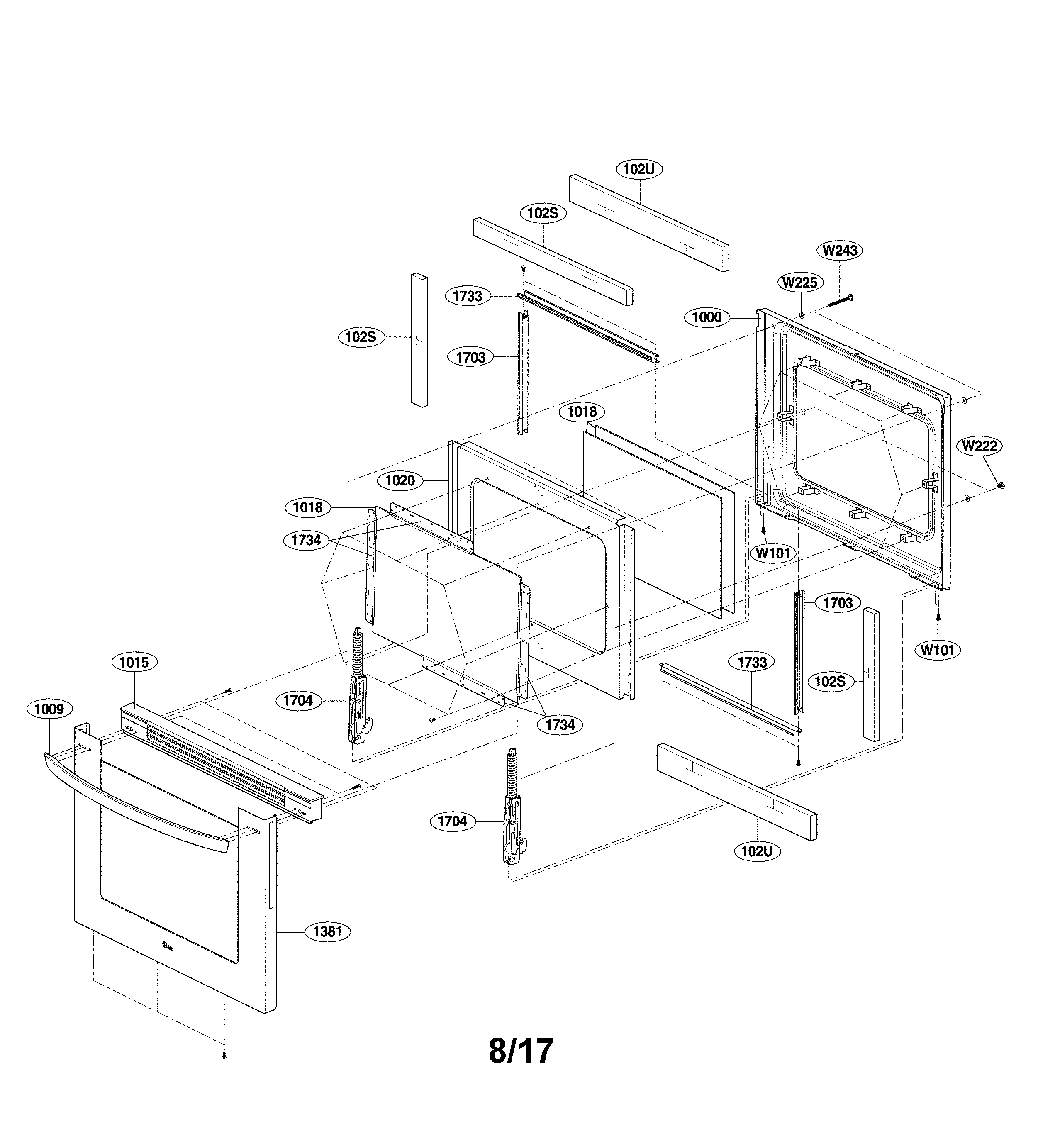

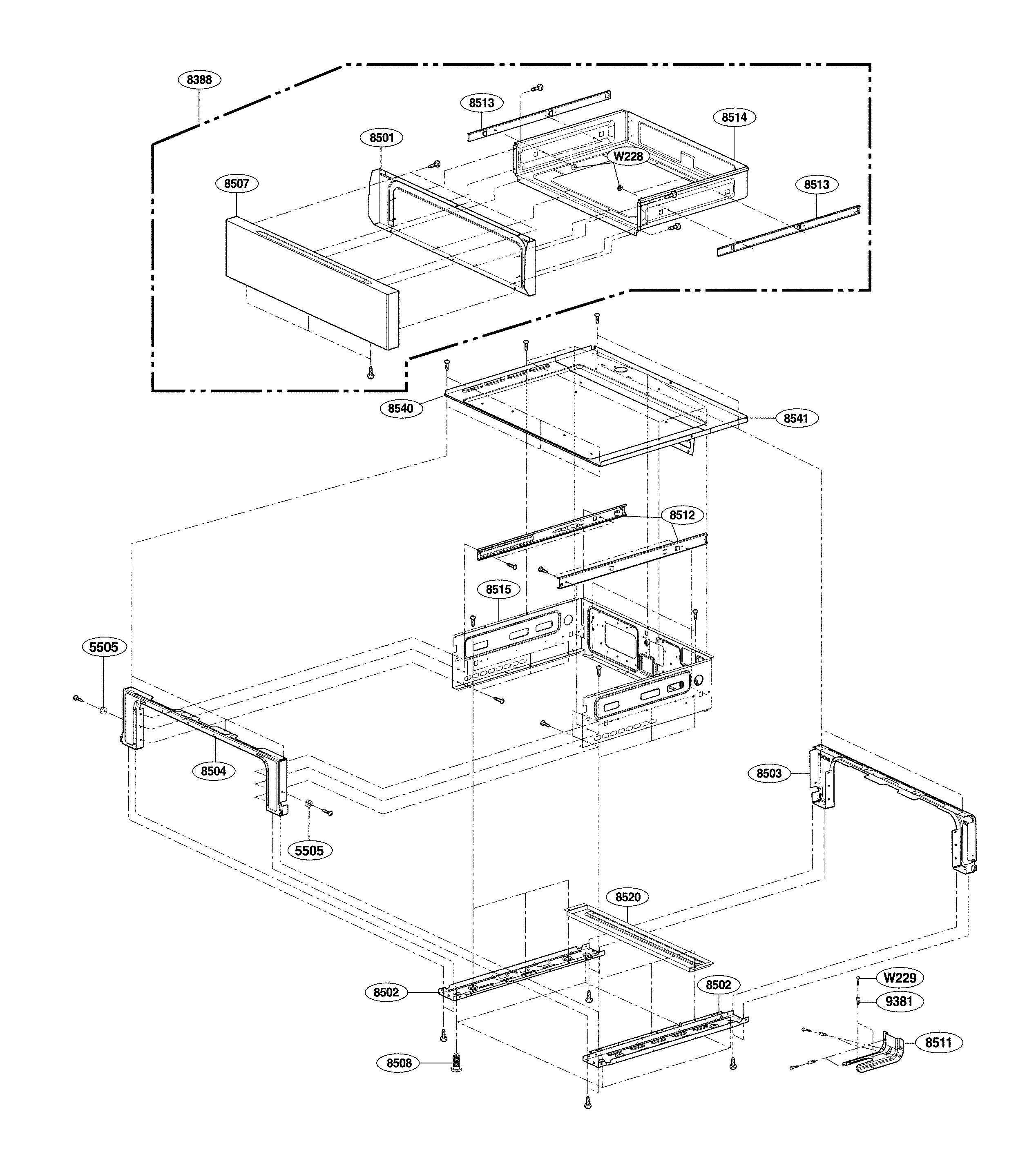

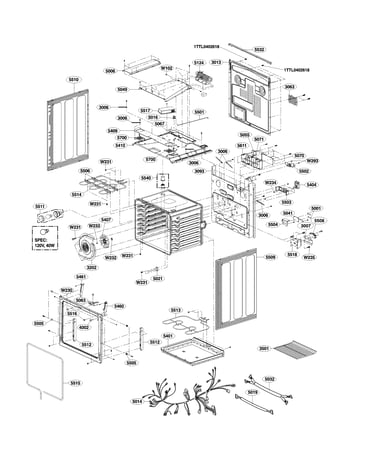

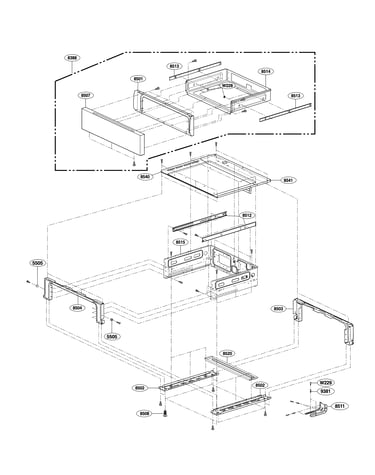

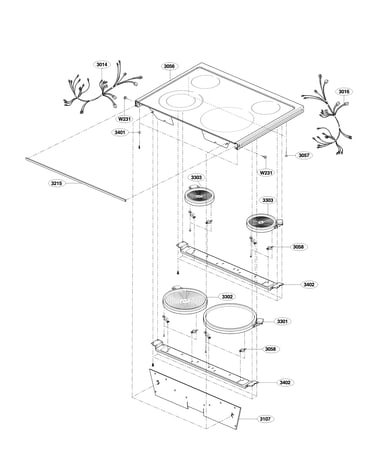

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Cooktop Dual Radiant Element MEE50408702

#3302

All parts diagram

Cooktop dual radiant element

Part #MEE50408702

Replaced by #MEE62385201

?
Manufacturer substitution
This part replaces MEE50408702. Substitute parts can look different from the original.
BEST SELLER
$157.38 |
7% OFF Phone Price : $169.38
In Stock
Range Safety Thermostat 6930W1A003X

#5016

All parts diagram

Range safety thermostat

Part #6930W1A003X

BEST SELLER
$11.97 |
14% OFF Phone Price : $13.97
In Stock
Range Nut 1NHB0500032

#W233

All parts diagram

Range nut

Part #1NHB0500032

BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Range Bake Element MEE36593202

#5513

All parts diagram

Range bake element

Part #MEE36593202

Replaced by #MEE36593201

?
Manufacturer substitution
This part replaces MEE36593202. Substitute parts can look different from the original.
BEST SELLER
$56.57 |
10% OFF Phone Price : $62.57
In Stock
Range Oven Light Switch (replaces 6600r000082, Ebf60663401) EBF60663403

#4002

All parts diagram

Range oven light switch (replaces 6600r000082, ebf60663401)

Part #EBF60663403

This item is not returnable
$25.20 |
19% OFF Phone Price : $31.20
In Stock
Range Oven Rack MHL39256101

#3501

All parts diagram

Range oven rack

Part #MHL39256101

Replaced by #MHL39256107

?
Manufacturer substitution
This part replaces MHL39256101. Substitute parts can look different from the original.
$32.63 |
16% OFF Phone Price : $38.63
In Stock
Range Oven Cooling Fan Motor EAU60722701

#5404

All parts diagram

Range oven cooling fan motor

Part #EAU60722701

Replaced by #EAU61865301

?
Manufacturer substitution
This part replaces EAU60722701. Substitute parts can look different from the original.
$90.04 |
6% OFF Phone Price : $96.04
In Stock
Range Leveling Leg (replaces 4778w1n001a) 4778W1N001B

#8508

All parts diagram

Range leveling leg (replaces 4778w1n001a)

Part #4778W1N001B

This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Lg Range Broil Element MEE36592904

#5514

All parts diagram

Lg range broil element

Part #MEE36592904

$117.84 |
9% OFF Phone Price : $129.84
In Stock
Range Oven Light Assembly 6913W1N002D

#5511

All parts diagram

Range oven light assembly

Part #6913W1N002D

Replaced by #6913W1N002C

?
Manufacturer substitution
This part replaces 6913W1N002D. Substitute parts can look different from the original.
$68.57 |
8% OFF Phone Price : $74.57
In Stock
