Model # 3302005 Official Sears bathtub faucet with shower

Here are the diagrams and repair parts for Official Sears 3302005 bathtub faucet with shower, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
3302005 Bathtub Faucet with Shower
Handle 14167-H
#3

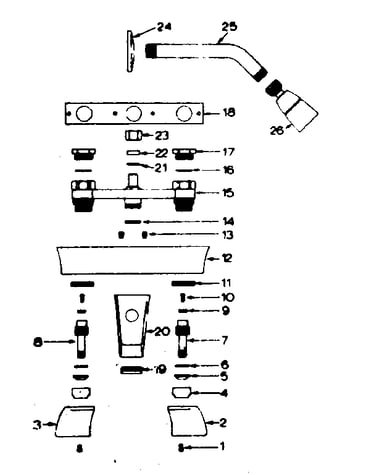

Replacement parts diagram

Handle

Part #14167-H

The manufacturer no longer makes this part, and there's no substitute part

O-ring 15012
#14

Replacement parts diagram

O-ring

Part #15012

The manufacturer no longer makes this part, and there's no substitute part

Stem Right S2334R
#7

Replacement parts diagram

Stem right

Part #S2334R

The manufacturer no longer makes this part, and there's no substitute part

Stem Left S2334L
#8

Replacement parts diagram

Stem left

Part #S2334L

The manufacturer no longer makes this part, and there's no substitute part

Seat Screw A751
#10

Replacement parts diagram

Seat screw

Part #A751

The manufacturer no longer makes this part, and there's no substitute part

Tail 14217
#17

Replacement parts diagram

Tail

Part #14217

The manufacturer no longer makes this part, and there's no substitute part

Flange S2515
#24

Replacement parts diagram

Flange

Part #S2515

The manufacturer no longer makes this part, and there's no substitute part

Stem Packing 14A
#5

Replacement parts diagram

Stem packing

Part #14A

The manufacturer no longer makes this part, and there's no substitute part

Body 15144
#15

Replacement parts diagram

Body

Part #15144

The manufacturer no longer makes this part, and there's no substitute part

Holder 15141
#11

Replacement parts diagram

Holder

Part #15141

The manufacturer no longer makes this part, and there's no substitute part
