Model # R-1750 Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-1750 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

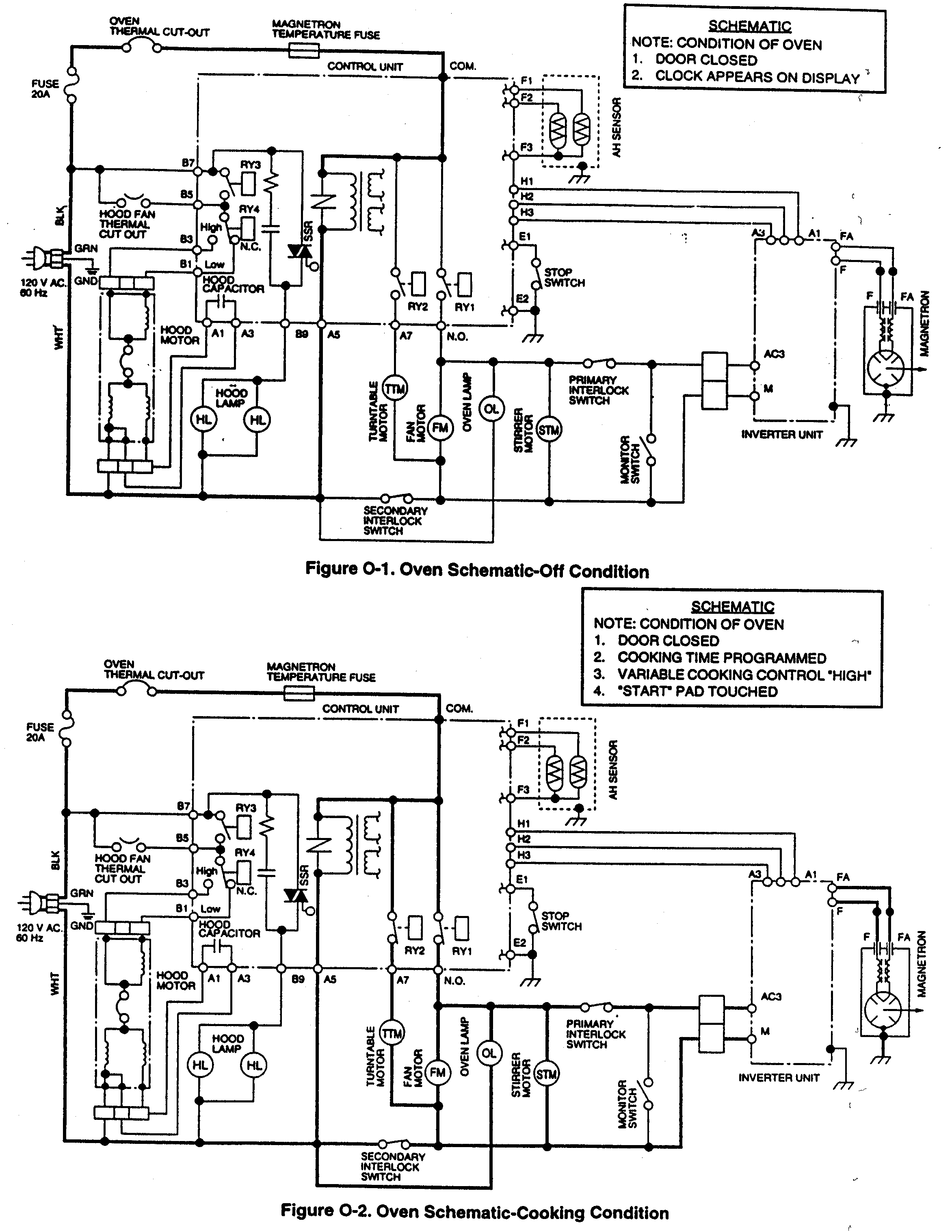

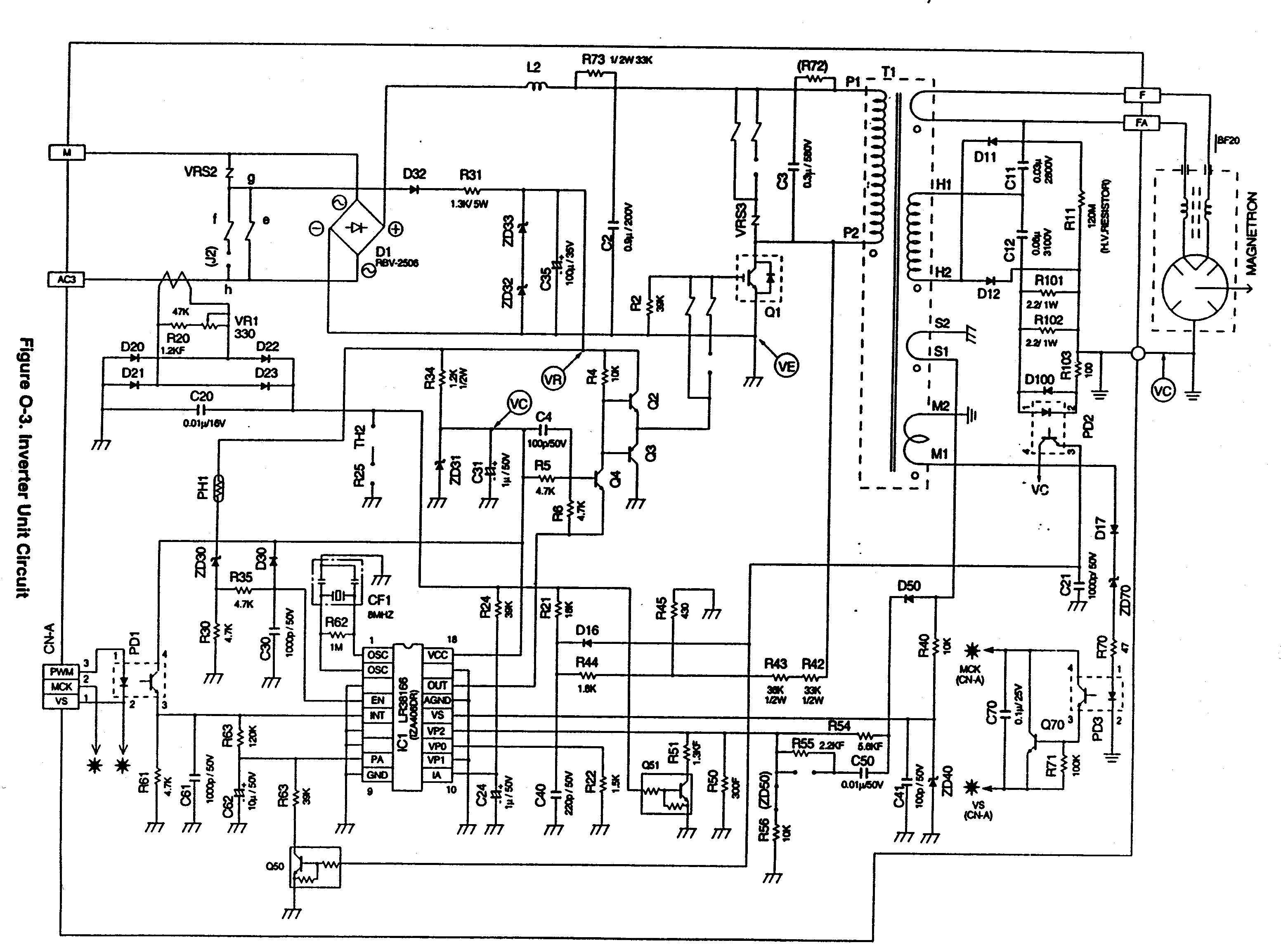

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Switch QSW-MA085WRE0
#1-10

Oven/cabinet parts diagram

Switch

Part #QSW-MA085WRE0

The manufacturer no longer makes this part, and there's no substitute part

Canoe Clip PCLICB003MRE0
#6-14

Oven/cabinet parts diagram

Canoe clip

Part #PCLICB003MRE0

The manufacturer no longer makes this part, and there's no substitute part

Temperature Fuse QFS-TA013WRE0
#1-3

Oven/cabinet parts diagram

Temperature fuse

Part #QFS-TA013WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave/hood Panel Assembly FPNLCB327MRK0
#3-3C

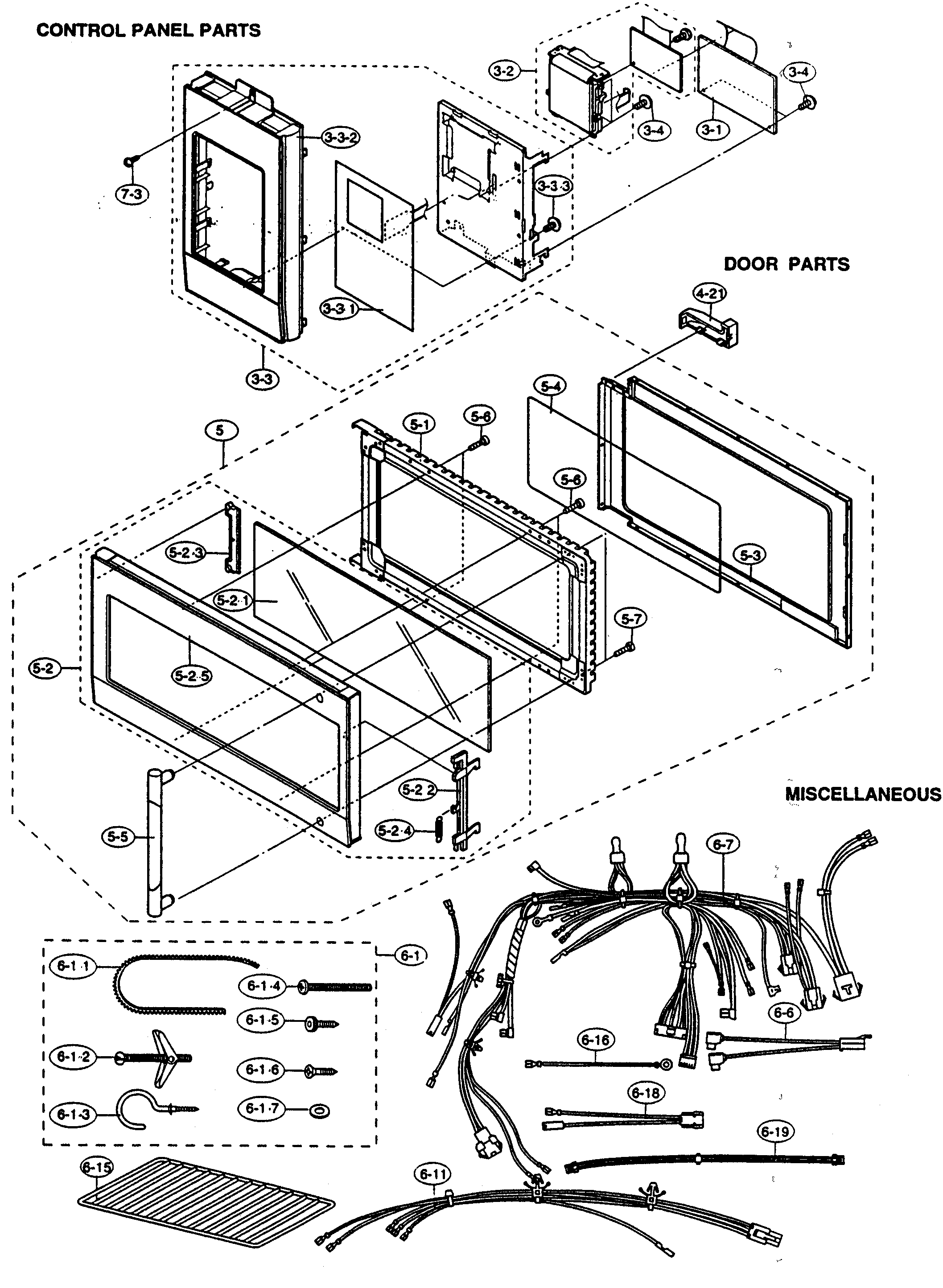

Control panel/miscellaneous diagram

Microwave/hood panel assembly

Part #FPNLCB327MRK0

The manufacturer no longer makes this part, and there's no substitute part

Clip LANGTB051MRP0
#2-21

Oven/cabinet parts diagram

Clip

Part #LANGTB051MRP0

The manufacturer no longer makes this part, and there's no substitute part

C/p Assy 1 46-1739884-3
#3-3A

Control panel/miscellaneous diagram

C/p assy 1

Part #46-1739884-3

The manufacturer no longer makes this part, and there's no substitute part

Microwave Surface Light Lens PGLSPB004MRE0
#2-72

Oven/cabinet parts diagram

Microwave surface light lens

Part #PGLSPB004MRE0

The manufacturer no longer makes this part, and there's no substitute part

Out Cabinet GCABUB084MRP0
Out cabinet

Part #GCABUB084MRP0

The manufacturer no longer makes this part, and there's no substitute part

Louver FDIF-B004MRK0
#2-2

Oven/cabinet parts diagram

Louver

Part #FDIF-B004MRK0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Surface Light Lens FANGKB009MRY0
Microwave surface light lens

Part #FANGKB009MRY0

The manufacturer no longer makes this part, and there's no substitute part
