Electric Wall Oven

Model # HBL435AUC Official Bosch wall oven

Here are the diagrams and repair parts for Official Bosch HBL435AUC wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

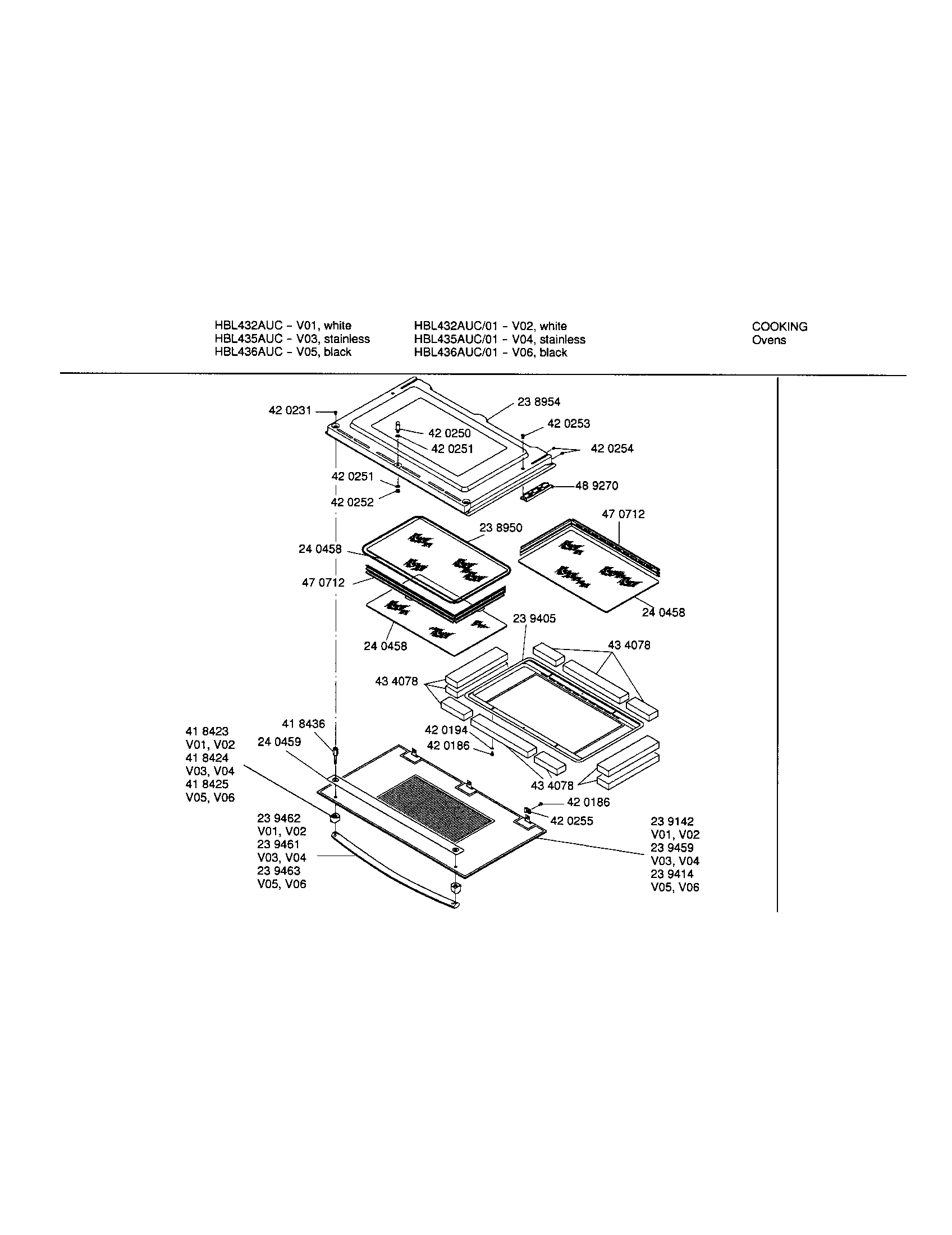

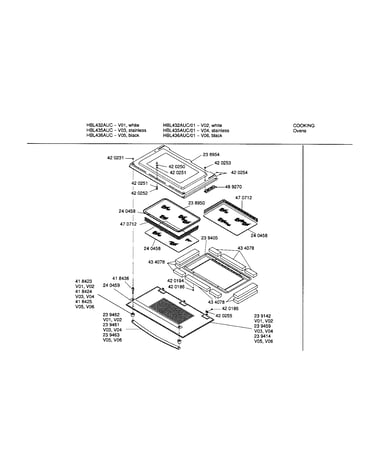

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Oven Bulb 420228
#420228

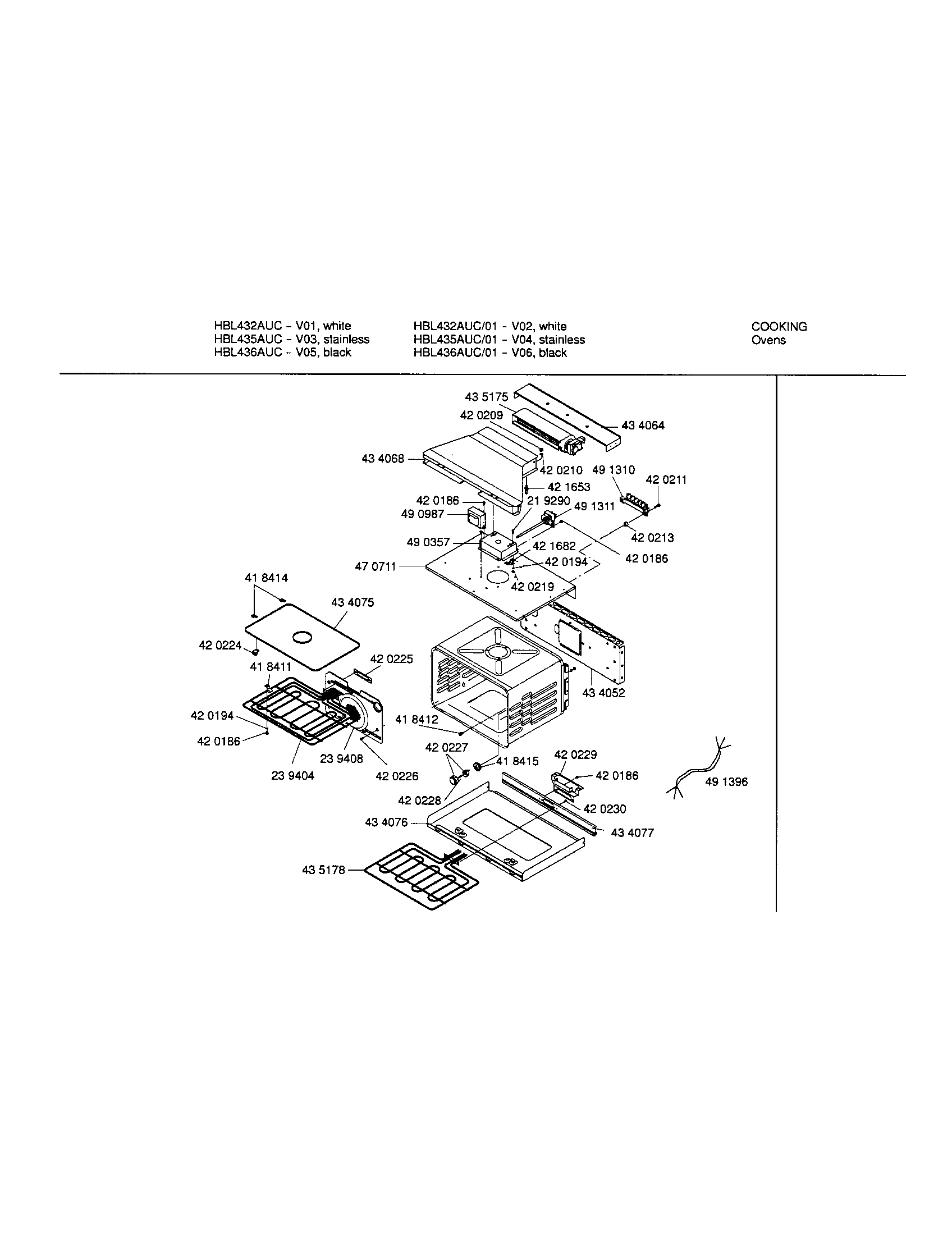

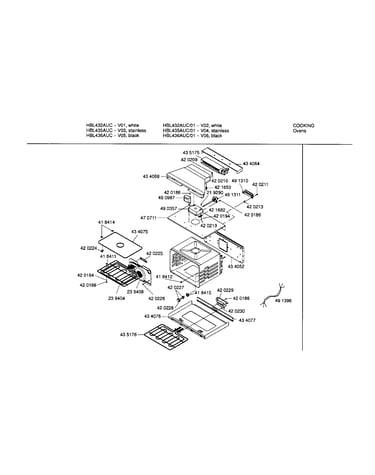

Cavity diagram

Oven bulb

Part #420228

Replaced by #00189351

?
Manufacturer substitution
This part replaces 420228. Substitute parts can look different from the original.
$25.79 |
19% OFF Phone Price : $31.79
In Stock
Band 434052
Band

Part #434052

The manufacturer no longer makes this part, and there's no substitute part

Reflector 434075
#434075

Cavity diagram

Reflector

Part #434075

The manufacturer no longer makes this part, and there's no substitute part

Light 418430
#418430

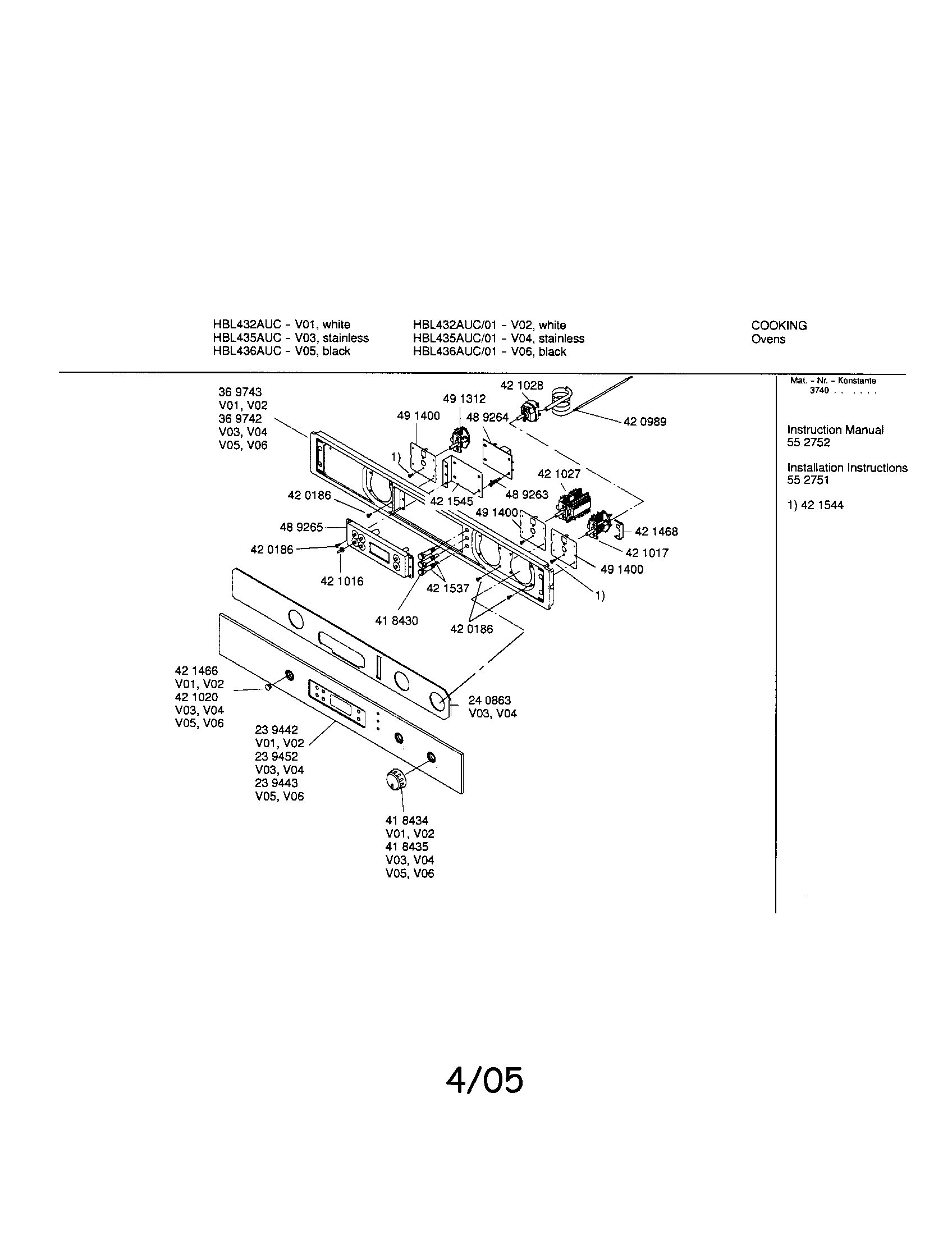

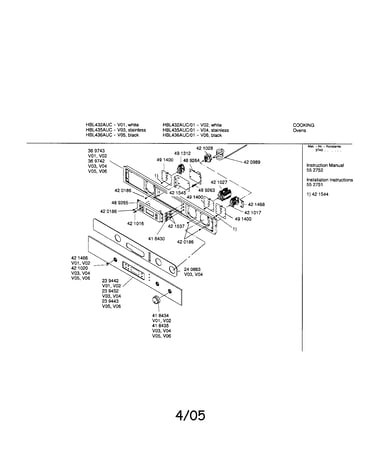

Fascia panel diagram

Light

Part #418430

The manufacturer no longer makes this part, and there's no substitute part

Screw 420190
#420190

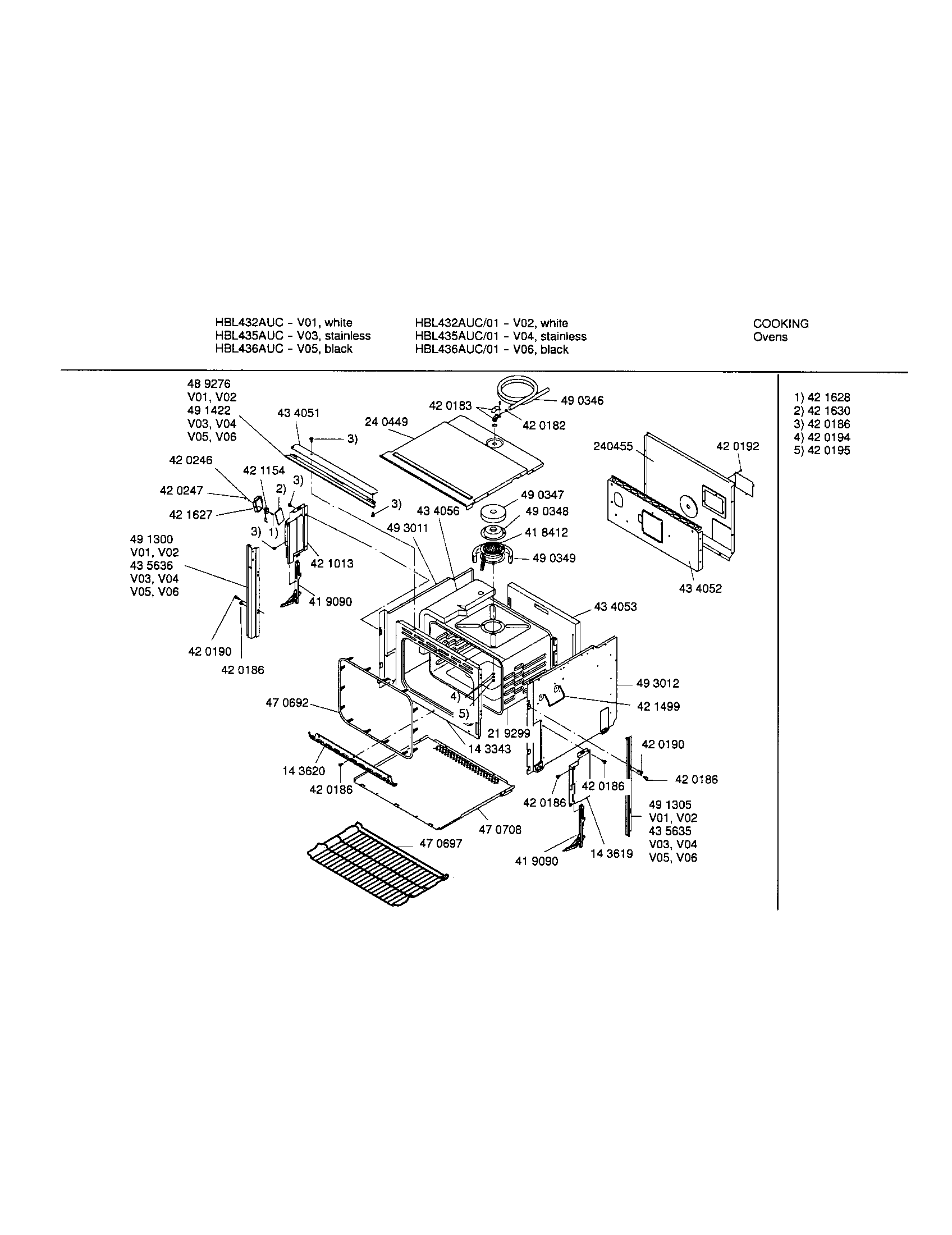

Body diagram

Screw

Part #420190

The manufacturer no longer makes this part, and there's no substitute part

Spring 420234
#420234

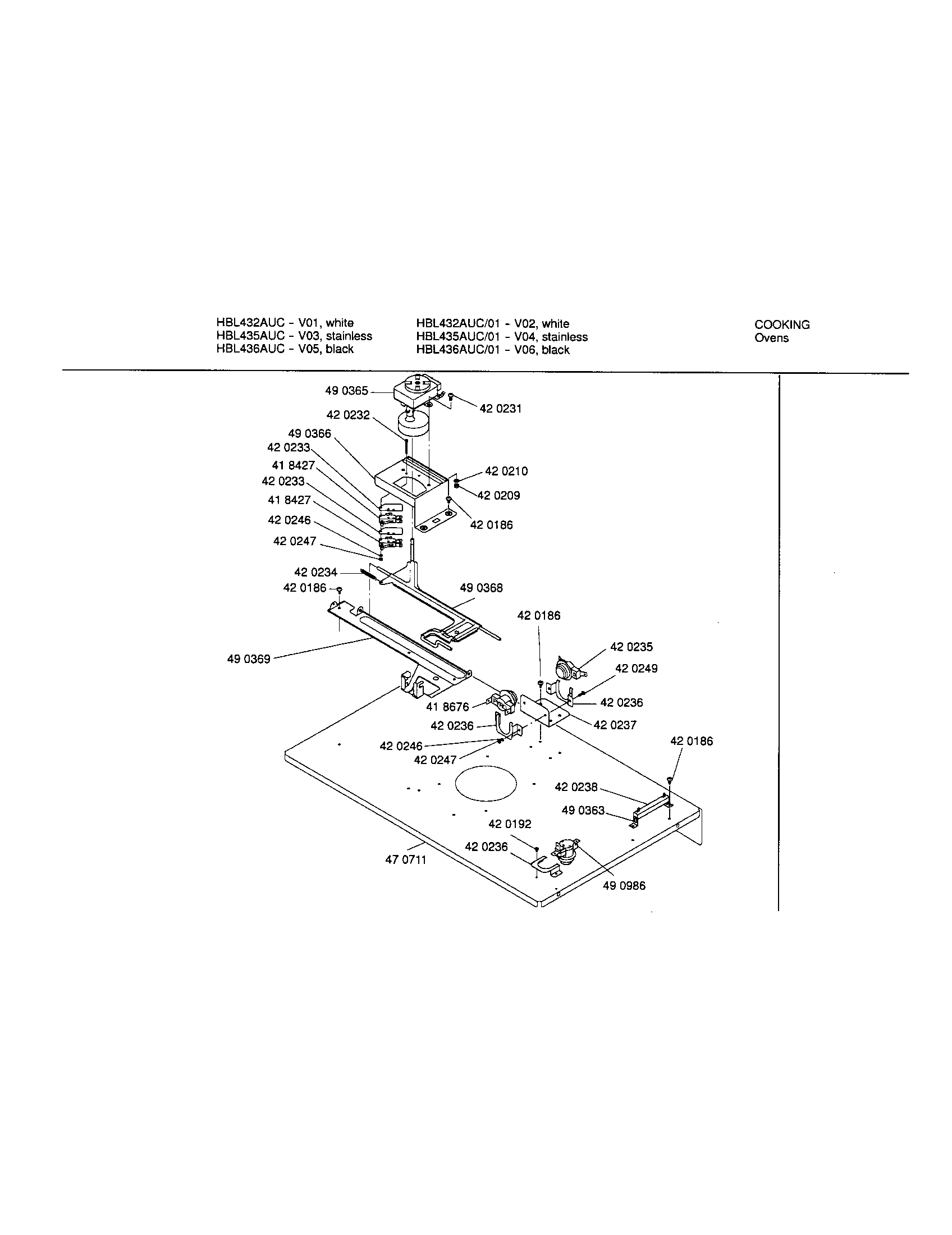

Internal top panel diagram

Spring

Part #420234

The manufacturer no longer makes this part, and there's no substitute part

Screw 420232
#420232

Internal top panel diagram

Screw

Part #420232

The manufacturer no longer makes this part, and there's no substitute part

Cap 421020
#421020

Fascia panel diagram

Cap

Part #421020

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 420246
Lock washer

Part #420246

The manufacturer no longer makes this part, and there's no substitute part

Clamp 418414
#418414

Cavity diagram

Clamp

Part #418414

The manufacturer no longer makes this part, and there's no substitute part
