Countertop Microwave

Model # MS1060XYR0 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MS1060XYR0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Adhesive 482338

#NI

All parts diagram

Adhesive

Part #482338

Replaced by #WP482338

?
Manufacturer substitution
This part replaces 482338. Substitute parts can look different from the original.
$31.27 |
16% OFF Phone Price : $37.27
In Stock
Appliance Touch-up Paint, 6-oz (citrine White) 261900

#NI

All parts diagram

Appliance touch-up paint, 6-oz (citrine white)

Part #261900

$23.19 |
21% OFF Phone Price : $29.19
In Stock
Switch 4158773
#12

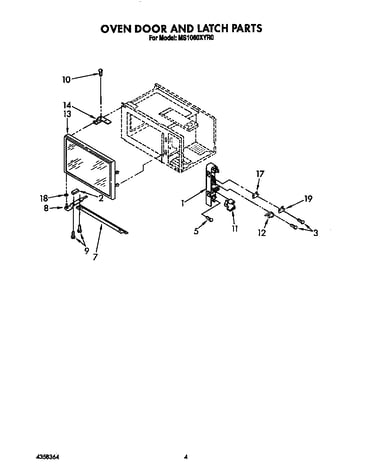

Oven door and latch diagram

Switch

Part #4158773

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158773. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Wall Oven Touch-up Paint 261869

#NI

All parts diagram

Wall oven touch-up paint

Part #261869

Replaced by #WP261869

?
Manufacturer substitution
This part replaces 261869. Substitute parts can look different from the original.
This item is not returnable
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Screw 4158747
#9

Oven door and latch diagram

Screw

Part #4158747

Replaced by #WP3400094

?
Manufacturer substitution
This part replaces 4158747. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Fan Blade 4158758
#10

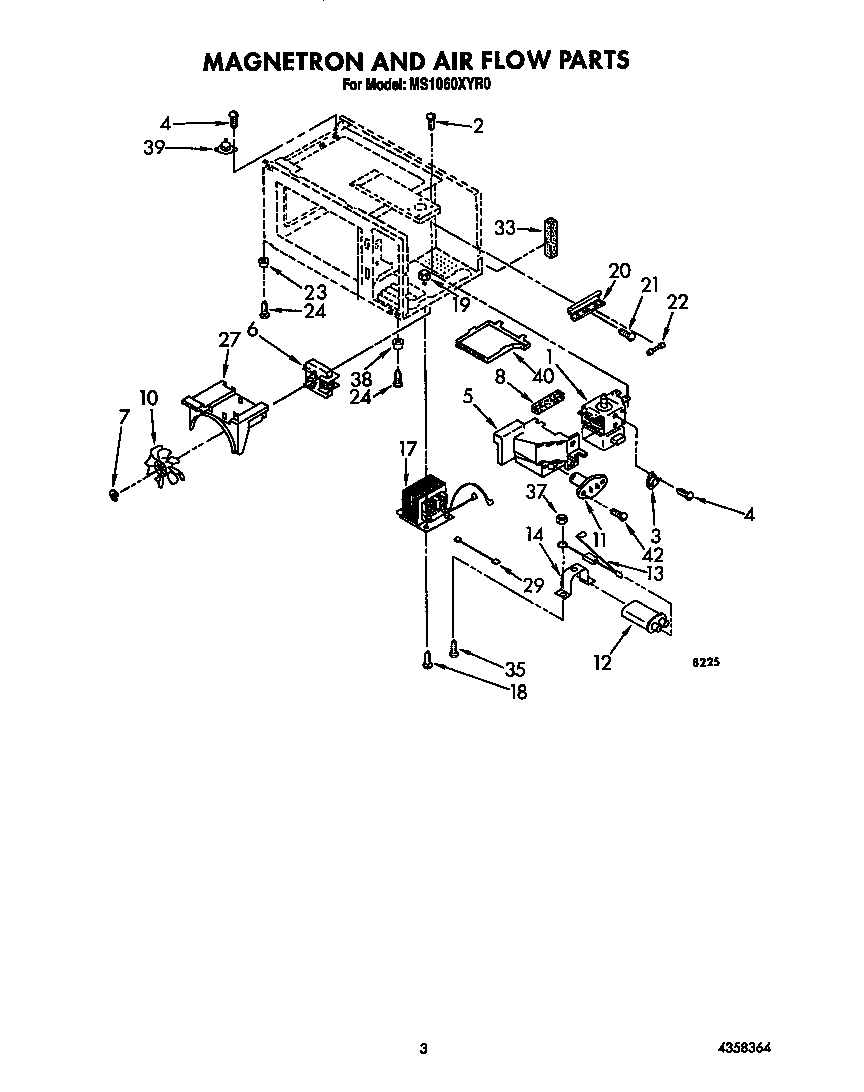

Magnetron and air flow diagram

Fan blade

Part #4158758

Replaced by #8184292

?
Manufacturer substitution
This part replaces 4158758. Substitute parts can look different from the original.
$36.16
In Stock
Switch 4158769
#17

Oven door and latch diagram

Switch

Part #4158769

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158769. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Switch 4158771
#19

Oven door and latch diagram

Switch

Part #4158771

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158771. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Screw 4158190
#42

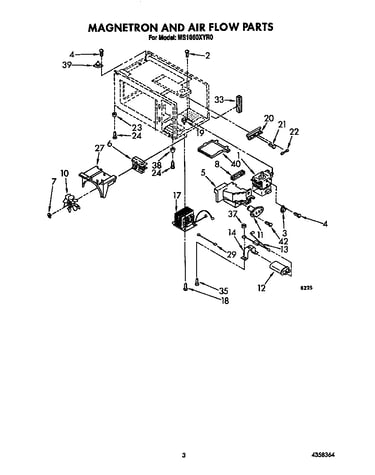

Magnetron and air flow diagram

Screw

Part #4158190

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Cover 4158914
#6

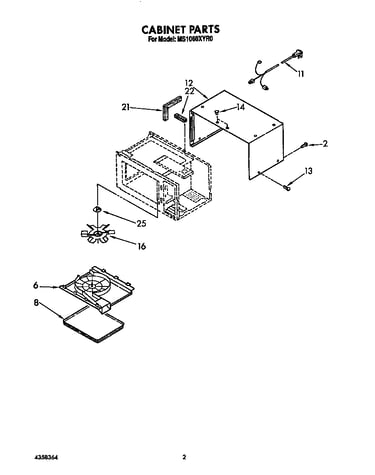

Cabinet diagram

Stirrer cover

Part #4158914

The manufacturer no longer makes this part, and there's no substitute part
