Whirlpool
Gas Cooktop

Model # WCGK3030PB00 Official Whirlpool gas counter unit

Here are the diagrams and repair parts for Official Whirlpool WCGK3030PB00 gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Cap Kit-amb W11395131
#3

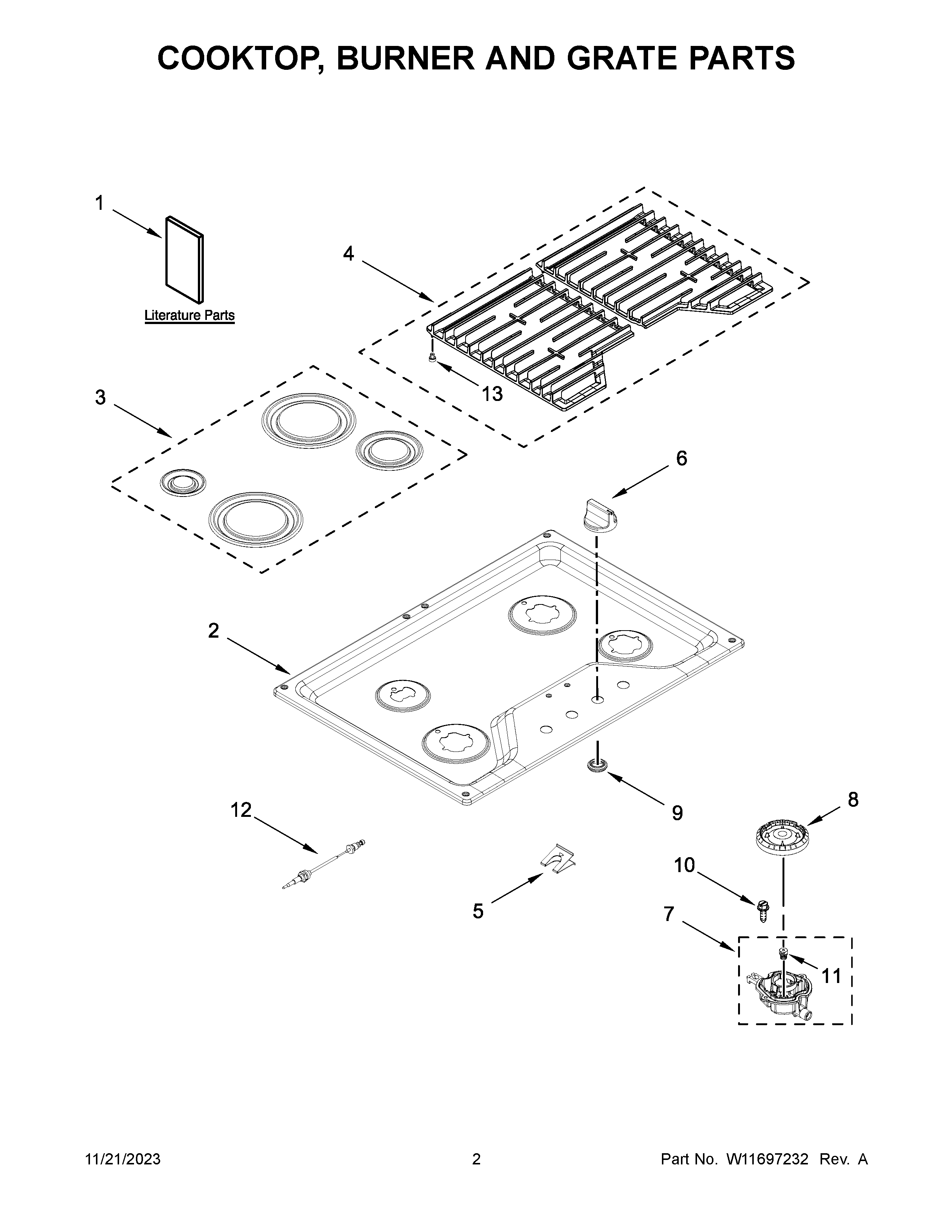

Cooktop, burner and grate parts diagram

Cap kit-amb

Part #W11395131

Replaced by #W11455147

?
Manufacturer substitution
This part replaces W11395131. Substitute parts can look different from the original.
$53.96 |
10% OFF Phone Price : $59.96
In Stock
M4-0.7 X 21 W10743274
#1

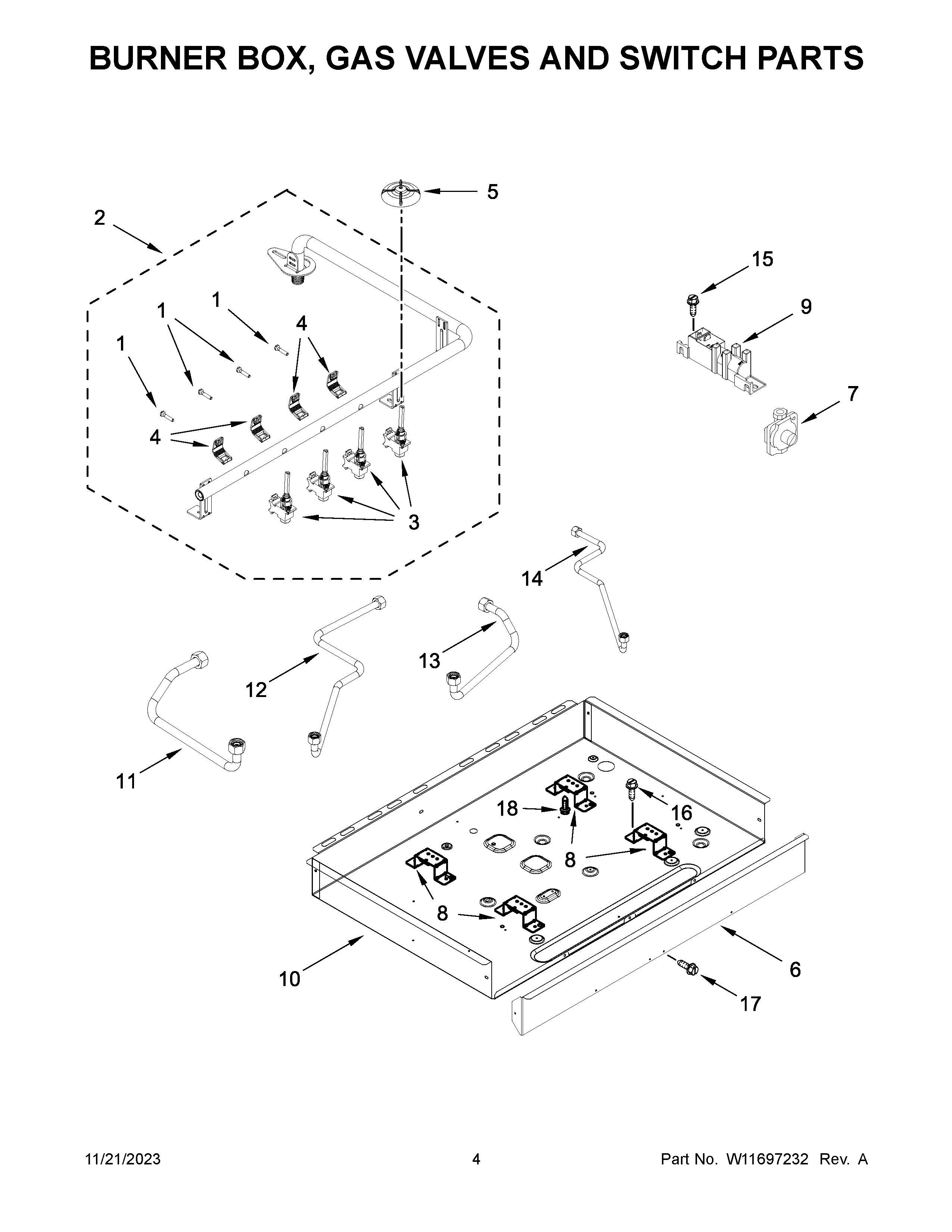

Burner box, gas valves and switch parts diagram

M4-0.7 x 21

Part #W10743274

Replaced by #8287057

?
Manufacturer substitution
This part replaces W10743274. Substitute parts can look different from the original.
This item is not returnable
$7.02
In Stock
Ikea Range Surface Burner Igniter Clip, Front And Left Rear W10827923
#5

Cooktop, burner and grate parts diagram

Ikea range surface burner igniter clip, front and left rear

Part #W10827923

Replaced by #W11684564

?
Manufacturer substitution
This part replaces W10827923. Substitute parts can look different from the original.
$7.57
In Stock
Cooktop Burner Valve Mounting Bracket 8287055
#4

Burner box, gas valves and switch parts diagram

Cooktop burner valve mounting bracket

Part #8287055

$29.89 |
17% OFF Phone Price : $35.89
In Stock
Cooktop Power Cord Strain Relief W10132200
#NI

Cooktop, burner and grate parts diagram

Cooktop power cord strain relief

Part #W10132200

This item is not returnable
$6.91
In Stock
Ikea Screw W10443110
#16

Burner box, gas valves and switch parts diagram

Ikea screw

Part #W10443110

$8.39
In Stock
Amana Seal-shaft, W11507167
#5

Burner box, gas valves and switch parts diagram

Amana seal-shaft,

Part #W11507167

$10.07
In Stock
Cooktop Power Cord W10392003
#NI

Cooktop, burner and grate parts diagram

Cooktop power cord

Part #W10392003

$64.09
In Stock
Orifice (right Rear) W11610057
#11D

Cooktop, burner and grate parts diagram

Orifice (right rear)

Part #W11610057

Replaced by #W11703343

?
Manufacturer substitution
This part replaces W11610057. Substitute parts can look different from the original.
$20.71
In Stock
Cooktop Pressure Regulator W10449143
#7

Burner box, gas valves and switch parts diagram

Cooktop pressure regulator

Part #W10449143

Replaced by #W11087445

?
Manufacturer substitution
This part replaces W10449143. Substitute parts can look different from the original.
$130.91 |
8% OFF Phone Price : $142.91
In Stock
