Model # NB500SL9 Official Sylvania dvd player

Here are the diagrams and repair parts for Official Sylvania NB500SL9 dvd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Power Pcb 1VSA18268
#P30

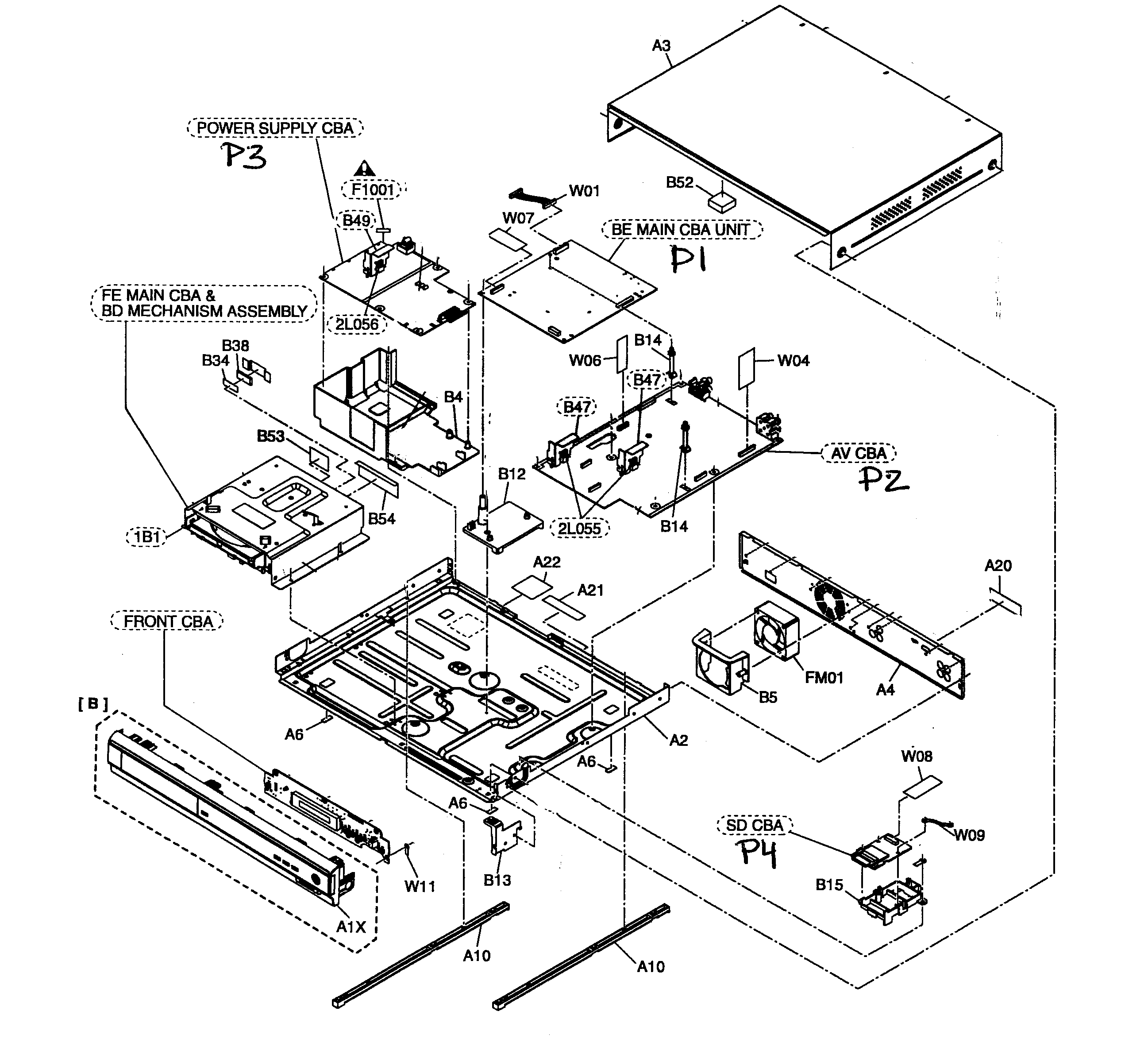

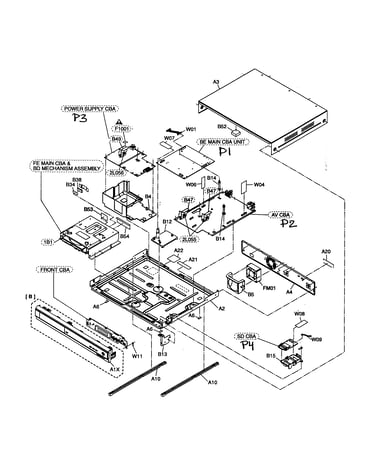

Cabinet parts diagram

Power pcb

Part #1VSA18268

The manufacturer no longer makes this part, and there's no substitute part

Capacitor CT2F104DC003
#NI

Cabinet parts diagram

Capacitor

Part #CT2F104DC003

The manufacturer no longer makes this part, and there's no substitute part

Sylvania Load 1VM225038E
#A1X

Cabinet parts diagram

Sylvania load

Part #1VM225038E

The manufacturer no longer makes this part, and there's no substitute part

Transformer LTT3PC0KT038
#NI

Cabinet parts diagram

Transformer

Part #LTT3PC0KT038

The manufacturer no longer makes this part, and there's no substitute part

Magnavox Dc Fan Motor MMEZR12XNR01
#FM01

Cabinet parts diagram

Magnavox dc fan motor

Part #MMEZR12XNR01

The manufacturer no longer makes this part, and there's no substitute part

Wire WX1E5E20-002
#W08

Cabinet parts diagram

Wire

Part #WX1E5E20-002

The manufacturer no longer makes this part, and there's no substitute part

Ic,switch QSZBA0TFD005
#NI

Cabinet parts diagram

Ic,switch

Part #QSZBA0TFD005

The manufacturer no longer makes this part, and there's no substitute part

Sylvania Hdmi Cable WPZ0202AP001
#NI

Cabinet parts diagram

Sylvania hdmi cable

Part #WPZ0202AP001

The manufacturer no longer makes this part, and there's no substitute part

Ic,regultr QSZBA0TSH074
#NI

Cabinet parts diagram

Ic,regultr

Part #QSZBA0TSH074

The manufacturer no longer makes this part, and there's no substitute part

Coil Filtr LLEG0Z0Y2026
#NI

Cabinet parts diagram

Coil filtr

Part #LLEG0Z0Y2026

The manufacturer no longer makes this part, and there's no substitute part
