Amana
Side-By-Side Refrigerator

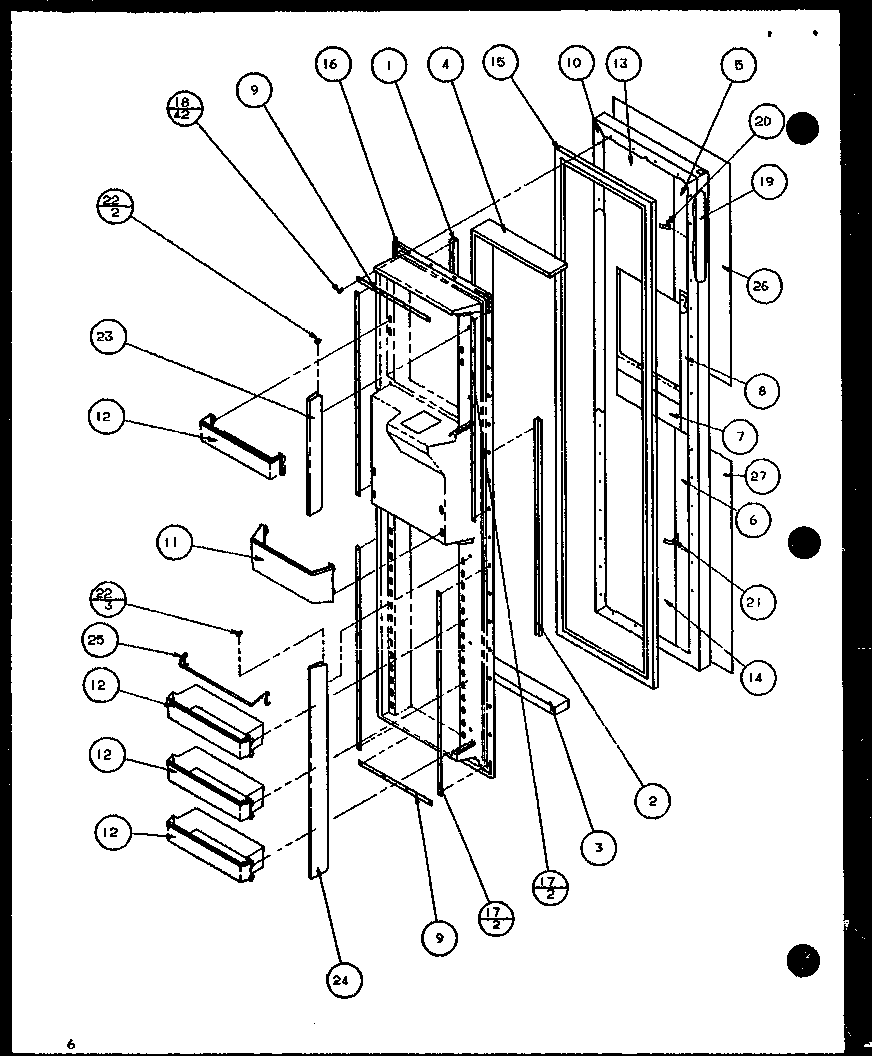

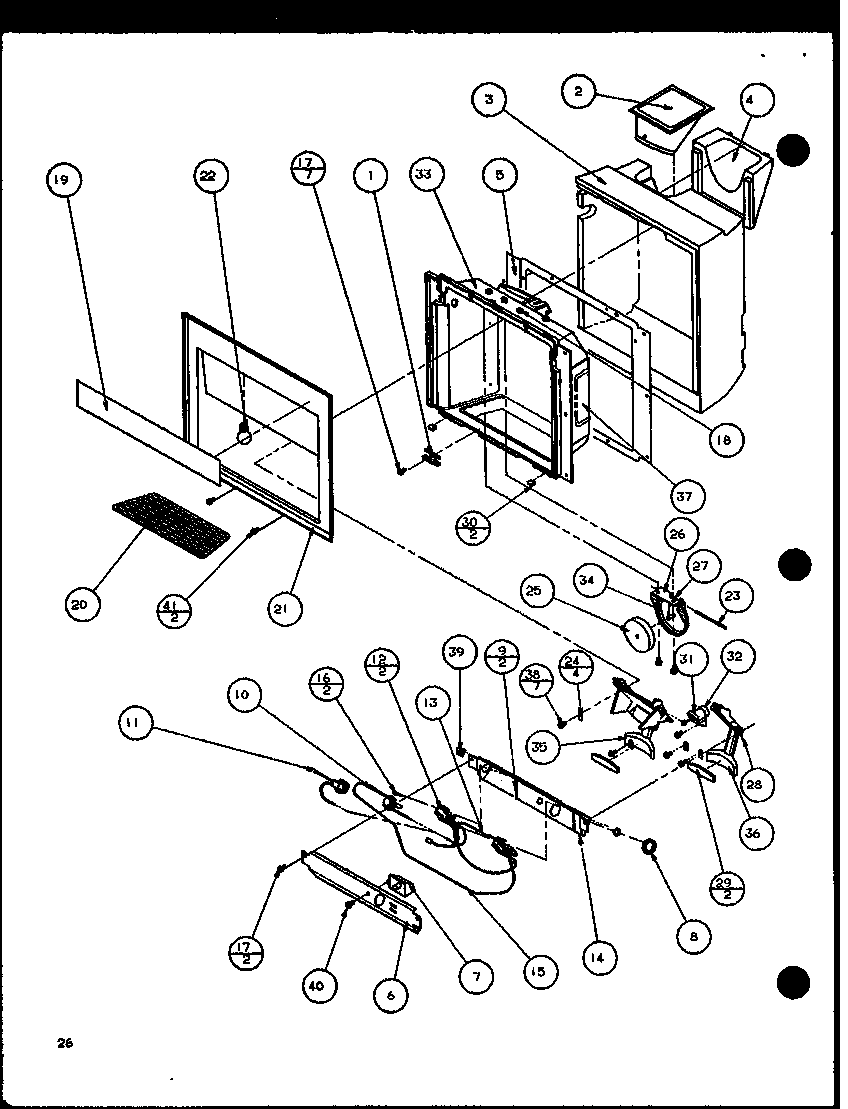

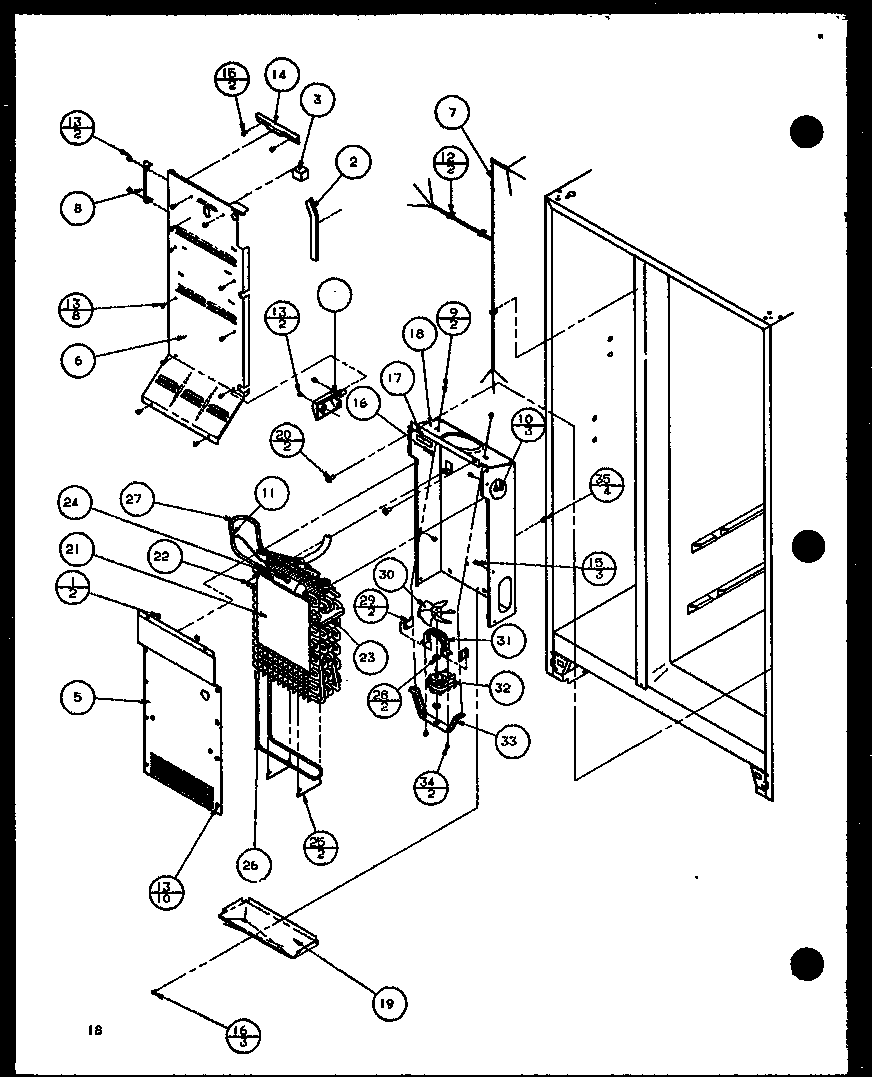

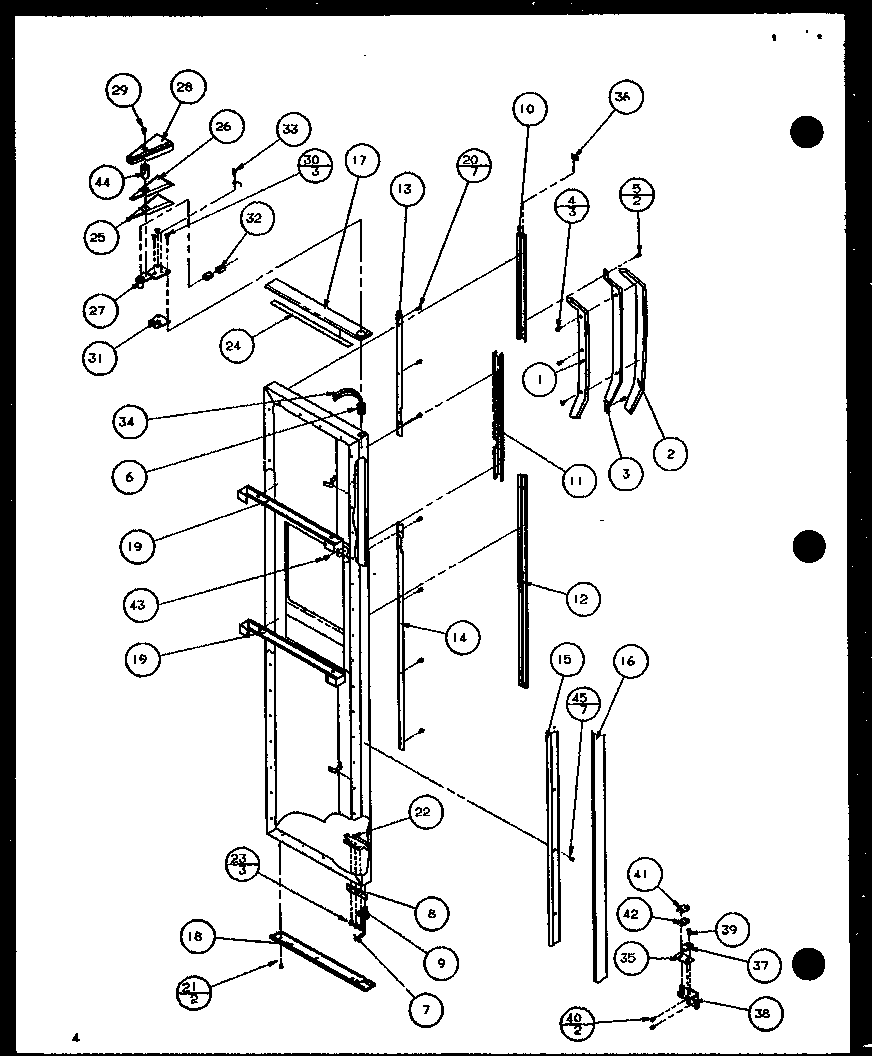

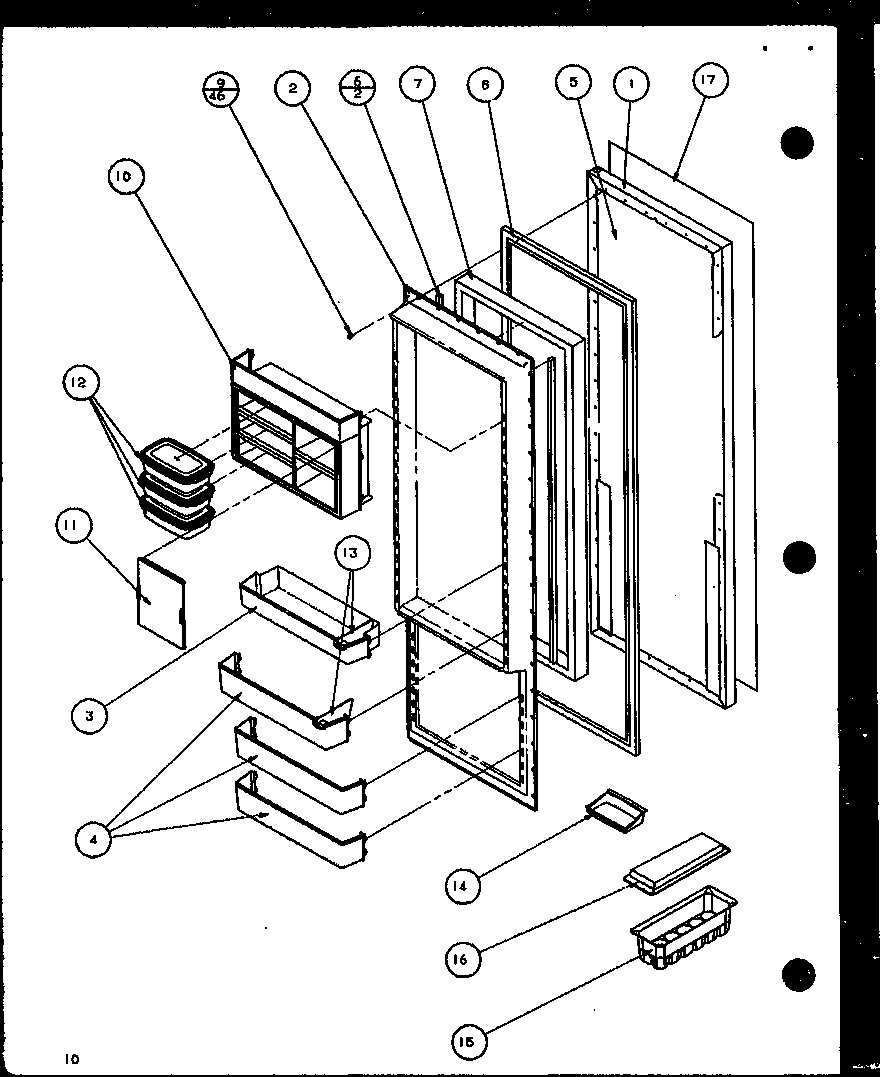

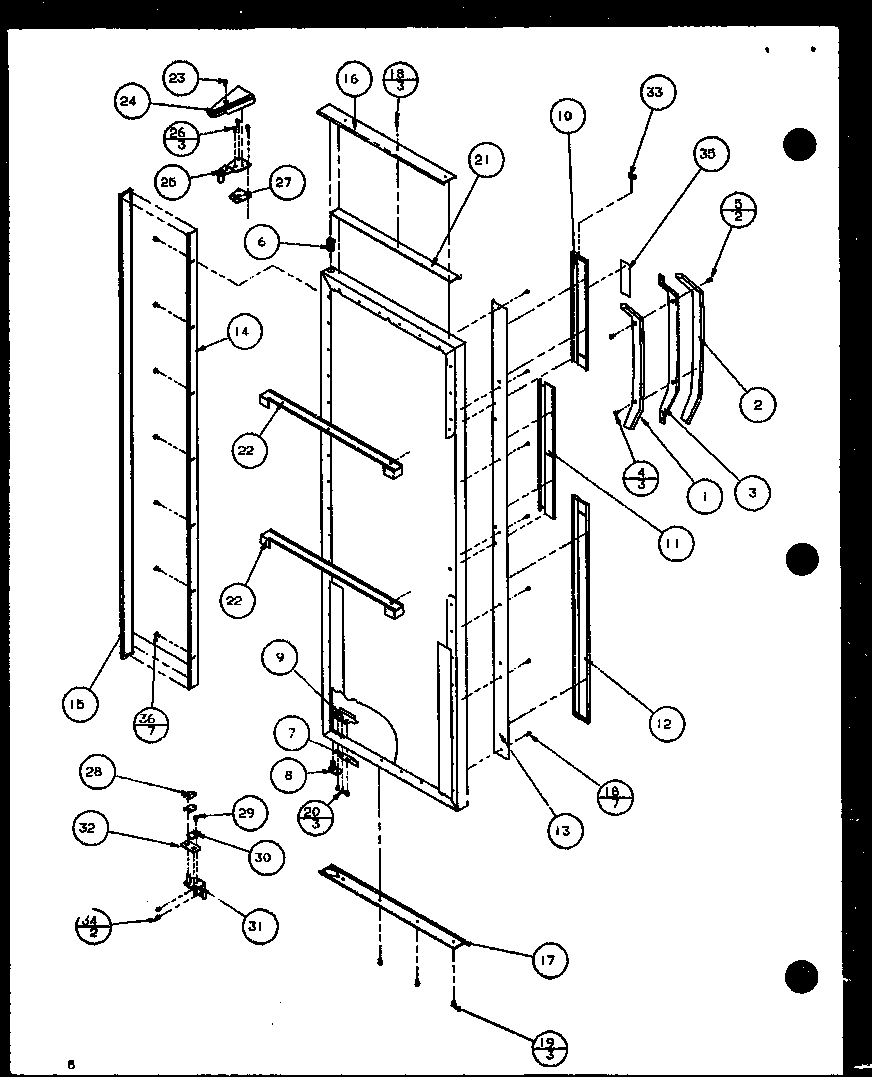

Model # 36081-P1108701W Official Amana side-by-side refrigerator with ice & water

Here are the diagrams and repair parts for Official Amana 36081-P1108701W side-by-side refrigerator with ice & water, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 443 parts  |
Mold & Heatr R0156669
#3

(36081/p1108701w) (36091/p1108703w) (36098/p1108704w) diagram

Mold & heatr

Part #R0156669

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces R0156669. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Ice Maker D7824701
#19

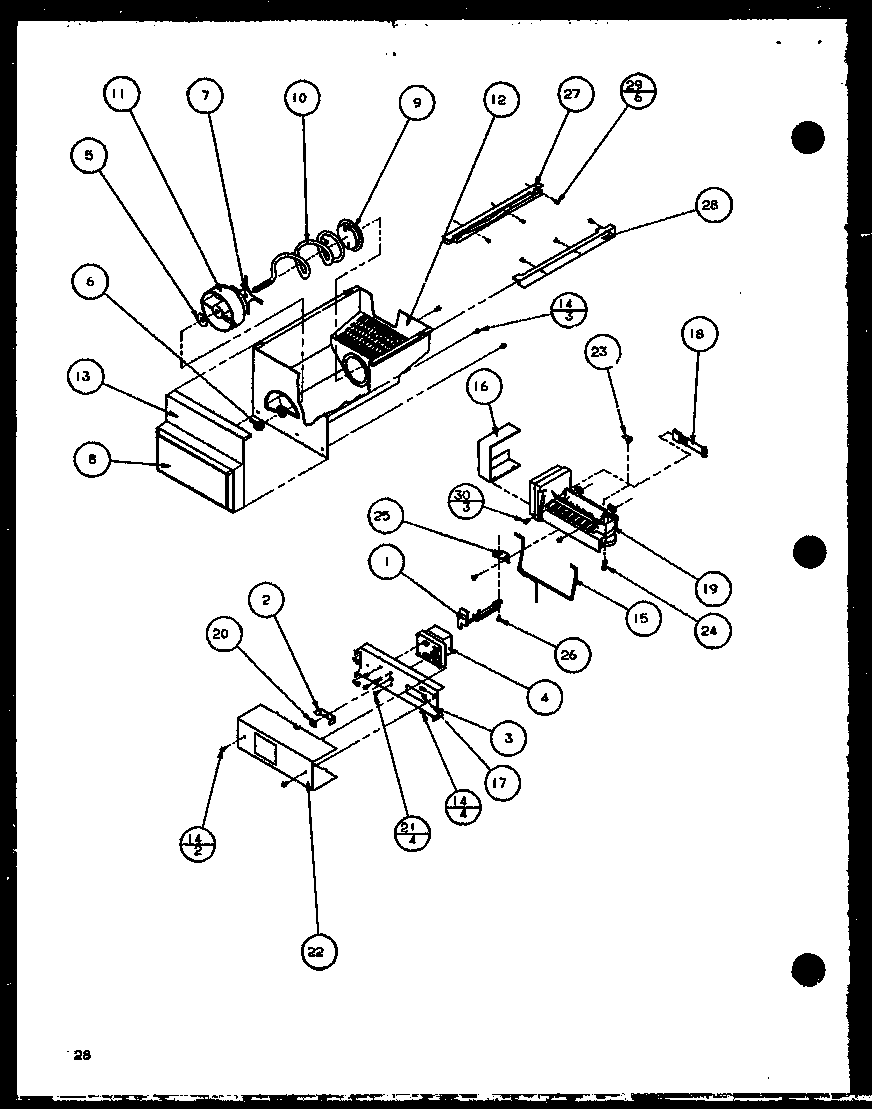

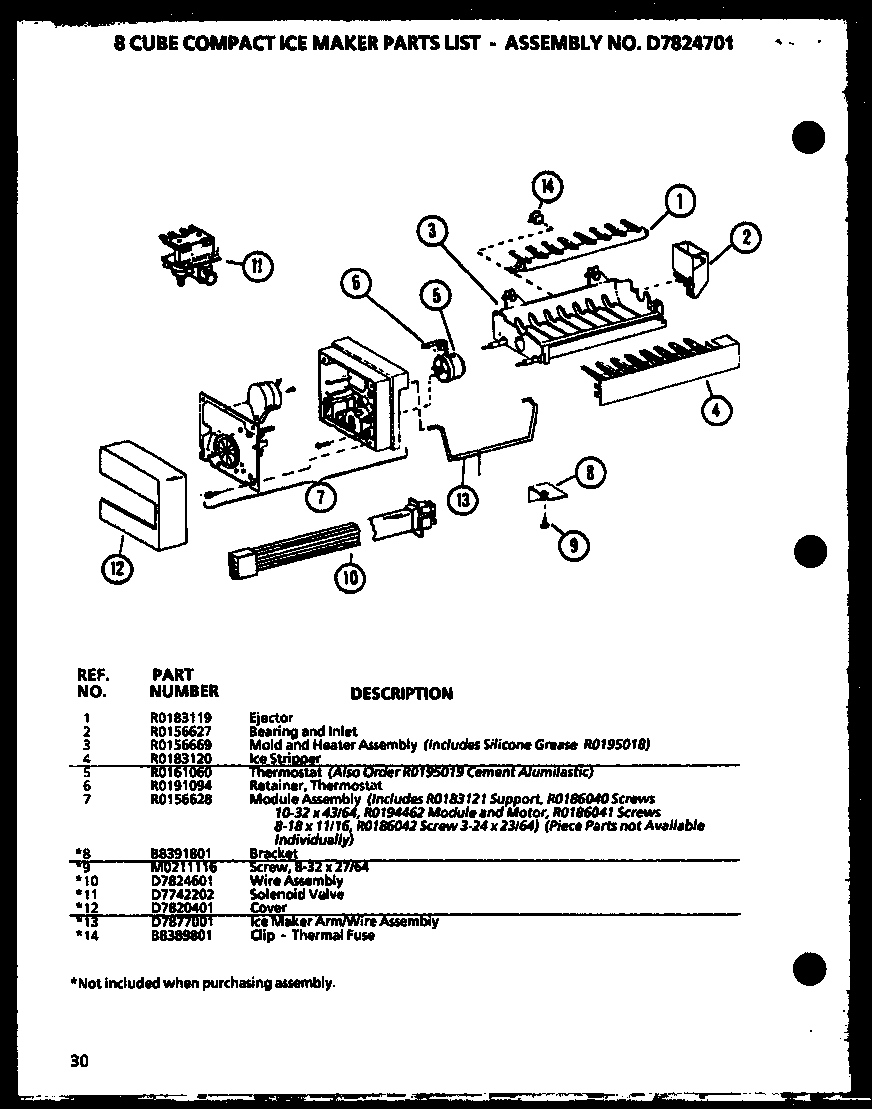

Ice bucket and ice maker (36081/p1108701w) (36091/p1108703w) (36098/p1108704w) (36088/p11108702w) diagram

Refrigerator ice maker

Part #D7824701

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824701. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Module Assembly R0156628
#7

(36081/p1108701w) (36091/p1108703w) (36098/p1108704w) diagram

Refrigerator module assembly

Part #R0156628

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces R0156628. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Ice Maker R0161060
#5

(36081/p1108701w) (36091/p1108703w) (36098/p1108704w) diagram

Refrigerator ice maker

Part #R0161060

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
#15

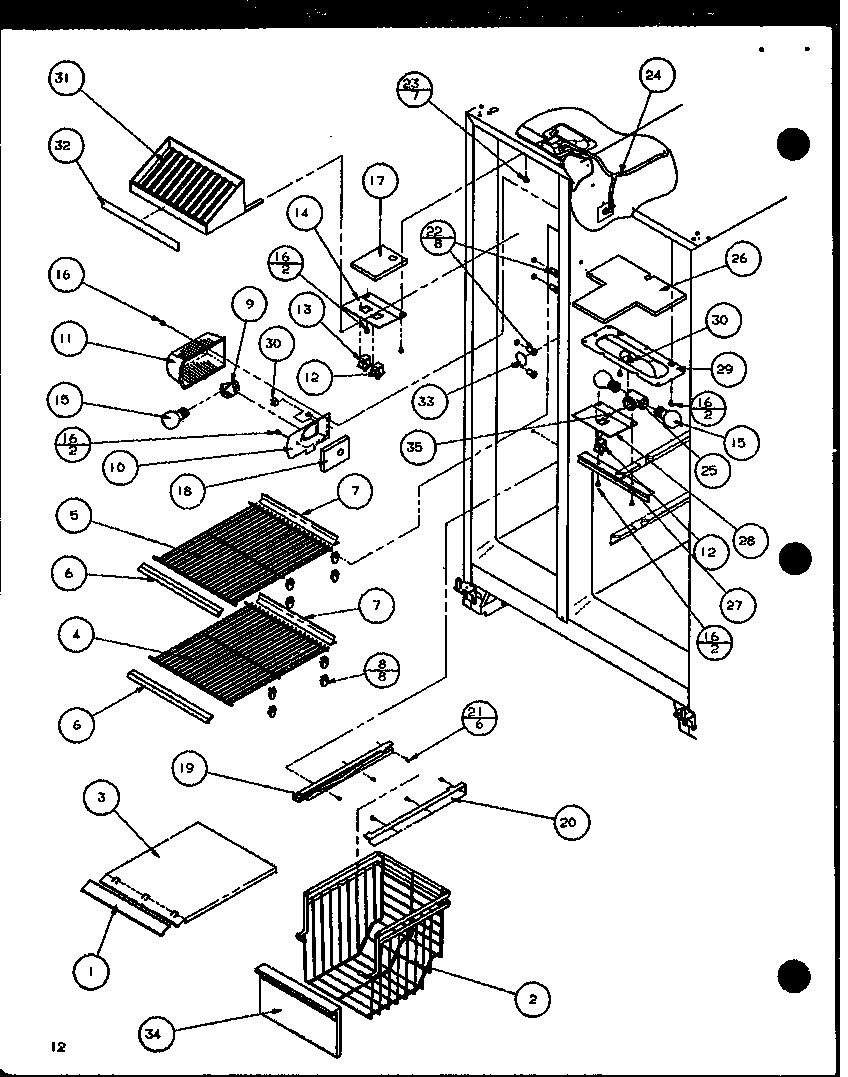

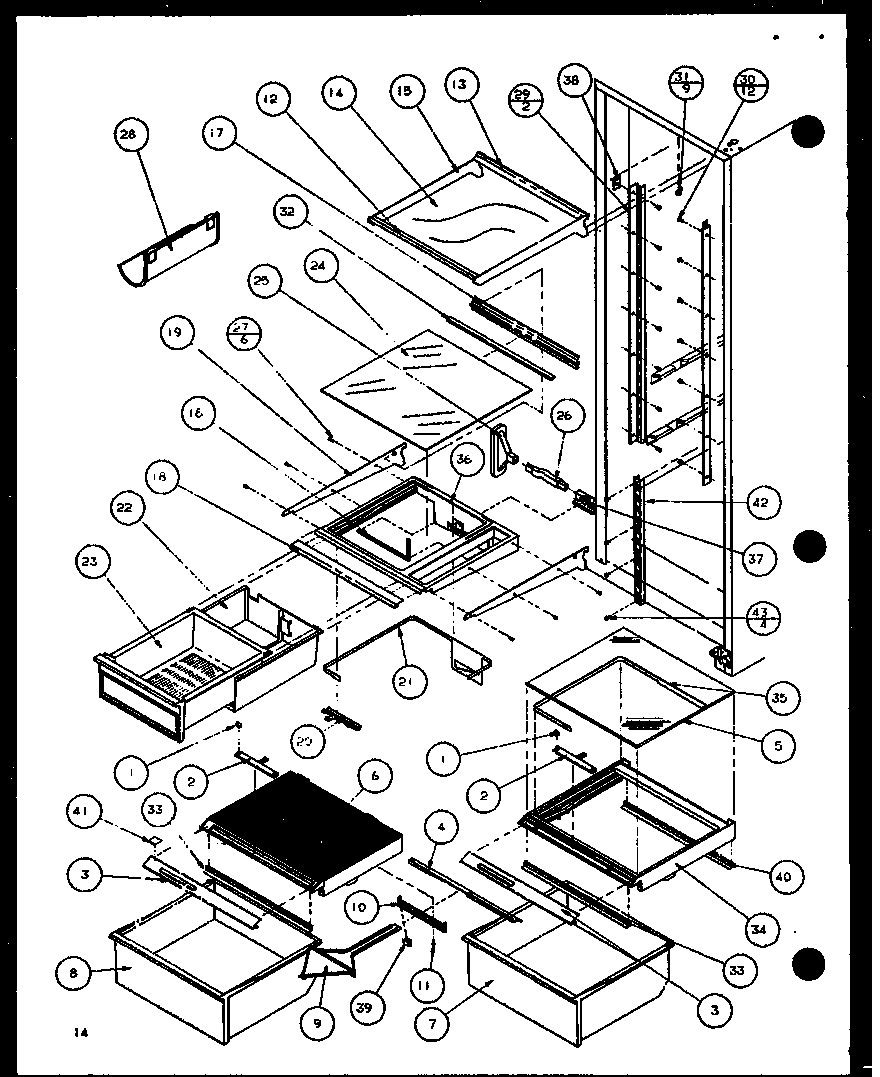

Freezer shelving and refrigerator light (36081/p1108701w) (36088/p1108702w) (36091/p1108703w) (36098/p1108704w) diagram

Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Switch C3680304
#12

Freezer shelving and refrigerator light (36081/p1108701w) (36088/p1108702w) (36091/p1108703w) (36098/p1108704w) diagram

Switch

Part #C3680304

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680304. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Capacitor C8931602
#22

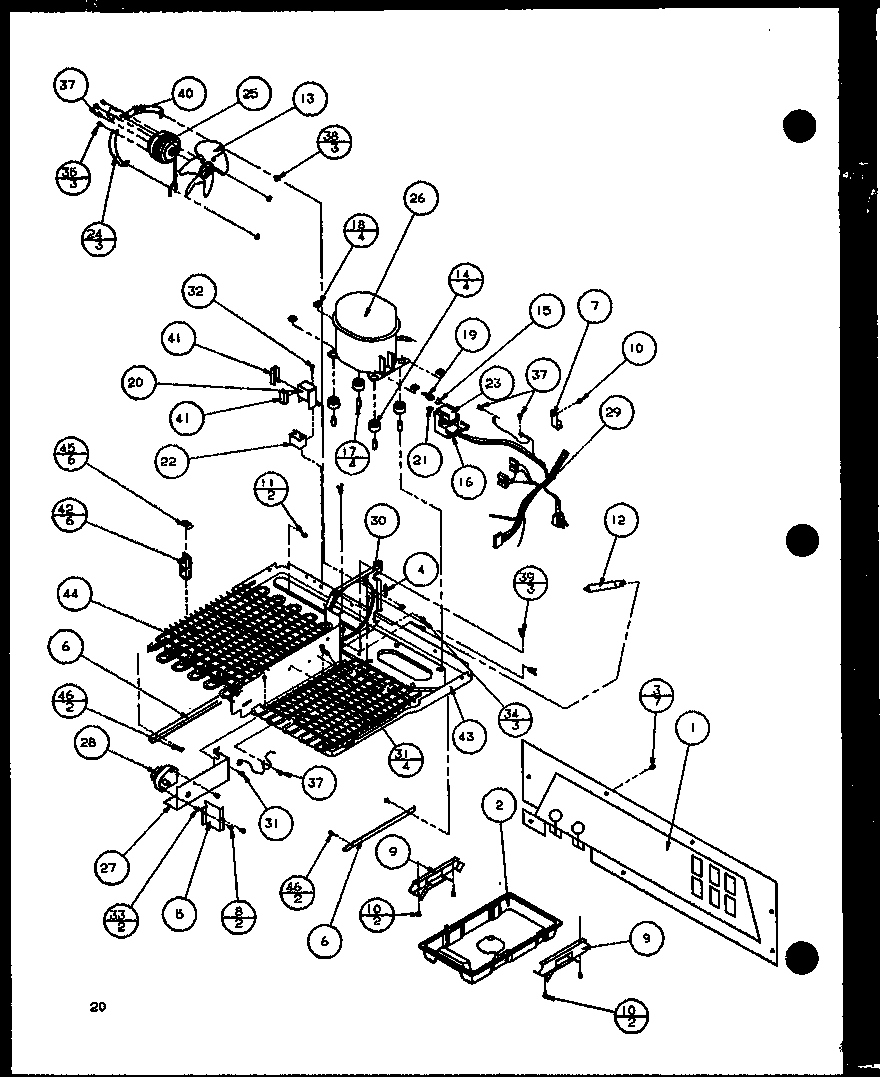

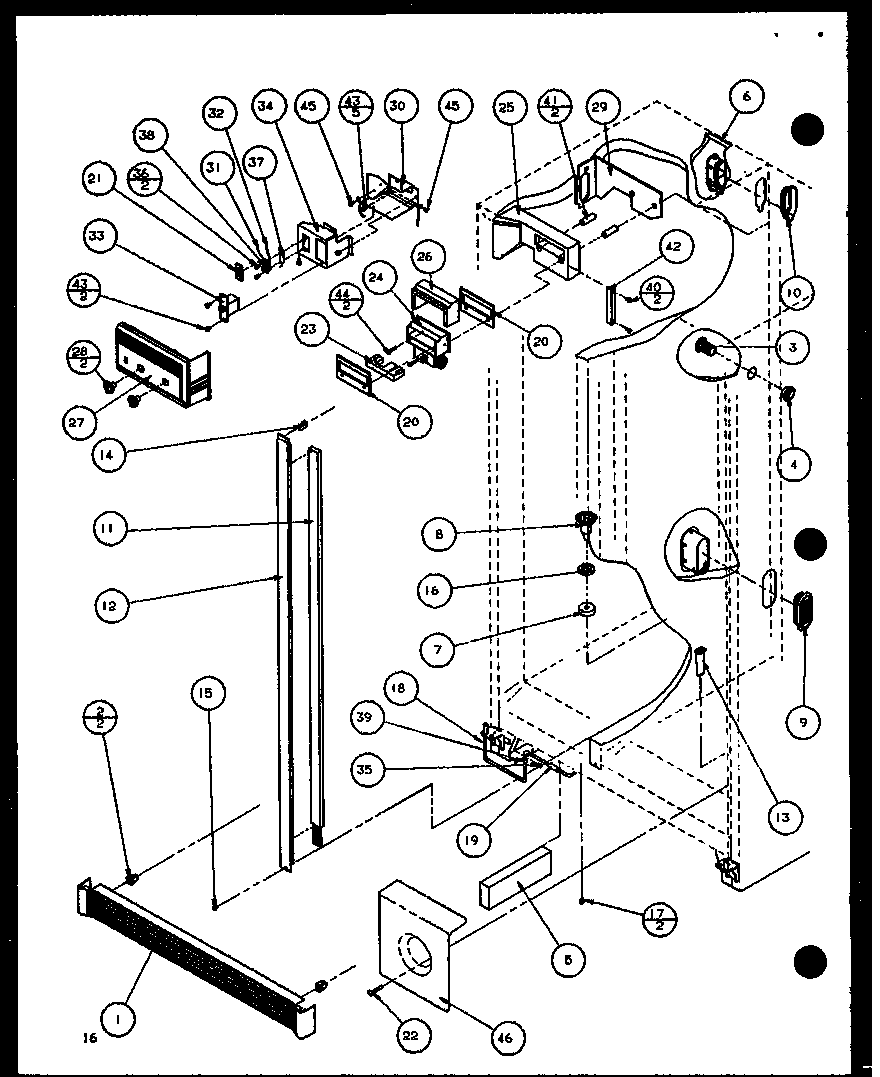

Machine compartment (36081/p1108701w) (36088/p1108702w) (36091/p1108703w) (36098/p1108704w) diagram

Refrigerator capacitor

Part #C8931602

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces C8931602. Substitute parts can look different from the original.
BEST SELLER
$52.20 |
10% OFF Phone Price : $58.20
In Stock
Refrigerator Fan Motor D7584002
#25

Machine compartment (36081/p1108701w) (36088/p1108702w) (36091/p1108703w) (36098/p1108704w) diagram

Refrigerator fan motor

Part #D7584002

Replaced by #833697

?
Manufacturer substitution
This part replaces D7584002. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock

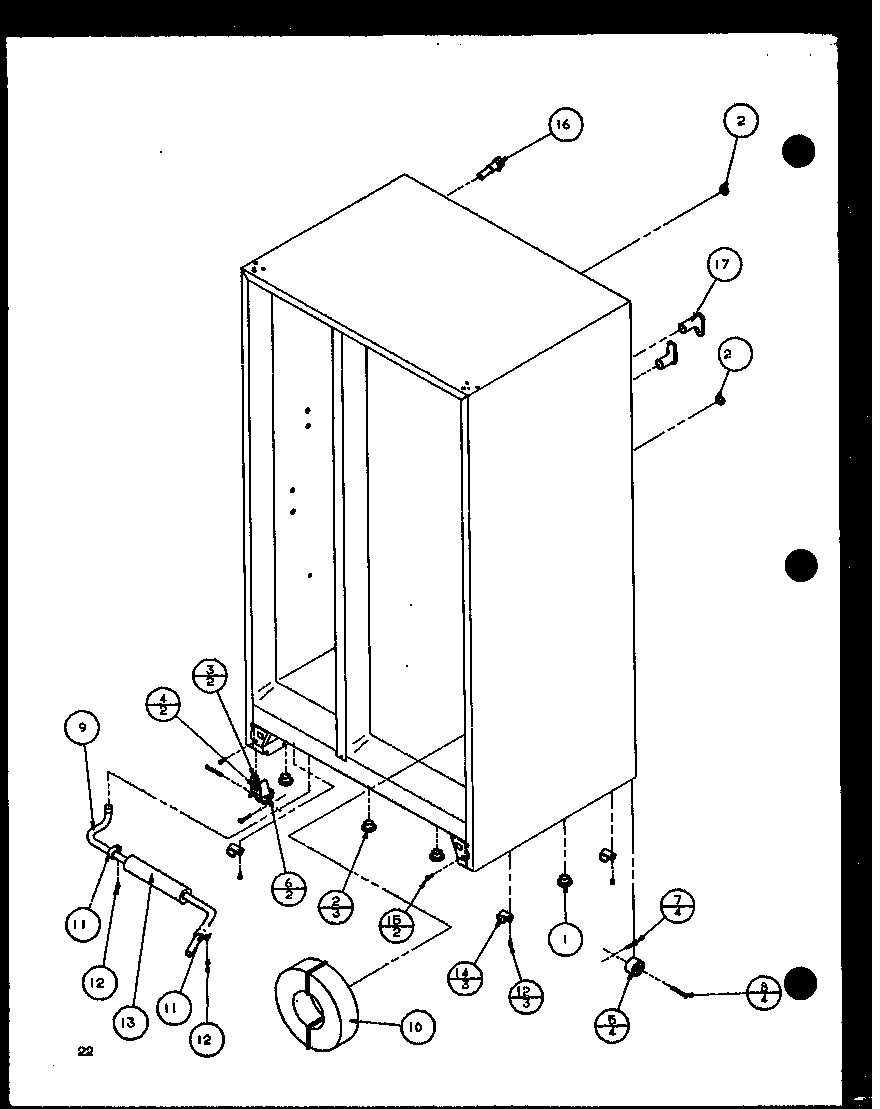

Refrigerator Dispenser Water Tube B5705308
Refrigerator dispenser water tube

Part #B5705308

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces B5705308. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock

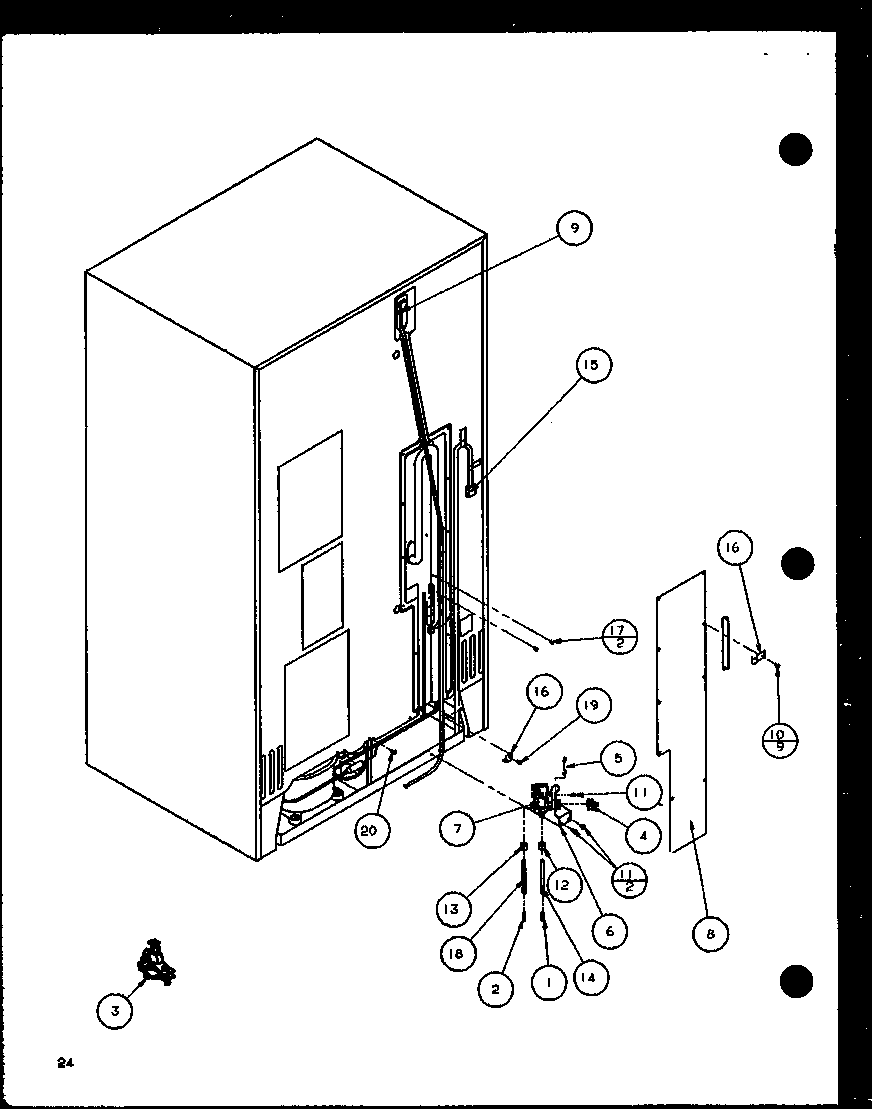

Refrigerator Tubing B5705320
#6

Refrigerator (36081/p1108701w) (36088/p1108702w) (36091/p1108703w) (36098/p1108704w) diagram

Refrigerator tubing

Part #B5705320

Replaced by #WPB5705307

?
Manufacturer substitution
This part replaces B5705320. Substitute parts can look different from the original.
This item is not returnable
$10.02 |
17% OFF Phone Price : $12.02
In Stock
