Model # HE2966T981CSA Official Maytag electric water heater

Here are the diagrams and repair parts for Official Maytag HE2966T981CSA electric water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 22 parts |

#21

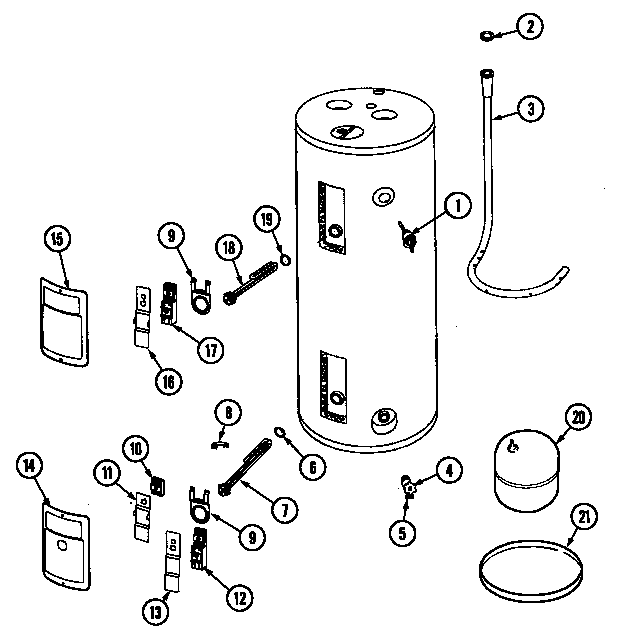

Body diagram

Drain pan

Part #66001012

The manufacturer no longer makes this part, and there's no substitute part

#12

Body diagram

Lower thermostat

Part #66001008

The manufacturer no longer makes this part, and there's no substitute part

Body diagram

Gasket, dip

Part #9002277

The manufacturer no longer makes this part, and there's no substitute part

#13

Body diagram

Terminal cover

Part #9002303

The manufacturer no longer makes this part, and there's no substitute part

Elem htg 380

Part #66001001

The manufacturer no longer makes this part, and there's no substitute part

Body diagram

Dip tube

Part #9002058

The manufacturer no longer makes this part, and there's no substitute part

Body diagram

Boss bak kit

Part #9001591

The manufacturer no longer makes this part, and there's no substitute part

Water Heater Heating Element Gasket 66001053

#19

Body diagram

Water heater heating element gasket

Part #66001053

The manufacturer no longer makes this part, and there's no substitute part

Body diagram

Drain valve

Part #66001015

The manufacturer no longer makes this part, and there's no substitute part

Body diagram

Element gasket

Part #9000308

The manufacturer no longer makes this part, and there's no substitute part
